House Plans
Plan Summary
-
Stories
2
-
Bedrooms
6
-
Bathrooms
4
-
Garage
3 car
-
Width x Length
60' x 76'
-
First Floor Sq Ft
2521
-
Second Floor Sq Ft
1435
-
Total AC Sq Ft
3956
-
Total Under Roof Sq Ft
5011
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

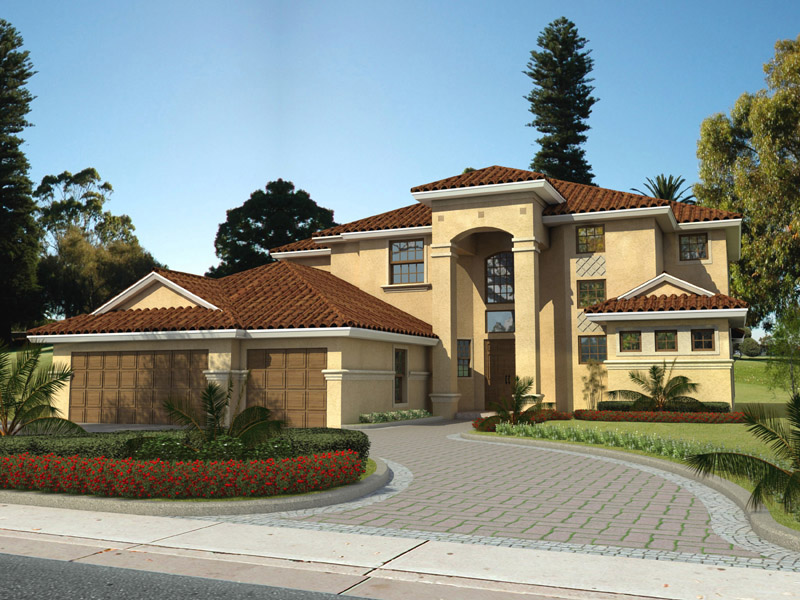

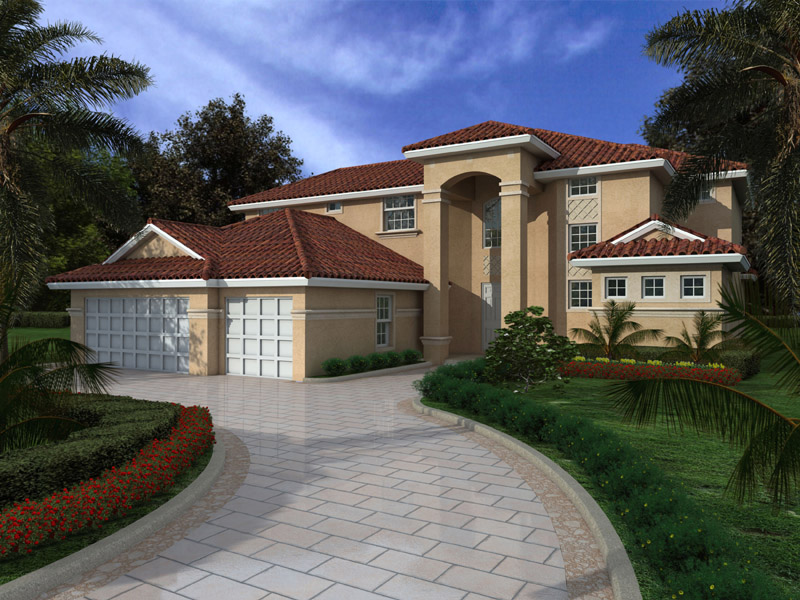

This 3,956 sq. ft., home floor plan features six bedrooms, three full bathrooms, a cabana bathroom and a three-car garage. This classic Florida-style home has a towering covered entrance. This unique design features a large media room. High ceilings and two volume spaces make this design feel “larger than life.” The gourmet island kitchen with an eating bar, cafe and pantry opens to a media room. A large living room opens to the patio. The formal dining room has tray ceilings. This model features optional elevations. The exclusive master suite has large walk-in closets, tray ceilings and a luxurious master bath. Get this home floor plan today.
Dimensions
- Width x Length 60' x 76'
- Height 29'-7
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location Left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 6
- Possible 0
- Total 6
Bathrooms
- Full 3
- Half 0
- Total 4

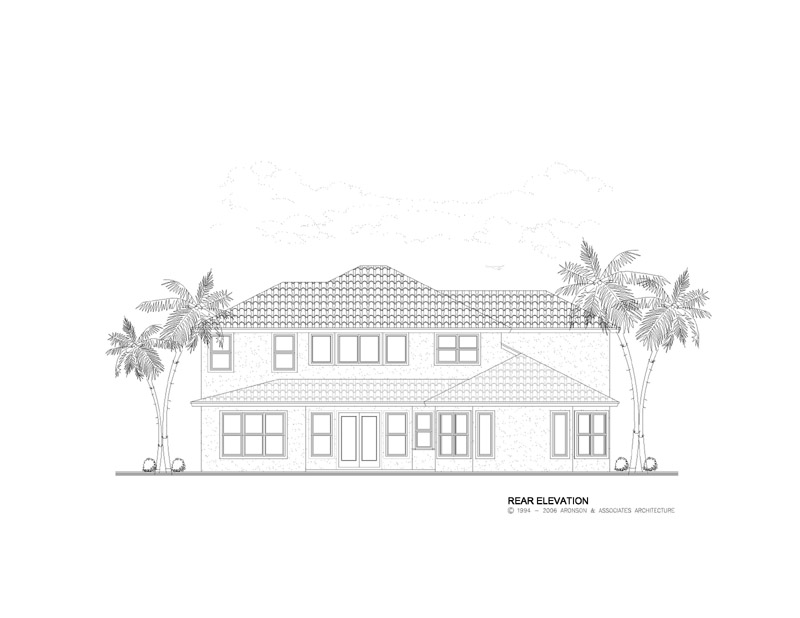

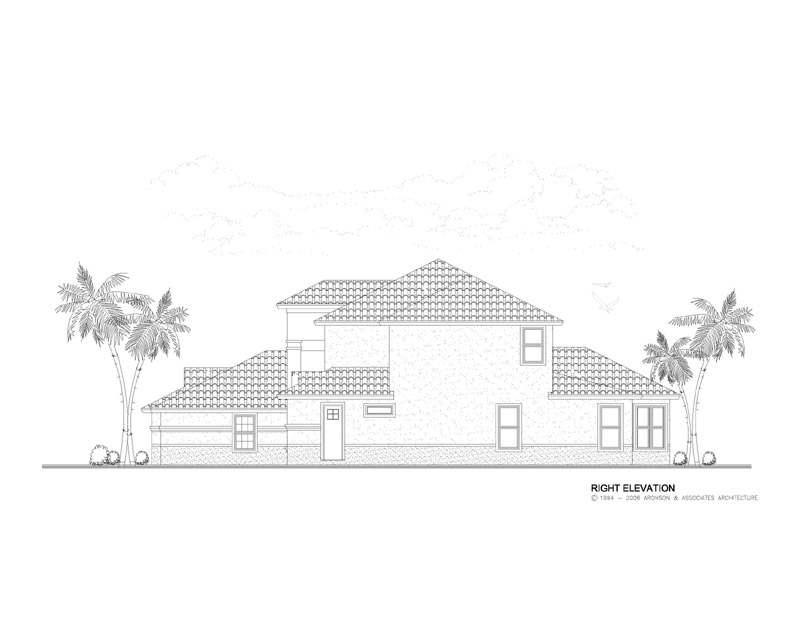

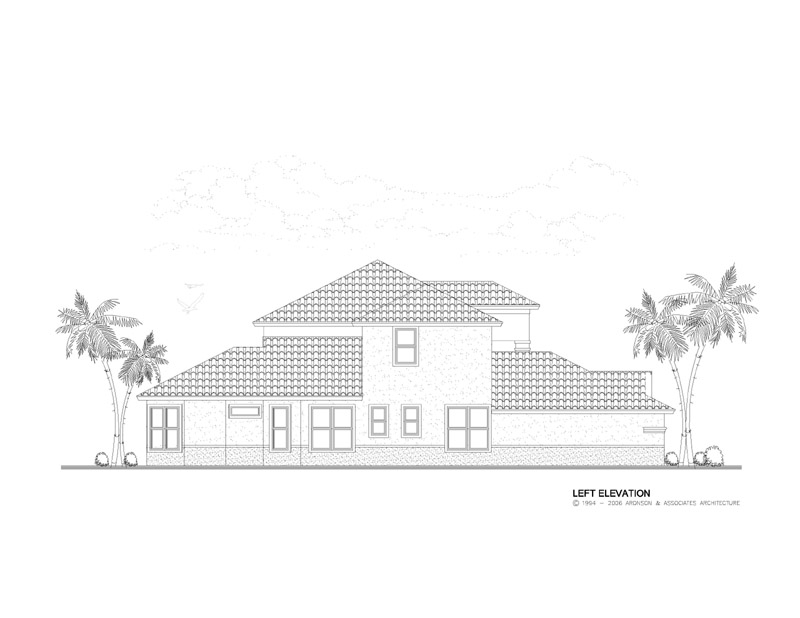

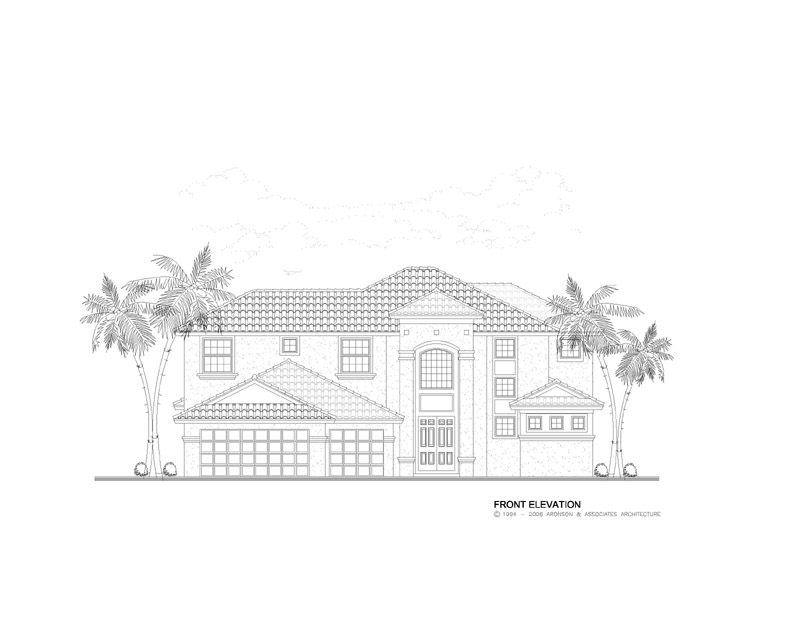

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 2
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1400
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2100
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $900
- (Extra Sets: $50)
- More Information
3 Sets Price: $1000
- (Extra Sets: $50)
- More Information
5 Sets Price: $1100
- (Extra Sets: $50)
- More Information
8 Sets Price: $1250
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1400
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Wood
- Spacing 24
- Subfloor wood
- Thickness 3/4
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

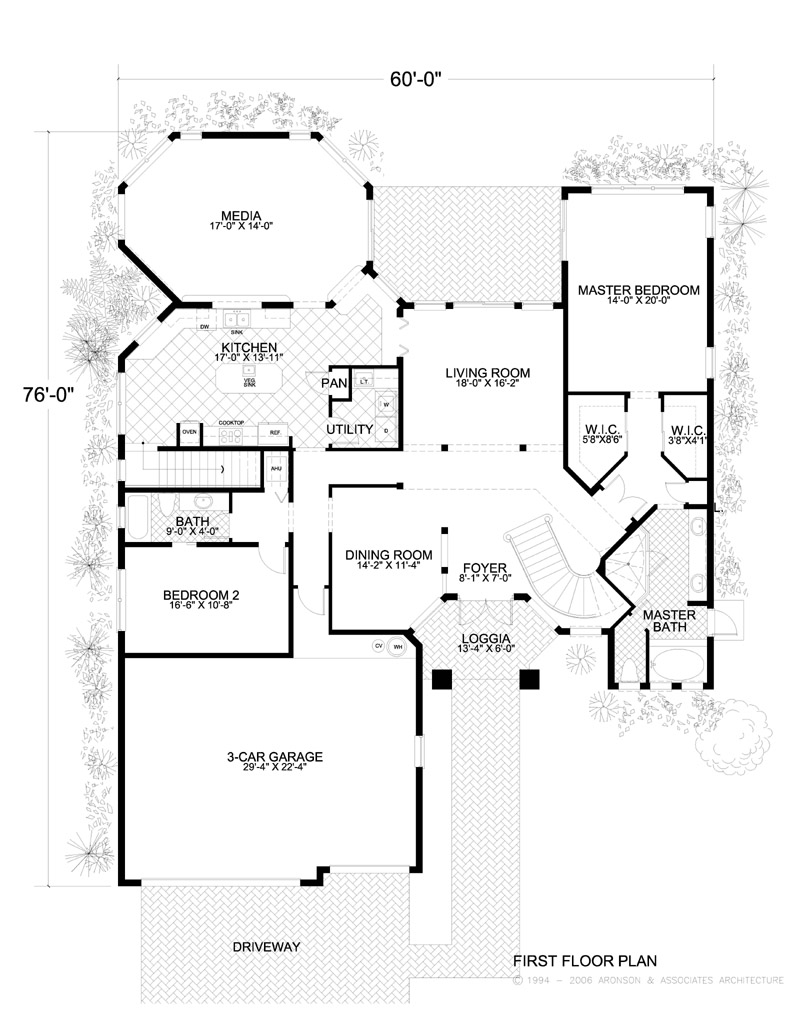

First Floor
- Primary Living 10'
- Secondary Living 10'
- Primary Bedrooms 0
- Secondary Bedrooms 10'
- Bathrooms 10'
- Common Areas 10'

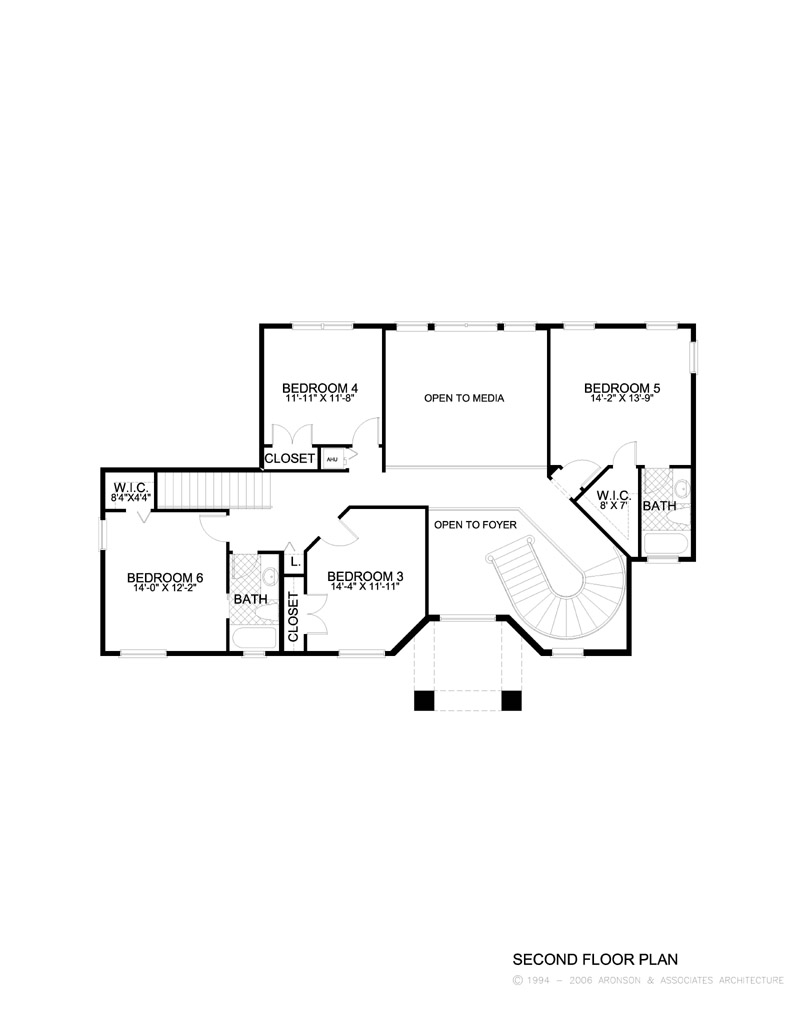

Second Floor
- Primary Bedrooms 0
- Secondary Bedrooms 9'-3
- Bathrooms 9'-3
- Common Areas 9'-3
Exterior
- Garage 10'
- Covered Entry 23'-10
- Covered Patio 10'
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2521
- Second Floor AC 1435
- Total AC 3956
Total Under Roof Sq Ft
- Garage 741
- Covered Entry 98
- Covered Patio 216
- Covered Balconies 0
- Total Under Roof 5011
