House Plan Model 3983-0422

Browsing: By Two Story

Home Rendering

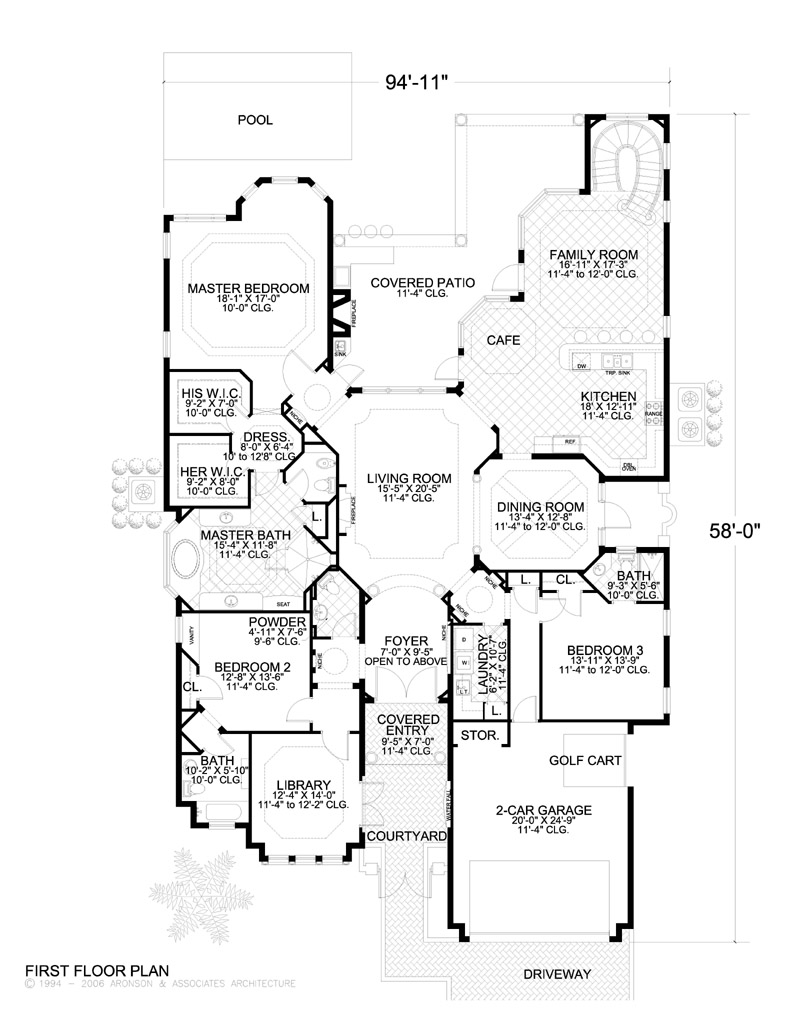

First Floor Plan

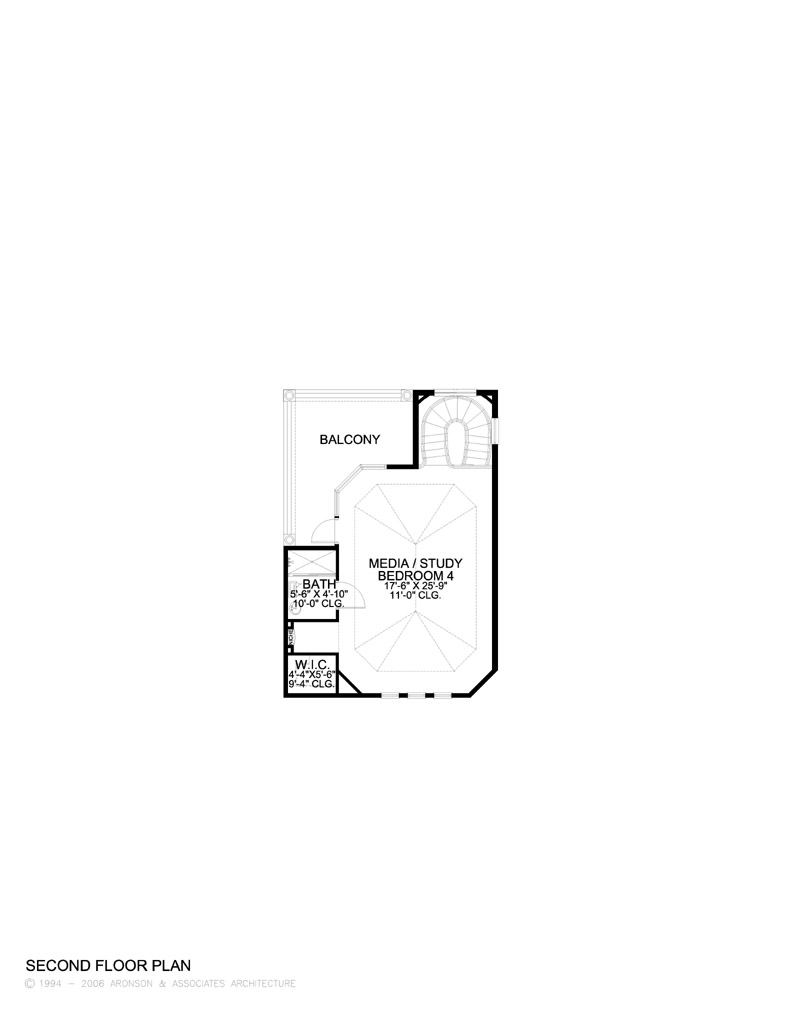

Second Floor Plan
Home Front Elevation View
Home Rear Elevation View
Home Left Elevation View
Home Right Elevation View
Home Rendering
First Floor Plan
Second Floor Plan
Home Front Elevation View
Home Rear Elevation View
Home Left Elevation View
Home Right Elevation View

Plan Summary

  • Stories

    2

  • Bedrooms

    4

  • Bathrooms

    4

  • Garage

    2 car

  • Width x Length

    58' x 95'

  • First Floor Sq Ft

    3397

  • Second Floor Sq Ft

    586

  • Total AC Sq Ft

    3983

  • Total Under Roof Sq Ft

    5304

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This luxurious, 3,983 sq. ft., two-story, classic-style home floor plan has three bedrooms, four and one-half bathrooms and a three-car garage. Columns and arches provide strong curb appeal. There is a unique accent of a grand covered entrance and library that graces this home. The model includes an exclusive master suite with exceptionally large “His and Hers” walk-in closets, stylish tray ceiling, a sitting area and luxurious master bath opening to a private covered patio. An open foyer invites you into the over-sized living room; a perfect setting to host large festivities. The large covered patio features a summer kitchen. Pick up this home floor plan today.

Dimensions

  • Width x Length 58' x 95'
  • Height 32'-3
  • Stories 2/

Garage

  • Number of Cars 2
  • Attached Yes
  • Location Right

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 4
  • Possible 0
  • Total 4

Bathrooms

  • Full 4
  • Half 1
  • Total 4

Elevation

  • Finishes Stucco
  • Master Bedroom Location 1
  • Utility Location 2

Features

  • Fireplace Yes
  • Elevator No
  • Pool Yes
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1400

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2100

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $900

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1000

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1100

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1250

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1400

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type Wood truss
  • Spacing 24
  • Subfloor wood
  • Thickness 3/4

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living 19' to 20'-4
  • Secondary Living 11'-4 to 12'-8
  • Primary Bedrooms 11'-4
  • Secondary Bedrooms 11'-4
  • Bathrooms 11'-4
  • Common Areas 11'-4

Second Floor

  • Primary Bedrooms 0
  • Secondary Bedrooms 10'
  • Bathrooms 10'
  • Common Areas 10'

Exterior

  • Garage 11'-4
  • Covered Entry 0
  • Covered Patio 0
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 3397
  • Second Floor AC 586
  • Total AC 3983

Total Under Roof Sq Ft

  • Garage 550
  • Covered Entry 66
  • Covered Patio 519
  • Covered Balconies 186
  • Total Under Roof 5304
