House Plan Model 3985-01113

Browsing: By One Story

Luxury House Plan

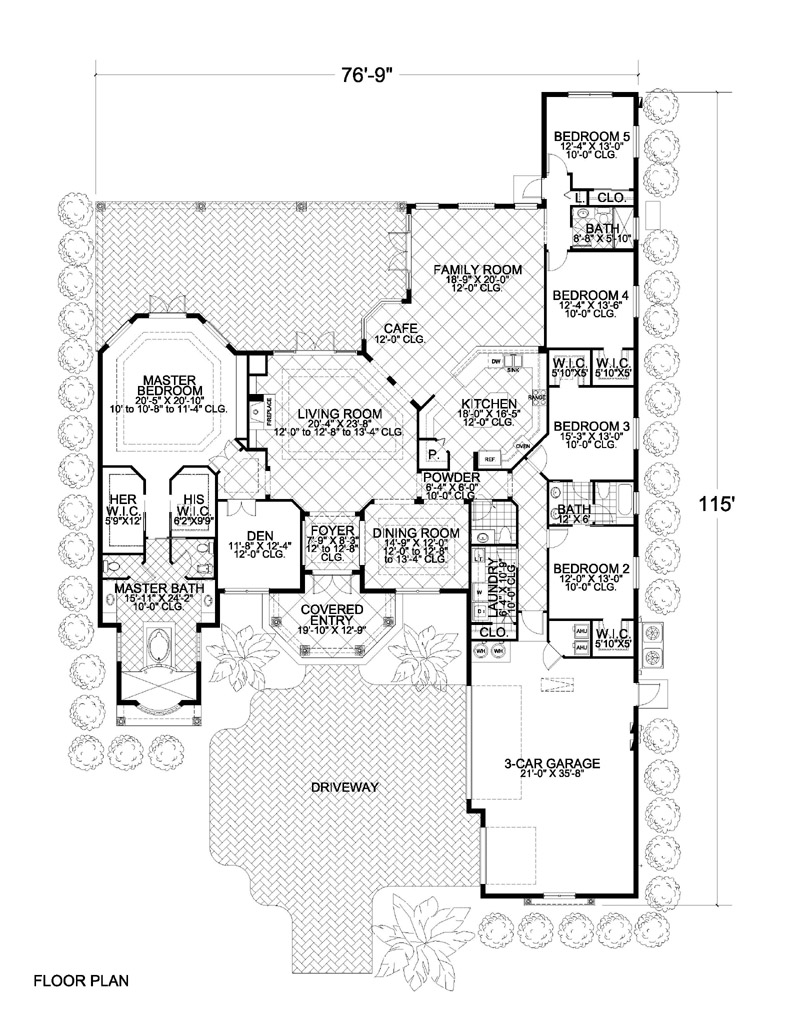

Luxury Home Floor Plan

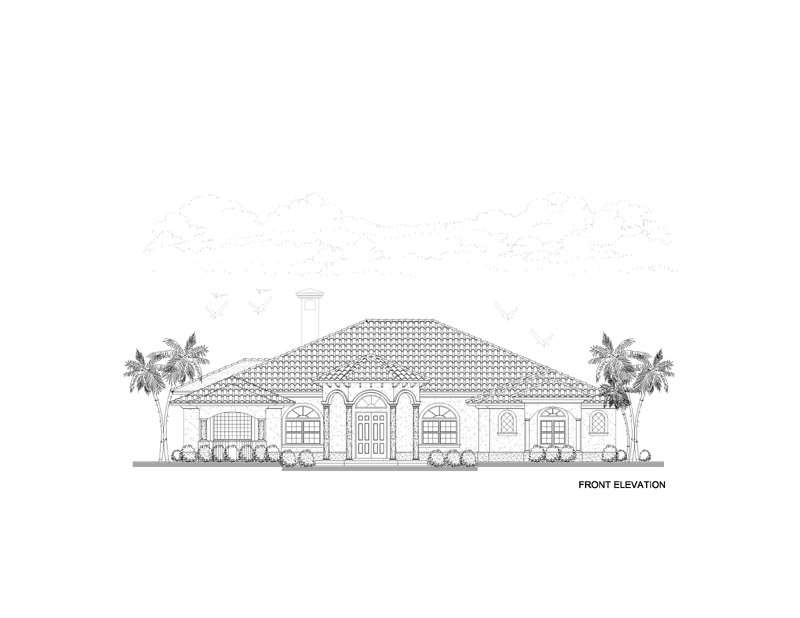

Front Elevation View of Home

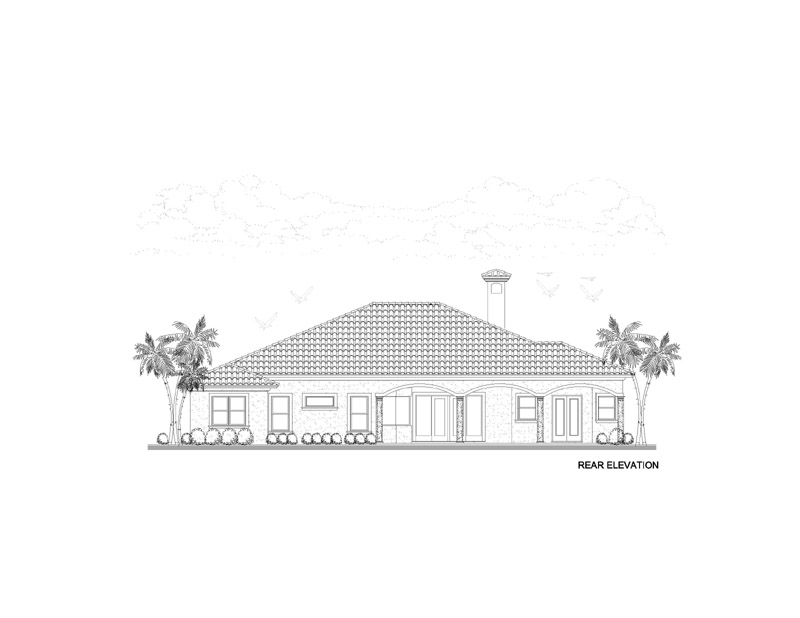

Rear Elevation View of Home

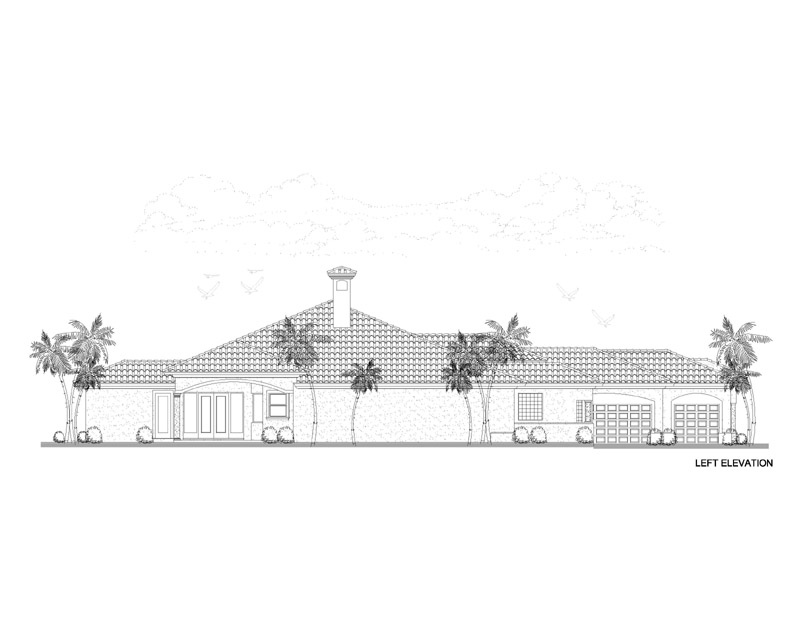

Home View Left Elevation

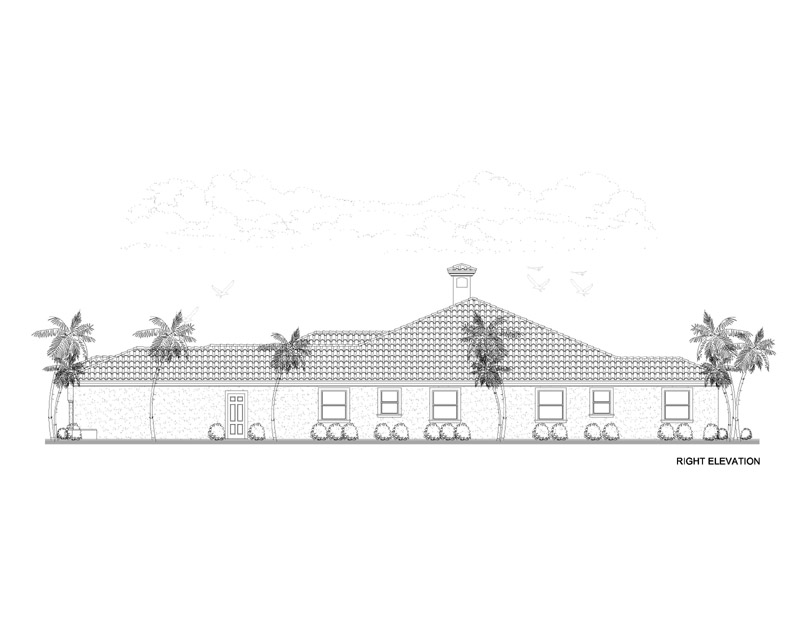

Right Elevation of Home
Luxury House Plan
Luxury Home Floor Plan
Front Elevation View of Home
Rear Elevation View of Home
Home View Left Elevation
Right Elevation of Home

Plan Summary

  • Stories

    1

  • Bedrooms

    5

  • Bathrooms

    3

  • Garage

    3 car

  • Width x Length

    76'9" x 115'0"

  • First Floor Sq Ft

    3985

  • Total AC Sq Ft

    3985

  • Total Under Roof Sq Ft

    5812

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends
