PLAN SUMMARY
-
Stories
2
-
Bedrooms
5
-
Bathrooms
4
-
Garage
3 car
-
Width x Length:
64' 10" x 64' 2"
-

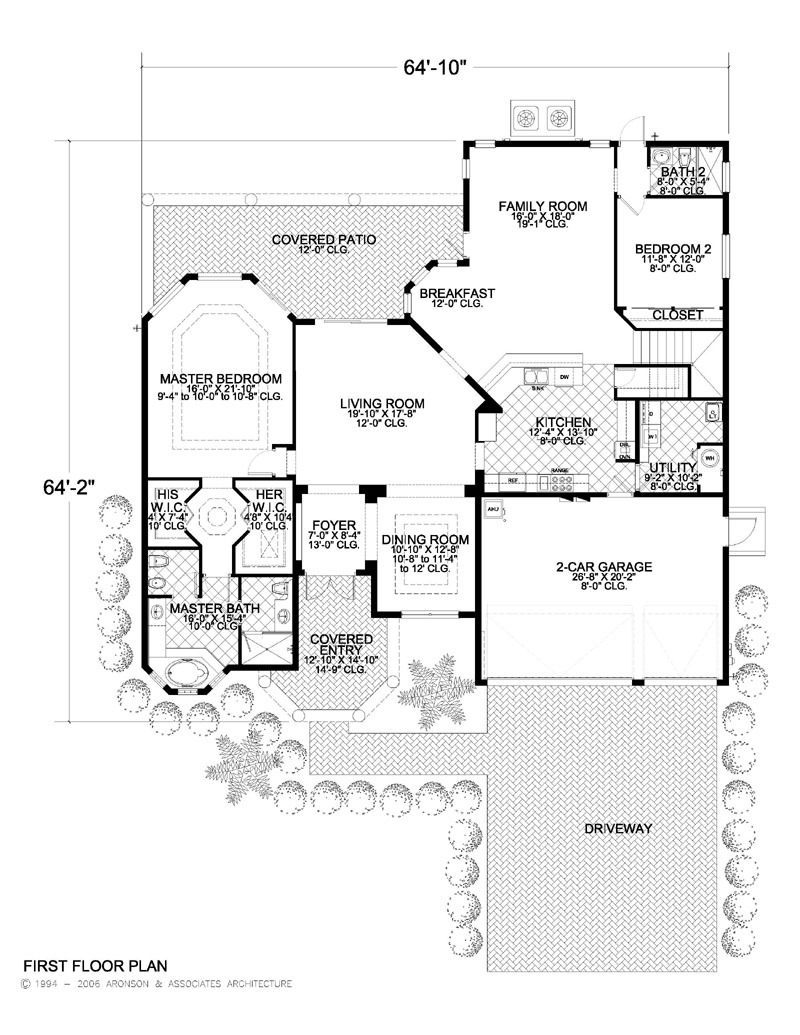

First Floor Sq Ft
2,521 Sq. Ft.
-

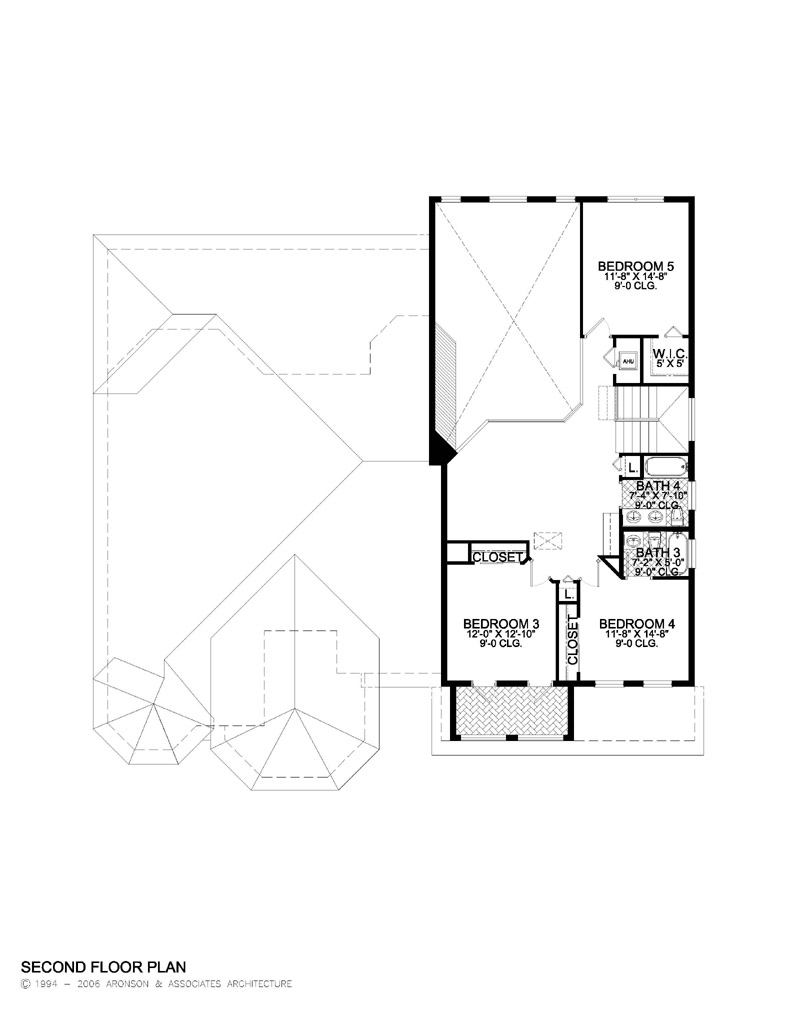

Second Floor Sq Ft
1,490 Sq. Ft.
-
Total AC Sq Ft
4,011 Sq. Ft.
-
Total Under Roof Sq Ft
5,244 Sq. Ft.
$0.00
Plan Description

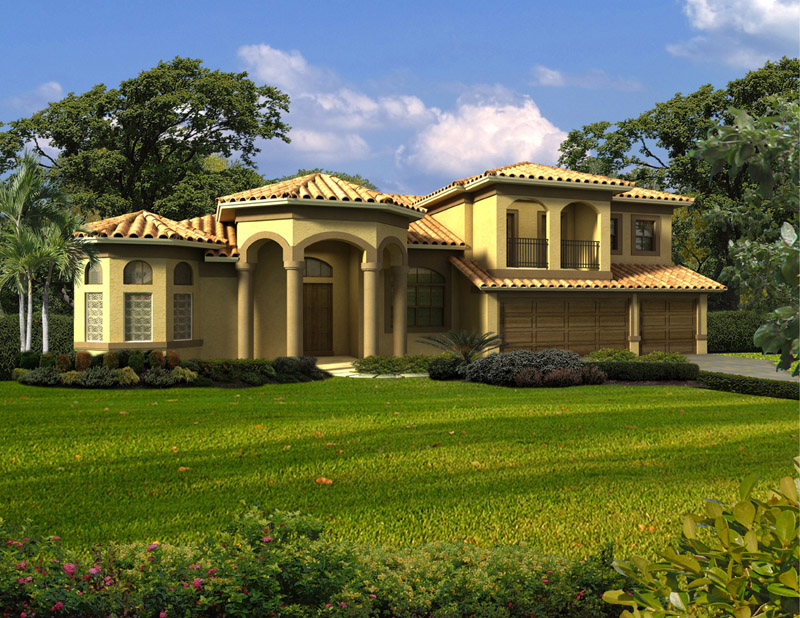

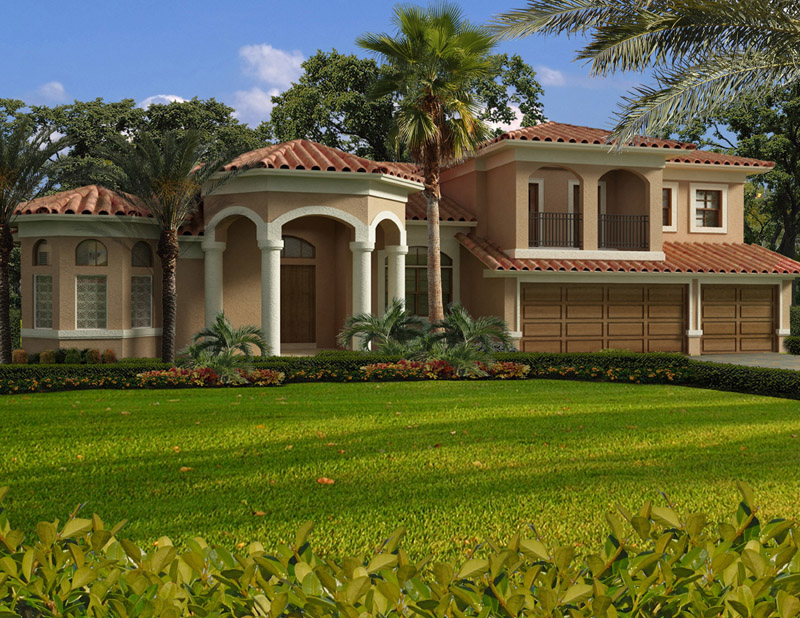

This luxurious, 4,011 sq. ft., two-story, Mediterranean-style home floor plan features five bedrooms, four full bathrooms, grand covered entrance and a three-car garage. Columns and arches provide strong curb appeal. The huge island kitchen has an eating bar and pantry that opens to a family room. There is a spectacular living room with raised ceilings. You’ll love this design if you seek a home with a spacious feel. The family room and living room are designed to open to a covered patio. An exclusive master suite offers large walk-in closets and a luxurious master bath. Purchase this luxurious home floor plan today.
Dimensions
-
Width x Length
64' 10" x 64' 2"
-
Height
26'
-
Stories
2/
Garage
-
Number of Cars
3
-
Attached
No
-
Location
Right
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
5
-
Possible
0
-
Total
5
Bathrooms
-
Full
4
-
Half
0
-
Total
4

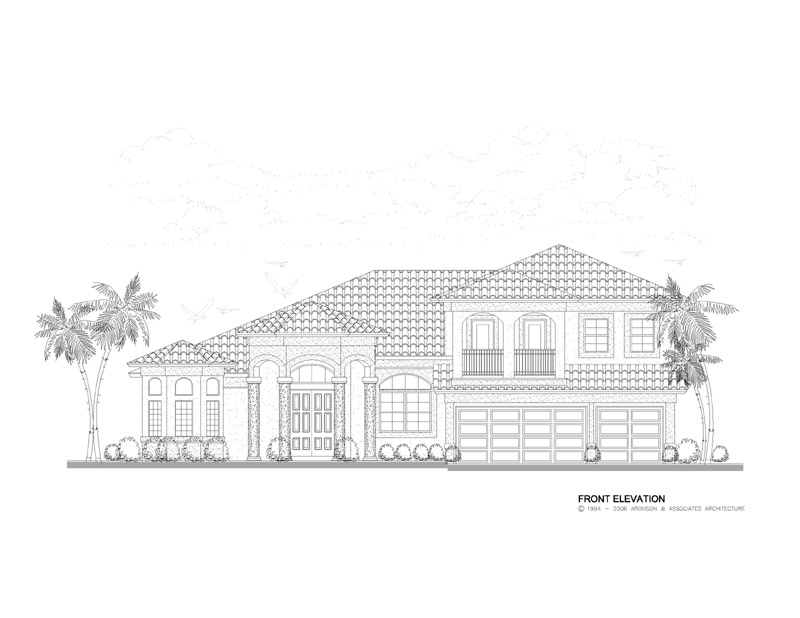

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
2
Features
-
Fireplace
No
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1500
CAD Disk Price: $2300
Reverse PDF Price: $1750
Reverse CAD Price: $2550
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $1000
3 Sets Price: $1100
5 Sets Price: $1200
8 Sets Price: $1350
Reproducible Vellum Price: $1500
Base – Not for Construction Price: $1000
3 Sets (Reverse) Price: $1350
5 Sets (Reverse) Price: $1450
8 Sets (Reverse) Price: $1600
Reproducible Vellum (Reverse) Price: $1750
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
Wood Truss
-
Spacing
-
Subfloor
wood
-
Thickness
3/4
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
S. tile
-
Wind Speed
140
First Floor
-
Primary Living
12'
-
Secondary Living
19'-1
-
Primary Bedrooms
9'-4
-
Secondary Bedrooms
8'
-
Bathrooms
8'
-
Common Areas
13'
Second Floor
-
Primary Bedrooms
0
-
Secondary Bedrooms
9'
-
Bathrooms
9'
-
Common Areas
9'
Exterior
-
Garage
8'
-
Covered Entry
14'-9
-
Covered Patio
12'
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2521
-
Second Floor AC
1490
-
Total AC
4011
Total Under Roof Sq Ft
-
Garage
586
-
Covered Entry
173
-
Covered Patio
392
-
Covered Balconies
82
-
Total Under Roof
5244
