House Plan Model 4020-0309

Browsing: By Two Story

Large Floor Plan

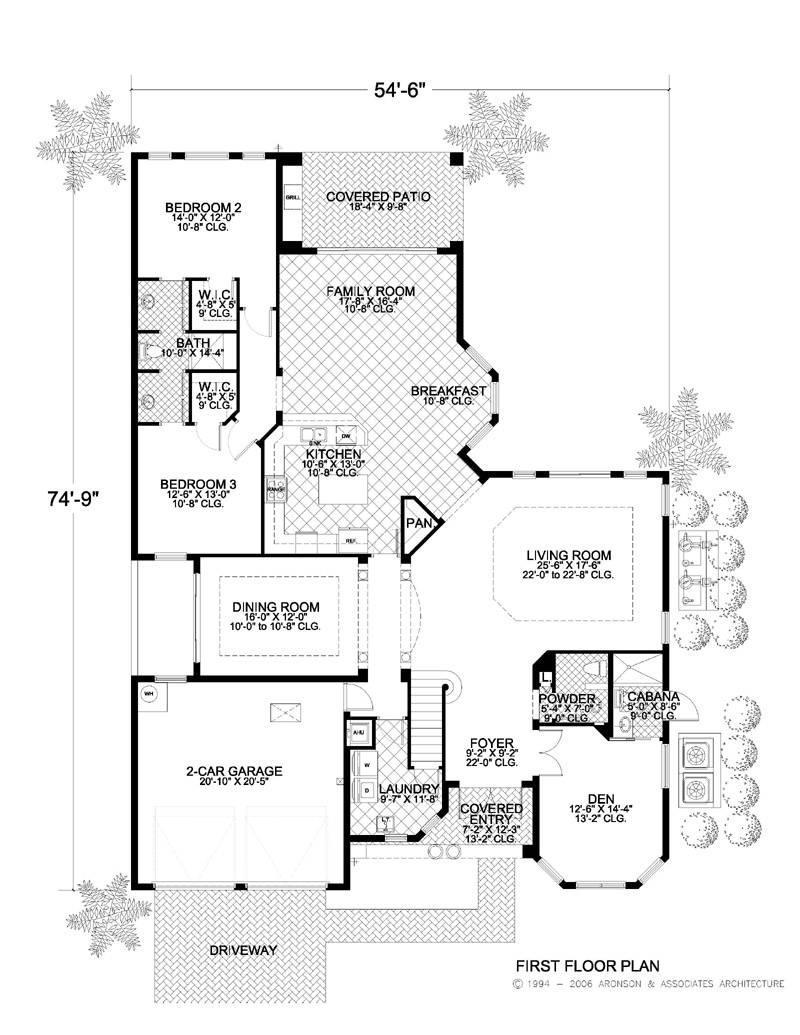

First Floor Home Floor Plan

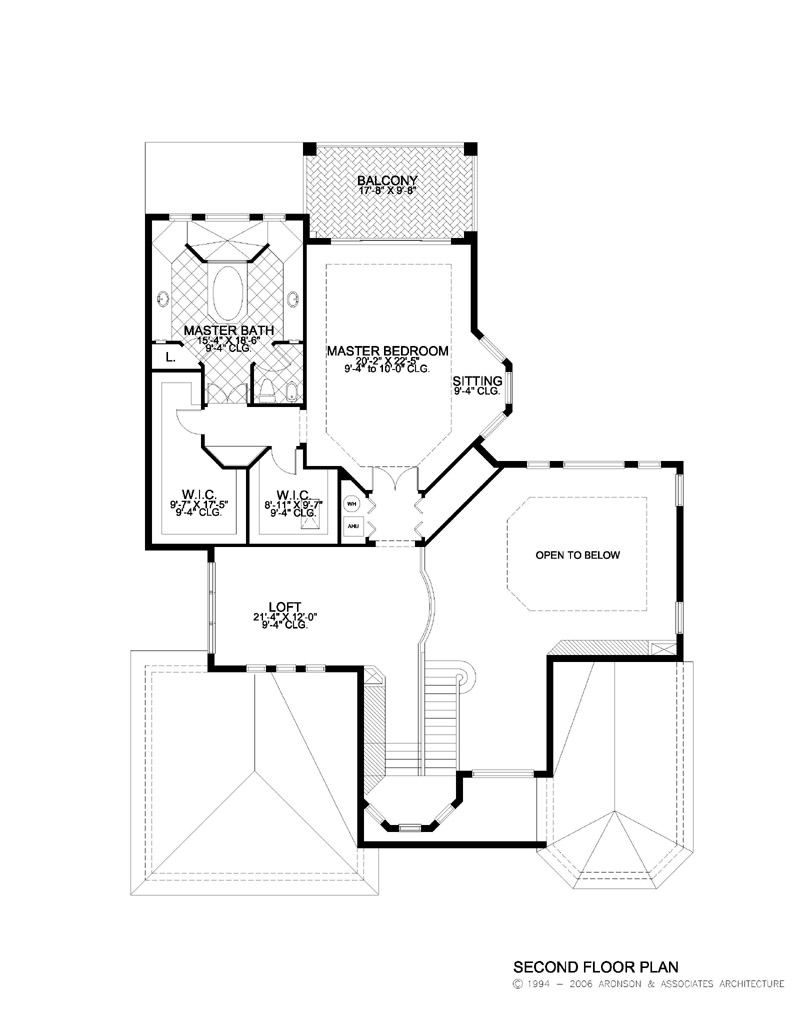

Second Floor Home Floor Plan

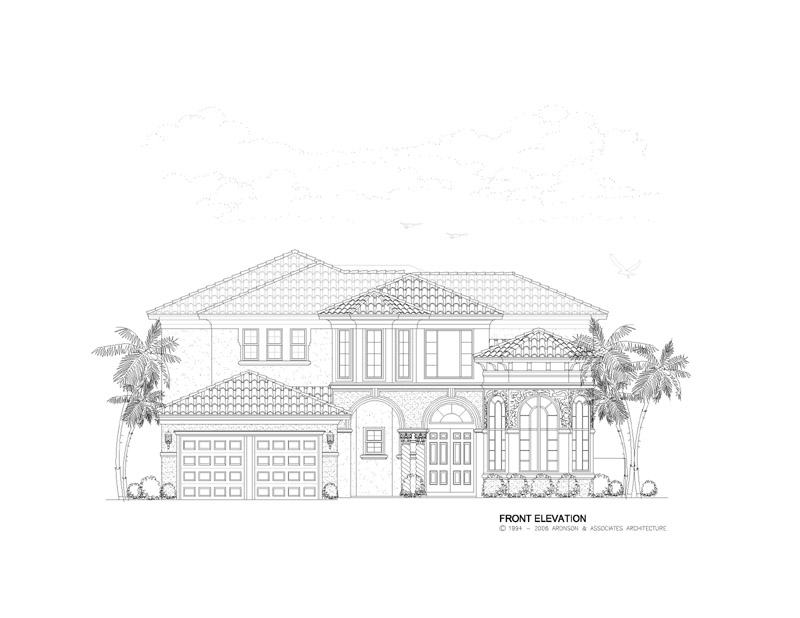

Front Elevation View

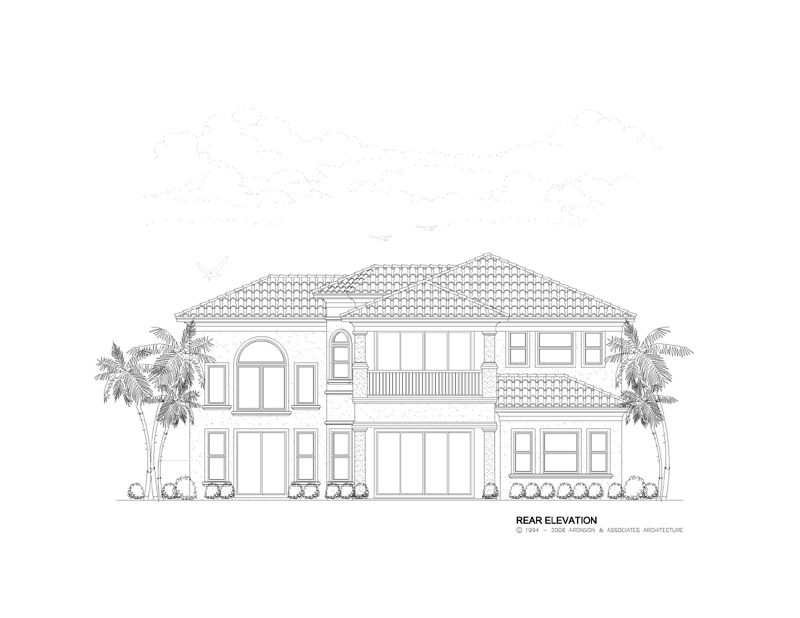

Rear Elevation View

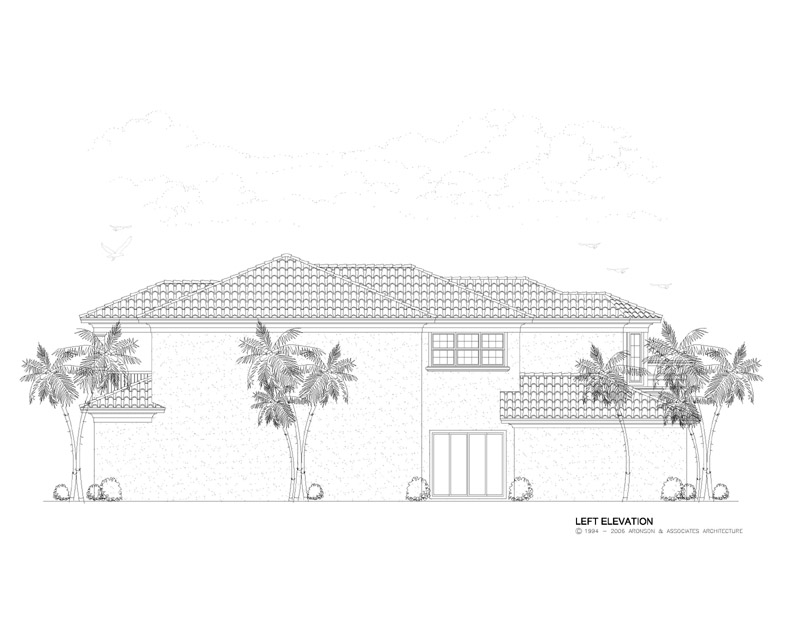

Left Elevation View

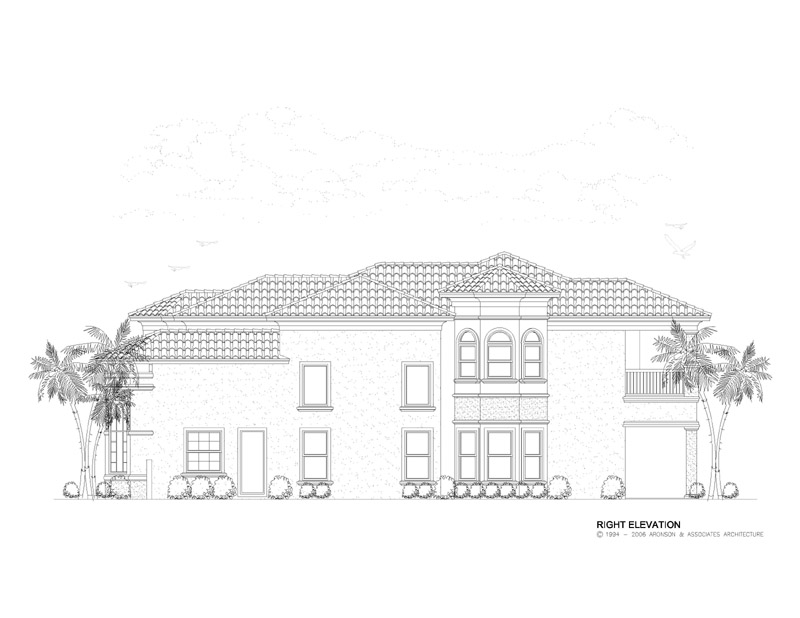

Right Elevation View
Large Floor Plan
First Floor Home Floor Plan
Second Floor Home Floor Plan
Front Elevation View
Rear Elevation View
Left Elevation View
Right Elevation View

Plan Summary

  • Stories

    2

  • Bedrooms

    3

  • Bathrooms

    3

  • Garage

    2 car

  • Width x Length

    54'6" x 74'9"

  • First Floor Sq Ft

    2993

  • Second Floor Sq Ft

    729

  • Total AC Sq Ft

    4020

  • Total Under Roof Sq Ft

    4581

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This two-story, 4,020 sq. ft., Mediterranean-style home floor plan has three bedrooms, two full bathrooms plus a half bath, cabana bath and a two-car garage. An opulent grand covered entrance accents the outside of this design. Columns and arches provide strong curb appeal. There is a huge island kitchen featuring an eating bar and pantry opening to the family room. A spectacular living room has raised ceilings. All the high ceilings and two volume spaces make this design feel “larger than life.” The den offers a private area for entertaining or simple solitude. You’ll love this design if you seek a home with a spacious feel that also provides private areas. The family room opens to a covered patio with a summer kitchen. An exclusive master suite features large walk-in closets and a luxurious master bath. Get this home floor plan today.

Dimensions

  • Width x Length 54'6" x 74'9"
  • Height 30'-3
  • Stories 2/

Garage

  • Number of Cars 2
  • Attached Yes
  • Location Left

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 3
  • Possible 0
  • Total 3

Bathrooms

  • Full 3
  • Half 1
  • Total 3

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 2

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1500

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2300

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $1000

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1100

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1200

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1350

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1500

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Wood Truss
  • Option 0

Floor System

  • Type Gypcrete
  • Spacing 0
  • Subfloor Wood truss
  • Thickness

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material s. tile
  • Wind Speed 140

First Floor

  • Primary Living 22' to 22'-8
  • Secondary Living 10'-8
  • Primary Bedrooms 10'-8
  • Secondary Bedrooms 10'-8
  • Bathrooms 9'
  • Common Areas 0

Second Floor

  • Primary Bedrooms 9'-4
  • Secondary Bedrooms 0
  • Bathrooms 9'-4
  • Common Areas 9'-4

Exterior

  • Garage 9'-4
  • Covered Entry 10'-8
  • Covered Patio 10'-8
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 2993
  • Second Floor AC 729
  • Total AC 4020

Total Under Roof Sq Ft

  • Garage 507
  • Covered Entry 70
  • Covered Patio 282
  • Covered Balconies 0
  • Total Under Roof 4581
