House Plan Model 4047-9917

Browsing: By Two Story

Executive House Plans

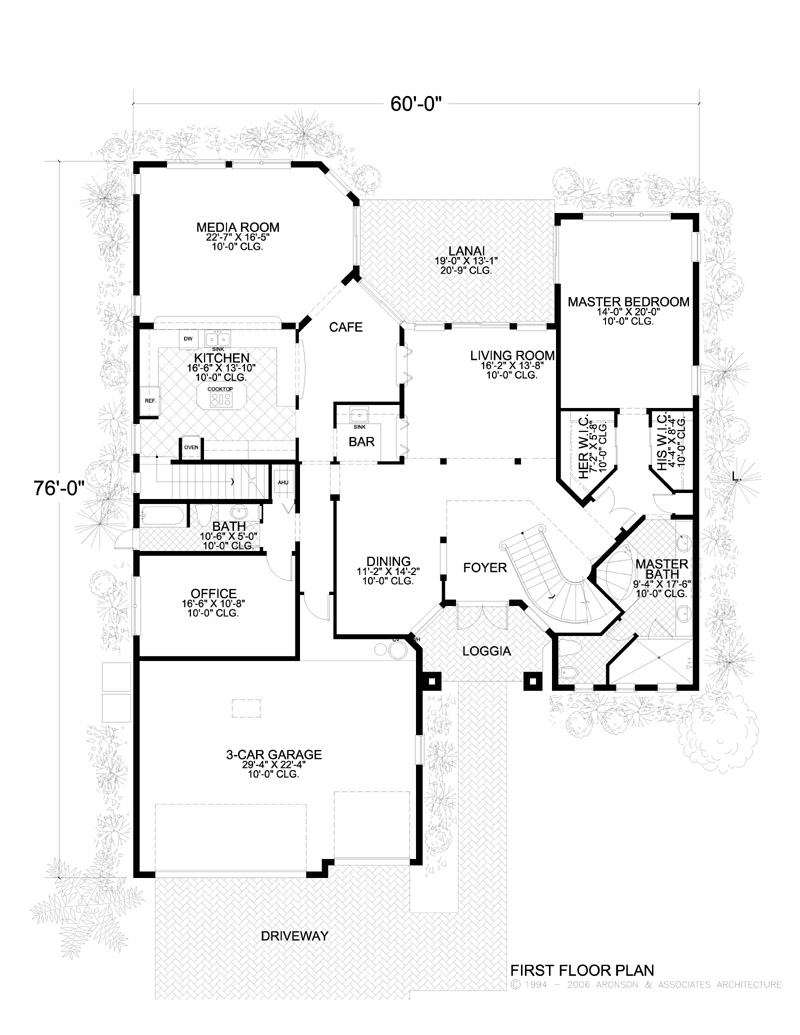

First Floor of House Plan

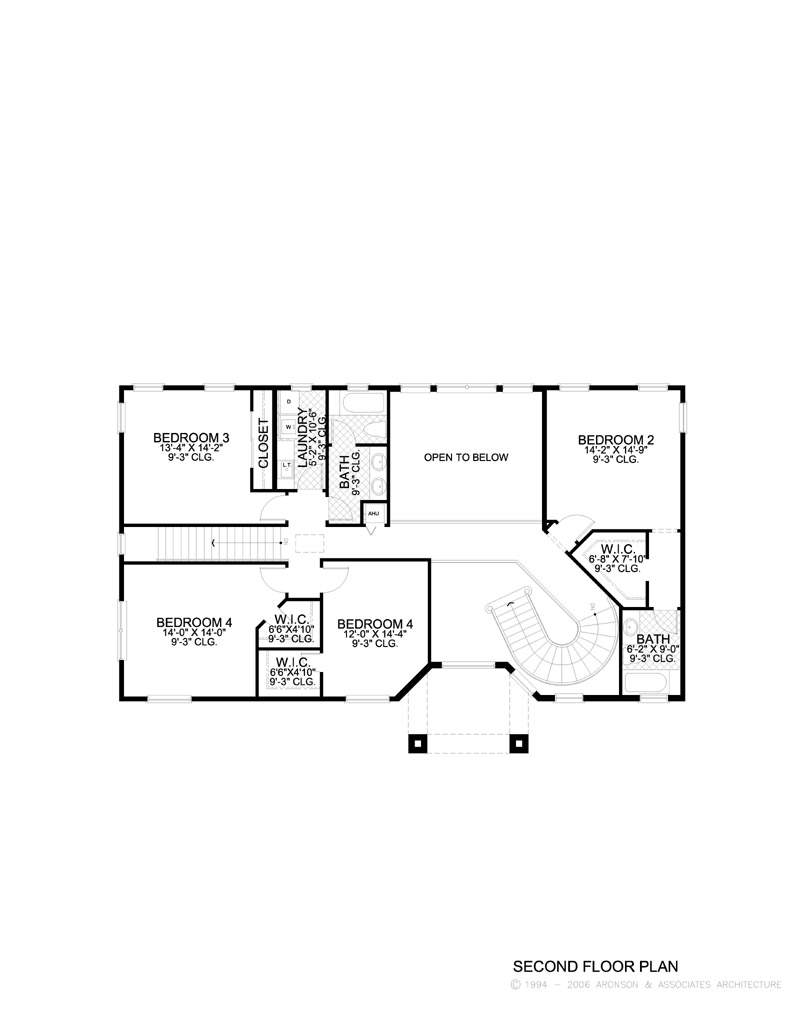

Second Floor of House Plan

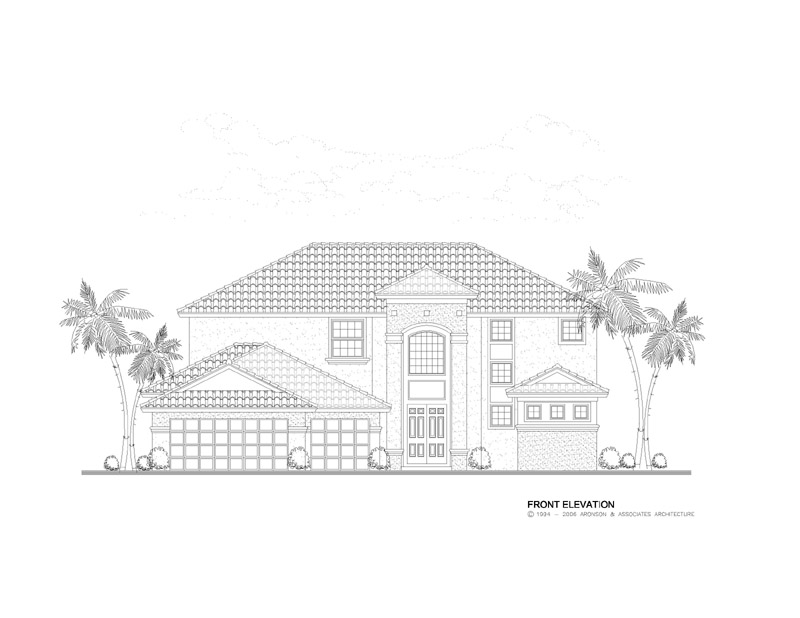

Front Elevation View of House

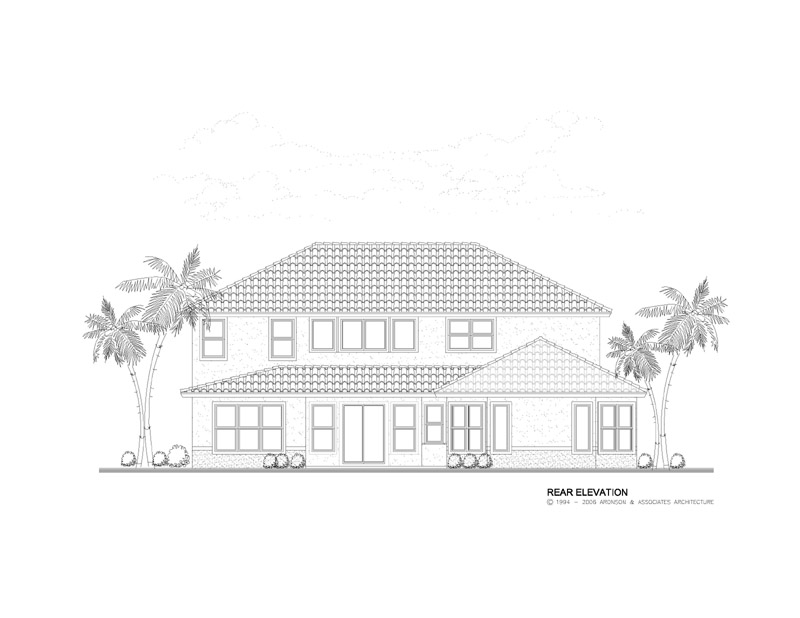

Rear Elevation View of House

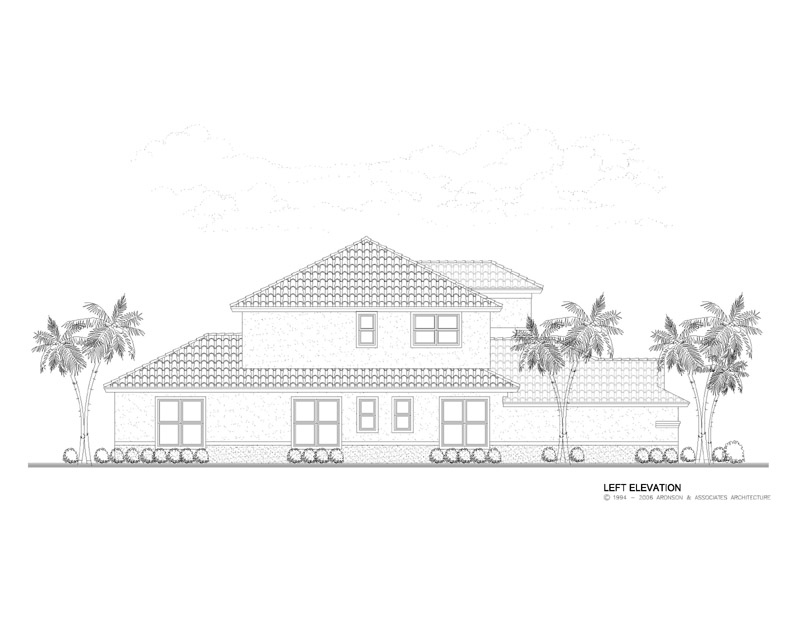

Left Elevation View of House

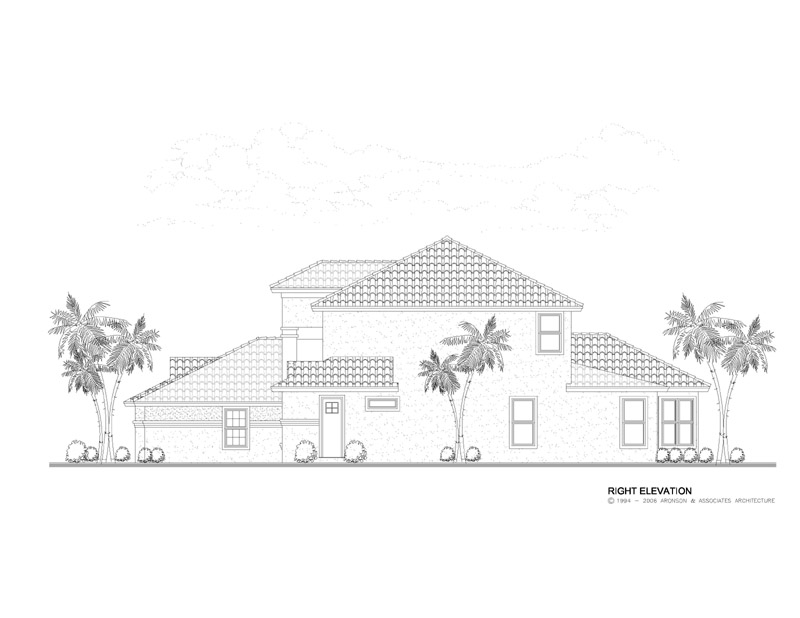

Right Elevation View of House
Executive House Plans
First Floor of House Plan
Second Floor of House Plan
Front Elevation View of House
Rear Elevation View of House
Left Elevation View of House
Right Elevation View of House

Plan Summary

  • Stories

    2

  • Bedrooms

    5

  • Bathrooms

    4

  • Garage

    3 car

  • Width x Length

    60' x 76'

  • First Floor Sq Ft

    2664

  • Second Floor Sq Ft

    1383

  • Total AC Sq Ft

    4047

  • Total Under Roof Sq Ft

    5102
