PLAN SUMMARY
-
Stories
1
-
Bedrooms
5
-
Bathrooms
5
-
Garage
3 car
-
Width x Length:
73' " x 116' 8"
-
First Floor Sq Ft
4,087 Sq. Ft.
-
Total AC Sq Ft
4,087 Sq. Ft.
-
Total Under Roof Sq Ft
5,699 Sq. Ft.
$0.00
Plan Description

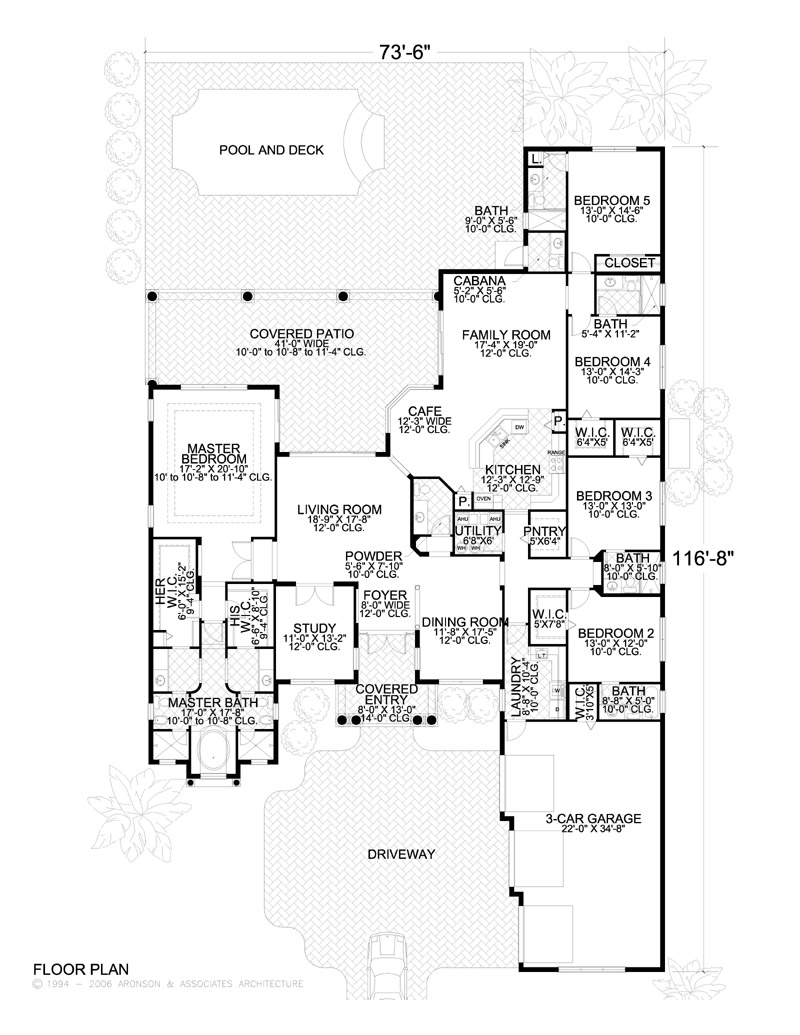

This one-story 4,087 sq. ft., home floor plan features five bedrooms, five and one-half bathrooms plus a cabana bathroom and a three-car garage. Columns and arches provide strong curb appeal. This design offers alternate elevations. Custom front doors with arched transom accent the covered entrance. There is a gourmet kitchen with an eating bar and pantry. The exclusive master suite features “His and Hers” walk-in closets, stylish tray ceilings and a luxurious master bathroom that opens to a covered patio. The den offers a private area for entertaining or simple solitude. You’ll love this design if you seek a home with space and private places. The living room is large and has high ceilings and opens to a large covered patio. A family room, cafe and living room are combined and a perfect home layout and setting for entertaining. Purchase this home floor plan today.
Dimensions
-
Width x Length
73' " x 116' 8"
-
Height
25'
-
Stories
1/
Garage
-
Number of Cars
3
-
Attached
Yes
-
Location
Right
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
5
-
Possible
1
-
Total
5
Bathrooms
-
Full
5
-
Half
2
-
Total
5
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
1
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1500
CAD Disk Price: $2300
Reverse PDF Price: $1750
Reverse CAD Price: $2550
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $1000
3 Sets Price: $1100
5 Sets Price: $1200
8 Sets Price: $1350
Reproducible Vellum Price: $1500
Base – Not for Construction Price: $1000
3 Sets (Reverse) Price: $1350
5 Sets (Reverse) Price: $1450
8 Sets (Reverse) Price: $1600
Reproducible Vellum (Reverse) Price: $1750
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
0
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
12'
-
Secondary Living
12'
-
Primary Bedrooms
10' to 11'-4
-
Secondary Bedrooms
10'
-
Bathrooms
10'
-
Common Areas
12'
Exterior
-
Garage
10'-2
-
Covered Entry
14'
-
Covered Patio
12'
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
4087
-
Total AC
4087
Total Under Roof Sq Ft
-
Garage
798
-
Covered Entry
132
-
Covered Patio
682
-
Covered Balconies
0
-
Total Under Roof
5699
