House Plan Model 4253-2064

Browsing: By One Story

One Story Luxury House Plans

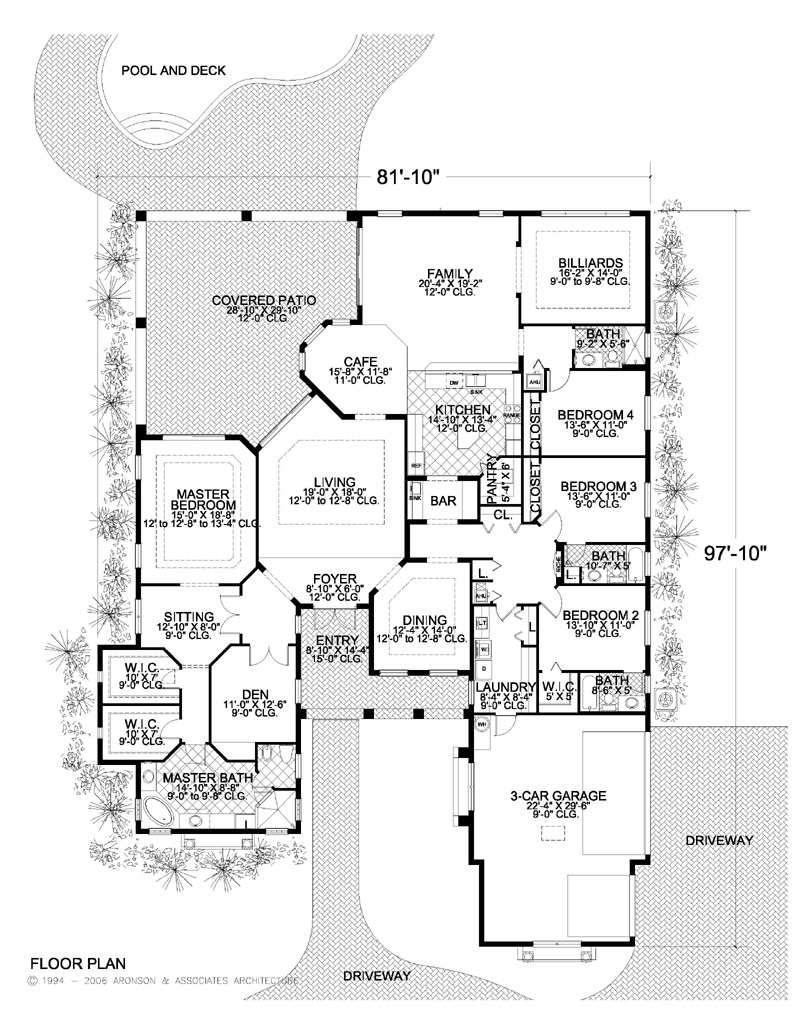

Large Luxury House Floor Plans
Front Elevation of House

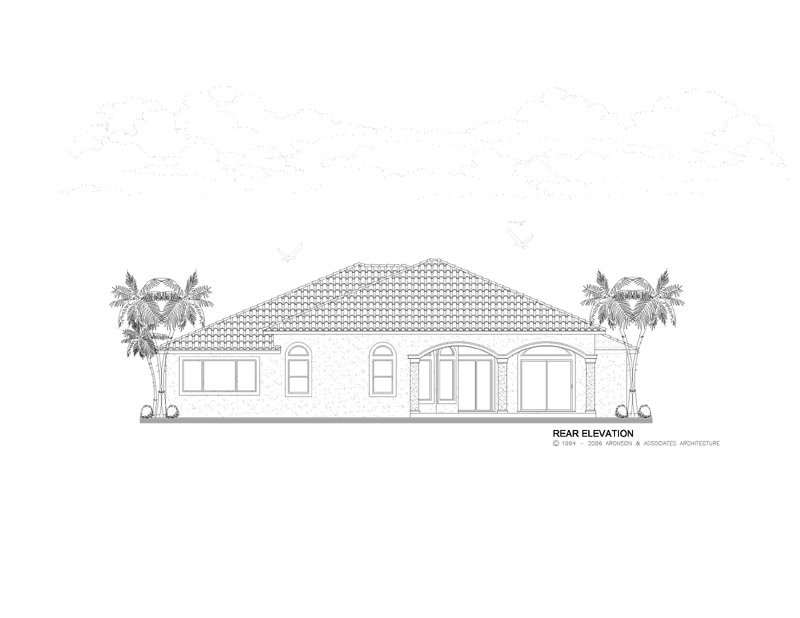

Rear Elevation of House

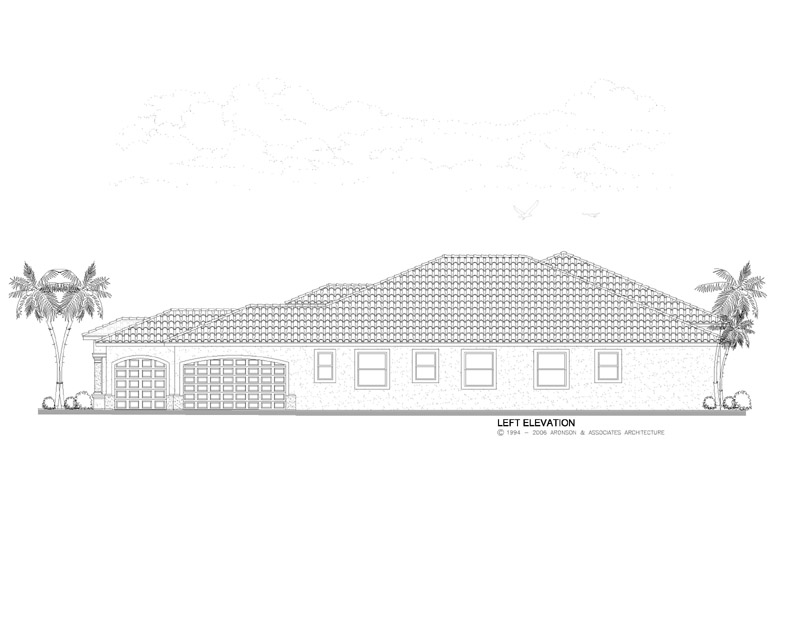

Left Elevation of House

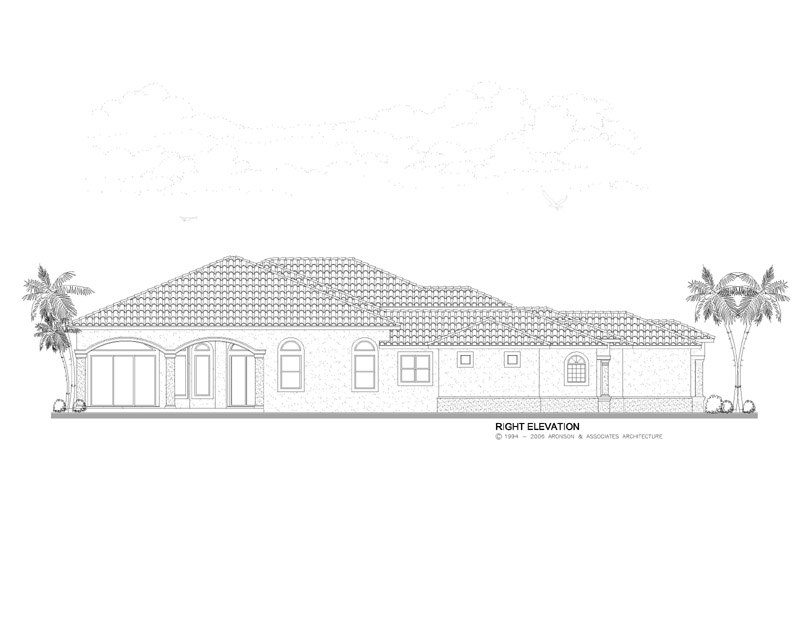

Right Elevation of House
One Story Luxury House Plans
Large Luxury House Floor Plans
Front Elevation of House
Rear Elevation of House
Left Elevation of House
Right Elevation of House

Plan Summary

  • Stories

    1

  • Bedrooms

    4

  • Bathrooms

    4

  • Garage

    3 car

  • Width x Length

    81'10" x 97'10"

  • First Floor Sq Ft

    4253

  • Total AC Sq Ft

    4253

  • Total Under Roof Sq Ft

    6041
