House Plan Model 4265-2092

Browsing: By One Story

Luxury Home Plans

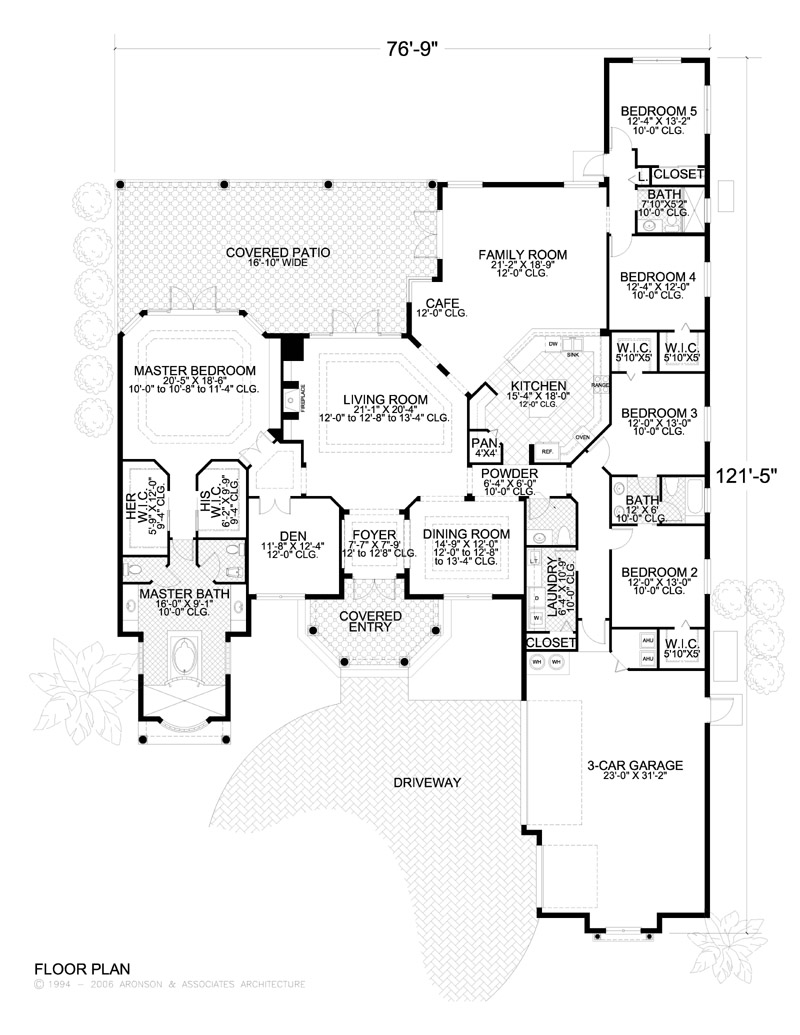

Amazing Home Floor Plans
Front Elevation of Home

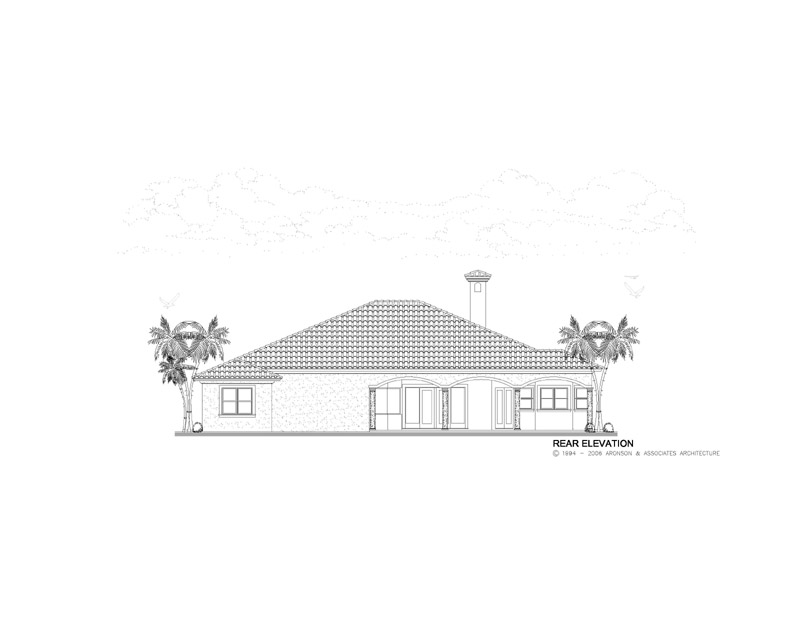

Rear Elevation View of Home

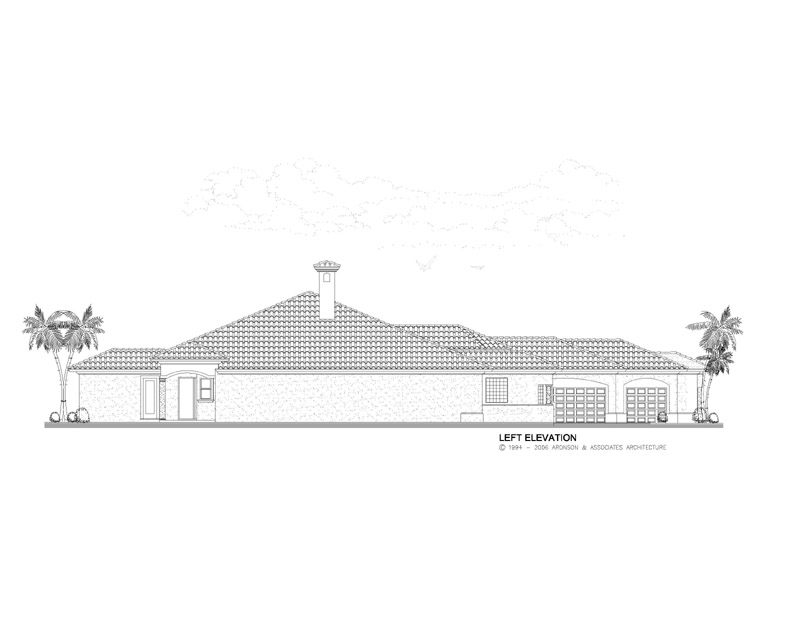

Left Elevation View of Home

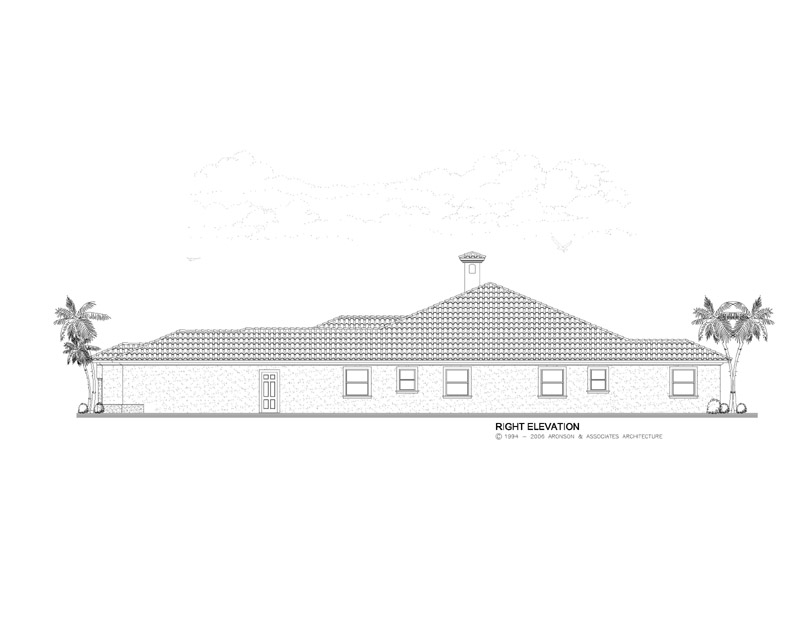

Right Elevation View of Home
Luxury Home Plans
Amazing Home Floor Plans
Front Elevation of Home
Rear Elevation View of Home
Left Elevation View of Home
Right Elevation View of Home

Plan Summary

  • Stories

    1

  • Bedrooms

    5

  • Bathrooms

    3

  • Garage

    3 car

  • Width x Length

    76'9" x 121'5"

  • First Floor Sq Ft

    4265

  • Total AC Sq Ft

    4265

  • Total Under Roof Sq Ft

    6114

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This beautiful, one-story 4,265 sq. ft. classic, Florida home floor plan features five bedrooms, three and one-half bathrooms, a three-car garage, grand covered entrance with a custom front door and arched transom. There are spectacular columns and arches to provide strong curb appeal. The floor plan includes a gourmet delight kitchen with an eating bar and cafe that opens to the family room. A den for private entertaining and a large living room with high ceilings makes a luxurious statement in this home. The exclusive master suite with “His and Hers” walk-in closets, stylish tray ceilings and a large master bathroom leading to a large, private covered patio adds luxury to this design. Download this home floor plan today.

Dimensions

  • Width x Length 76'9" x 121'5"
  • Height 24'-10
  • Stories 1/

Garage

  • Number of Cars 3
  • Attached Yes
  • Location Right

Wall Construction

  • Interior Metal Stud
  • Exterior CMU Block
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 5
  • Possible 1
  • Total 5

Bathrooms

  • Full 3
  • Half 1
  • Total 3

Elevation

  • Finishes Stucco
  • Master Bedroom Location 1
  • Utility Location 1

Features

  • Fireplace Yes
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1500

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2300

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $1000

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1100

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1200

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1350

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1500

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type monolithic
  • Option 0

Floor System

  • Type 0
  • Spacing 0
  • Subfloor 0
  • Thickness 0

Roof System

  • Type wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. Tile
  • Wind Speed 140

First Floor

  • Primary Living 12'-0
  • Secondary Living 12'-0
  • Primary Bedrooms 10'-0
  • Secondary Bedrooms 10'-0
  • Bathrooms 10'-0
  • Common Areas 12'-0

Exterior

  • Garage 10'-2
  • Covered Entry 14'-2
  • Covered Patio 12'-2
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 4265
  • Total AC 4265

Total Under Roof Sq Ft

  • Garage 917
  • Covered Entry 161
  • Covered Patio 771
  • Covered Balconies 0
  • Total Under Roof 6114
