House Plans
Plan Summary
-
Stories
1
-
Bedrooms
5
-
Bathrooms
4
-
Garage
3 car
-
Width x Length
80' x 113'
-
First Floor Sq Ft
4355
-
Total AC Sq Ft
4355
-
Total Under Roof Sq Ft
6080
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description
This beautiful one-story 4,355 sq. ft. classic house plan features five bedrooms, three and a half bathrooms plus a cabana, a three-car garage, a grand covered entrance, columns and arches with strong curb appeal. The home floor plan provides a large family room opened to a patio, a huge kitchen with eating bar. This model has the ultimate master suite with exceptionally large and hers walk-in-closets with a sitting area and a large master bedroom adding to the luxury of the design. Get this beautiful home plan today.
Dimensions
- Width x Length 80' x 113'
- Height 23'-0
- Stories 1/
Garage
- Number of Cars 3
- Attached Yes
- Location Right
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 5
- Possible 0
- Total 5
Bathrooms
- Full 4
- Half 1
- Total 4
Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool Yes
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1500
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2300
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1000
- (Extra Sets: $50)
- More Information
3 Sets Price: $1100
- (Extra Sets: $50)
- More Information
5 Sets Price: $1200
- (Extra Sets: $50)
- More Information
8 Sets Price: $1350
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1500
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140

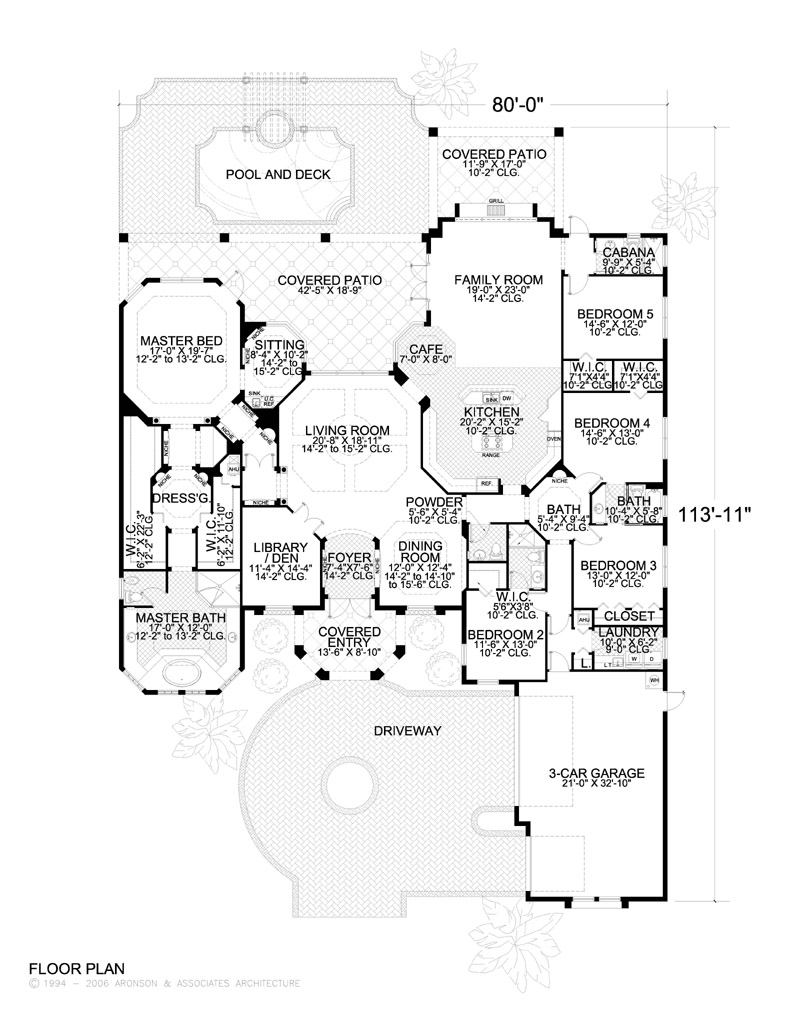

First Floor
- Primary Living 14'-2
- Secondary Living 14'-2
- Primary Bedrooms 12'-2
- Secondary Bedrooms 10'-2
- Bathrooms 10'-2
- Common Areas 12'-2
Exterior
- Garage 10'-6
- Covered Entry 19'-4
- Covered Patio 14'-6
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 4355
- Total AC 4355
Total Under Roof Sq Ft
- Garage 722
- Covered Entry 162
- Covered Patio 841
- Covered Balconies 0
- Total Under Roof 6080
