House Plan Model 4370-0353

Browsing: By Two Story

Front View of Home Rendering

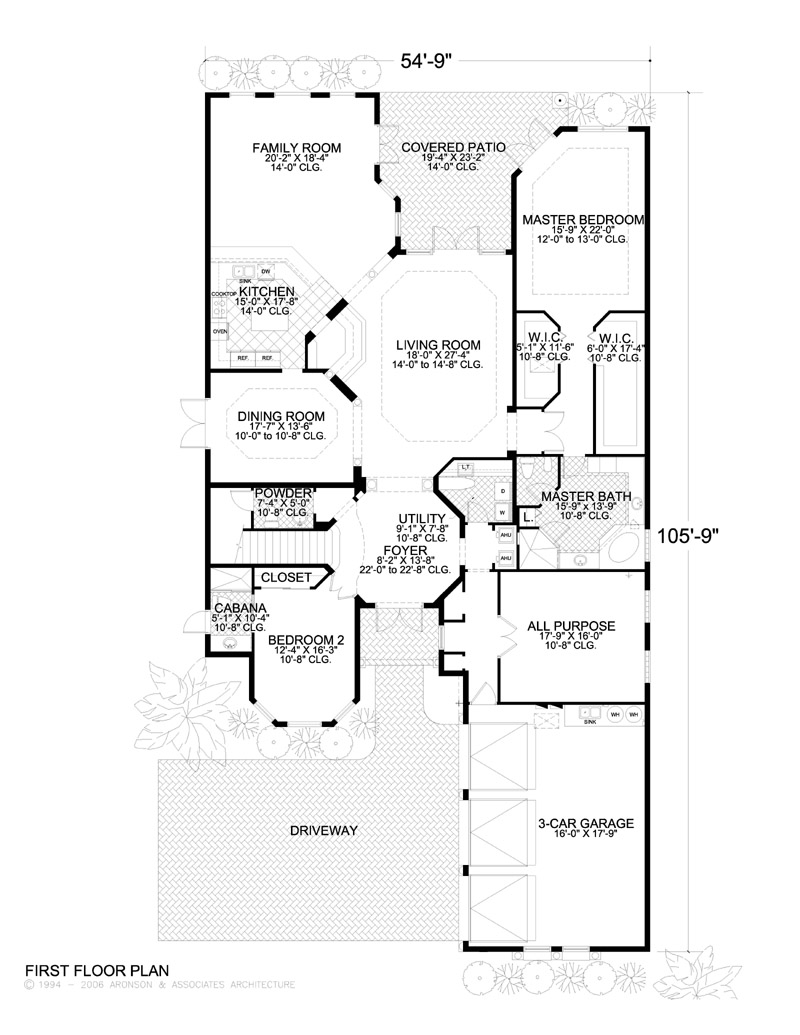

First Floor Plan

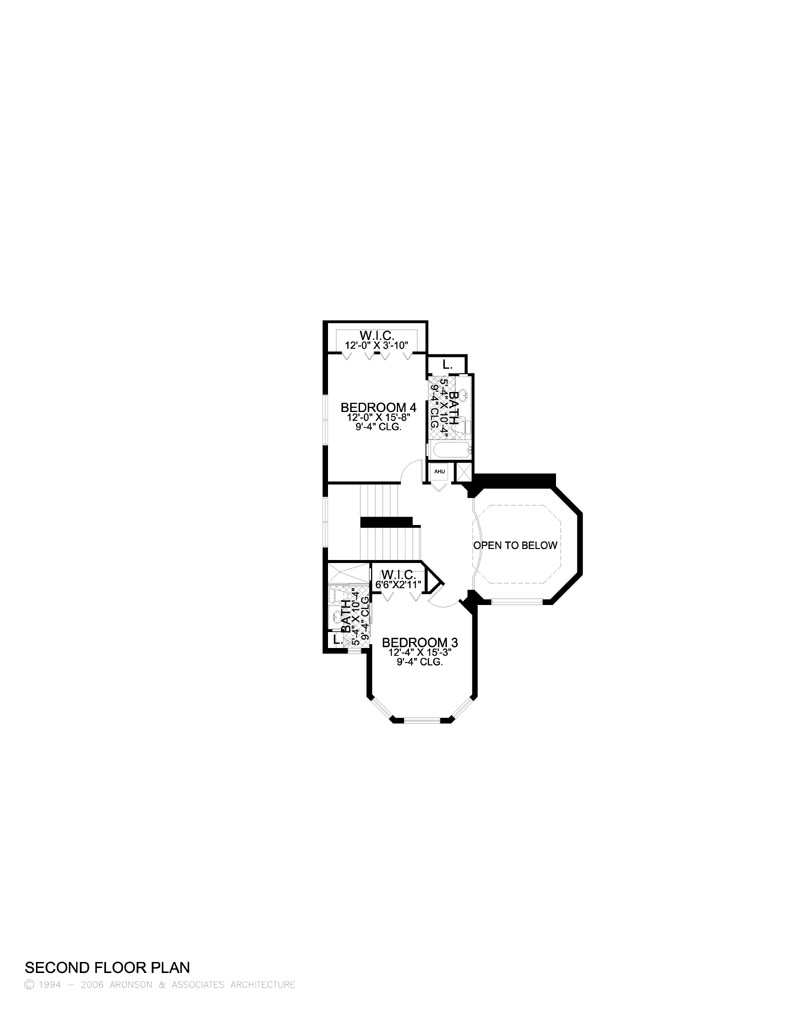

Second Floor Plan

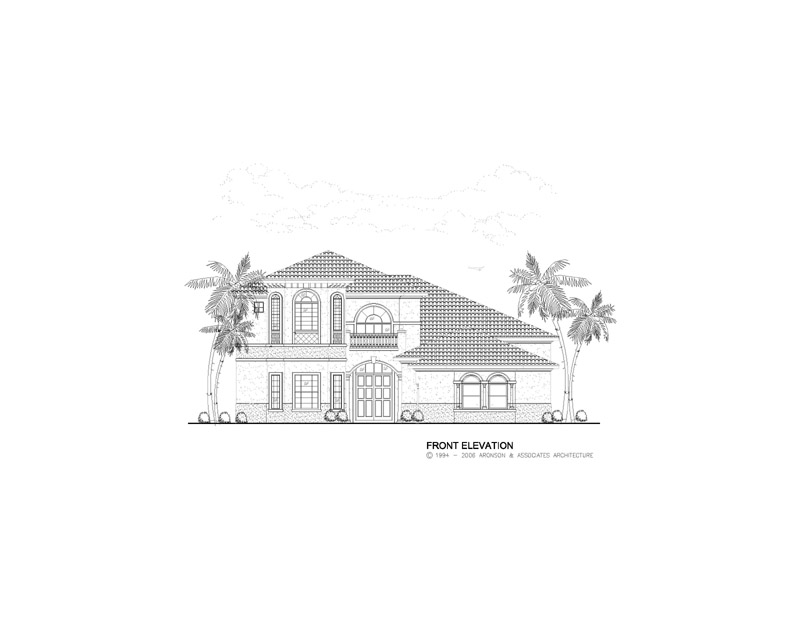

Front Elevation View of Home

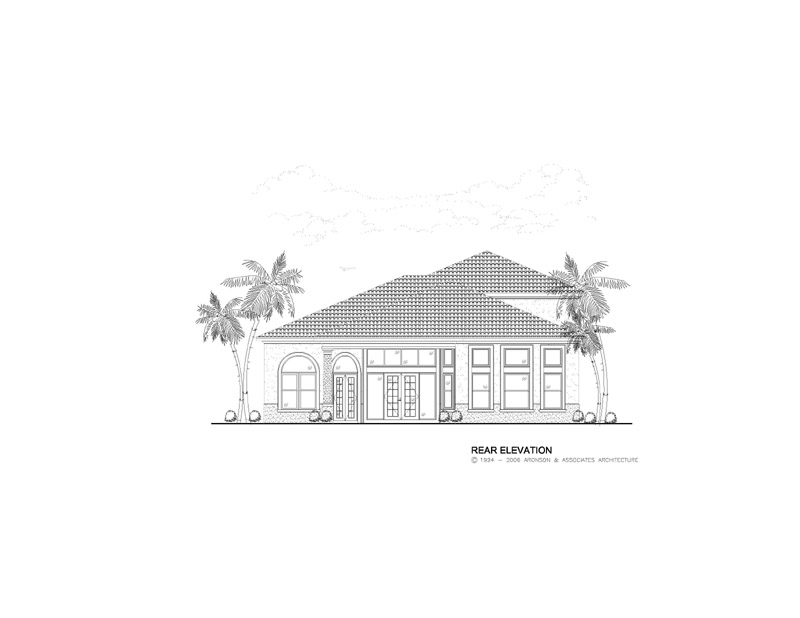

Rear Elevation View of Home

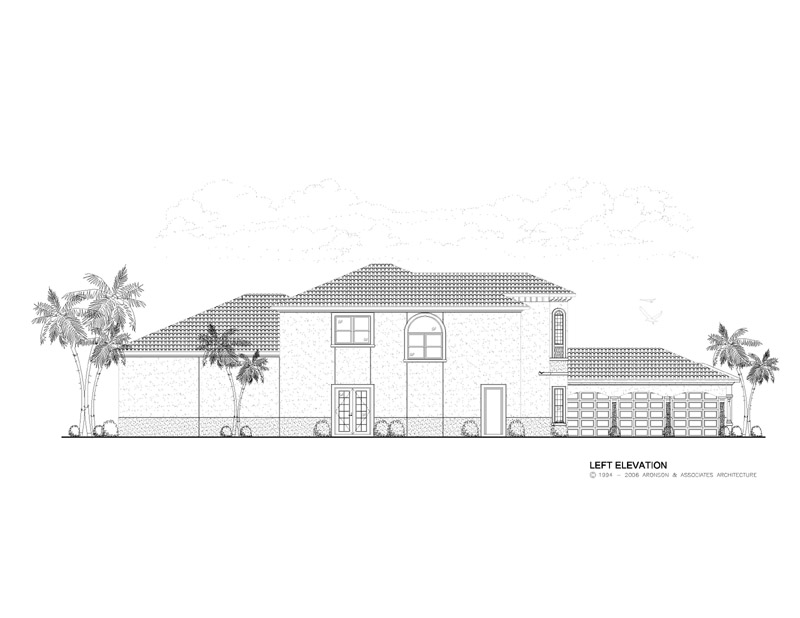

Left Elevation View of Home

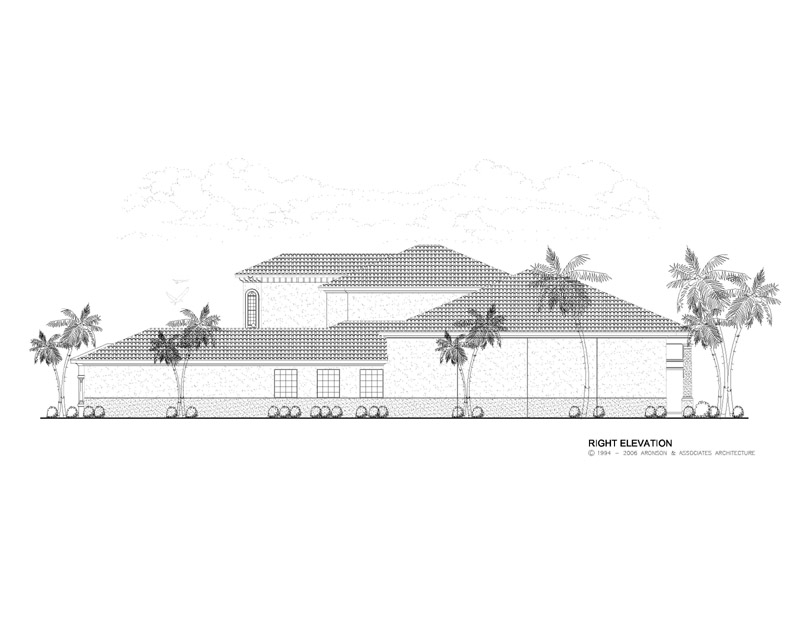

Right Elevation Home View

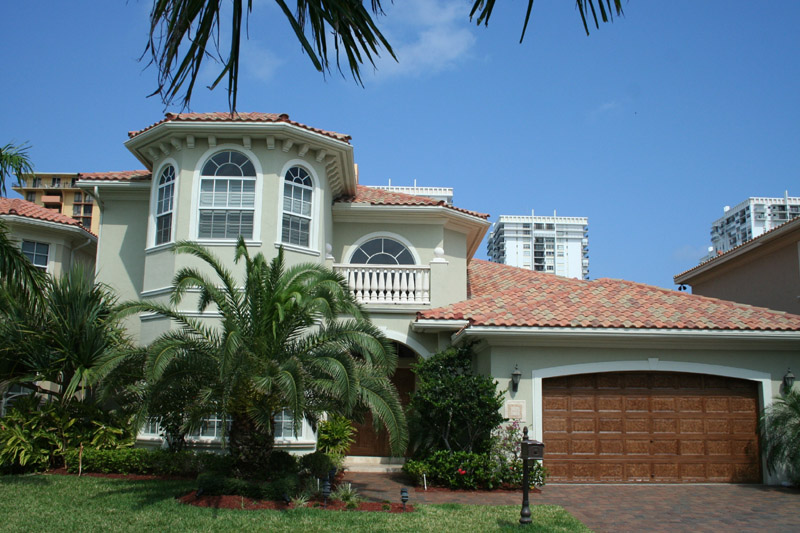

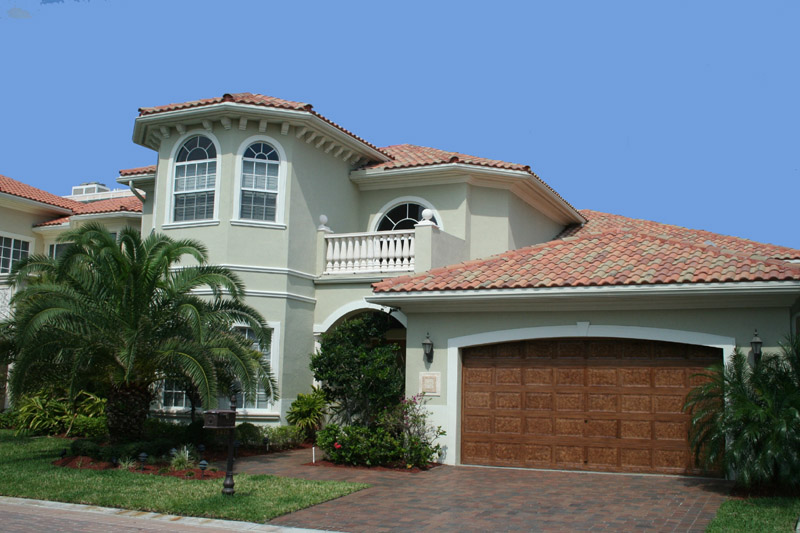

Street View of Home
Street View of Home

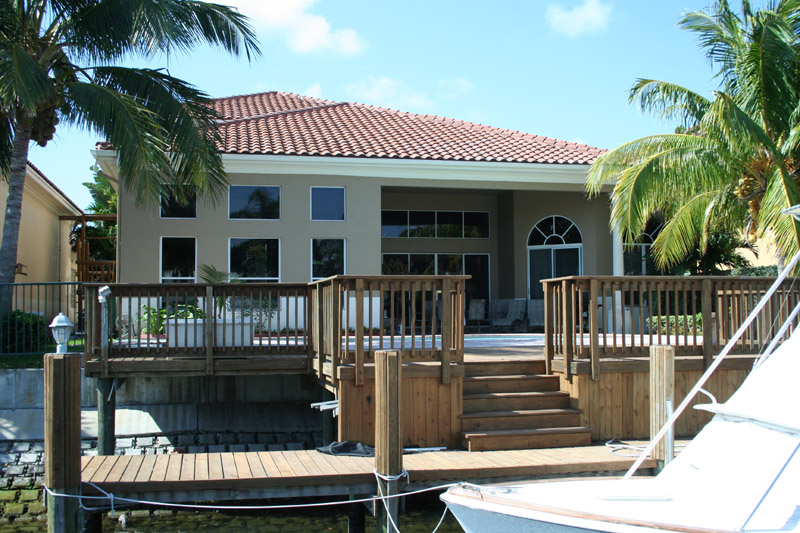

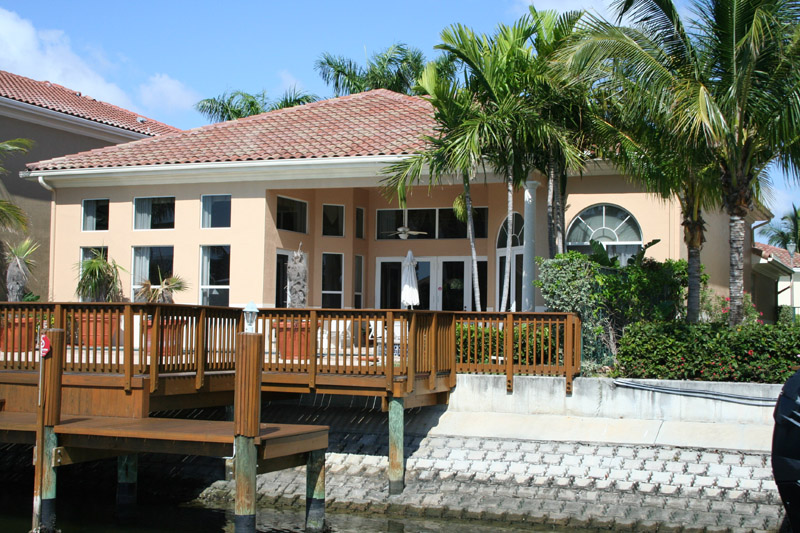

Boat Dock Home View
Boat Dock Home View
Front View of Home Rendering
First Floor Plan
Second Floor Plan
Front Elevation View of Home
Rear Elevation View of Home
Left Elevation View of Home
Right Elevation Home View
Street View of Home
Street View of Home
Boat Dock Home View
Boat Dock Home View

Plan Summary

  • Stories

    2

  • Bedrooms

    4

  • Bathrooms

    4

  • Garage

    3 car

  • Width x Length

    54'9" x 105'9"

  • First Floor Sq Ft

    3608

  • Second Floor Sq Ft

    762

  • Total AC Sq Ft

    4370

  • Total Under Roof Sq Ft

    5484

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This 4,370 sq. ft., luxurious waterfront home plan features four bedrooms, three and one-half bathrooms plus a Cabana Bathroom and a three-car garage. The high ceilings and two volume spaces make this design feel “larger than life.” A grand covered entrance, columns and arches combined provide a strong curb appeal. There are exquisite French doors with arched transom that accent the covered entrance. Each bedroom suite is unique, offering private bathrooms. Large covered patios extend outward to create a courtyard. Covered balconies, patios and entrance are only a few features that make the exterior of this home luxurious. The large island kitchen with an eating bar and breakfast nook opens to a family room. This design includes an exclusive Master suite with extra-large “His and Hers” walk-in closets and luxurious master bath that brings you onto the covered patio. Stylish tray ceilings accent this design. For entertaining, this unique design has a multipurpose room. Get this luxurious home floor plan today.

Dimensions

  • Width x Length 54'9" x 105'9"
  • Height 29'-8
  • Stories 2/

Garage

  • Number of Cars 3
  • Attached Yes
  • Location Right

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 4
  • Possible 0
  • Total 4

Bathrooms

  • Full 4
  • Half 1
  • Total 4

Elevation

  • Finishes Stucco
  • Master Bedroom Location 1
  • Utility Location 2

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1500

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2300

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $1000

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1100

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1200

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1350

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1500

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type Wood truss
  • Spacing 24
  • Subfloor wood
  • Thickness 3/4

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living 14' to 14'-8
  • Secondary Living 14'
  • Primary Bedrooms 12' to 13'
  • Secondary Bedrooms 10'-8
  • Bathrooms 10'-8
  • Common Areas 0

Second Floor

  • Primary Bedrooms 0
  • Secondary Bedrooms 9'-4
  • Bathrooms 9'-4
  • Common Areas 0

Exterior

  • Garage 0
  • Covered Entry 0
  • Covered Patio 14'
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 3608
  • Second Floor AC 762
  • Total AC 4370

Total Under Roof Sq Ft

  • Garage 703
  • Covered Entry 71
  • Covered Patio 340
  • Covered Balconies 0
  • Total Under Roof 5484
