House Plans
Plan Summary
-
Stories
2
-
Bedrooms
5
-
Bathrooms
6
-
Garage
2 car
-
Width x Length
68'5" x 84'4"
-
First Floor Sq Ft
2392
-
Second Floor Sq Ft
1983
-
Total AC Sq Ft
4375
-
Total Under Roof Sq Ft
5979
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

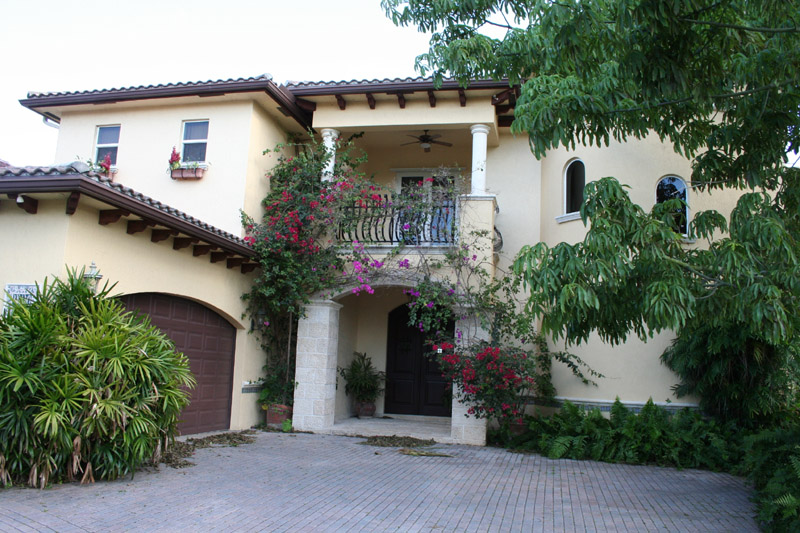

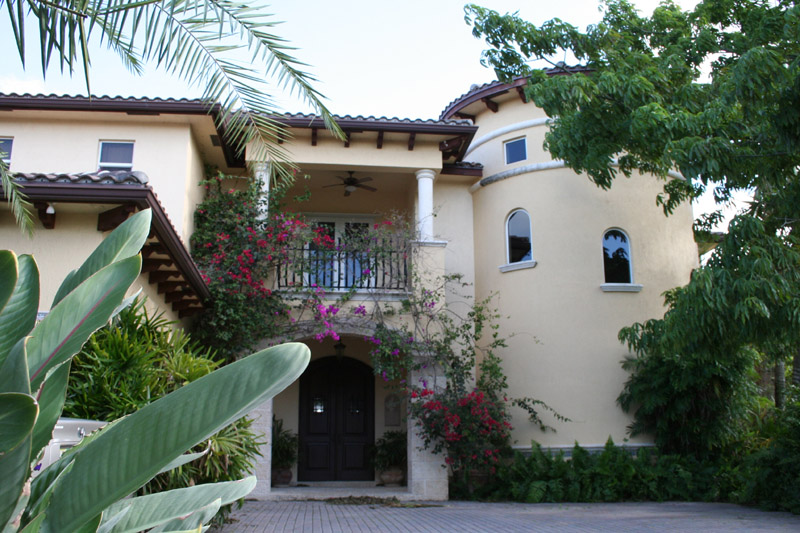

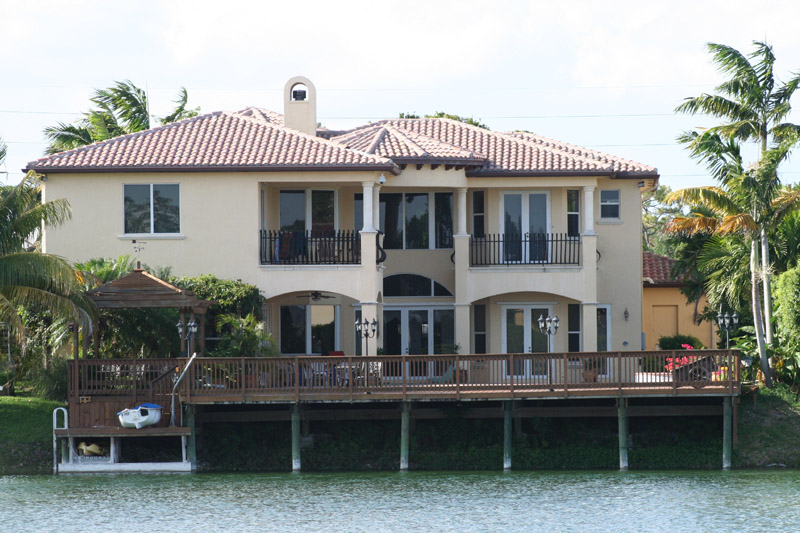

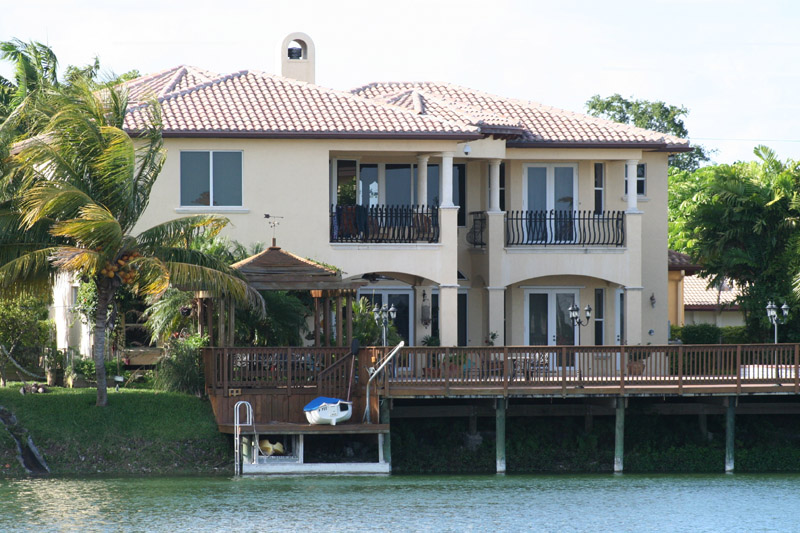

This two-story 4,375 sq. ft., waterfront home floor plan features five bedrooms, five and one-half bathrooms and a two-car garage. Each bedroom suite offers the convenience and luxury of a private bathroom. The grand covered entrance features a covered balcony, creating a luxurious appeal at the exterior. This traditional Florida-style home is luxurious both inside and out. The home plan closely resembles a castle with every modern amenity you can imagine. The formal dining room has a tray ceiling. A first floor guest suite has a private entrance and bath. The maid’s room can also make an excellent home office. Paneled front doors add elegance to the entrance. The gourmet island kitchen offers a breakfast area and opens to the family room and leads onto a covered patio. The luxurious master suite offers large walk-in closets, a sitting area and a regal master bath, opening to a private, covered balcony. This home offers a large living room with two-story ceilings and a stately fireplace. This model is a spectacular and outstanding design for a large family and those who enjoy entertaining. Get this luxurious home plan today.
Dimensions
- Width x Length 68'5" x 84'4"
- Height
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location Left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 5
- Possible 0
- Total 5
Bathrooms
- Full 4
- Half 1
- Total 6

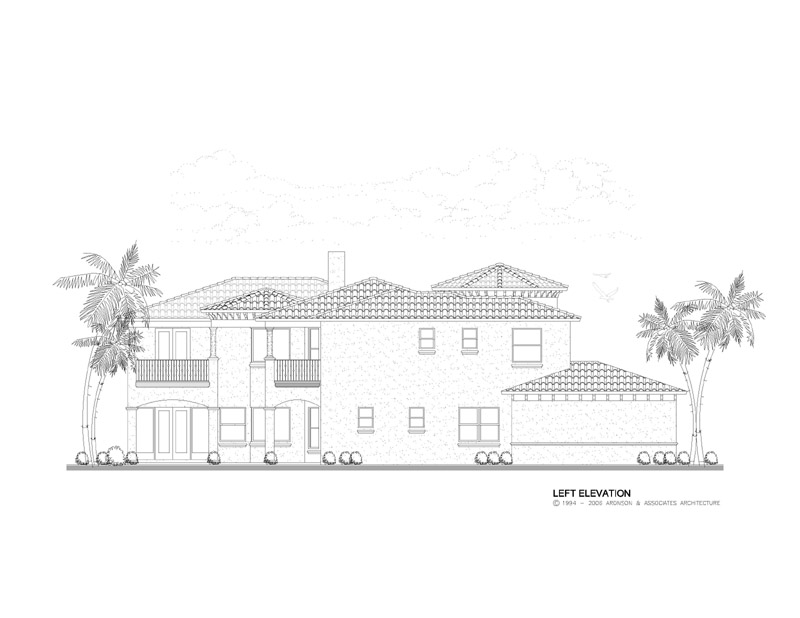

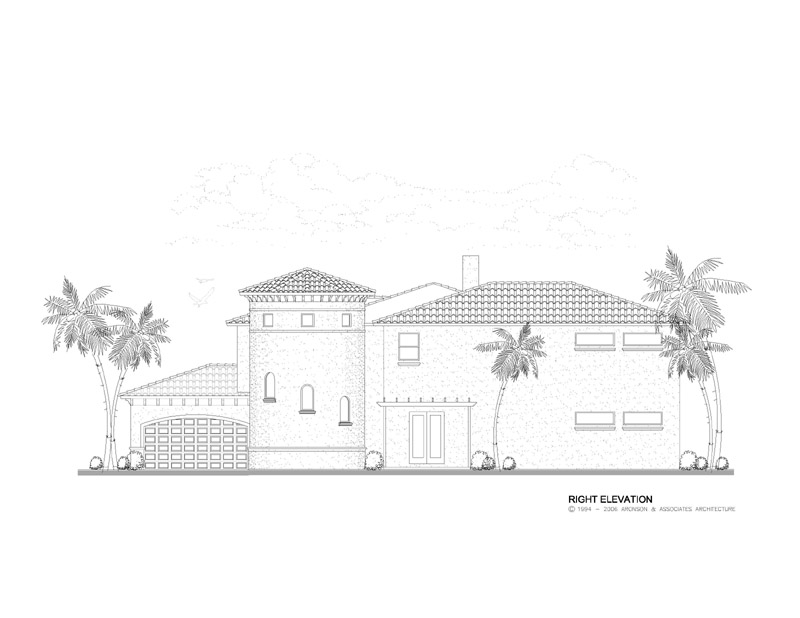

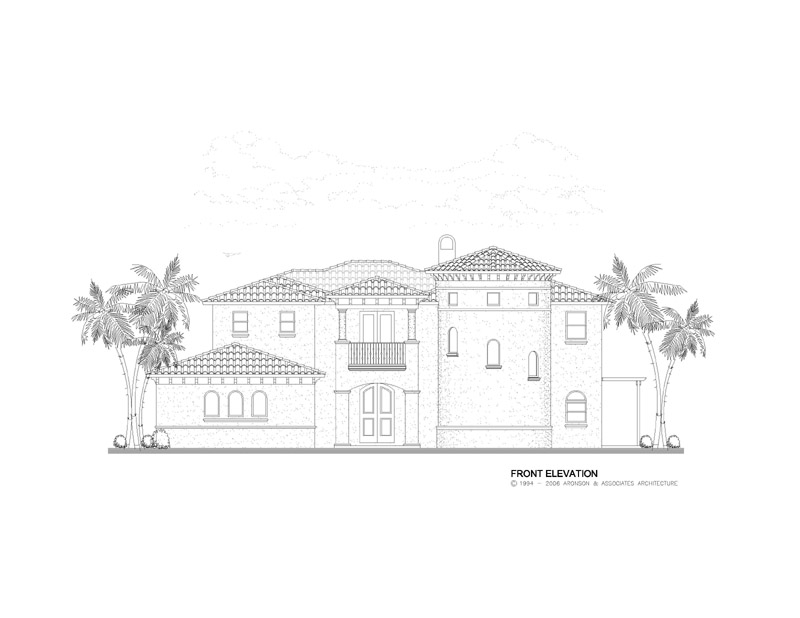

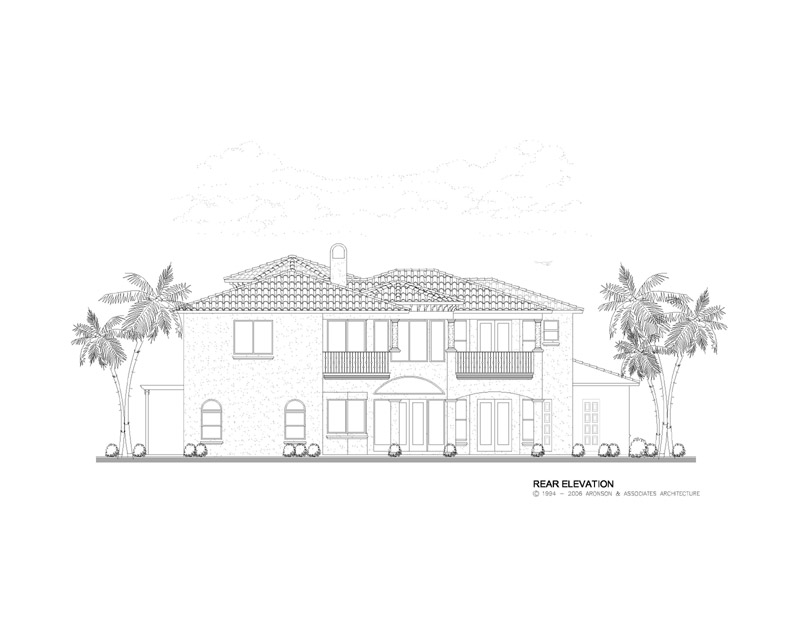

Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace Yes
- Elevator No
- Pool Yes
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1500
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2300
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1000
- (Extra Sets: $50)
- More Information
3 Sets Price: $1100
- (Extra Sets: $50)
- More Information
5 Sets Price: $1200
- (Extra Sets: $50)
- More Information
8 Sets Price: $1350
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1500
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Wood truss
- Spacing 0
- Subfloor wood
- Thickness 3/4
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

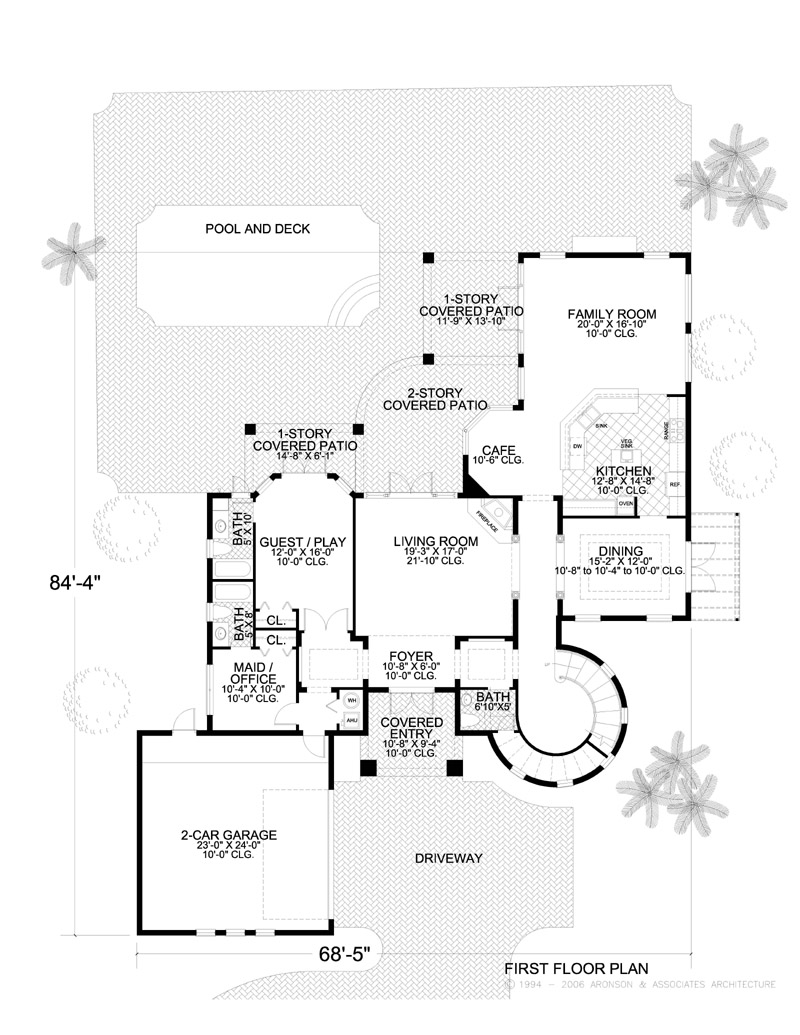

First Floor
- Primary Living 14' to 14'-8
- Secondary Living 14' to 14'-8
- Primary Bedrooms
- Secondary Bedrooms 0
- Bathrooms 9'-4
- Common Areas 14'

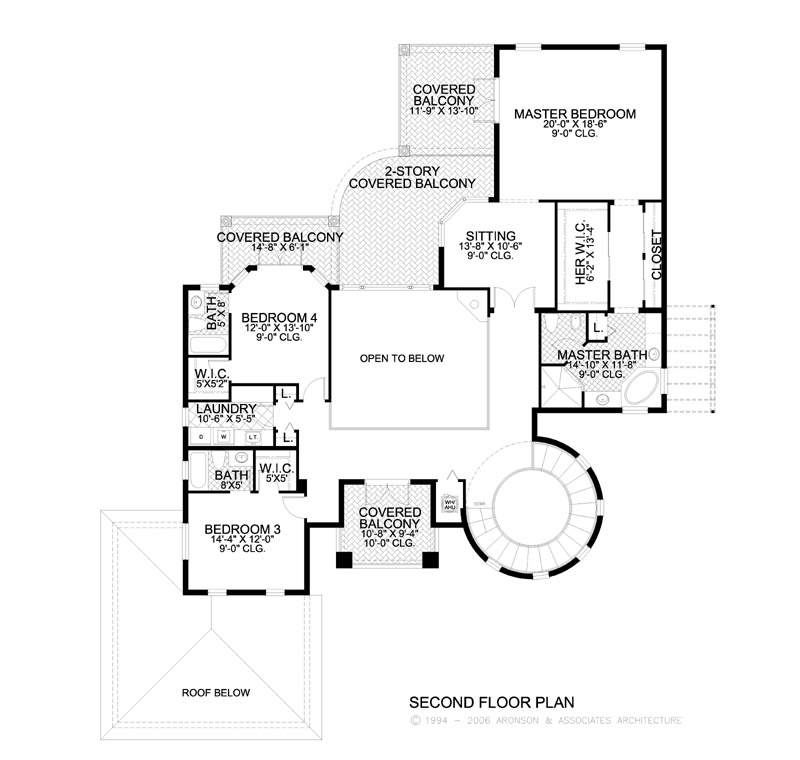

Second Floor
- Primary Bedrooms 12' to 13'
- Secondary Bedrooms 10'-8
- Bathrooms 10'-8
- Common Areas 10'-8
Exterior
- Garage 10'
- Covered Entry 10'
- Covered Patio 14'
- Covered Balcony 10'
Total AC Sq Ft
- First Floor AC 2392
- Second Floor AC 1983
- Total AC 4375
Total Under Roof Sq Ft
- Garage 606
- Covered Entry 120
- Covered Patio 496
- Covered Balconies 382
- Total Under Roof 5979
