House Plans
Plan Summary
-
Stories
2
-
Bedrooms
6
-
Bathrooms
6
-
Garage
3 car
-
Width x Length
111'6" x 72'7"
-
First Floor Sq Ft
3031
-
Second Floor Sq Ft
1609
-
Total AC Sq Ft
4640
-
Total Under Roof Sq Ft
8366
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description
This beautiful, 4,640 sq. ft., two-story, classic, Colonial-style home floor plan features five-bedrooms, four and one-half bathrooms, a cabana bathroom, covered portico and entrance with a custom front door, arched transom and a tree-car garage. This house design provides a gourmet kitchen with an eating bar and breakfast area, opening to a family room, formal dining room an office and an exercise room. This luxurious home features an elevator, extensive balconies and porches, and a breezeway. There is an exclusive master suite with “His and Hers” walk-in closets, stylish tray ceiling and a large master bathroom that opens to a covered patio which adds to the luxury of this design. Purchase this home plan today.
Dimensions
- Width x Length 111'6" x 72'7"
- Height 28'-3
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location Left
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 5
- Possible 1
- Total 6
Bathrooms
- Full 4
- Half 0
- Total 6

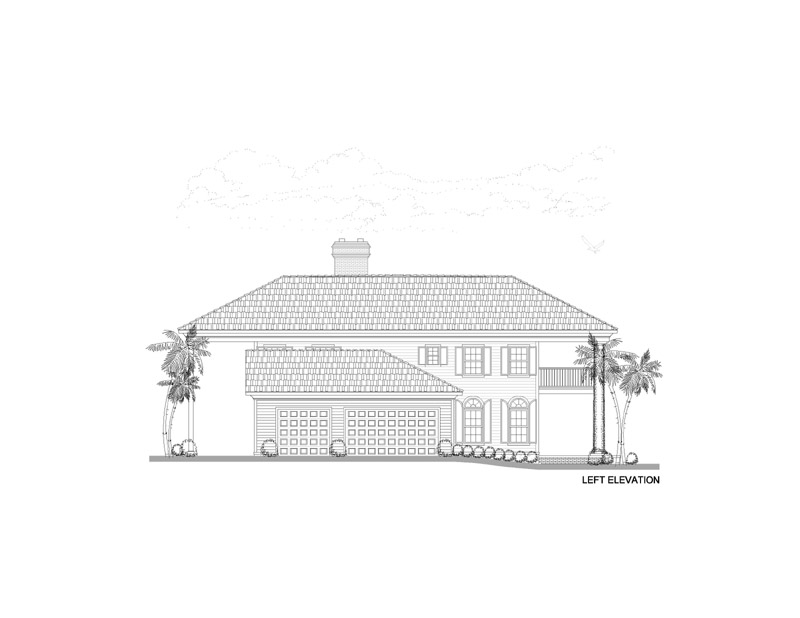

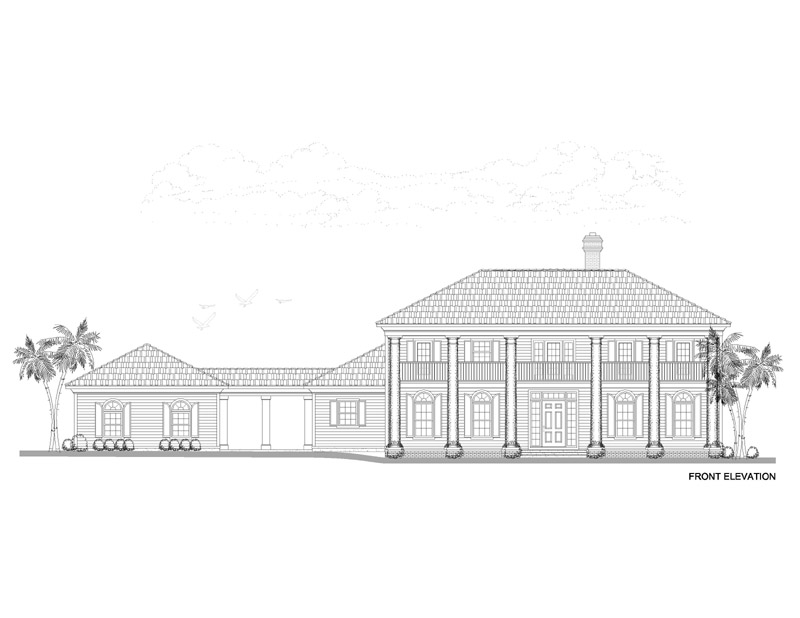

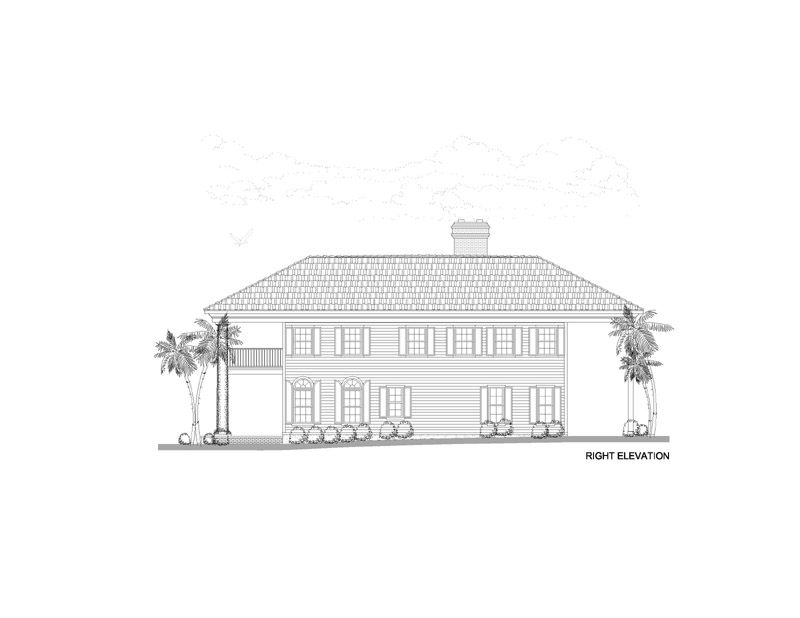

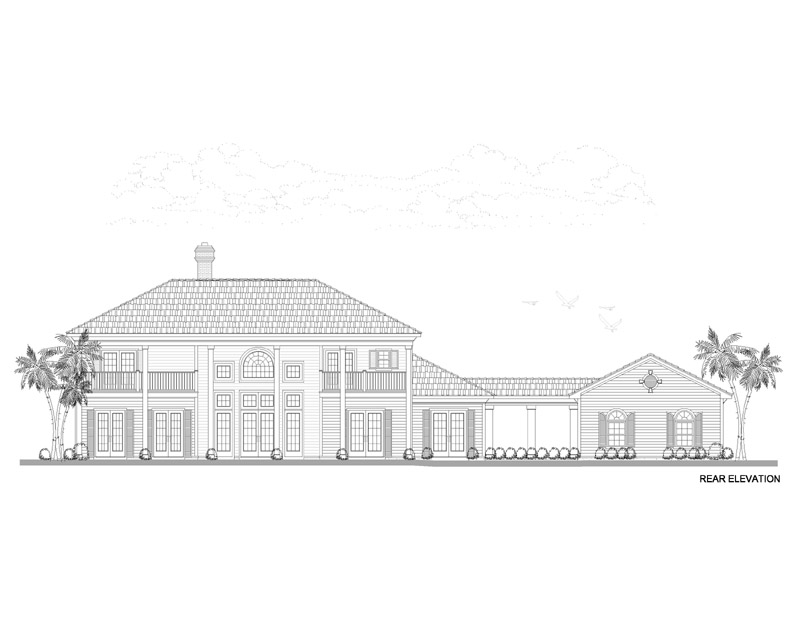

Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 2
Features
- Fireplace Yes
- Elevator Yes
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1600
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2400
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1100
- (Extra Sets: $50)
- More Information
3 Sets Price: $1200
- (Extra Sets: $50)
- More Information
5 Sets Price: $1300
- (Extra Sets: $50)
- More Information
8 Sets Price: $1450
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1600
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type wood truss
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material 0
- Wind Speed 140

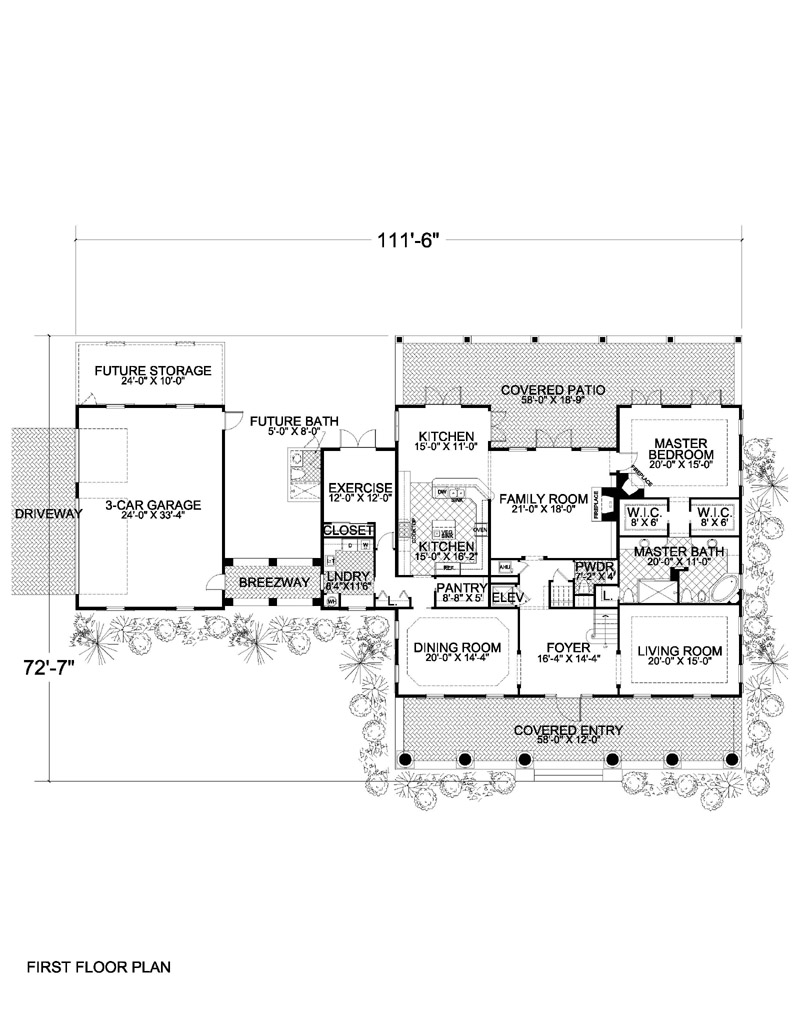

First Floor
- Primary Living 10'-2
- Secondary Living 10'-2
- Primary Bedrooms 10'-2
- Secondary Bedrooms 0
- Bathrooms 10'-2
- Common Areas 0

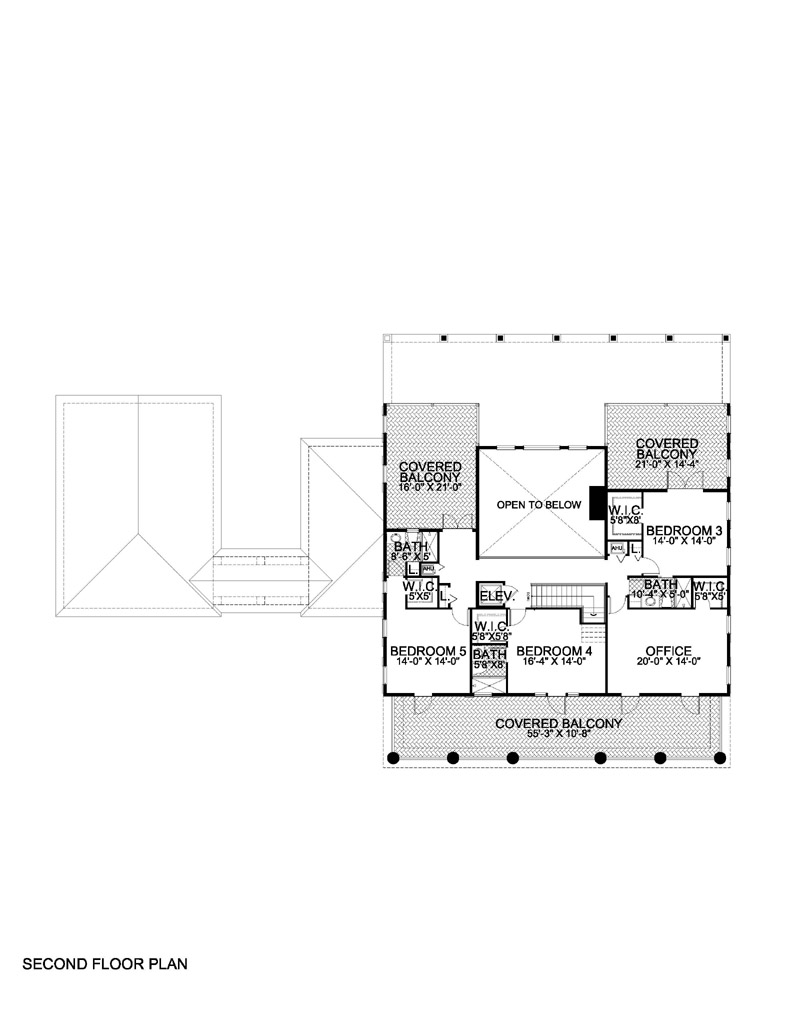

Second Floor
- Primary Bedrooms 0
- Secondary Bedrooms 9'-2
- Bathrooms 9'-2
- Common Areas 0
Exterior
- Garage 10'-2
- Covered Entry 10'-2
- Covered Patio 10'-2
- Covered Balcony 9'-2
Total AC Sq Ft
- First Floor AC 3031
- Second Floor AC 1609
- Total AC 4640
Total Under Roof Sq Ft
- Garage 858
- Covered Entry 824
- Covered Patio 822
- Covered Balconies 1222
- Total Under Roof 8366
