House Plans
Plan Summary
-
Stories
2
-
Bedrooms
6
-
Bathrooms
6
-
Garage
2 car
-
Width x Length
57'10" x 82'6"
-
First Floor Sq Ft
2728
-
Second Floor Sq Ft
1923
-
Total AC Sq Ft
4651
-
Total Under Roof Sq Ft
5603
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description
This beautiful, 4,651 sq.ft., two-story, classic, Spanish Mediterranean-style home floor plan features six-bedrooms, five and one-half bathrooms, a cabana bathroom, covered portico and entrance with a custom front door, arched transom and a two-car garage. Columns and arches provide a strong curb appeal. This home design provides a gourmet kitchen with an eating bar and breakfast area, opening to a family room and formal dining room. This luxurious home features a large utility room, a sauna and a elevator. There is an exclusive master suite with “His and Hers” walk-in closets, stylish tray ceiling and a large master bathroom that opens to a covered balcony which adds to total luxury of this design. Purchase this beautiful home floor plan today.
Dimensions
- Width x Length 57'10" x 82'6"
- Height 28'-3
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location Left
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 6
- Possible 0
- Total 6
Bathrooms
- Full 6
- Half 1
- Total 6
Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace Yes
- Elevator Yes
- Pool Yes
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1600
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2400
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1100
- (Extra Sets: $50)
- More Information
3 Sets Price: $1200
- (Extra Sets: $50)
- More Information
5 Sets Price: $1300
- (Extra Sets: $50)
- More Information
8 Sets Price: $1450
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1600
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type wood truss
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material 0
- Wind Speed 140

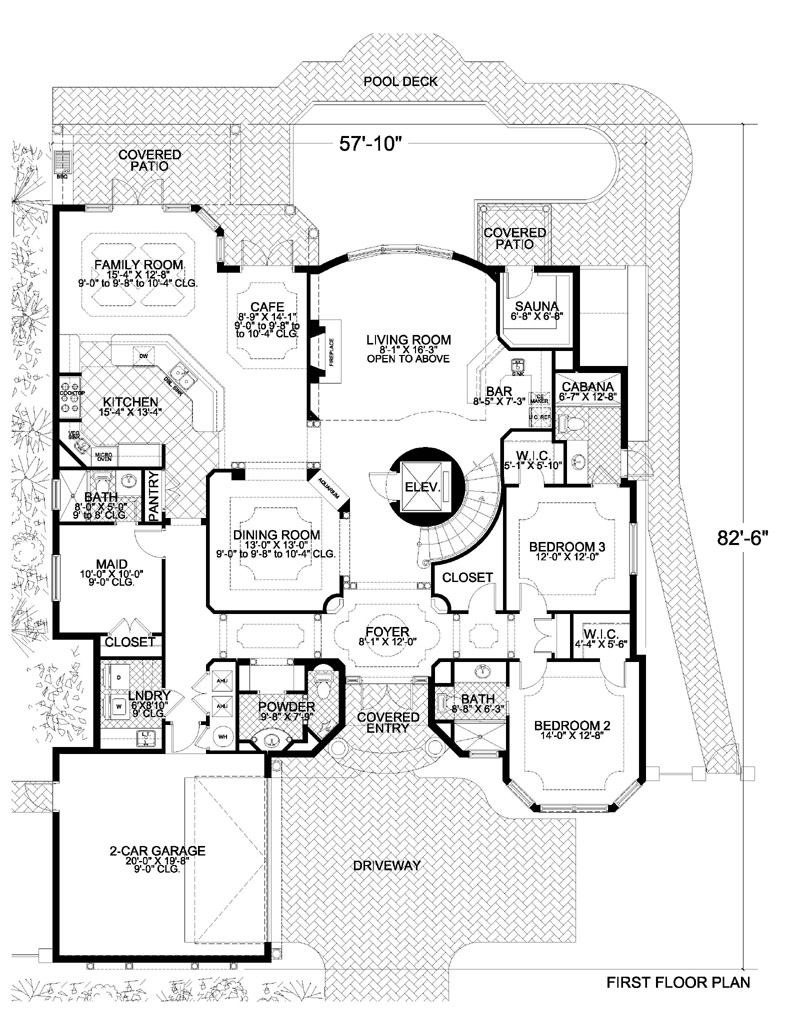

First Floor
- Primary Living 9'-0
- Secondary Living 9'-0
- Primary Bedrooms 0
- Secondary Bedrooms 9'-0
- Bathrooms 9'-0
- Common Areas 9'-0

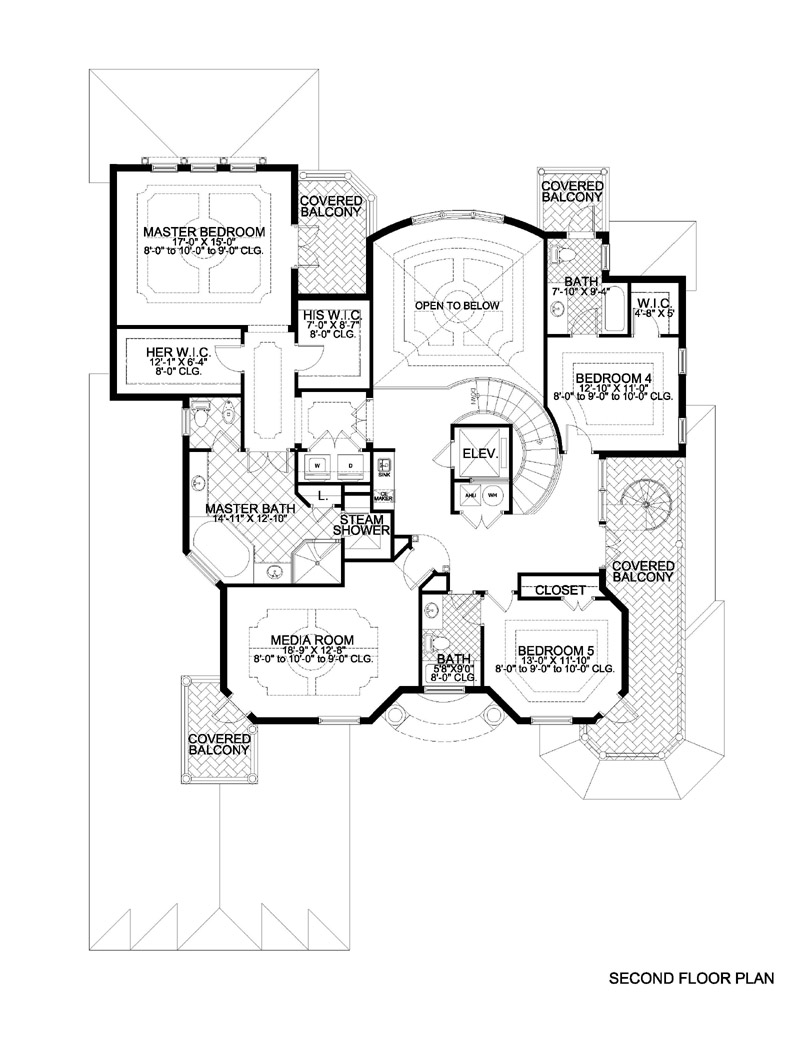

Second Floor
- Primary Bedrooms 8'-0
- Secondary Bedrooms 8'-0
- Bathrooms 8'-0
- Common Areas 0
Exterior
- Garage 9'-0
- Covered Entry 14'-0
- Covered Patio 14'-0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2728
- Second Floor AC 1923
- Total AC 4651
Total Under Roof Sq Ft
- Garage 448
- Covered Entry 77
- Covered Patio 237
- Covered Balconies 190
- Total Under Roof 5603
