House Plans
Plan Summary
-
Stories
2
-
Bedrooms
5
-
Bathrooms
5
-
Garage
3 car
-
Width x Length
67'1" x 87'2"
-
First Floor Sq Ft
2454
-
Second Floor Sq Ft
2217
-
Total AC Sq Ft
4671
-
Total Under Roof Sq Ft
6275
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description
This beautiful, two-story, 4,671 sq. ft., Classic Colonial-style home plan features five-bedrooms, five and a half bathrooms, covered portico and entrance with a custom front door and three-car garage. This house design provides a gourmet kitchen with a cafe, opening to a great room and close to a formal dining room. This luxurious home features a large utility room, media room and a library. There is an exclusive master suite with “His and Hers” walk-in closets, stylish tray ceiling and a large master bathroom and a exercise room, that opens to a covered balcony which adds to total luxury of this design. Purchase this classic Colonial-style home plan today.
Dimensions
- Width x Length 67'1" x 87'2"
- Height 23'-0
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location Left
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 5
- Possible 1
- Total 5
Bathrooms
- Full 5
- Half 1
- Total 5
Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace Yes
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1600
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2400
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1100
- (Extra Sets: $50)
- More Information
3 Sets Price: $1200
- (Extra Sets: $50)
- More Information
5 Sets Price: $1300
- (Extra Sets: $50)
- More Information
8 Sets Price: $1450
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1600
- (Extra Sets: $150)
- More Information
Foundation Type
- Type 0
- Option 0
Floor System
- Type 0
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type 0
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material 0
- Wind Speed 140

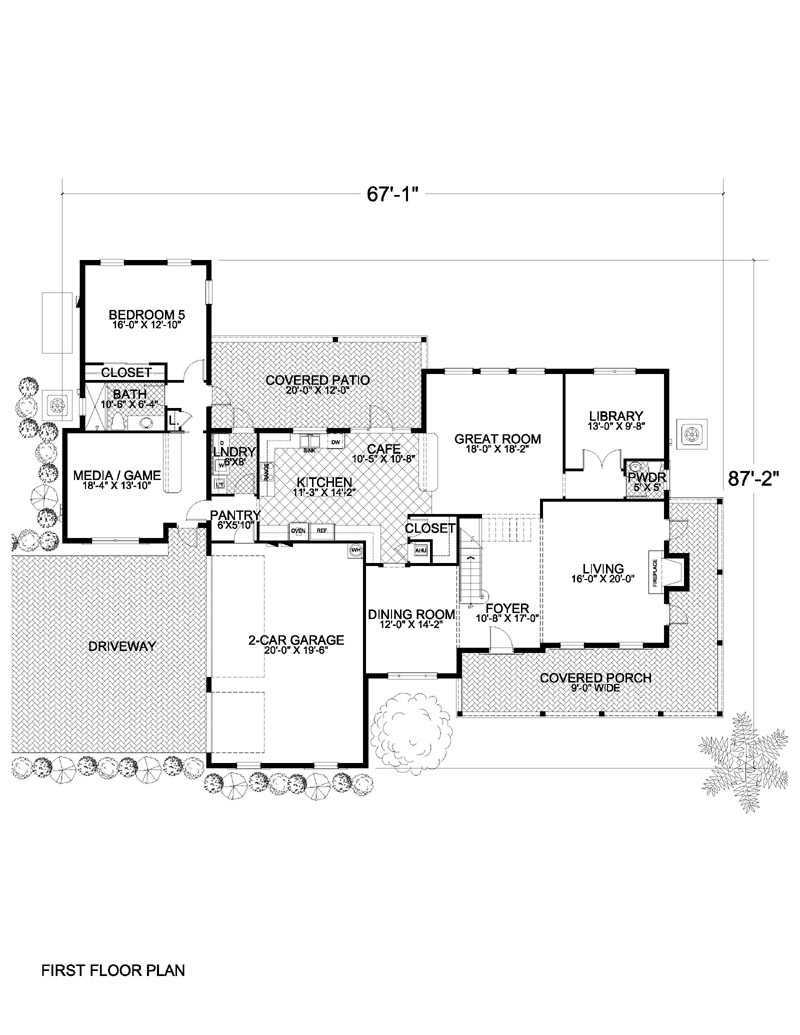

First Floor
- Primary Living 0
- Secondary Living 0
- Primary Bedrooms 0
- Secondary Bedrooms 0
- Bathrooms 0
- Common Areas 0

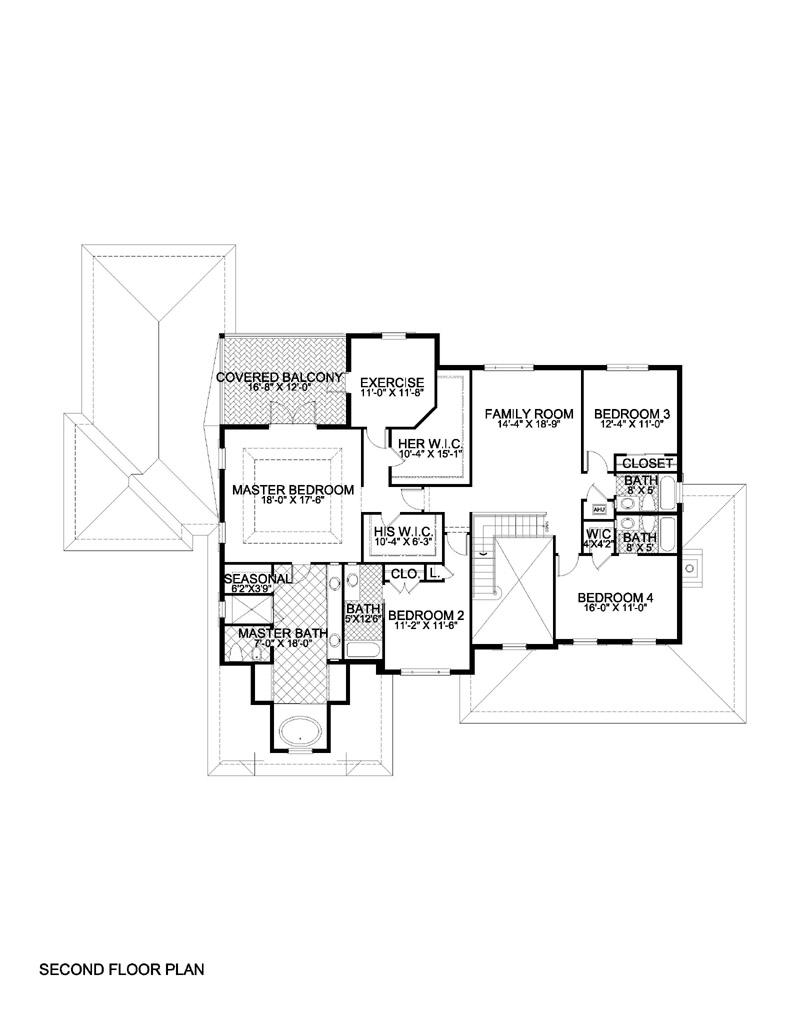

Second Floor
- Primary Bedrooms 0
- Secondary Bedrooms 0
- Bathrooms 0
- Common Areas 0
Exterior
- Garage 0
- Covered Entry 0
- Covered Patio 0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2454
- Second Floor AC 2217
- Total AC 4671
Total Under Roof Sq Ft
- Garage 621
- Covered Entry 443
- Covered Patio 340
- Covered Balconies 200
- Total Under Roof 6275
