House Plans
Plan Summary
-
Stories
2
-
Bedrooms
6
-
Bathrooms
5
-
Garage
3 car
-
Width x Length
54'9" x 82'2"
-
First Floor Sq Ft
2327
-
Second Floor Sq Ft
2386
-
Total AC Sq Ft
4713
-
Total Under Roof Sq Ft
5778
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description
This 4,713 sq. ft., two-story, traditional Spanish Mediterranean-style waterfront home floor plan features seven bedrooms, four and one-half bathrooms, a cabana bath and three-car garage. This outstanding design is perfect for a large family. The design is luxurious both inside and throughout the interior. There is a grand covered entrance and covered patio with a summer kitchen. The formal dining room offers a tray ceiling. A cozy den makes a perfect place for a quiet retreat. Paneled front doors with transom add elegance to the entrance. A gourmet island kitchen has a breakfast area and pantry opening into the family room. The family room leads you onto a covered patio with a summer kitchen. Luxurious amenities abound in the master suite with large walk-in closets, a sitting area and a regal master bath. This master batch has a dressing area and opens on a private, covered balcony. A large living room with two-story ceiling opens to a central living area. Purchase this waterfront home floor plan today.
Dimensions
- Width x Length 54'9" x 82'2"
- Height 31'-5
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location Left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 6
- Possible 1
- Total 6
Bathrooms
- Full 5
- Half 1
- Total 5
Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1600
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2400
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1100
- (Extra Sets: $50)
- More Information
3 Sets Price: $1200
- (Extra Sets: $50)
- More Information
5 Sets Price: $1300
- (Extra Sets: $50)
- More Information
8 Sets Price: $1450
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1600
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Steel joist
- Spacing 0
- Subfloor Gypcrete
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

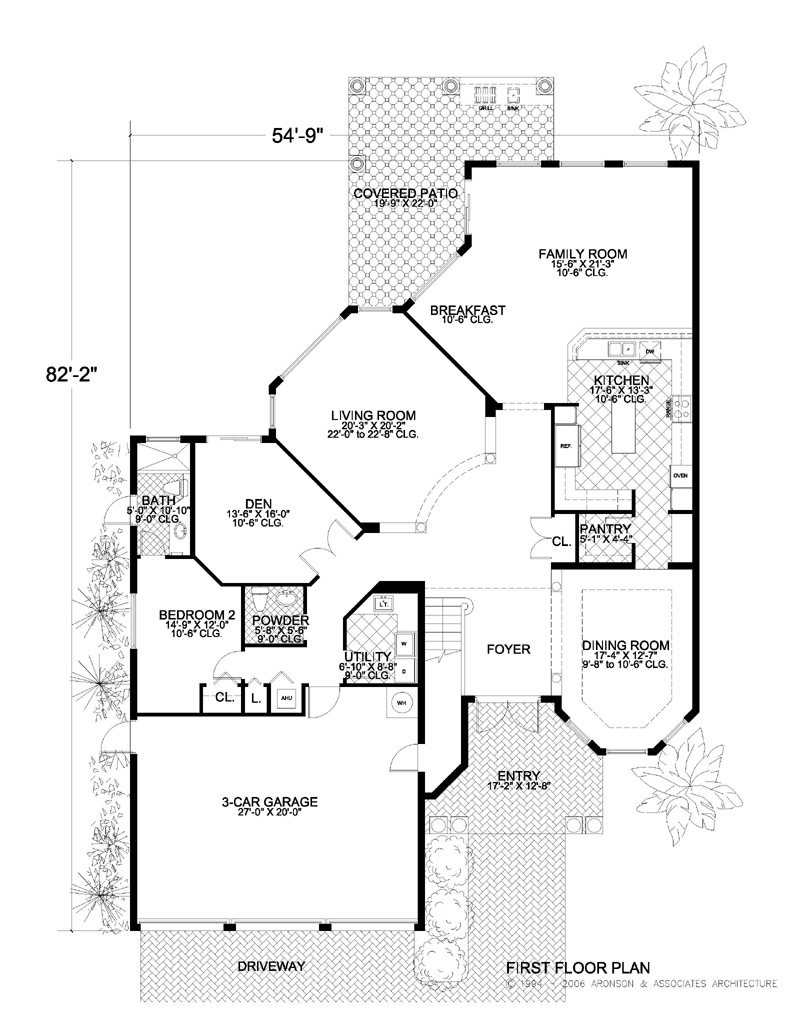

First Floor
- Primary Living 22' to 22'-8
- Secondary Living 10'-6
- Primary Bedrooms
- Secondary Bedrooms 10'-6
- Bathrooms 9'-4
- Common Areas 0

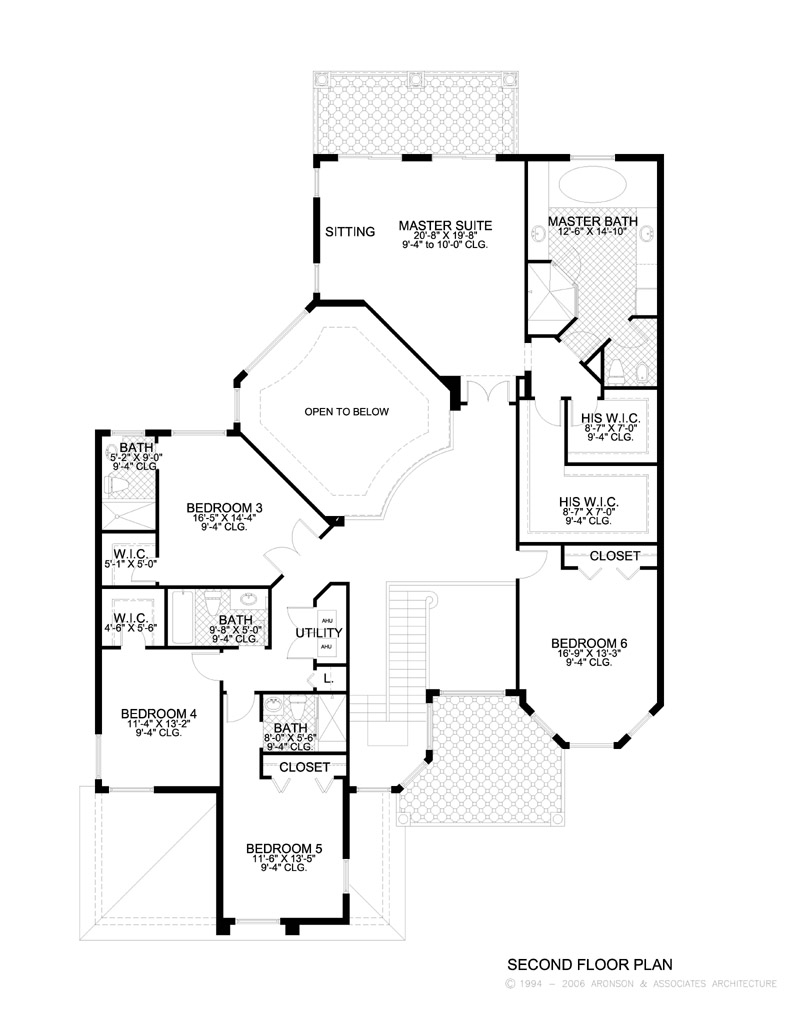

Second Floor
- Primary Bedrooms 9'-4
- Secondary Bedrooms 9'-4
- Bathrooms 9'-4
- Common Areas 9'-4
Exterior
- Garage 10'-8
- Covered Entry 10'-8
- Covered Patio 10'-8
- Covered Balcony 9'-10
Total AC Sq Ft
- First Floor AC 2327
- Second Floor AC 2386
- Total AC 4713
Total Under Roof Sq Ft
- Garage 611
- Covered Entry 296
- Covered Patio 158
- Covered Balconies 0
- Total Under Roof 5778
