PLAN SUMMARY
-
Stories
2
-
Bedrooms
4
-
Bathrooms
5
-
Garage
2 car
-
Width x Length:
48' " x 123' 9"
-
First Floor Sq Ft
2,544 Sq. Ft.
-
Second Floor Sq Ft
2,187 Sq. Ft.
-
Total AC Sq Ft
4,731 Sq. Ft.
-
Total Under Roof Sq Ft
5,885 Sq. Ft.
$0.00
Plan Description
This 4,731 sq. ft., two-story, Mediterranean-style home floor plan features four bedrooms, four bathrooms plus a cabana and a two- car garage. The luxurious exterior has a spacious covered entrance, covered patio and a summer kitchen. What a perfect cozy place the study makes for quiet solitude and relaxation! Paneled doors add elegance to the entrance. Architectural accents, quoins, scored stucco and thick columns provide strong curb appeal. A gourmet island kitchen with an eating bar, pantry and cafe opens into the family room. The luxurious master suite with large walk-in closets and sitting area has a regal master bath with dressing area that brings you onto a private balcony. The living room and family room are separate. Get this luxurious Mediterranean style house plan today.
Dimensions
-
Width x Length
48' " x 123' 9"
-
Height
29'
-
Stories
2/
Garage
-
Number of Cars
2
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
0
-
Total
4
Bathrooms
-
Full
5
-
Half
0
-
Total
5

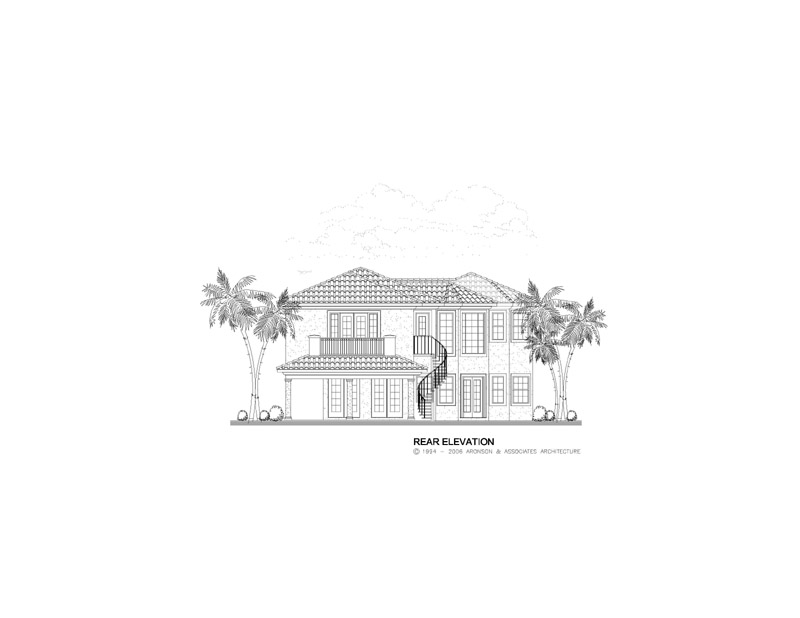

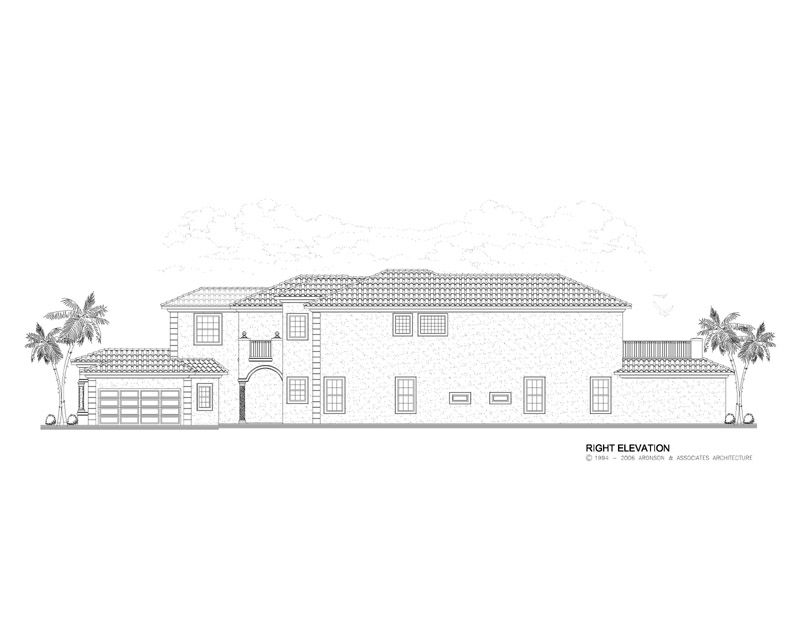

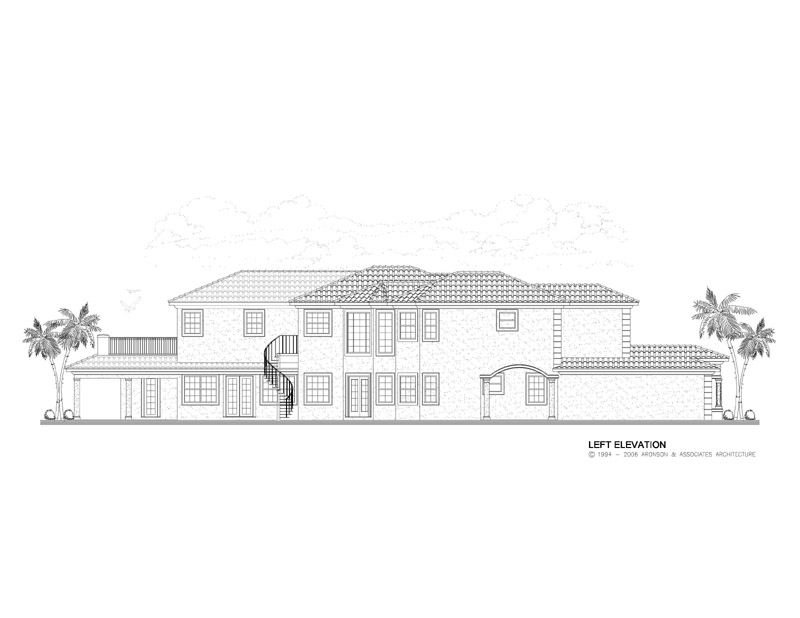

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
1
Features
-
Fireplace
No
-
Elevator
No
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1600
CAD Disk Price: $2400
Reverse PDF Price: $1850
Reverse CAD Price: $2650
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $1100
3 Sets Price: $1200
5 Sets Price: $1300
8 Sets Price: $1450
Reproducible Vellum Price: $1600
Base – Not for Construction Price: $1100
3 Sets (Reverse) Price: $1450
5 Sets (Reverse) Price: $1550
8 Sets (Reverse) Price: $1700
Reproducible Vellum (Reverse) Price: $1850
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
Wood truss
-
Spacing
24
-
Subfloor
wood
-
Thickness
5/8
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140

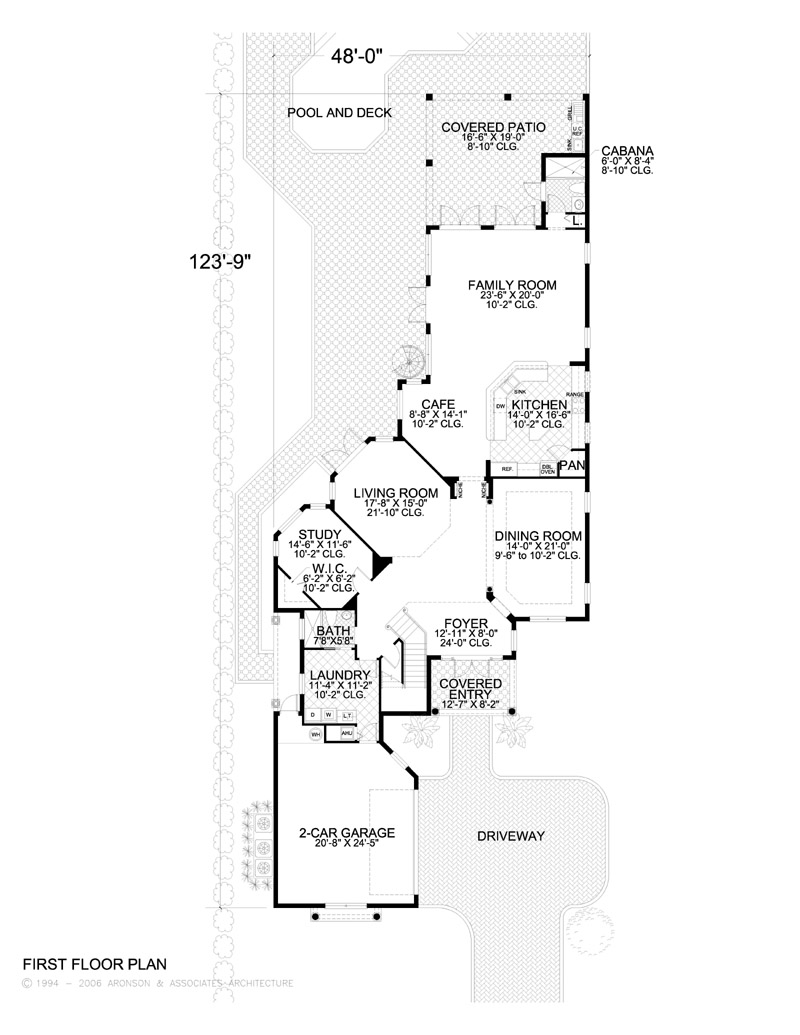

First Floor
-
Primary Living
21'-10
-
Secondary Living
10'-2
-
Primary Bedrooms
0
-
Secondary Bedrooms
0
-
Bathrooms
8'-10
-
Common Areas
10'-2

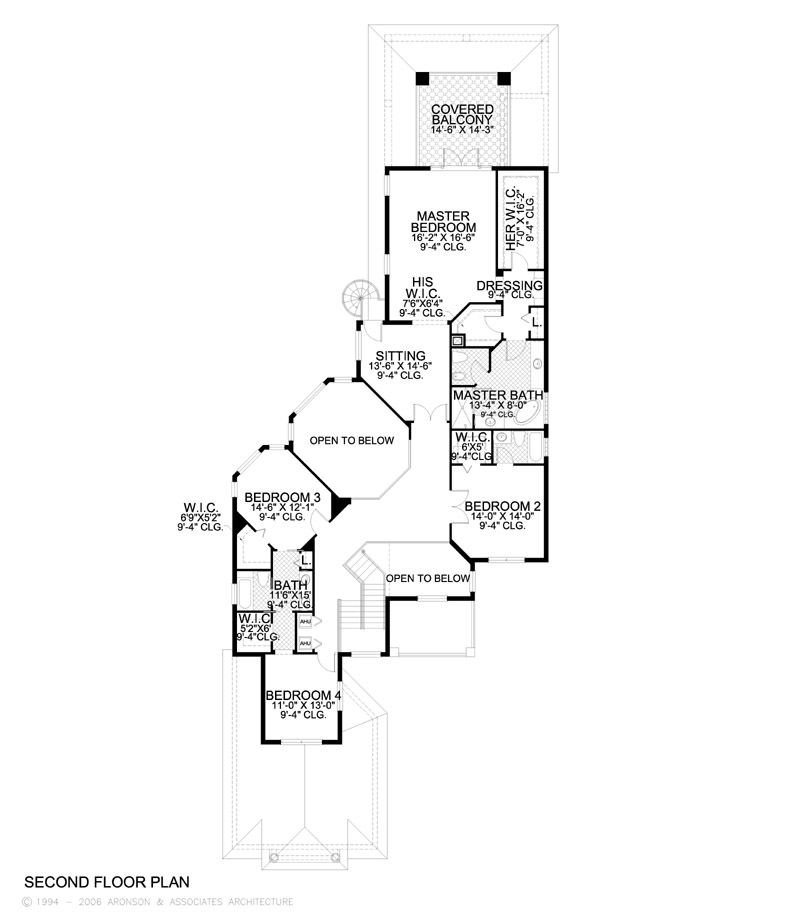

Second Floor
-
Primary Bedrooms
9'-4
-
Secondary Bedrooms
9'-4
-
Bathrooms
9'-4
-
Common Areas
9'-4
Exterior
-
Garage
9'-0
-
Covered Entry
10'-7
-
Covered Patio
10'-2
-
Covered Balcony
9'-0
Total AC Sq Ft
-
First Floor AC
2544
-
Second Floor AC
2187
-
Total AC
4731
Total Under Roof Sq Ft
-
Garage
568
-
Covered Entry
110
-
Covered Patio
476
-
Covered Balconies
0
-
Total Under Roof
5885
