House Plans
Plan Summary
-
Stories
2
-
Bedrooms
6
-
Bathrooms
7
-
Garage
2 car
-
Width x Length
97'2" x 66'10"
-
First Floor Sq Ft
3036
-
Second Floor Sq Ft
1735
-
Total AC Sq Ft
4771
-
Total Under Roof Sq Ft
6133
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description
This luxurious 4,771 sq. ft., two-story, classic style home floor plan features five bedrooms, a multipurpose “playroom,” office and exercise room, five and one-half bathrooms, plus cabana and a two-car garage. The spectacular covered entrance has a distinctive front door with sidelights. A combined living room and family room open to a covered patio. There is a formal dining room for a large family and formal entertaining. Columns and arches provide strong curb appeal. A large island kitchen with an eating bar, butler’s pantry and cafe opens to the family room featuring a fireplace for a cozy atmosphere. The second floor offers seclusion with an exquisite master suite with large walk-in closets, a luxurious master bath with a sitting area that opens to a private balcony; truly a delight for simple solitude and relaxation. Download this home floor plan now.
Dimensions
- Width x Length 97'2" x 66'10"
- Height 32'
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location Right
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 2
- Total 6
Bathrooms
- Full 5
- Half 0
- Total 7
Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace Yes
- Elevator No
- Pool Yes
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1600
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2400
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1100
- (Extra Sets: $50)
- More Information
3 Sets Price: $1200
- (Extra Sets: $50)
- More Information
5 Sets Price: $1300
- (Extra Sets: $50)
- More Information
8 Sets Price: $1450
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1600
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Pre-engineered wood
- Spacing 24
- Subfloor wood
- Thickness 3/4
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 6:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

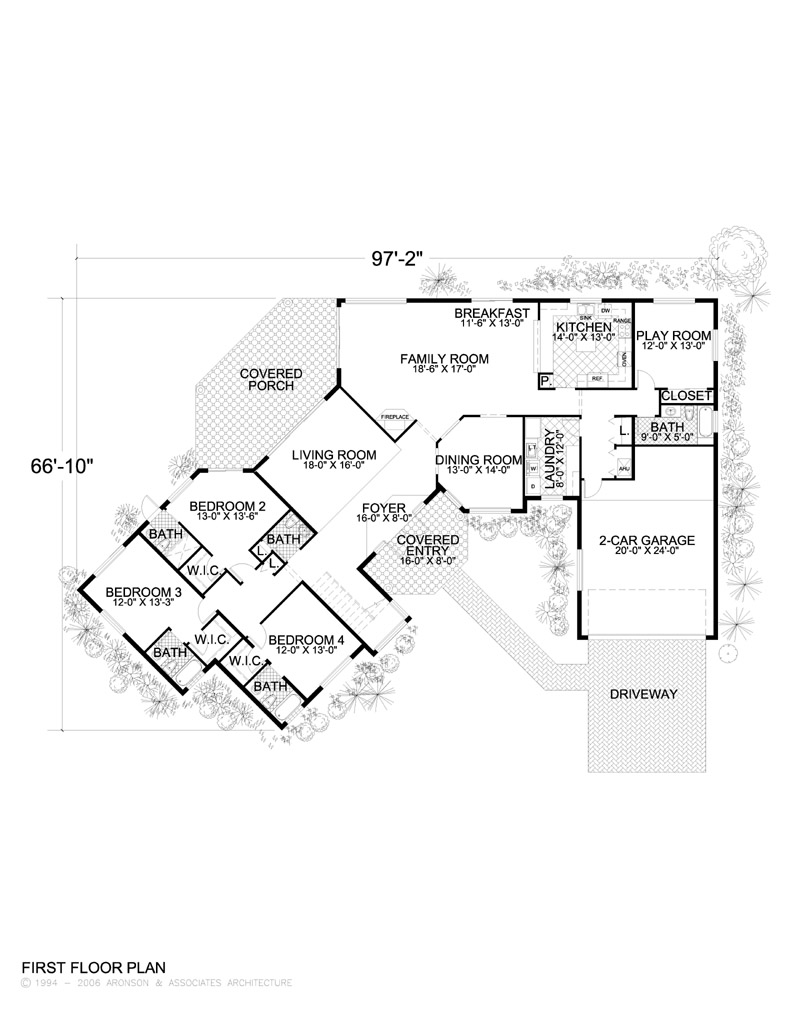

First Floor
- Primary Living 10'-0
- Secondary Living 10'-0
- Primary Bedrooms
- Secondary Bedrooms 10'-0
- Bathrooms 10'-0
- Common Areas 10'-0

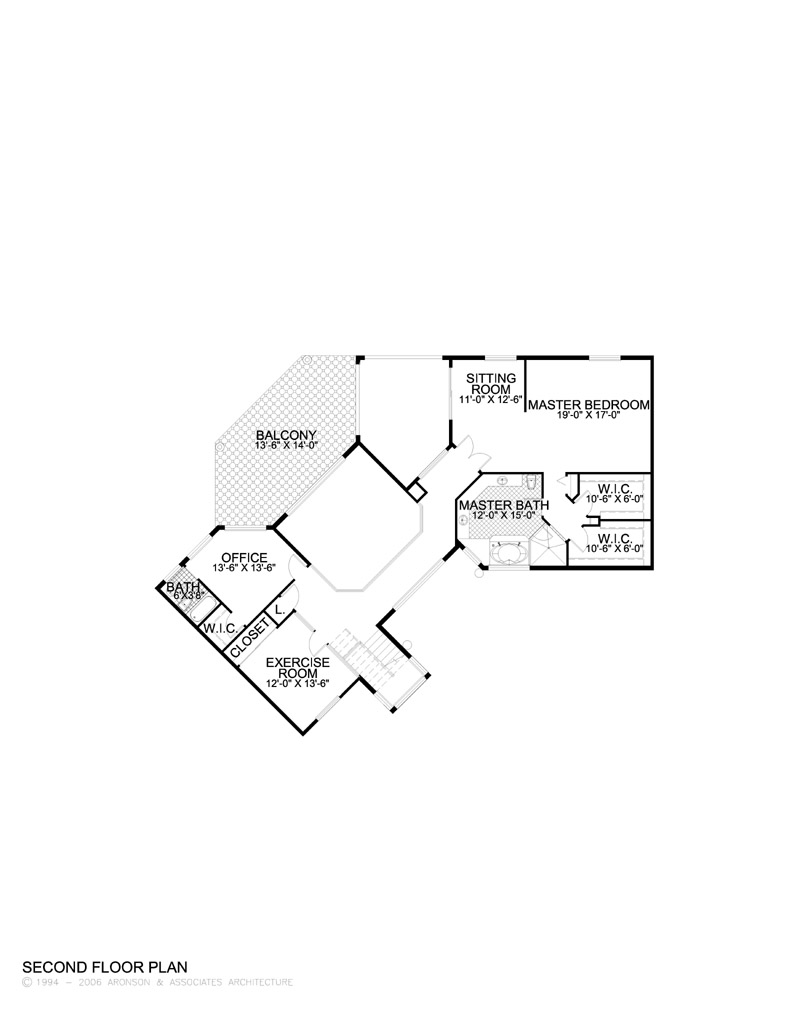

Second Floor
- Primary Bedrooms 9'-1
- Secondary Bedrooms 9'-1
- Bathrooms 9'-1
- Common Areas 0
Exterior
- Garage 8'-0
- Covered Entry 21'-0
- Covered Patio 21'-0
- Covered Balcony 9'-0
Total AC Sq Ft
- First Floor AC 3036
- Second Floor AC 1735
- Total AC 4771
Total Under Roof Sq Ft
- Garage 587
- Covered Entry 165
- Covered Patio 378
- Covered Balconies 232
- Total Under Roof 6133
