House Plans
Plan Summary
-
Stories
2
-
Bedrooms
6
-
Bathrooms
7
-
Garage
2 car
-
Width x Length
85'3" x 53'2"
-
First Floor Sq Ft
2953
-
Second Floor Sq Ft
1930
-
Total AC Sq Ft
4883
-
Total Under Roof Sq Ft
5629
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description
This two-story home features six bedrooms, six bathrooms, a cabana bathroom and two-car garage. Each suite has the luxury and privacy of a bathroom all its own. Eight- foot high French doors are accented with sidelights. The first story of this design has a large open central area with a bar for entertaining. To show off the luxurious exterior, there is a towering covered entrance and a covered balcony. A formal dining room has a bay window to let in the daylight to its best! This design has a large recessed living room. The gournet island kitchen has an eating bar and two pantries. The master suite is truly luxurious with its large walk-in closets and spectacular master bath. The second story of this design has a family room with a wet bar.
Dimensions
- Width x Length 85'3" x 53'2"
- Height 32'-8"
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location Right
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 5
- Possible 1
- Total 6
Bathrooms
- Full 6
- Half 0
- Total 7
Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 1
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1600
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2400
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1100
- (Extra Sets: $50)
- More Information
3 Sets Price: $1200
- (Extra Sets: $50)
- More Information
5 Sets Price: $1300
- (Extra Sets: $50)
- More Information
8 Sets Price: $1450
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1600
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Wood truss
- Spacing 24"
- Subfloor Gypcrete
- Thickness 3/4"
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material S. tile
- Wind Speed 140

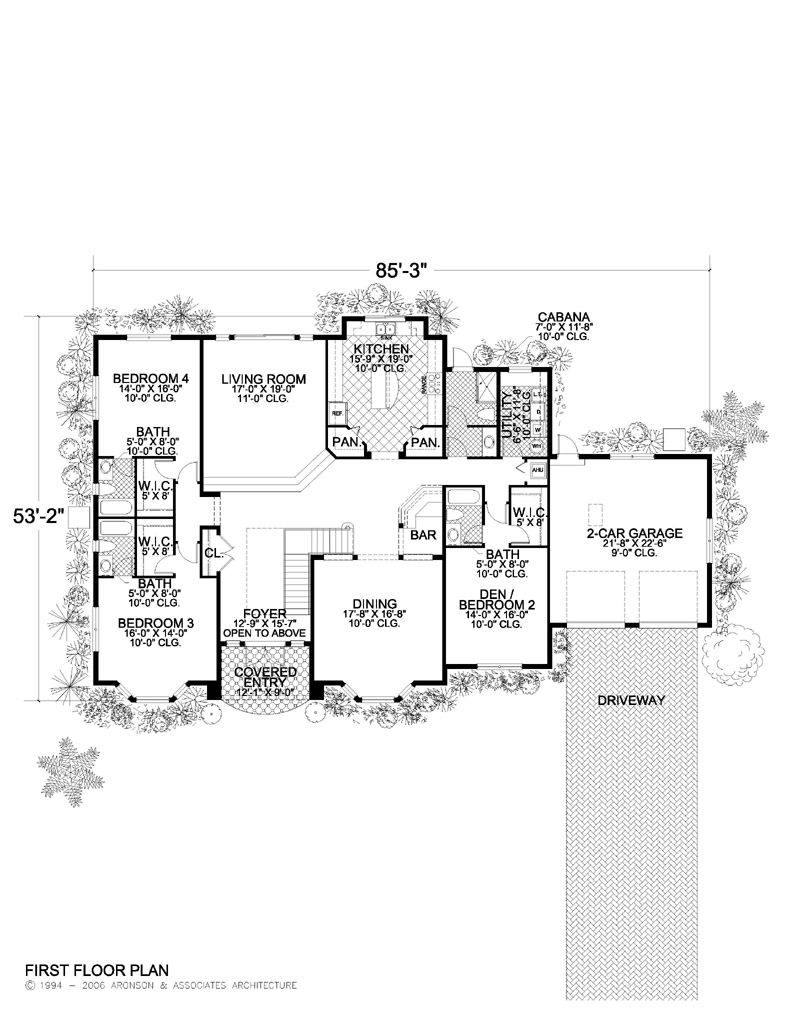

First Floor
- Primary Living 11'
- Secondary Living 10'
- Primary Bedrooms
- Secondary Bedrooms 10'
- Bathrooms 10'
- Common Areas 0
Second Floor
- Primary Bedrooms 10'
- Secondary Bedrooms 10'
- Bathrooms 10'
- Common Areas 0
Exterior
- Garage 9'
- Covered Entry 10'-2"
- Covered Patio 10'-2"
- Covered Balcony 10'-2"
Total AC Sq Ft
- First Floor AC 2953
- Second Floor AC 1930
- Total AC 4883
Total Under Roof Sq Ft
- Garage 534
- Covered Entry 106
- Covered Patio 106
- Covered Balconies 0
- Total Under Roof 5629
