House Plan Model 4994-0265

Browsing: By Two Story

Two Stories Home Plans

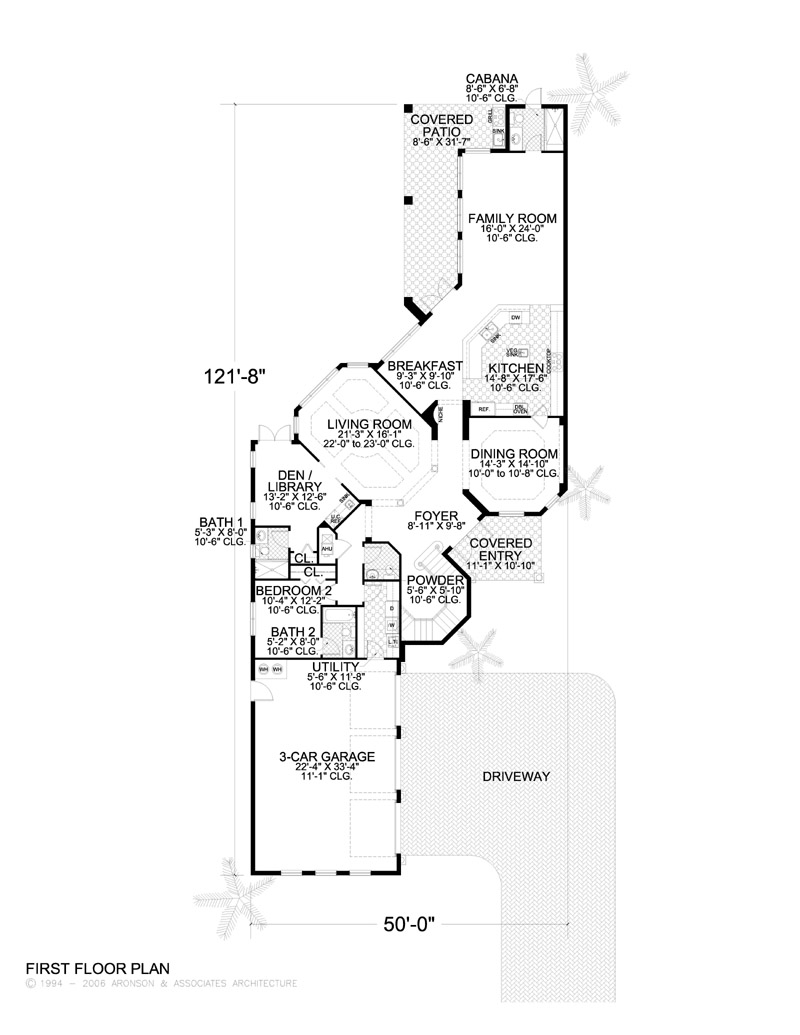

Home First Floor Plan

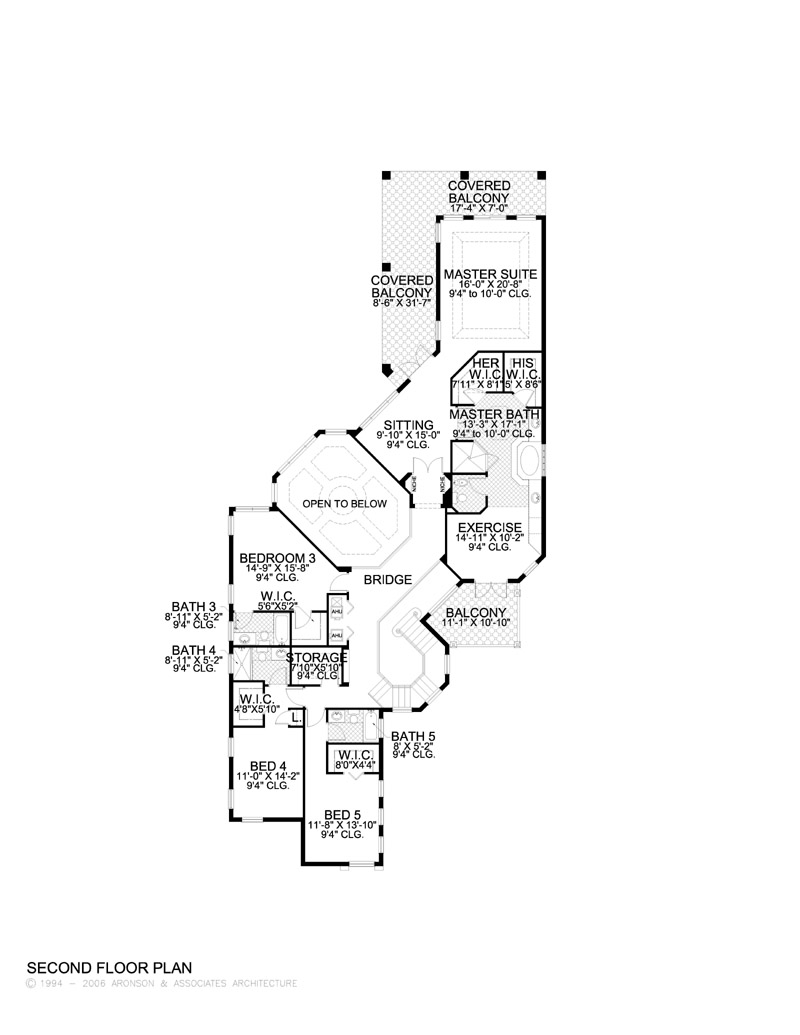

Home Second Floor Plan

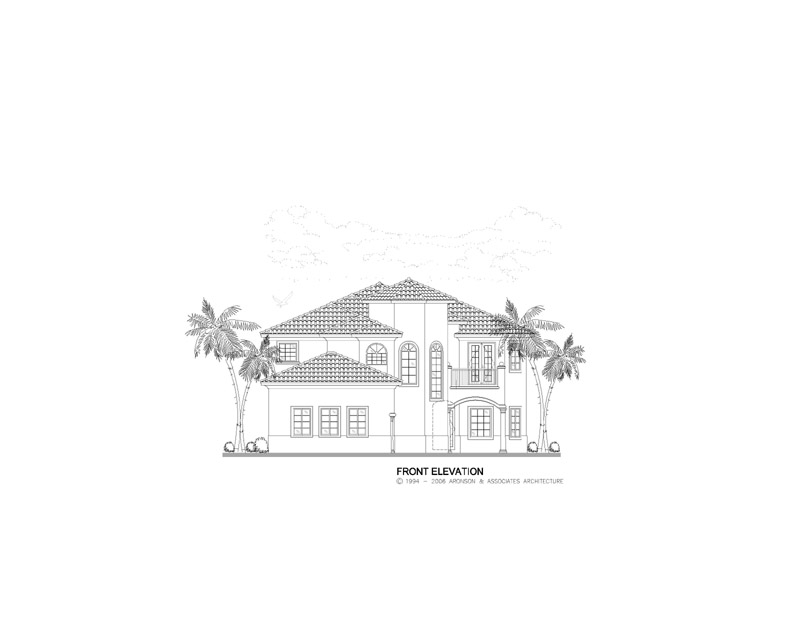

Home Front Elevation VIew

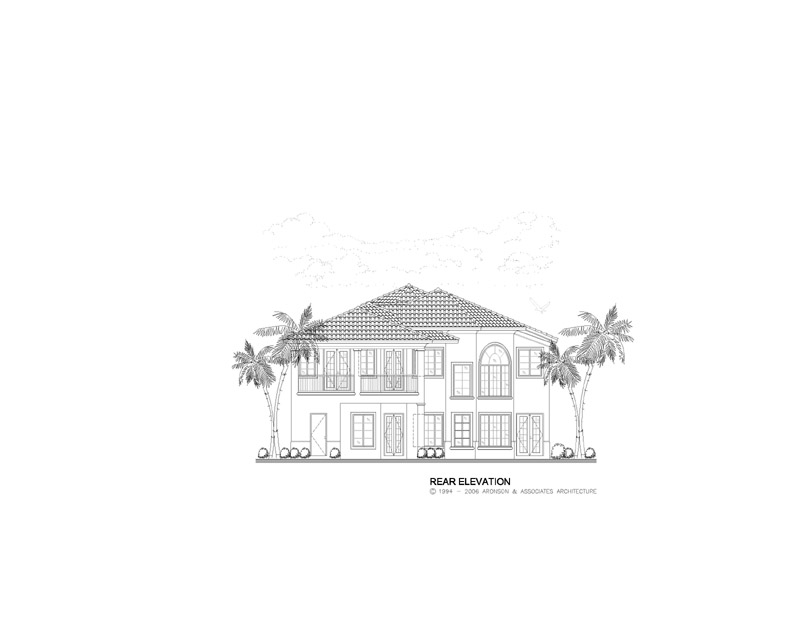

Home Rear Elevation VIew

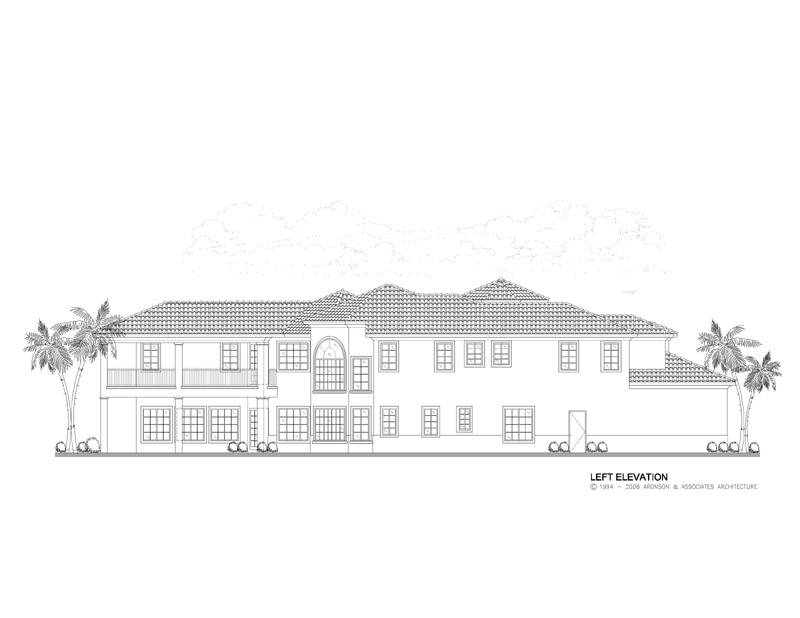

Home Left Elevation View

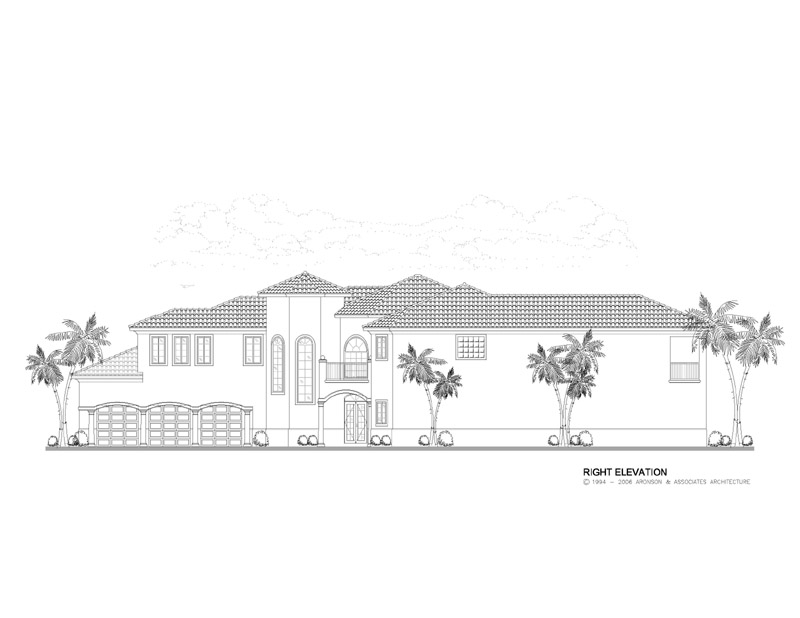

Home Right Elevation Home

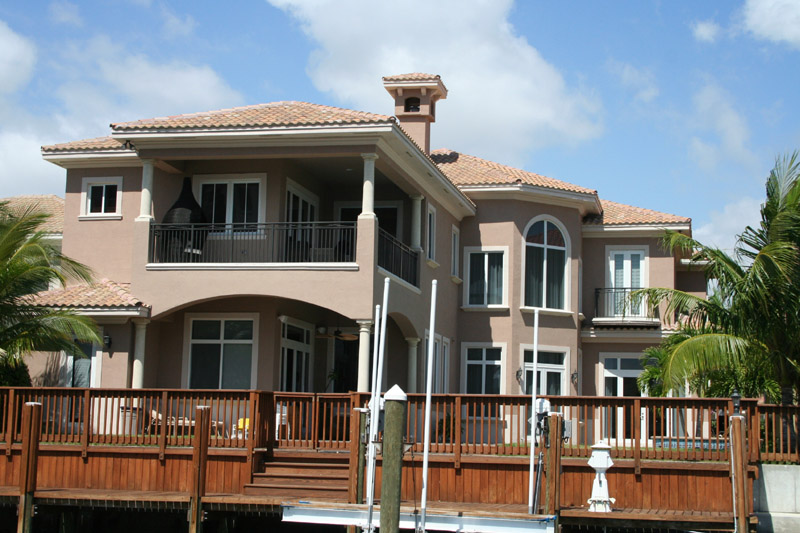

Waterfront Home
Two Stories Home Plans
Home First Floor Plan
Home Second Floor Plan
Home Front Elevation VIew
Home Rear Elevation VIew
Home Left Elevation View
Home Right Elevation Home
Waterfront Home

Plan Summary

  • Stories

    2

  • Bedrooms

    5

  • Bathrooms

    7

  • Garage

    3 car

  • Width x Length

    50' x 121'

  • First Floor Sq Ft

    2564

  • Second Floor Sq Ft

    2430

  • Total AC Sq Ft

    4994

  • Total Under Roof Sq Ft

    6638

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money

Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

Two-story 4,994 sq. ft., classic waterfront home floor plan features five bedrooms, six and one-half bathrooms, a cabana bathroom and three-car garage. The house entrance is covered and spacious to greet visitors. Each bedroom suite has the convenience and privacy of its own bathroom. The covered patio offers a well-equipped summer kitchen. The first story of this home design features a VIP suite with its own entrance. A quiet retreat and solitude can be found in the cozy den/library. Eight-foot high doors truly make the entrance elegant and inviting. Architectural accents, banding and out-lookers trim this magnificent model. A chef’s dream is found in the island kitchen with an eating bar and cafe that leads you to the family room. The luxurious master bedroom suite features an exercise room, large walk-in closets, tray ceilings with a regal master bath with a vanity area opening onto a private balcony. You will truly be taken in by the large living room with its two-story ceiling. Purchase this classic waterfront home floor plan today.

Dimensions

  • Width x Length 50' x 121'
  • Height 32'-1
  • Stories 2/

Garage

  • Number of Cars 3
  • Attached Yes
  • Location Left

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 5
  • Possible
  • Total 5

Bathrooms

  • Full 7
  • Half 1
  • Total 7

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 2

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1600

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2400

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $1100

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1200

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1300

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1450

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1600

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type Wood
  • Spacing 24
  • Subfloor wood
  • Thickness 3/4

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living 22' to 23'
  • Secondary Living 10'-6
  • Primary Bedrooms
  • Secondary Bedrooms 10'-6
  • Bathrooms 10'-6
  • Common Areas 10' to 14'

Second Floor

  • Primary Bedrooms 9'-4
  • Secondary Bedrooms 9'-4
  • Bathrooms 9'-4
  • Common Areas 9'-4

Exterior

  • Garage 11'-1
  • Covered Entry 12'-3
  • Covered Patio 12'-3
  • Covered Balcony 12'-3

Total AC Sq Ft

  • First Floor AC 2564
  • Second Floor AC 2430
  • Total AC 4994

Total Under Roof Sq Ft

  • Garage 805
  • Covered Entry 123
  • Covered Patio 325
  • Covered Balconies 391
  • Total Under Roof 6638
