House Plan Model 5016-0362

Browsing: By Two Story

Oceanside Home Plans

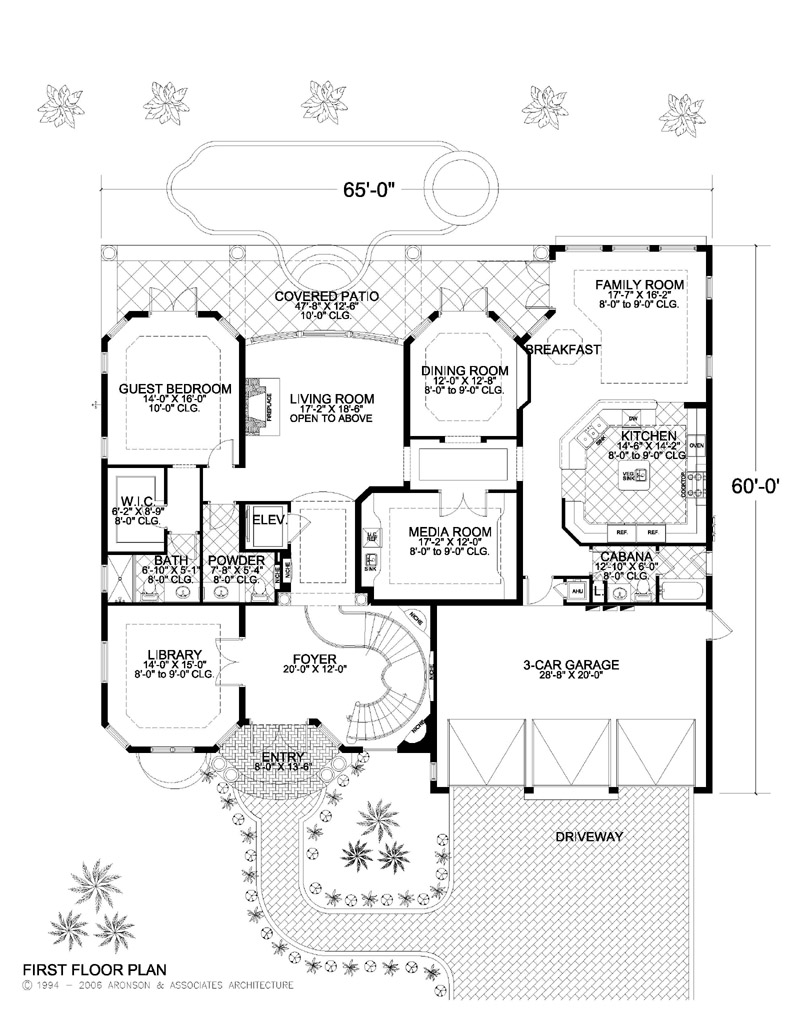

First Floor Home Floor Plan

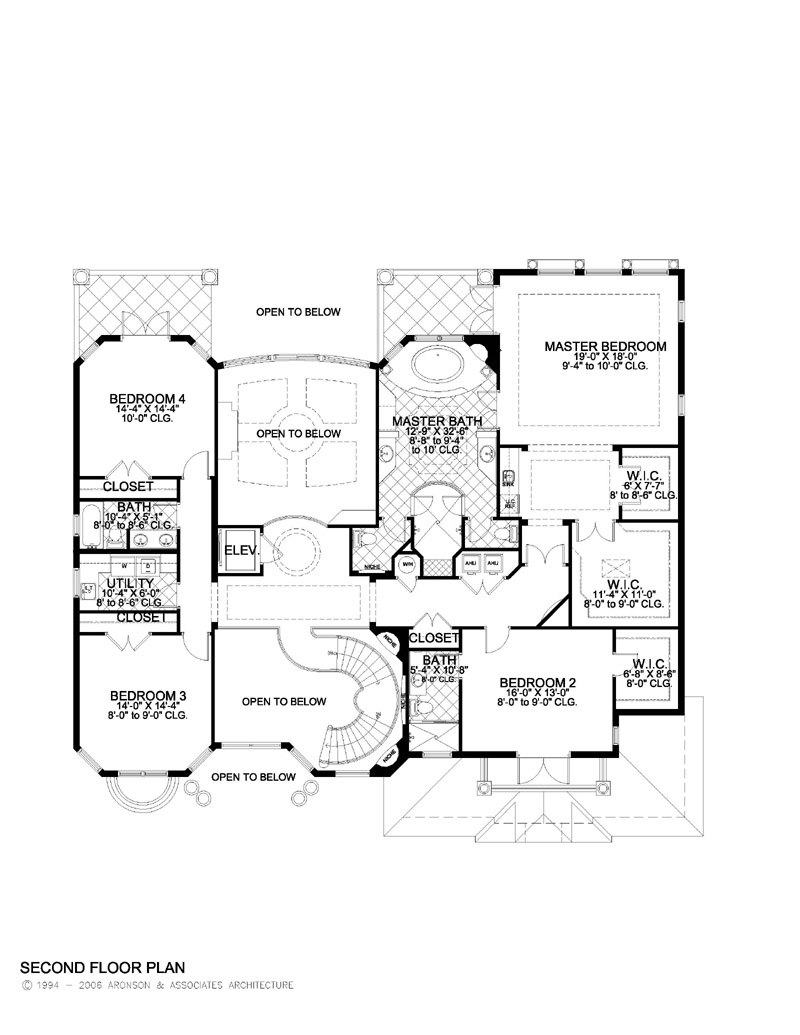

Second Floor Home Floor Plan

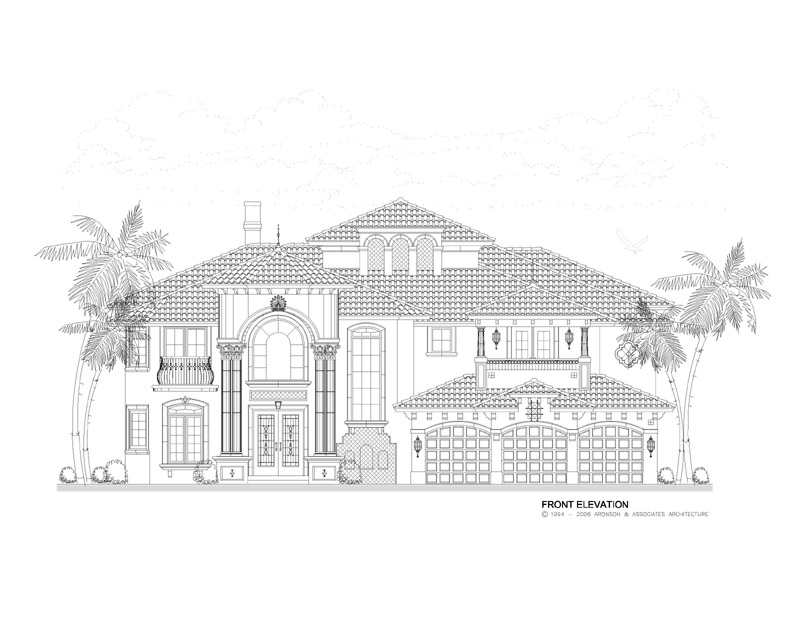

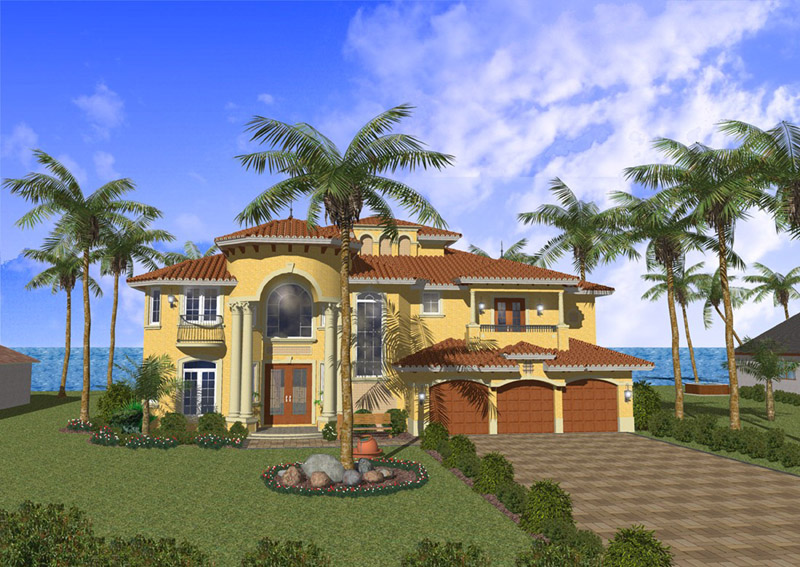

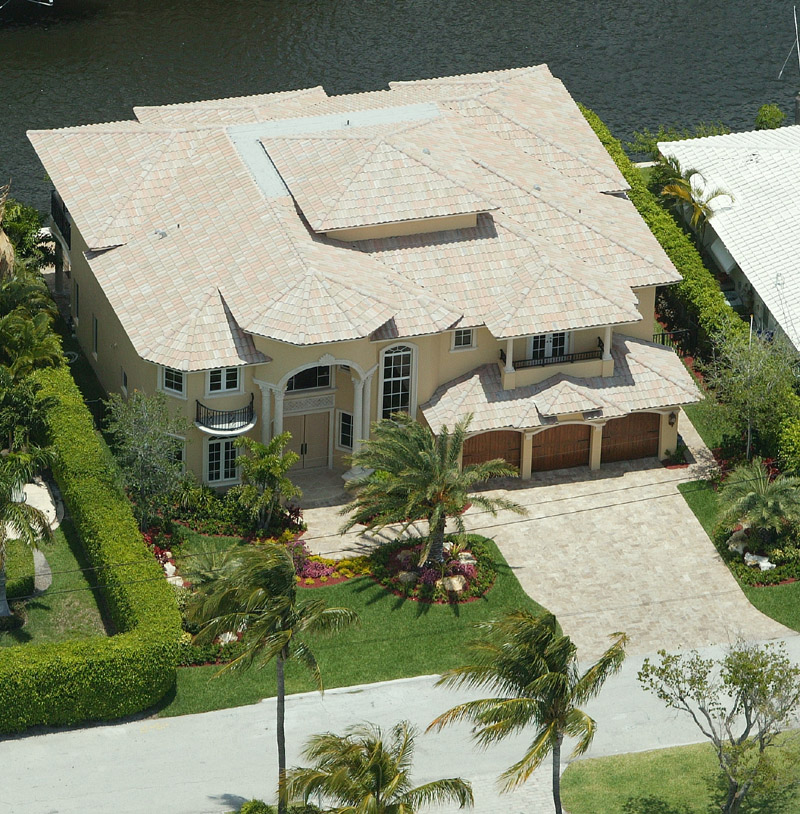

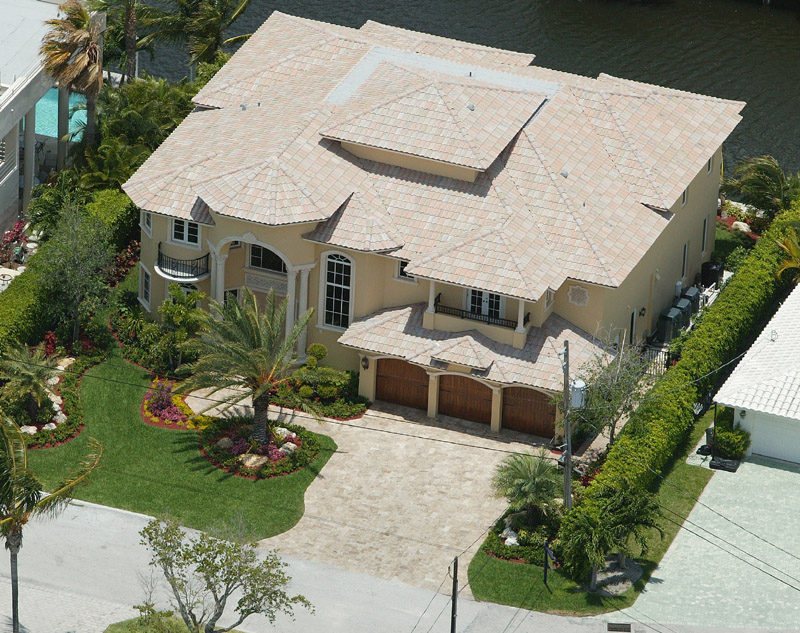

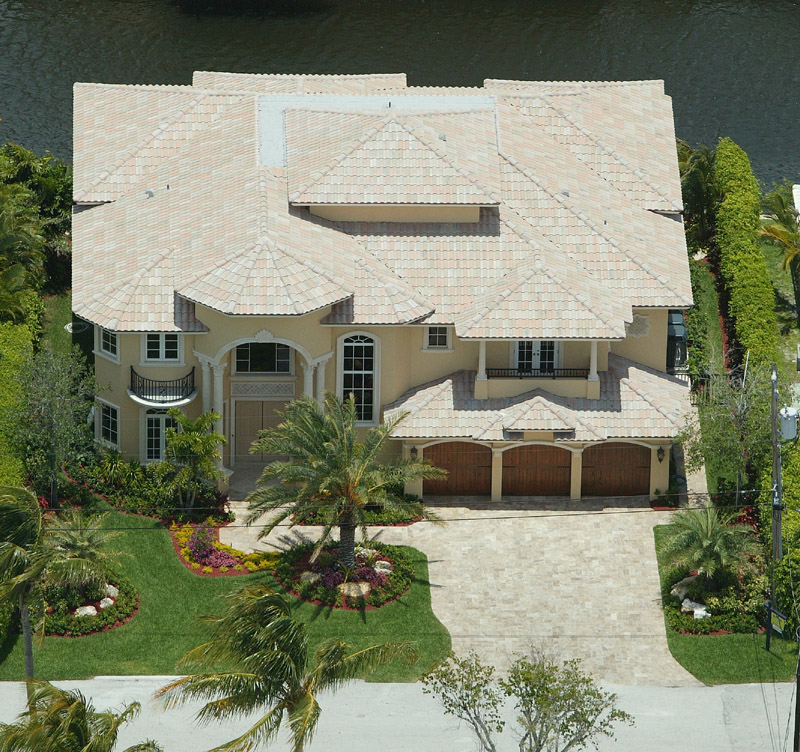

Front Elevation View of Home

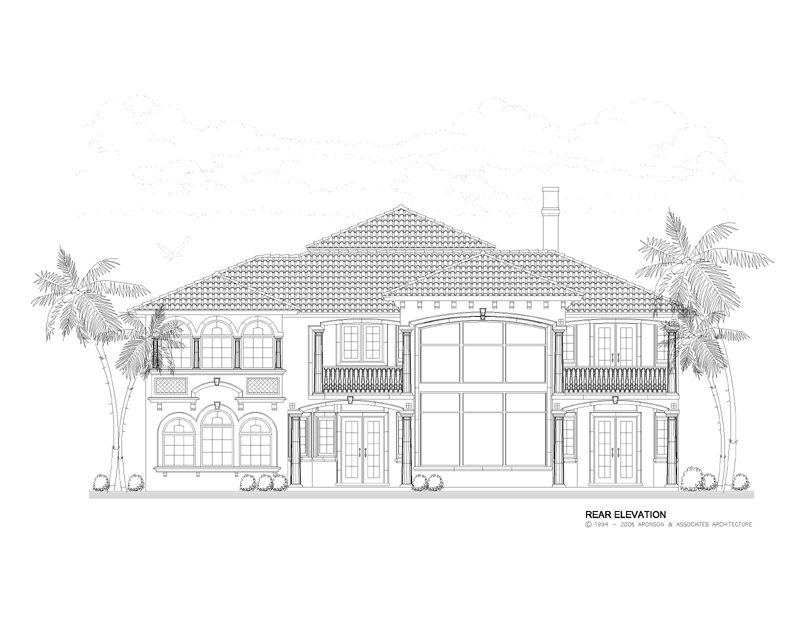

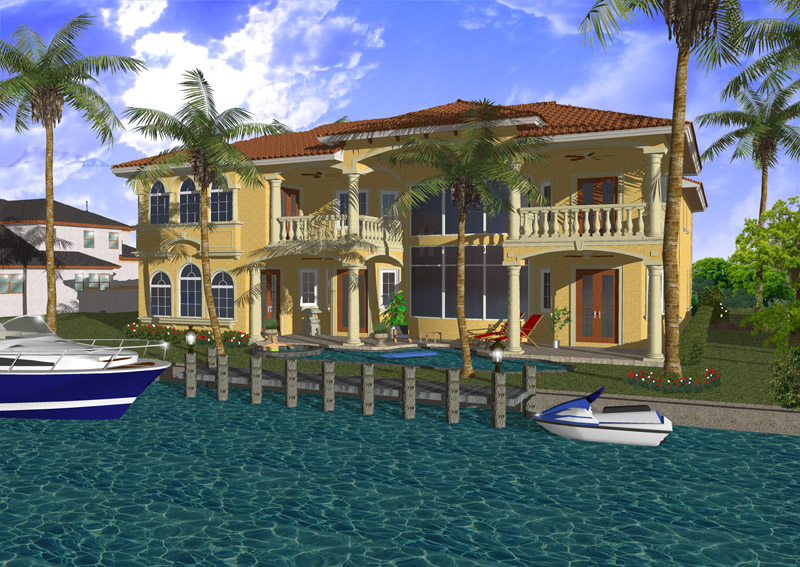

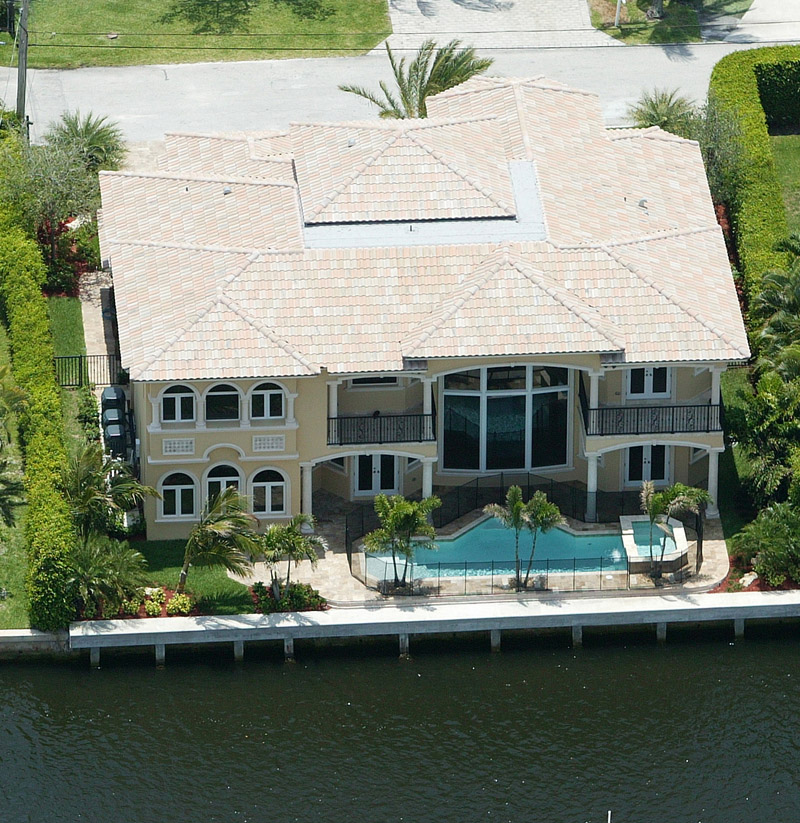

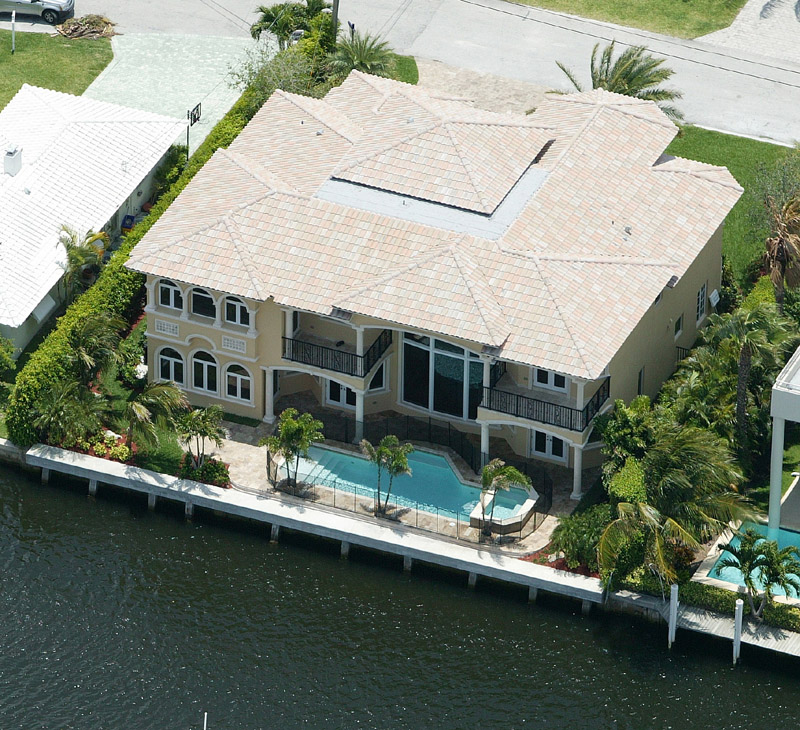

Rear Elevation View of Home

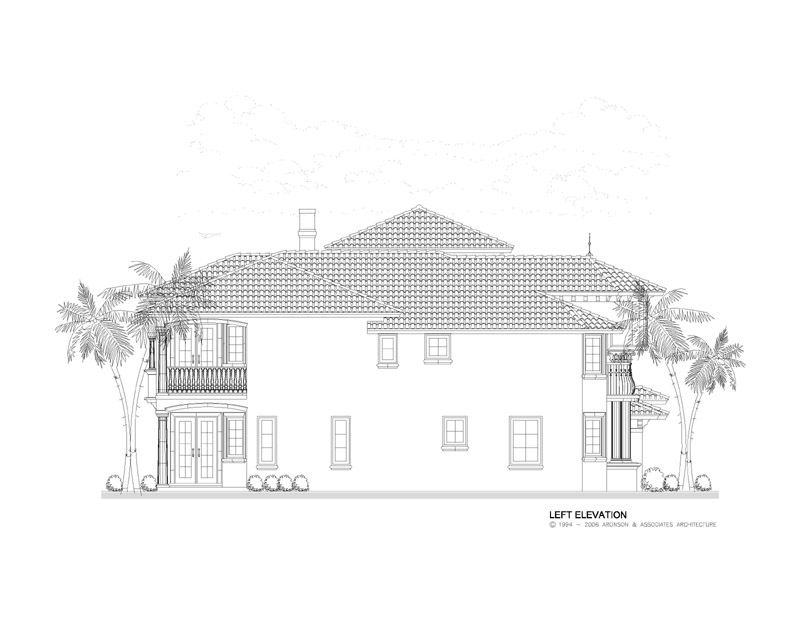

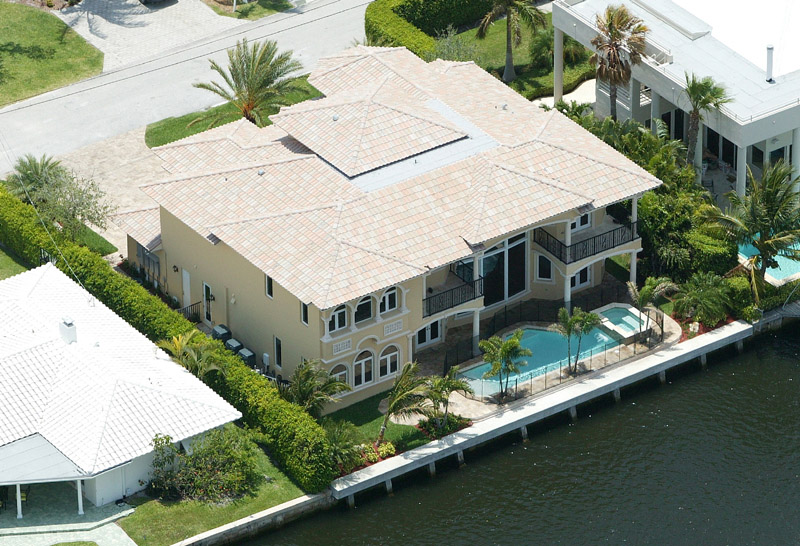

Home Left Elevation View

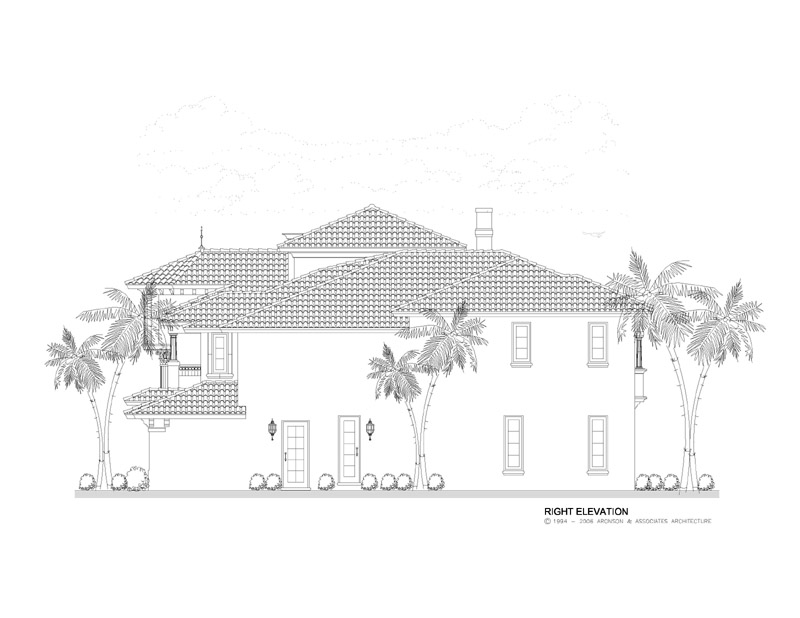

Home Right Elevation View
Waterfront Home Plans
Amazing House Plans
House Plans for Luxury Living
Luxury House and Home Plans
Luxury Waterfront House Plans
Waterfront Luxury House Plans
Luxury Houses
Oceanside Home Plans
First Floor Home Floor Plan
Second Floor Home Floor Plan
Front Elevation View of Home
Rear Elevation View of Home
Home Left Elevation View
Home Right Elevation View
Waterfront Home Plans
Amazing House Plans
House Plans for Luxury Living
Luxury House and Home Plans
Luxury Waterfront House Plans
Waterfront Luxury House Plans
Luxury Houses

Plan Summary

  • Stories

    2

  • Bedrooms

    5

  • Bathrooms

    6

  • Garage

    3 car

  • Width x Length

    65' x 60'

  • First Floor Sq Ft

    2596

  • Second Floor Sq Ft

    2420

  • Total AC Sq Ft

    5016

  • Total Under Roof Sq Ft

    6114

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money

Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

Classic 5,016 sq. ft., two-story Mediterranean-style waterfront home plan features five bedrooms, five and one-half bathrooms, a cabana bath and a three-car garage. A towering covered entrance and covered balconies accent the exterior of this beautiful home floor plan. There is a private entrance to the first-story VIP suite. Impressive, custom, winding stairs with a windowed wall leads you to the second story. If you desire, there is an elevator to take you there! Eight-foot high French doors with arched transoms accent the entrance. The media room features a wet bar and library for a nice touch for entertaining. Columns and arches provide a strong curb appeal. A huge island kitchen with an eating bar opens to the family room. The master bedroom suite is luxurious with its large walk-in closets, morning kitchen, tray ceilings and a regal master bath offering additional storage areas and an opening onto a private balcony. The large living room features a wet bar and fireplace. This is truly an enjoyable place to come to each day and call “home”! Get this impressive home floor plan today.

Dimensions

  • Width x Length 65' x 60'
  • Height 35'-9
  • Stories 2/

Garage

  • Number of Cars 3
  • Attached Yes
  • Location Right

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 5
  • Possible 0
  • Total 5

Bathrooms

  • Full 6
  • Half 1
  • Total 6

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 2

Features

  • Fireplace Yes
  • Elevator Yes
  • Pool Yes
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1700

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2600

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $1200

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1300

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1400

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1550

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1700

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type Steel joist
  • Spacing 0
  • Subfloor Concrete
  • Thickness 3

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living 21'-5
  • Secondary Living 9'-4
  • Primary Bedrooms
  • Secondary Bedrooms 9'-4
  • Bathrooms 10'-0
  • Common Areas 9'-4

Second Floor

  • Primary Bedrooms 9'-4
  • Secondary Bedrooms 8' to 9'
  • Bathrooms 8' to 8'-6
  • Common Areas 10'-0

Exterior

  • Garage 9'-7 1/2
  • Covered Entry 21'-11
  • Covered Patio 21'-11
  • Covered Balcony 10'-0

Total AC Sq Ft

  • First Floor AC 2596
  • Second Floor AC 2420
  • Total AC 5016

Total Under Roof Sq Ft

  • Garage 609
  • Covered Entry 90
  • Covered Patio 399
  • Covered Balconies 257
  • Total Under Roof 6114
