Plan Summary
-
Stories
2
-
Bedrooms
4
-
Bathrooms
5
-
Garage
3 car
-
Width x Length
83' x 95'
-
First Floor Sq Ft
3602
-
Second Floor Sq Ft
1435
-
Total AC Sq Ft
5037
-
Total Under Roof Sq Ft
6488
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description
Luxurious, two-story, 5,037 sq. ft., Mediterranean home floor plan includes four bedrooms, four and one-half bathrooms, a cabana bath and three-car garage. This spectacular Florida home has an opulent grand covered entrance flanked by twin columns. The covered patio and balconies, along with the exquisite French doors with arched transom that accent the entrance, makes this design a dream home. The star attraction of this home design is each bedroom suite having a private bathroom. You’ll love this open design if you seek a home offering space as well as private areas. This well thought out layout features the ultimate master bedroom suite with a sitting area, morning bar, large walk-in closets and a private courtyard with water features. A cozy den provides just that special place for entertaining or simple solitude. High ceilings and two volume spaces makes this design feel even larger. A formal foyer leads to a large, open area – living room/dining room, family room complete with a bar and stately fireplace. This is a perfect area to host large get-togethers or for those with an active lifestyle. There is a gourmet island kitchen with an eating bar and pantry opening to the family room. The large family room opens onto a large covered patio. Get this luxurious home plan today.
Dimensions
- Width x Length 83' x 95'
- Height 29'-10
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location Right
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 4
- Possible 0
- Total 4
Bathrooms
- Full 5
- Half 1
- Total 5
Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 2
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1700
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2600
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1200
- (Extra Sets: $50)
- More Information
3 Sets Price: $1300
- (Extra Sets: $50)
- More Information
5 Sets Price: $1400
- (Extra Sets: $50)
- More Information
8 Sets Price: $1550
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1700
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Supranos
- Spacing 0
- Subfloor Concrete
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

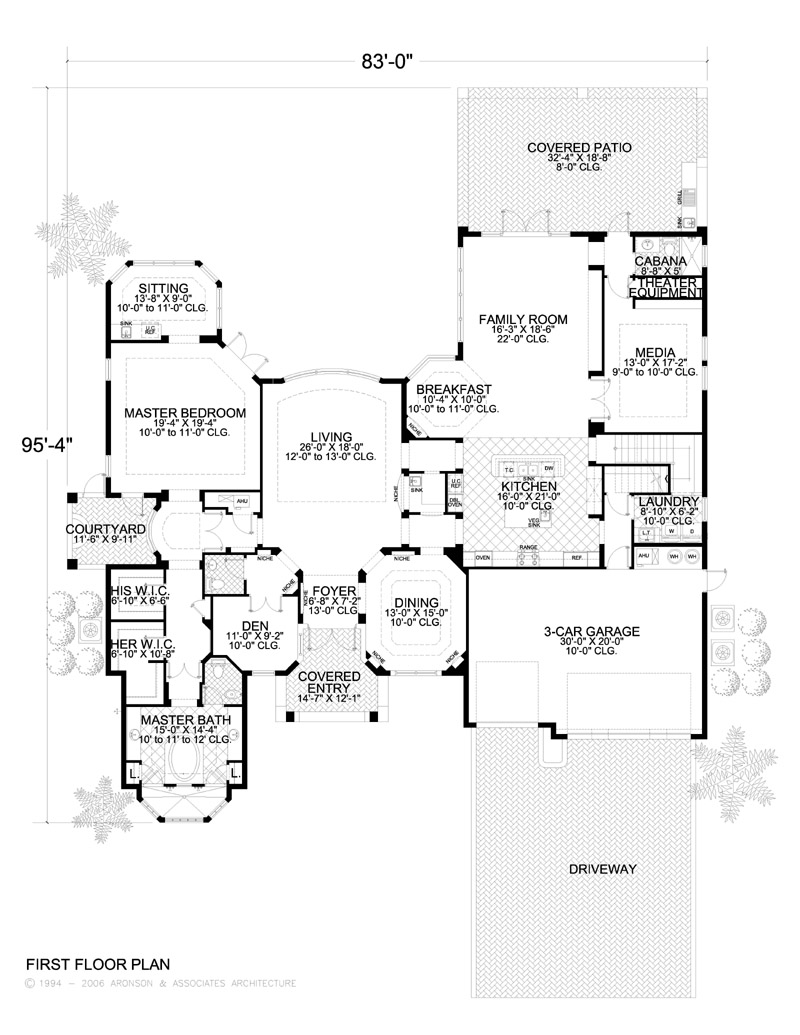

First Floor
- Primary Living 12' to 13'
- Secondary Living 22'
- Primary Bedrooms 10' to 11'
- Secondary Bedrooms 0
- Bathrooms 0
- Common Areas 10' to 11'

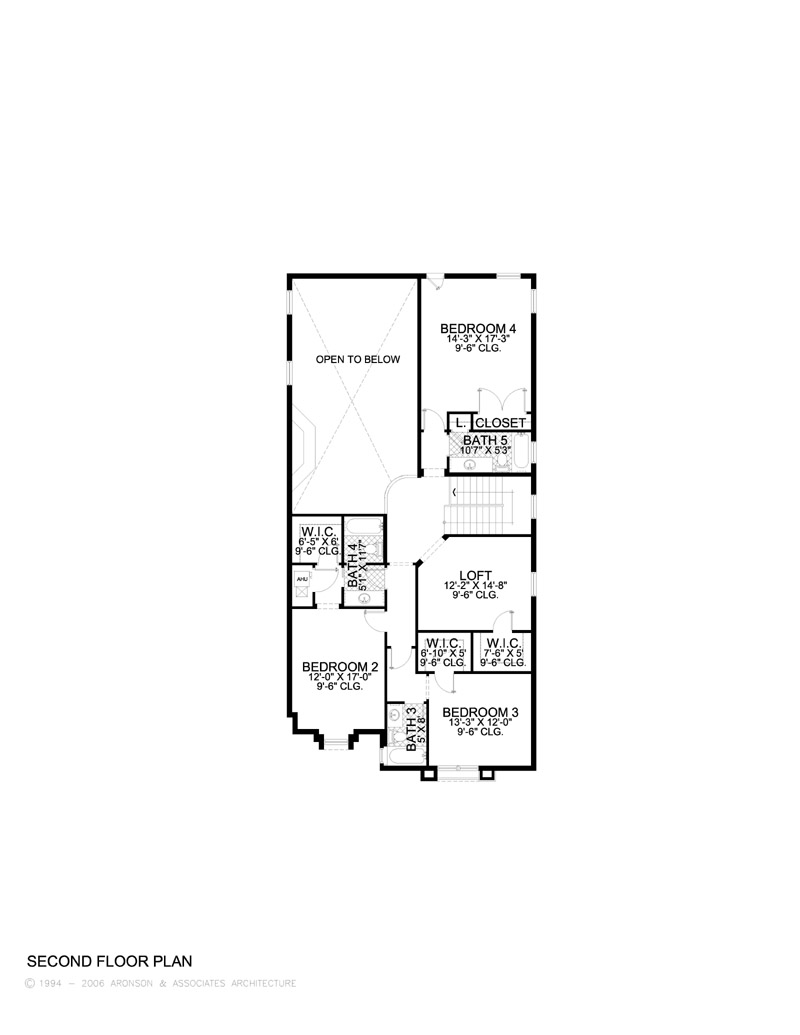

Second Floor
- Primary Bedrooms 0
- Secondary Bedrooms 9'-10
- Bathrooms 9'-6
- Common Areas 9'-6
Exterior
- Garage 10'
- Covered Entry 19'-8
- Covered Patio 10'
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 3602
- Second Floor AC 1435
- Total AC 5037
Total Under Roof Sq Ft
- Garage 710
- Covered Entry 137
- Covered Patio 604
- Covered Balconies 0
- Total Under Roof 6488
