House Plan Model 5110-9936

Browsing: By Two Story

Beautiful House Plans

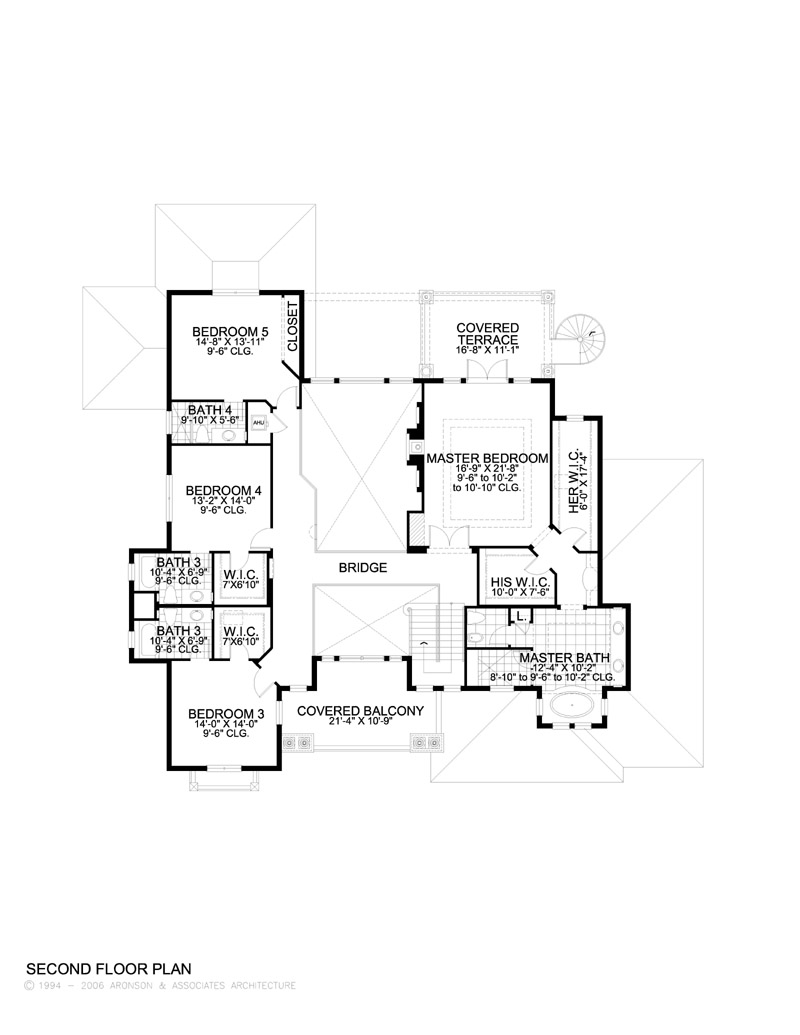

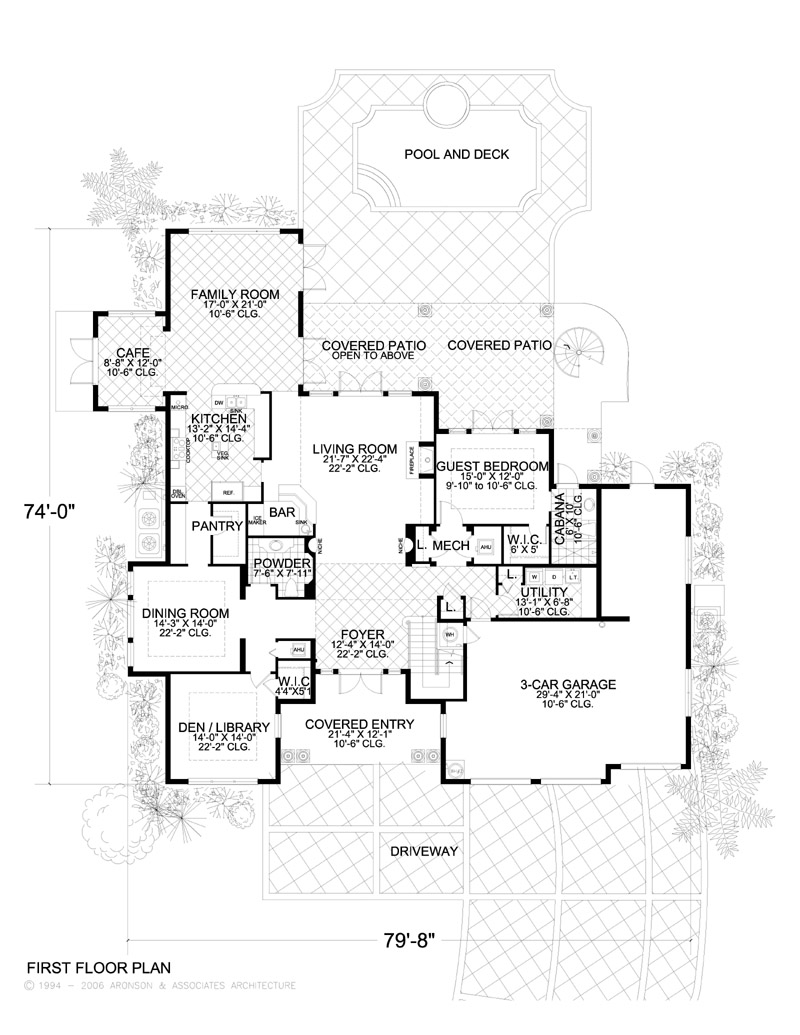

First Floor House Plan
Second Floor House Plan

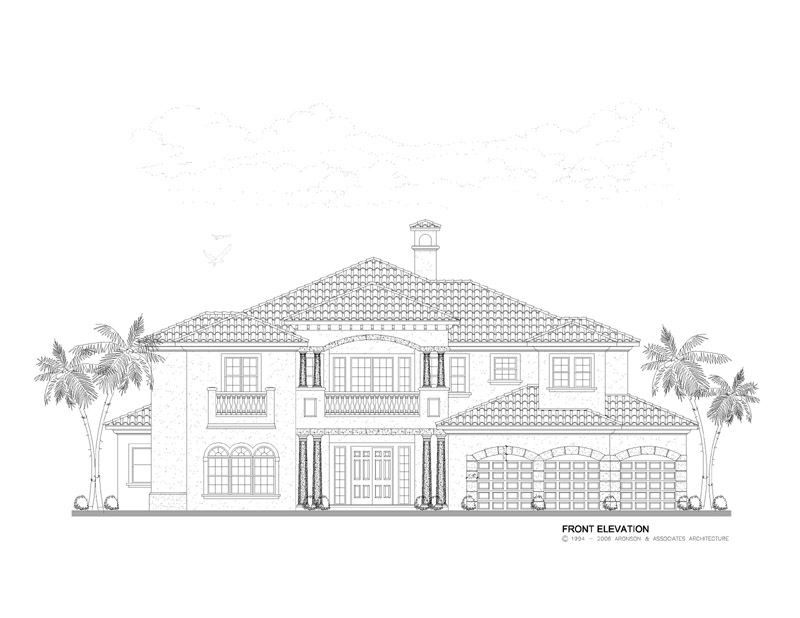

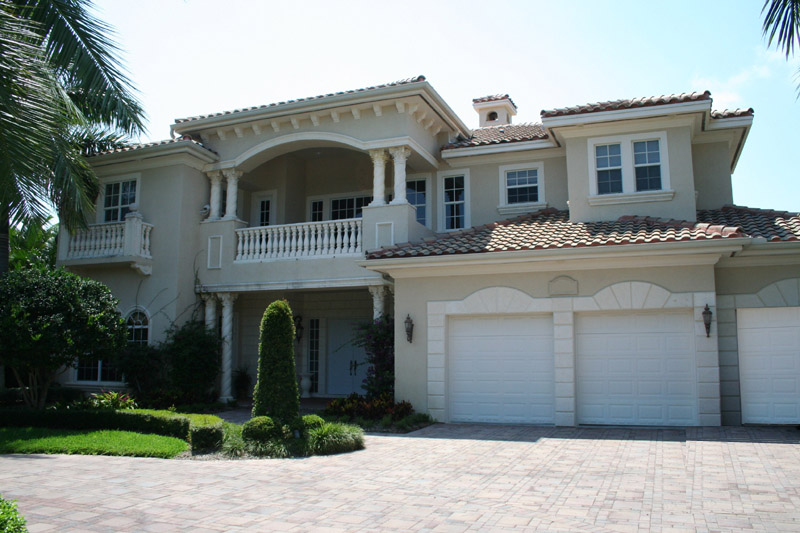

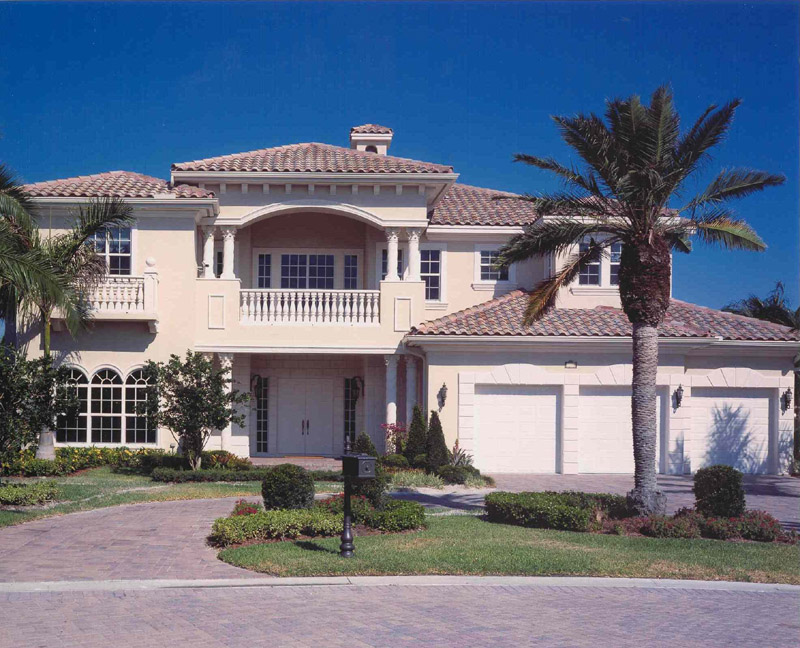

Front Elevation of House View

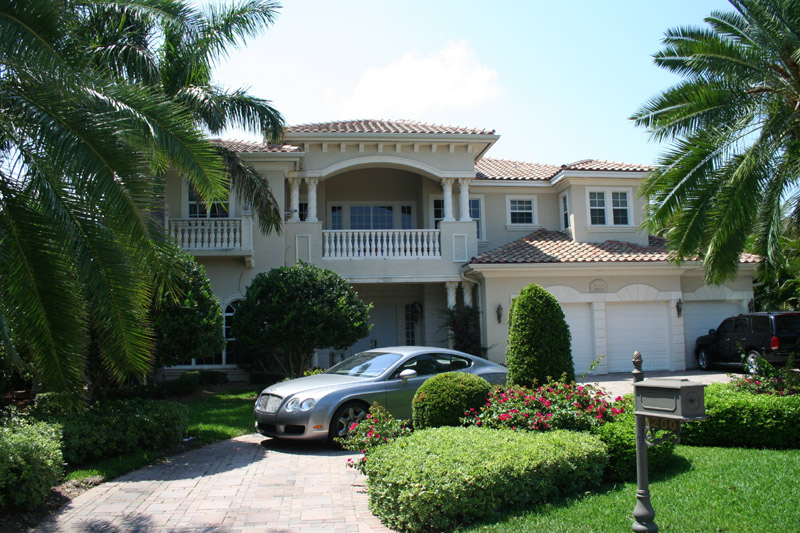

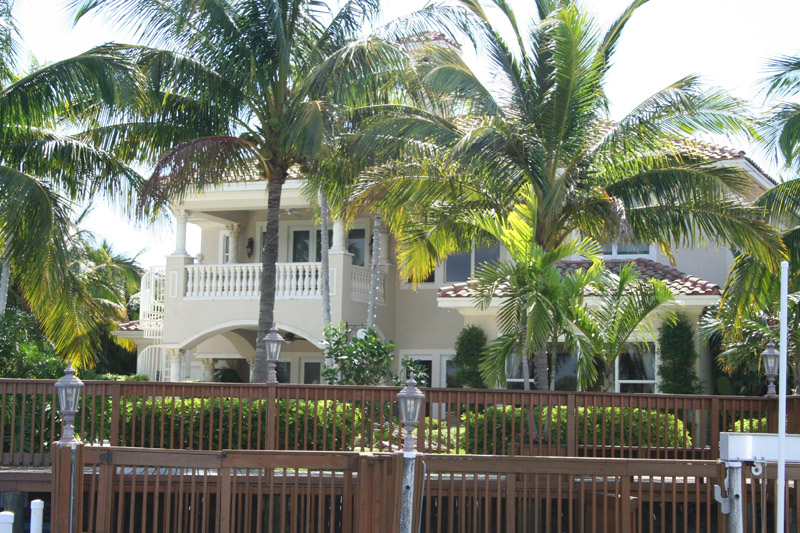

Rear Elevation View of House

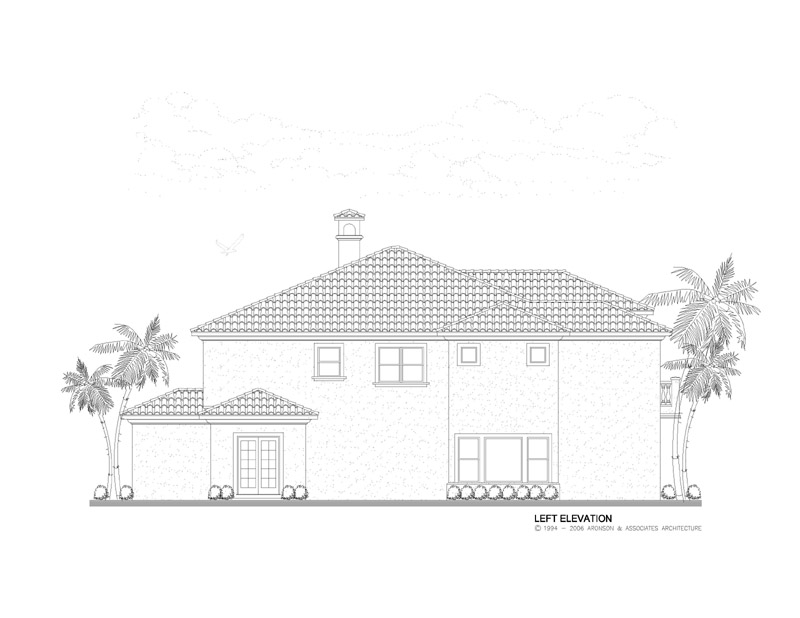

Left Elevation View of House

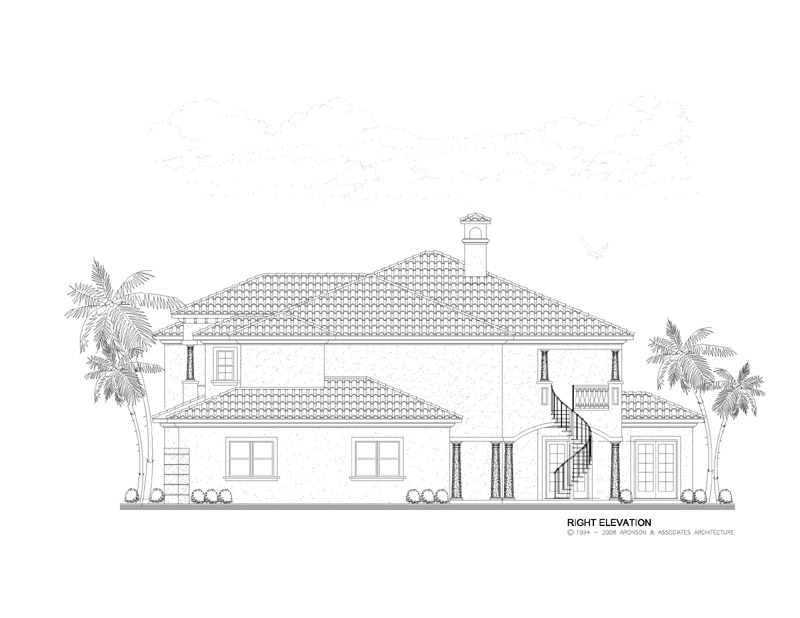

Right Elevation View of House
Luxury Living in Beautiful Home
Luxury Homes
Luxury Home
Beautiful Home
Beautiful Home
Home
Beautiful House Plans
First Floor House Plan
Second Floor House Plan
Front Elevation of House View
Rear Elevation View of House
Left Elevation View of House
Right Elevation View of House
Luxury Living in Beautiful Home
Luxury Homes
Luxury Home
Beautiful Home
Beautiful Home
Home

Plan Summary

  • Stories

    2

  • Bedrooms

    6

  • Bathrooms

    6

  • Garage

    3 car

  • Width x Length

    79'8" x 74'0"

  • First Floor Sq Ft

    2785

  • Second Floor Sq Ft

    2325

  • Total AC Sq Ft

    5110

  • Total Under Roof Sq Ft

    7159

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This beautiful, two-story 5,110 sq. ft., Traditional Spanish Mediterranean-style home floor plan features five bedrooms, four and one-half bathrooms, a cabana bath, three-car garage and spacious covered entrance with eight-foot high front door with sidelights. Columns, arches and the baluster rail add to a strong curb appeal to this home design. The first story features a large living room with two-story ceilings, wet bar and fireplace. The home has a “dream” chef’s island kitchen complete with an eating bar, butler’s pantry and cafe leads to the family room. The formal dining room, cozy den/library and VIP suite with private entrance all add to luxury to this home design. The second story master suite makes this layout unique with the large walk-in closets, tray ceilings and a regal master bathroom complete vanity and additional storage areas opening onto a private balcony. Get this home floor plan today.

Dimensions

  • Width x Length 79'8" x 74'0"
  • Height 34'-8
  • Stories 2/

Garage

  • Number of Cars 3
  • Attached Yes
  • Location Right

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 5
  • Possible 1
  • Total 6

Bathrooms

  • Full 4
  • Half 1
  • Total 6

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 2

Features

  • Fireplace Yes
  • Elevator No
  • Pool Yes
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1700

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2600

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $1200

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1300

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1400

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1550

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1700

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type Wood truss
  • Spacing 24
  • Subfloor wood
  • Thickness 3/4

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living 22'-2
  • Secondary Living 9'-10
  • Primary Bedrooms 0
  • Secondary Bedrooms 9'-10
  • Bathrooms 10'-6
  • Common Areas 10'-6

Second Floor

  • Primary Bedrooms 9'-6
  • Secondary Bedrooms 9'-6
  • Bathrooms 9'-6
  • Common Areas 0

Exterior

  • Garage 10'-6
  • Covered Entry 10'-6
  • Covered Patio Open to above
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 2785
  • Second Floor AC 2325
  • Total AC 5110

Total Under Roof Sq Ft

  • Garage 882
  • Covered Entry 220
  • Covered Patio 515
  • Covered Balconies 432
  • Total Under Roof 7159
