PLAN SUMMARY
-
Stories
2
-
Bedrooms
5
-
Bathrooms
6
-
Garage
3 car
-
Width x Length:
76' " x 74' 8"
-
First Floor Sq Ft
3,079 Sq. Ft.
-
Second Floor Sq Ft
2,061 Sq. Ft.
-
Total AC Sq Ft
5,140 Sq. Ft.
-
Total Under Roof Sq Ft
6,776 Sq. Ft.
$0.00
Plan Description

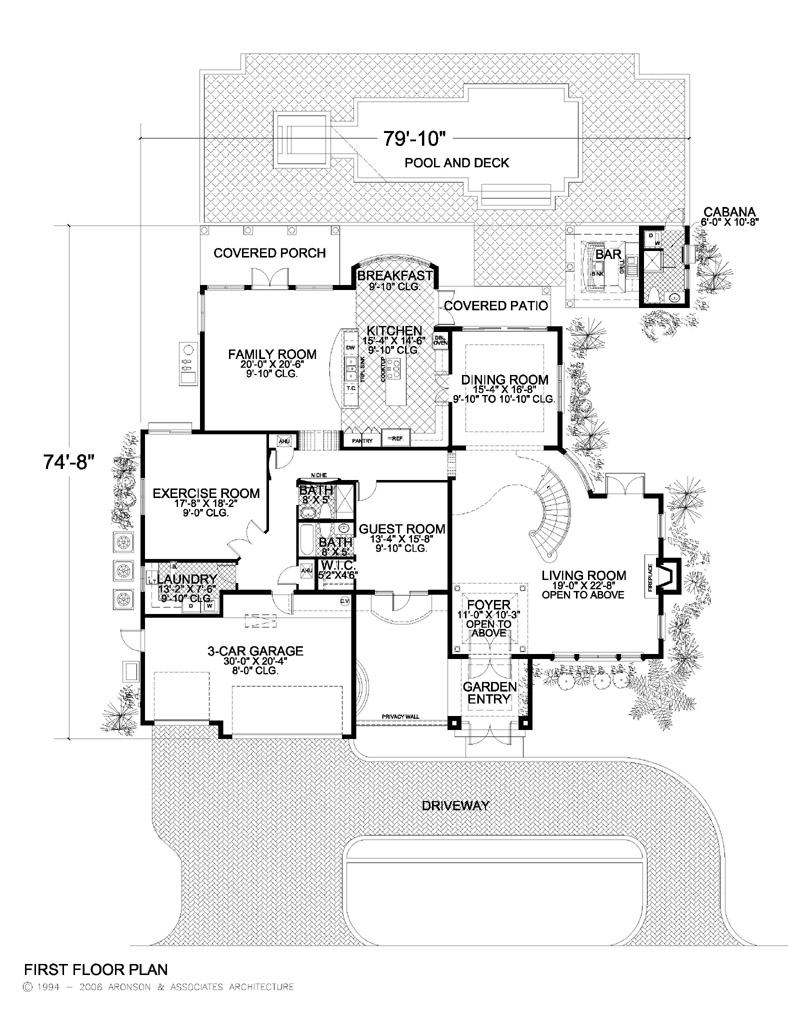

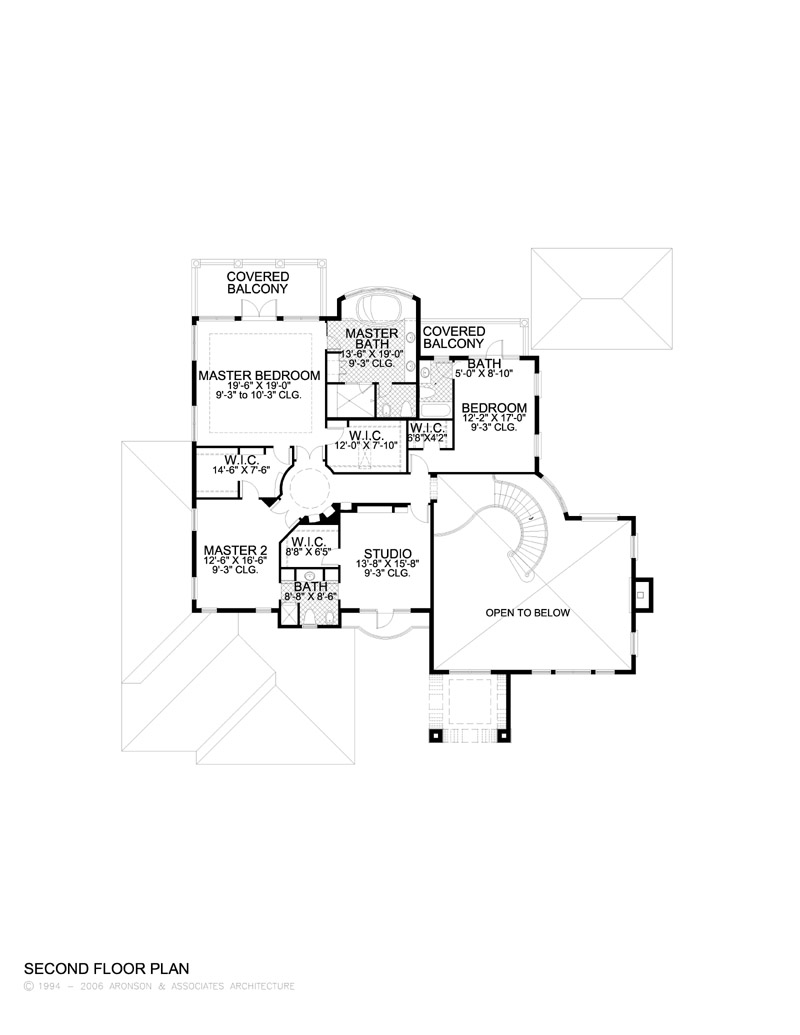

This is a beautiful, two-story 5,140 sq. ft., Florida Spanish Mediterranean-style home floor plan featuring four bedrooms, a studio, five and one-half bathrooms, a cabana and a three-car garage. A towering covered entrance with eight-foot front door and balconies add to the grand curb appeal of this home design. The first story provides a large living room with two-story ceilings and a grand winding staircase and fireplace and a huge island kitchen with an eating bar and breakfast nook. An exercise room, studio and large master suite with large walk-in closets, tray ceilings and a regal master bathroom add to the luxury of the home, possessing a truly unique design. Get this home floor plan today.
Dimensions
-
Width x Length
76' " x 74' 8"
-
Height
35'-3
-
Stories
2/
Garage
-
Number of Cars
3
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
4
-
Possible
1
-
Total
5
Bathrooms
-
Full
5
-
Half
0
-
Total
6
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
2
Features
-
Fireplace
Yes
-
Elevator
No
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1700
CAD Disk Price: $2600
Reverse PDF Price: $1950
Reverse CAD Price: $2850
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $1200
3 Sets Price: $1300
5 Sets Price: $1400
8 Sets Price: $1550
Reproducible Vellum Price: $1700
Base – Not for Construction Price: $1200
3 Sets (Reverse) Price: $1550
5 Sets (Reverse) Price: $1650
8 Sets (Reverse) Price: $1800
Reproducible Vellum (Reverse) Price: $1950
Foundation Type
-
Type
Grade Beams/Piling
-
Option
0
Floor System
-
Type
concrete on steel joist
-
Spacing
0
-
Subfloor
0
-
Thickness
0
Roof System
-
Type
wood trusses
-
Options
0
Additional Information
-
Roof Pitch
6:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140
First Floor
-
Primary Living
Open to above
-
Secondary Living
9'-10
-
Primary Bedrooms
-
Secondary Bedrooms
9'-10
-
Bathrooms
9'-10
-
Common Areas
9'-10
Second Floor
-
Primary Bedrooms
9'-3
-
Secondary Bedrooms
9'-3
-
Bathrooms
0
-
Common Areas
0
Exterior
-
Garage
8'-0
-
Covered Entry
19'-6
-
Covered Patio
9'-11
-
Covered Balcony
9'-3
Total AC Sq Ft
-
First Floor AC
3079
-
Second Floor AC
2061
-
Total AC
5140
Total Under Roof Sq Ft
-
Garage
595
-
Covered Entry
127
-
Covered Patio
385
-
Covered Balconies
529
-
Total Under Roof
6776
