House Plans
Plan Summary
-
Stories
2
-
Bedrooms
6
-
Bathrooms
5
-
Garage
3 car
-
Width x Length
78' x 96'
-
First Floor Sq Ft
3652
-
Second Floor Sq Ft
1434
-
Total AC Sq Ft
5142
-
Total Under Roof Sq Ft
6691
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description
This beautiful 5,142 sq. ft., two-story, Florida Spanish Mediterranean-style home floor plan features six bedrooms, a studio, four and one-half bathrooms, a cabana and a three-car garage. A towering covered entrance with eight-foot front door and balconies add to the grand curb appeal of this home design. The first story provides a large two-story living room with tray ceilings and a huge island kitchen with an eating bar and breakfast nook. The large master bedroom suite with large walk-in closets, fireplace, tray ceilings and a regal master bathroom add to the luxury of the home possessing a truly unique design. Get this beautiful home plan design today.
Dimensions
- Width x Length 78' x 96'
- Height 30'-0
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location Right
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 6
- Possible 0
- Total 6
Bathrooms
- Full 5
- Half 1
- Total 5
Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 1
Features
- Fireplace Yes
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1700
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2600
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1200
- (Extra Sets: $50)
- More Information
3 Sets Price: $1300
- (Extra Sets: $50)
- More Information
5 Sets Price: $1400
- (Extra Sets: $50)
- More Information
8 Sets Price: $1550
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1700
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type concrete on steel joist
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type wood trusses
- Options 0
Additional Information
- Roof Pitch 6:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140

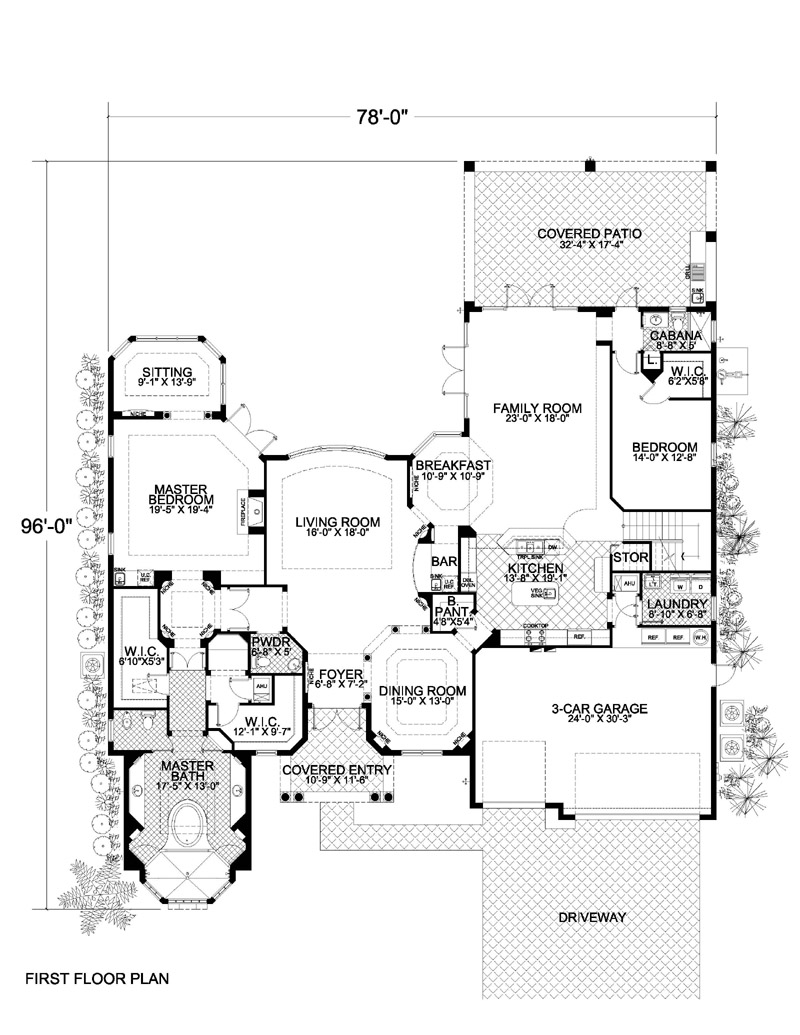

First Floor
- Primary Living Open to above
- Secondary Living 10'--0
- Primary Bedrooms 10'-0
- Secondary Bedrooms 10'-0
- Bathrooms 10'-0
- Common Areas 0

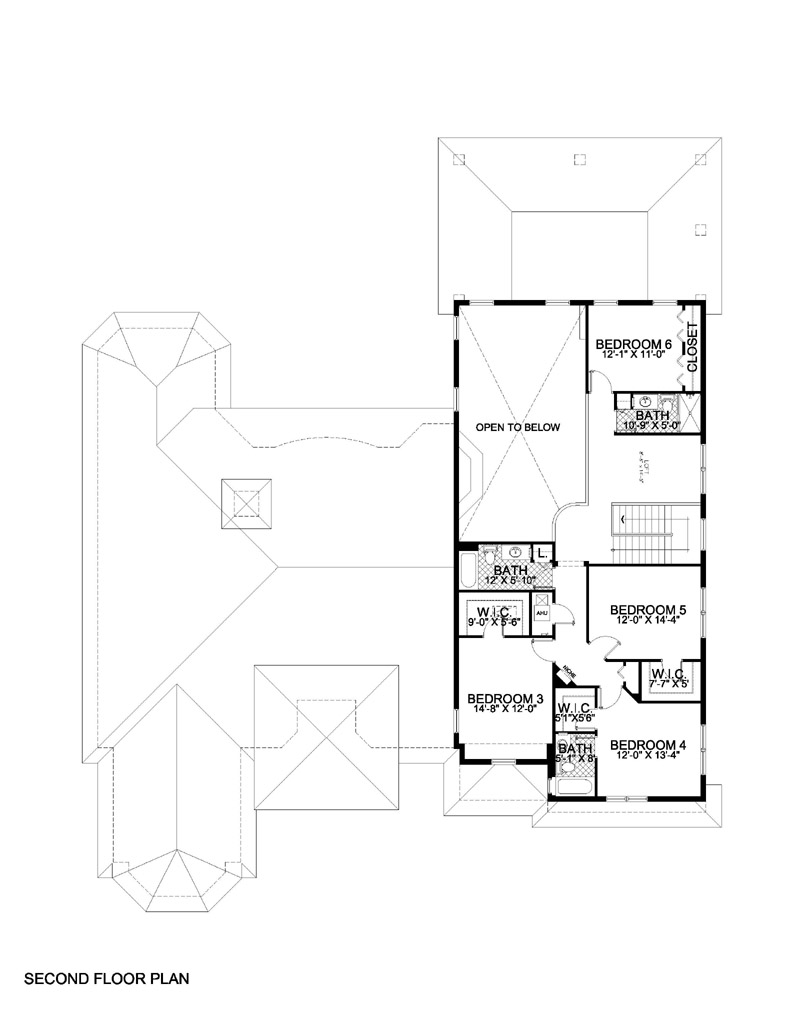

Second Floor
- Primary Bedrooms 0
- Secondary Bedrooms 9'-6
- Bathrooms 0
- Common Areas 0
Exterior
- Garage 10'-0
- Covered Entry 19'-0
- Covered Patio 9'-11
- Covered Balcony 9'-3
Total AC Sq Ft
- First Floor AC 3652
- Second Floor AC 1434
- Total AC 5142
Total Under Roof Sq Ft
- Garage 701
- Covered Entry 224
- Covered Patio 741
- Covered Balconies 163
- Total Under Roof 6691
