House Plans
Plan Summary
-
Stories
2
-
Bedrooms
5
-
Bathrooms
5
-
Garage
3 car
-
Width x Length
65'2" x 79'2"
-
First Floor Sq Ft
2810
-
Second Floor Sq Ft
2341
-
Total AC Sq Ft
5151
-
Total Under Roof Sq Ft
6330
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description
This beautiful, 5,151 sq. ft., two-story, Florida Spanish Mediterranean-style home floor plan features five bedrooms, three and one-half bathrooms, a cabana and a three-car garage. A covered entrance with eight-foot front door and balconies add to the grand curb appeal of this design. The first story provides a large living room with two-story ceilings and a huge island kitchen with an eating bar and breakfast nook. The den and a large master bedroom suite with large walk-in closets, tray ceilings and a regal master bathroom add to the luxury of the home with a truly unique design. Get this beautiful home floor plan today.
Dimensions
- Width x Length 65'2" x 79'2"
- Height 31'-0
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location Left
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 5
- Possible 0
- Total 5
Bathrooms
- Full 3
- Half 0
- Total 5

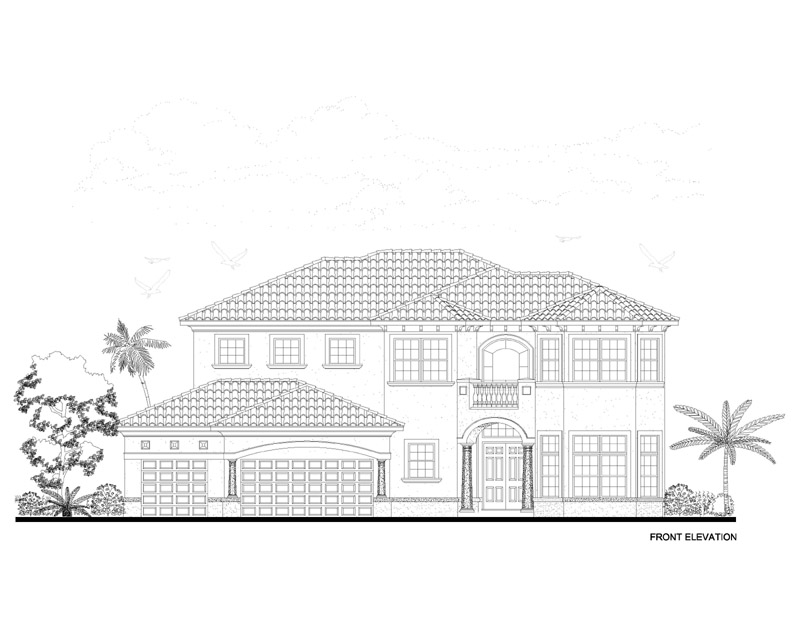

Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace Yes
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1700
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2600
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1200
- (Extra Sets: $50)
- More Information
3 Sets Price: $1300
- (Extra Sets: $50)
- More Information
5 Sets Price: $1400
- (Extra Sets: $50)
- More Information
8 Sets Price: $1550
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1700
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type concrete on steel joist
- Spacing 0
- Subfloor 0
- Thickness 0
Roof System
- Type wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140

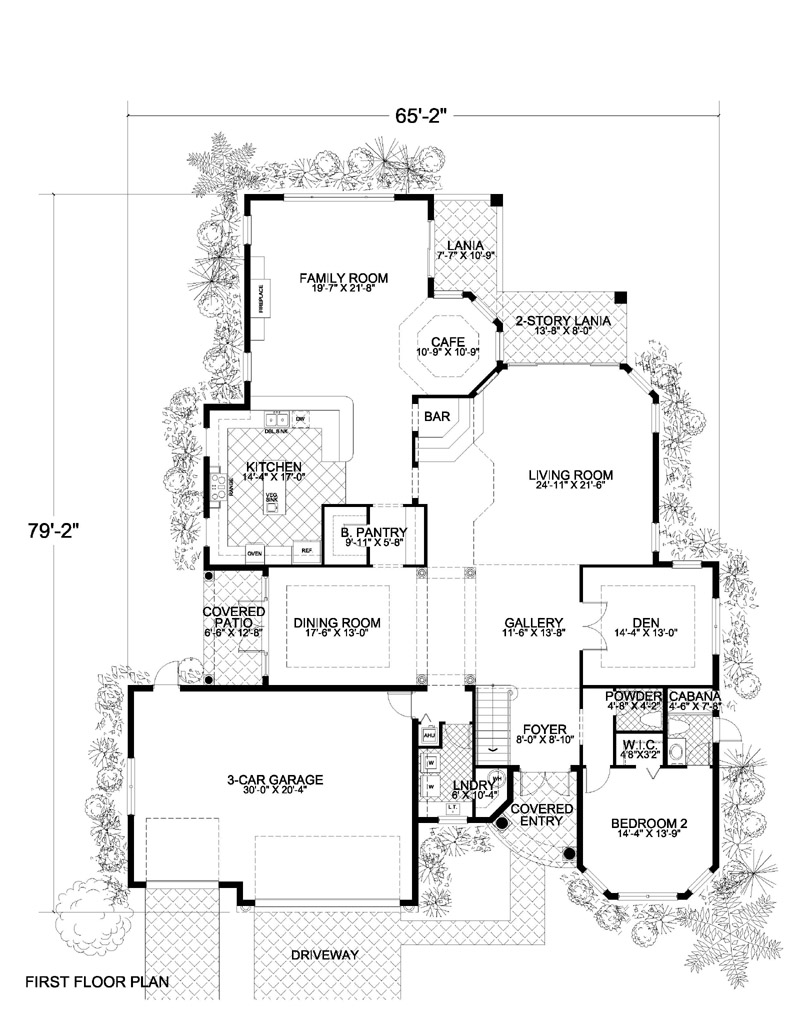

First Floor
- Primary Living 10'-0
- Secondary Living 10'-0
- Primary Bedrooms
- Secondary Bedrooms 10'-0
- Bathrooms 10'-0
- Common Areas 10'-0

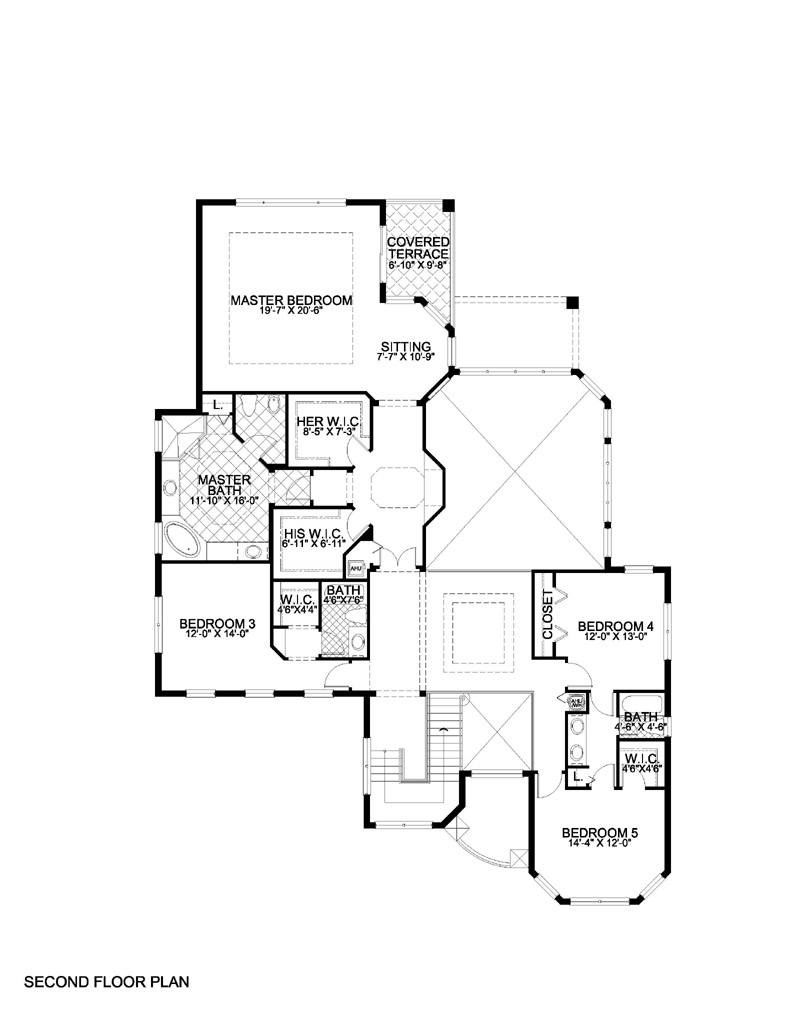

Second Floor
- Primary Bedrooms 11'-0
- Secondary Bedrooms 11'-0
- Bathrooms 11'-0
- Common Areas 0
Exterior
- Garage 10'-9
- Covered Entry 10'-0
- Covered Patio 10'-0
- Covered Balcony 9'-3
Total AC Sq Ft
- First Floor AC 2810
- Second Floor AC 2341
- Total AC 5151
Total Under Roof Sq Ft
- Garage 734
- Covered Entry 79
- Covered Patio 82
- Covered Balconies 88
- Total Under Roof 6330
