House Plan Model 5176-0702

Browsing: By Two Story

Large Luxury Home Rendering

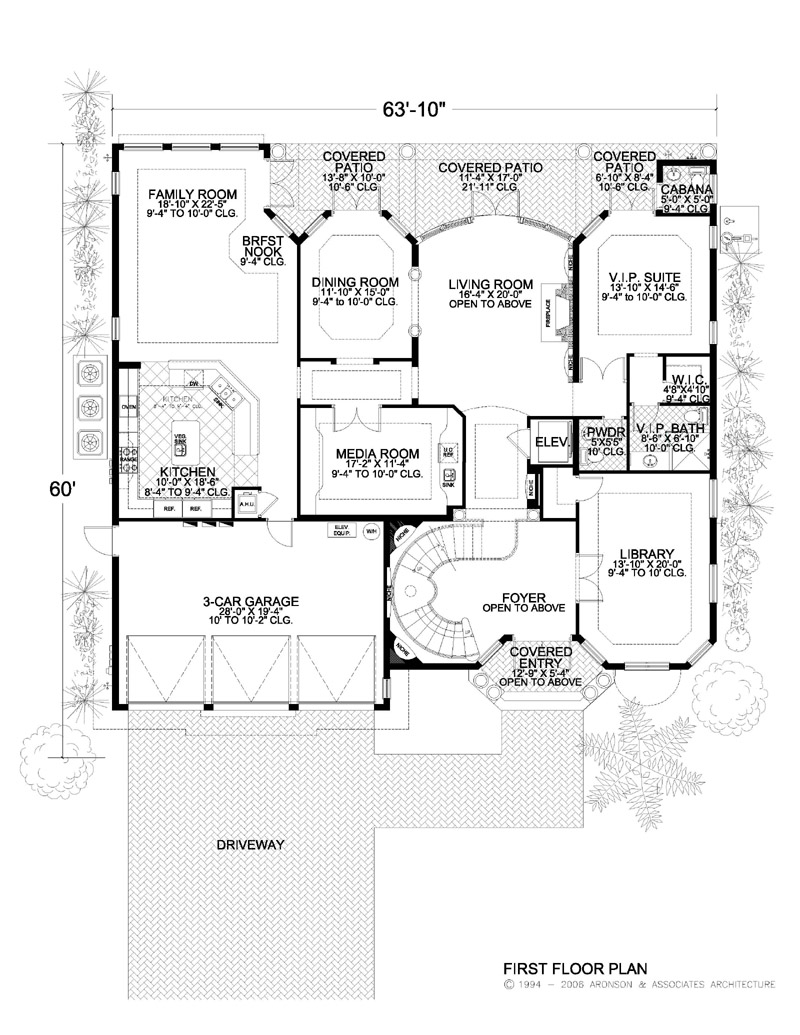

First Floor House Floor Plans

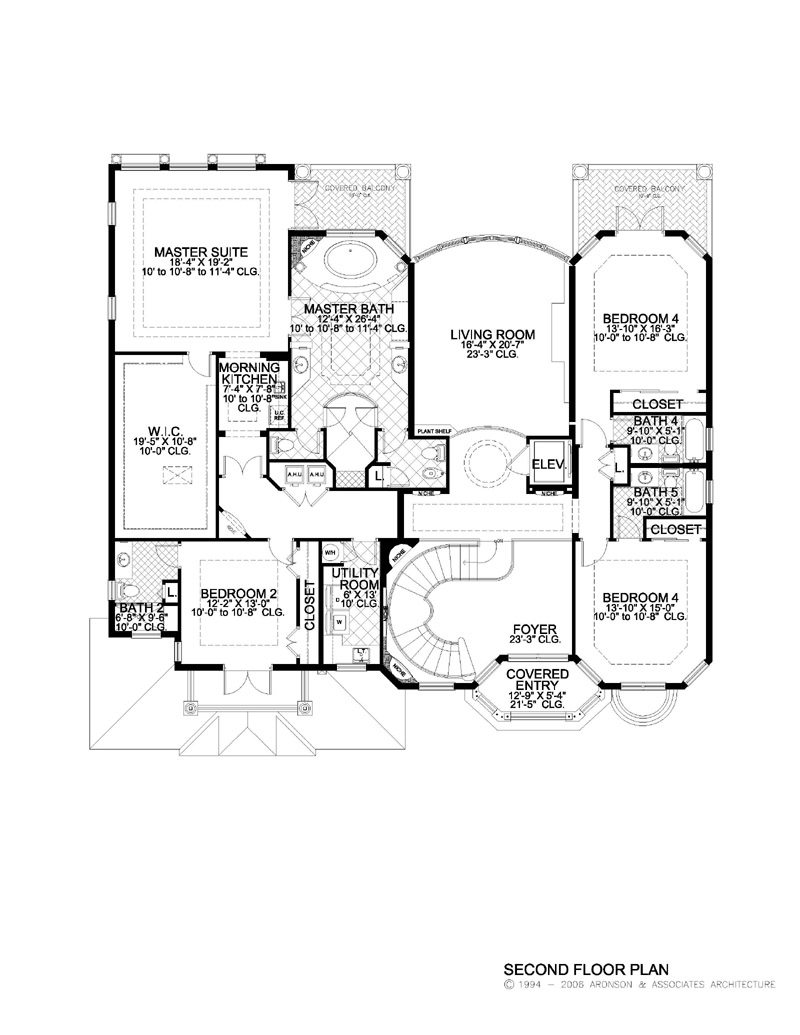

Second Floor House Floor Plan
Front Elevation View of House

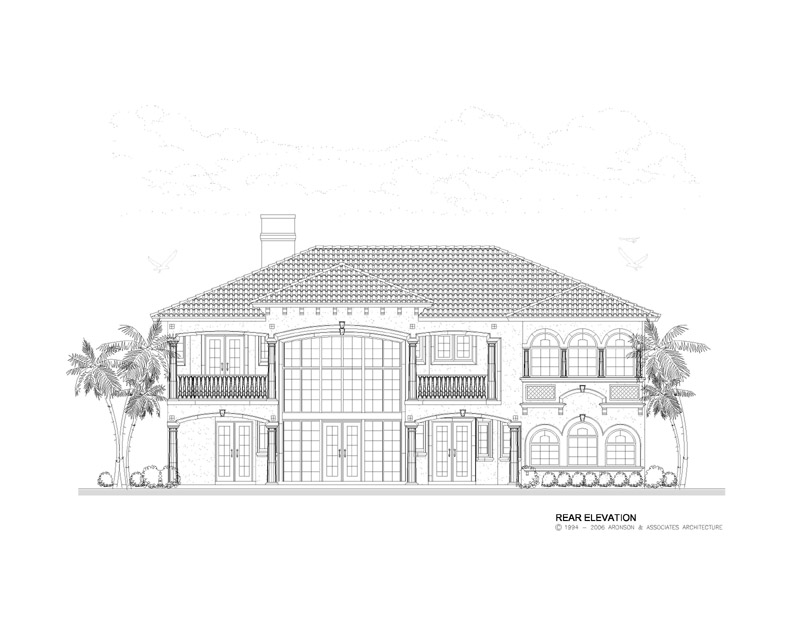

Rear Elevation View of House

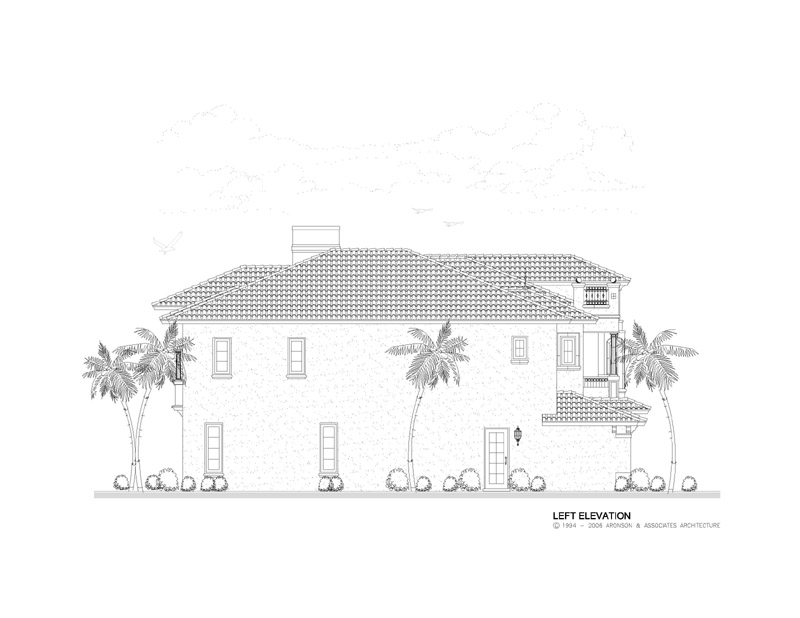

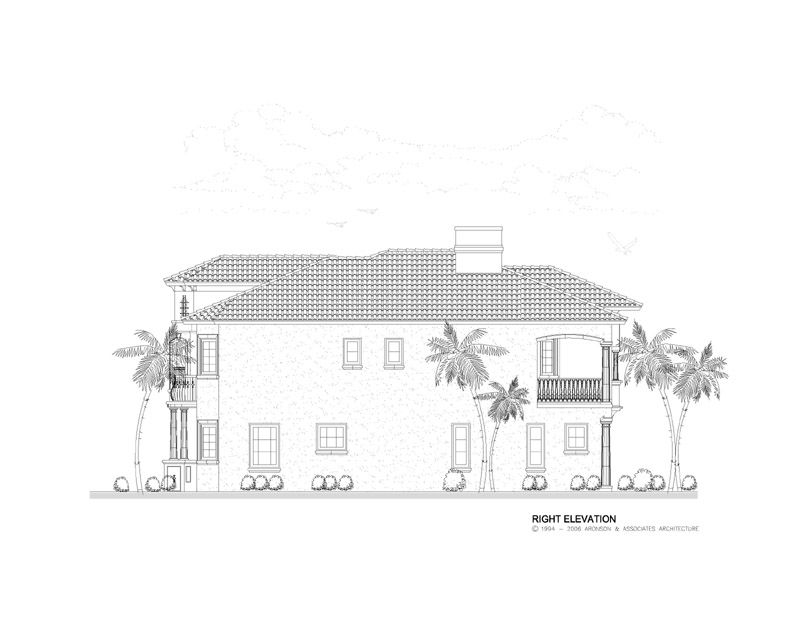

Left Elevation View of House
Large Luxury Home Rendering 2
Large Luxury Home Rendering 3
Large Luxury Home Rendering 4
Large Luxury Home Rendering
Large Luxury Home Rendering
First Floor House Floor Plans
Second Floor House Floor Plan
Front Elevation View of House
Rear Elevation View of House
Left Elevation View of House
Large Luxury Home Rendering 2
Large Luxury Home Rendering 3
Large Luxury Home Rendering 4
Large Luxury Home Rendering

Plan Summary

  • Stories

    2

  • Bedrooms

    5

  • Bathrooms

    6

  • Garage

    3 car

  • Width x Length

    63'10" x 59'11"

  • First Floor Sq Ft

    2726

  • Second Floor Sq Ft

    2450

  • Total AC Sq Ft

    5176

  • Total Under Roof Sq Ft

    6433

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money

Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This luxurious, two-story, 5,176 sq. ft., Mediterranean-style waterfront home plan features five bedrooms, five and one-half bathrooms, a cabana bathroom and a three-car garage. A V.I.P. suite with private bathroom and walk-in closet add a touch of luxury. Each bedroom has the convenience of a private bathroom. This home plan design boasts a multitude of amenities, including the built-in pool, elevator and fireplace. The living room opens to these luxuries. Get this luxurious home plan today.

Dimensions

  • Width x Length 63'10" x 59'11"
  • Height 30'
  • Stories 2/

Garage

  • Number of Cars 3
  • Attached Yes
  • Location Left

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 5
  • Possible 0
  • Total 5

Bathrooms

  • Full 6
  • Half 1
  • Total 6

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 1

Features

  • Fireplace Yes
  • Elevator Yes
  • Pool Yes
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1700

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2600

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $1200

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1300

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1400

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1550

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1700

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Piling
  • Option 0

Floor System

  • Type Wood Truss
  • Spacing 0
  • Subfloor 0
  • Thickness 0

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material S. tile
  • Wind Speed 140

First Floor

  • Primary Living Open to above
  • Secondary Living 9'-4
  • Primary Bedrooms
  • Secondary Bedrooms 9'-4
  • Bathrooms 10'
  • Common Areas 10'

Second Floor

  • Primary Bedrooms 10' to 11'-4
  • Secondary Bedrooms 10' to 10'-8
  • Bathrooms 10'
  • Common Areas 10'

Exterior

  • Garage 10' to 10'-2
  • Covered Entry 21'-5
  • Covered Patio 21'-11
  • Covered Balcony 10'

Total AC Sq Ft

  • First Floor AC 2726
  • Second Floor AC 2450
  • Total AC 5176

Total Under Roof Sq Ft

  • Garage 576
  • Covered Entry 88
  • Covered Patio 331
  • Covered Balconies 262
  • Total Under Roof 6433
