House Plan Model 5204-9947

Browsing: By Two Story

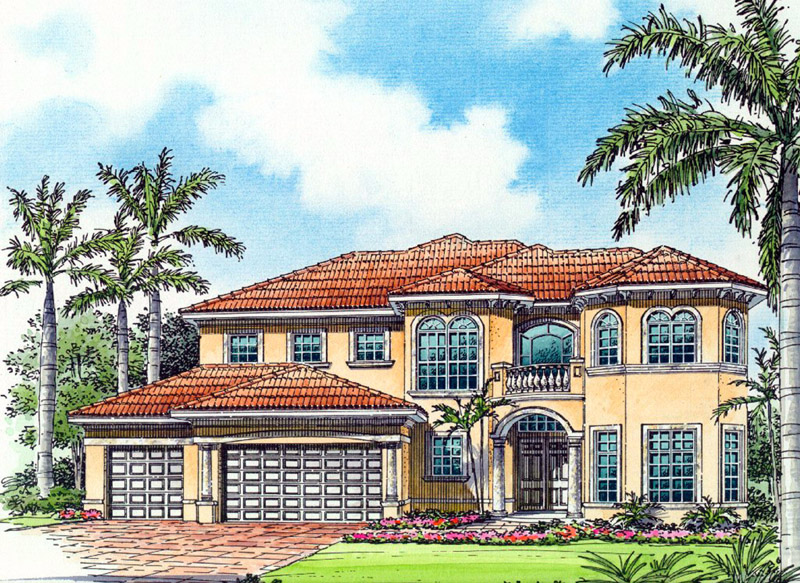

Two Story Home Plans

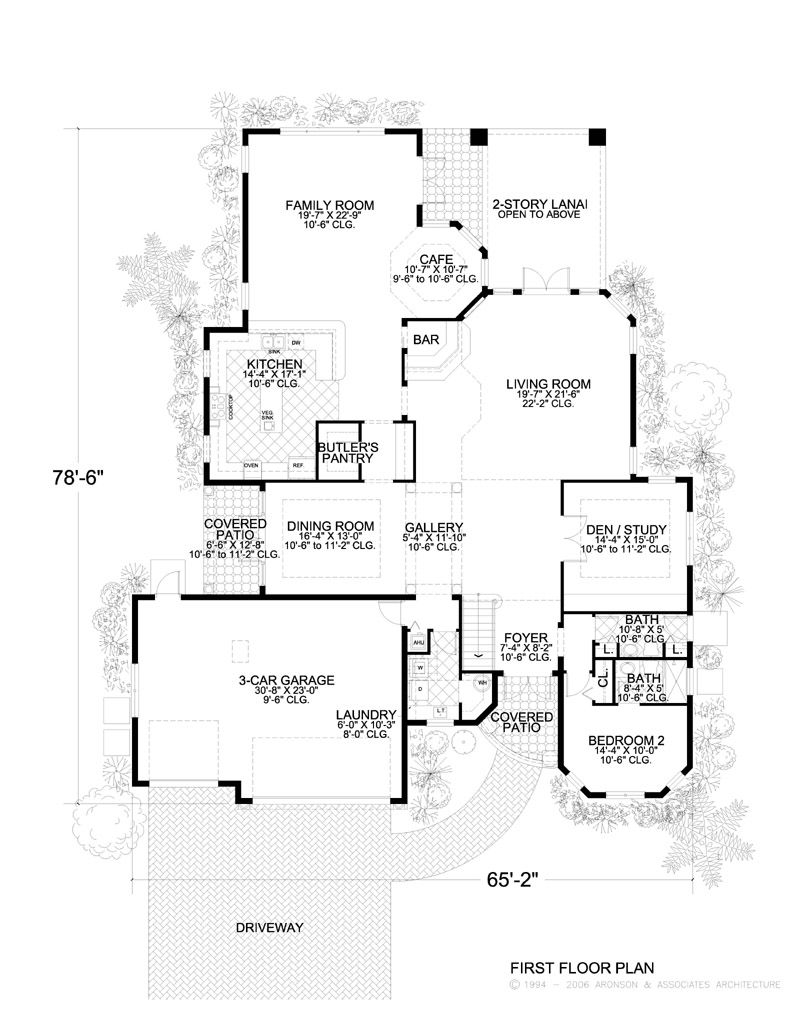

First Floor Home Plan

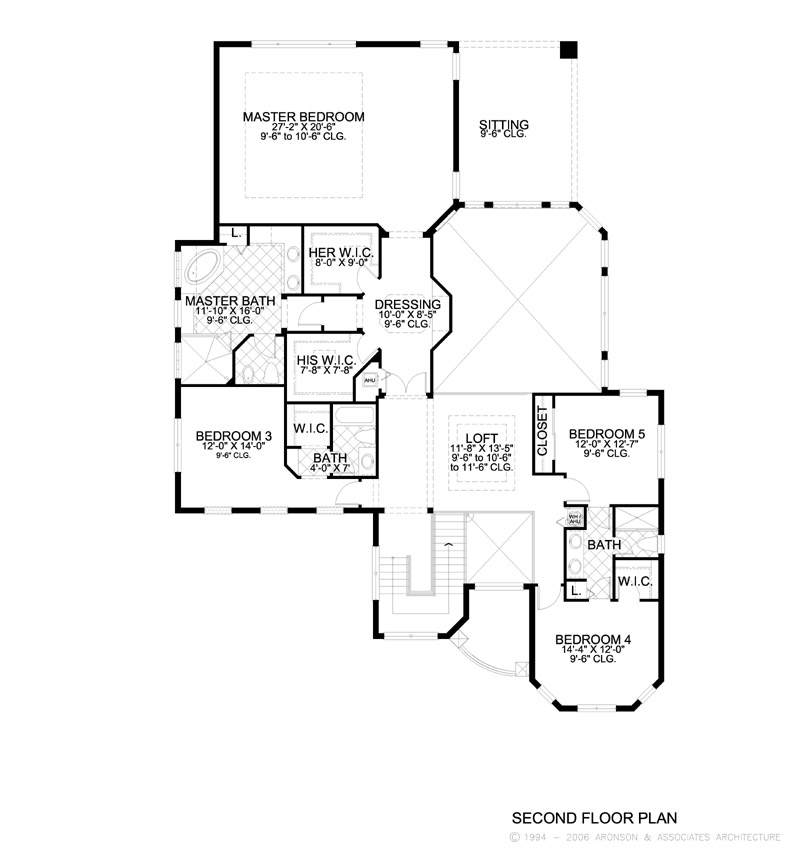

Second Floor Home Plan

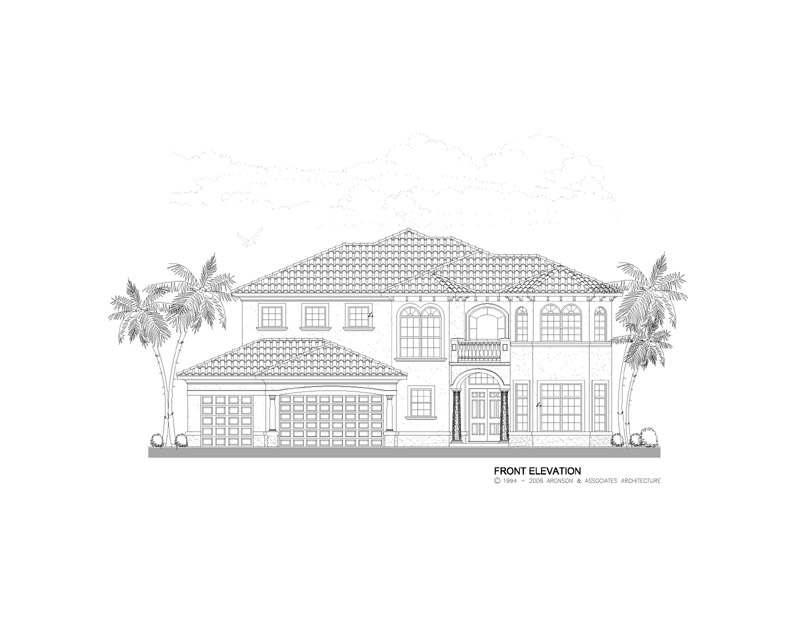

Home Front Elevation VIew

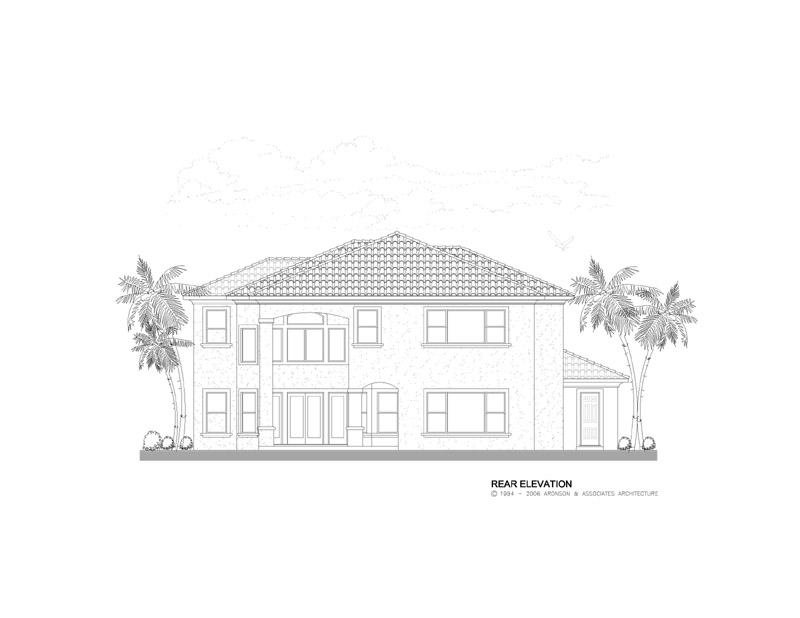

Home Rear Elevation View

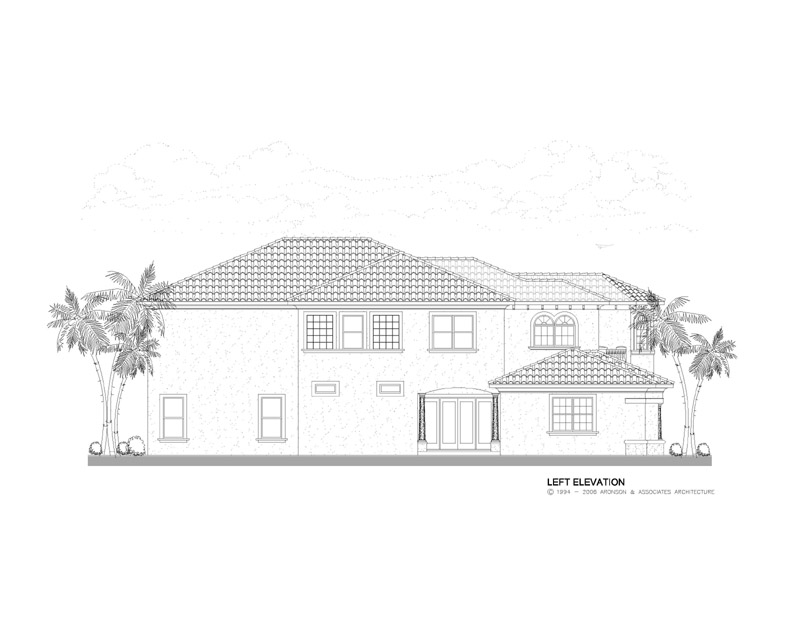

Home Left Elevation View

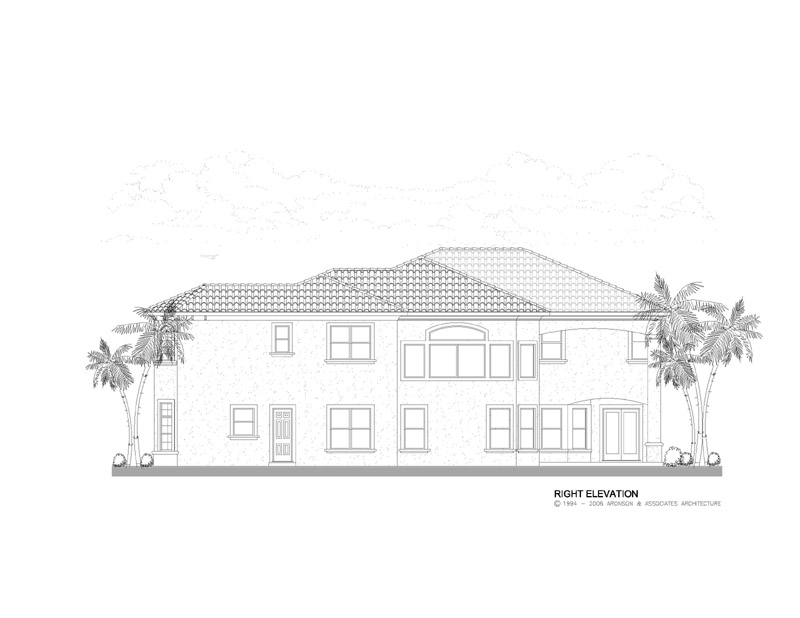

Home Right Elevation Views

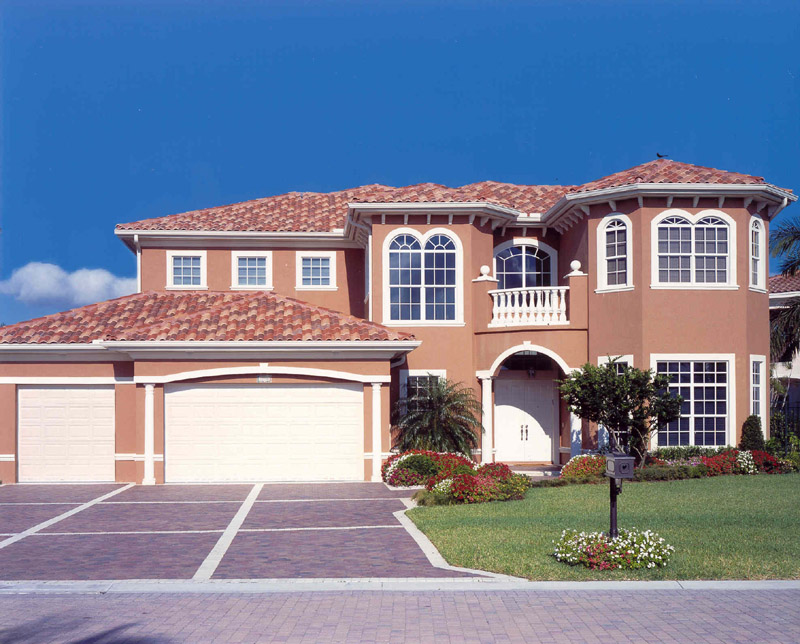

Luxury Home
Luxury Home
Luxury Home
Waterfront Home Plan
Large Home Plan
Two Story Home Plans
First Floor Home Plan
Second Floor Home Plan
Home Front Elevation VIew
Home Rear Elevation View
Home Left Elevation View
Home Right Elevation Views
Luxury Home
Luxury Home
Luxury Home
Waterfront Home Plan
Large Home Plan

Plan Summary

  • Stories

    2

  • Bedrooms

    5

  • Bathrooms

    5

  • Garage

    3 car

  • Width x Length

    65'2" x 78'6"

  • First Floor Sq Ft

    2814

  • Second Floor Sq Ft

    2390

  • Total AC Sq Ft

    5204

  • Total Under Roof Sq Ft

    6097

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money

Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This two-story 5,204 sq. ft., Spanish Mediterranean-style waterfront manor features five bedrooms, four and one-half bathrooms, a cabana bath and a three-car garage. This home plan design offers an enormous amount of living space. Columns and arches exude “majesty” in its appearance both inside and out. The covered balconies and a Lanai add to the amenities. A study/den provides a cozy retreat for simple solitude of intimate place for entertaining. The covered entrance displays paneled, double front doors with transom accent. A “dream” chef’s kitchen is complete with an island, eating bar and cafe opening into the large family room. The luxurious master suite features enormous walk-in closets, tray ceilings and a regal master bath with a sitting area. The exquisite arrangement of the covered entry and formal foyer makes a dramatic first impression and is inviting through a columned vestibule into the living room. Get this wonderful waterfront home plan design today.

Dimensions

  • Width x Length 65'2" x 78'6"
  • Height 32'-4
  • Stories 2/

Garage

  • Number of Cars 3
  • Attached Yes
  • Location Left

Wall Construction

  • Interior Metal stud
  • Exterior CMU
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 5
  • Possible 0
  • Total 5

Bathrooms

  • Full 4
  • Half 0
  • Total 5

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 2

Features

  • Fireplace No
  • Elevator No
  • Pool No
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1700

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2600

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $1200

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1300

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1400

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1550

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1700

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type Wood truss
  • Spacing 24
  • Subfloor wood
  • Thickness 3/4

Roof System

  • Type Wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. tile
  • Wind Speed 140

First Floor

  • Primary Living 22'-2
  • Secondary Living 10'-6
  • Primary Bedrooms
  • Secondary Bedrooms 10'-6
  • Bathrooms 10'-6
  • Common Areas 10'-6

Second Floor

  • Primary Bedrooms 9'-6
  • Secondary Bedrooms 9'-6
  • Bathrooms 9'-6
  • Common Areas 0

Exterior

  • Garage 9'-2
  • Covered Entry 0
  • Covered Patio 11'-10
  • Covered Balcony Open to above

Total AC Sq Ft

  • First Floor AC 2814
  • Second Floor AC 2390
  • Total AC 5204

Total Under Roof Sq Ft

  • Garage 734
  • Covered Entry 77
  • Covered Patio 82
  • Covered Balconies 0
  • Total Under Roof 6097
