House Plans
Plan Summary
-
Stories
2
-
Bedrooms
5
-
Bathrooms
5
-
Garage
2 car
-
Width x Length
59'10" x 66'0"
-
First Floor Sq Ft
2537
-
Second Floor Sq Ft
2696
-
Total AC Sq Ft
5233
-
Total Under Roof Sq Ft
6311
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
This plan is restricted.
Please call 1-855-PLANS-123 (1-954-736-4696) for more information
Plan Description

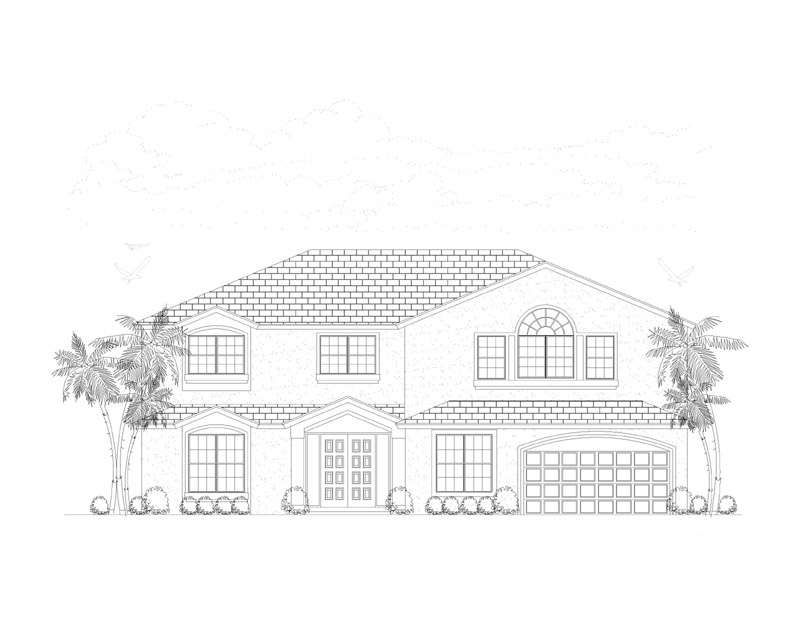

This two-story 5,233 sq. ft. home floor plan features six bedrooms, four and one-half bathrooms, a two-car garage. This home design offers an enormous amount of living space. Columns and arches exude “majesty” in its appearance both inside and out. The covered balconies and covered entry add to the amenities. A “dream” chef’s kitchen is complete and centrally located with a breakfast area, dinning room, family room, living room and foyer. The luxurious master bedroom suite features enormous walk-in closets, tray ceilings and a regal master bath with a sitting area. The exquisite arrangement of the covered entry and formal foyer makes a dramatic first impression with the spiral stair. Get this majestic home floor plan now.
Dimensions
- Width x Length 59'10" x 66'0"
- Height 28'-3
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location Right
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 5
- Possible 0
- Total 5
Bathrooms
- Full 4
- Half 0
- Total 5

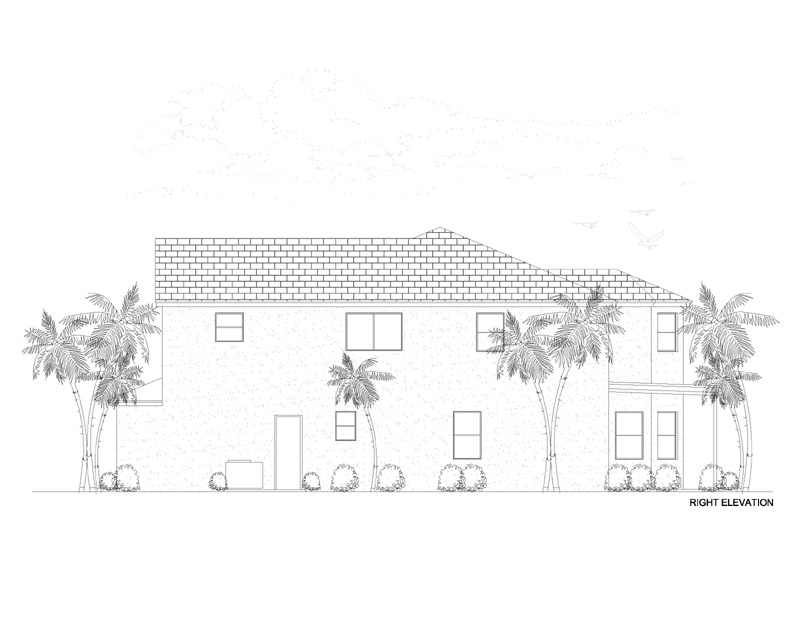

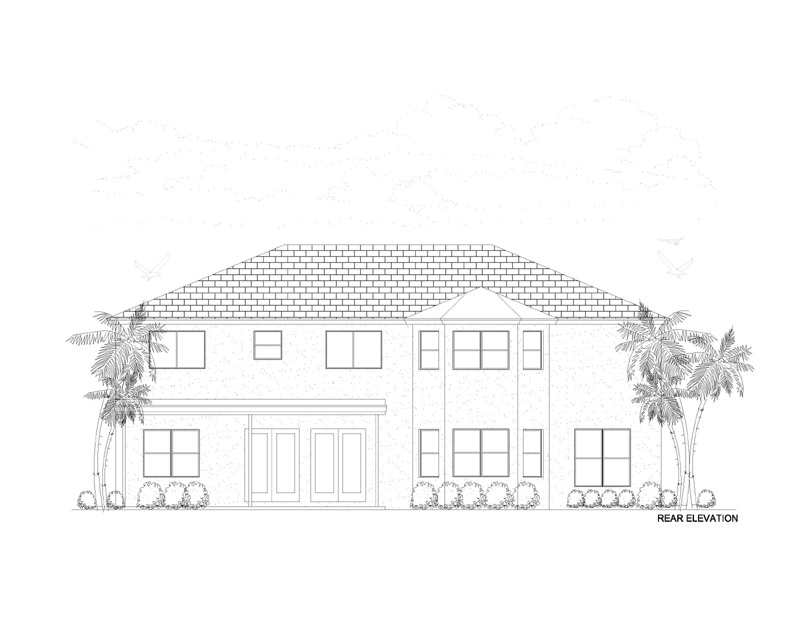

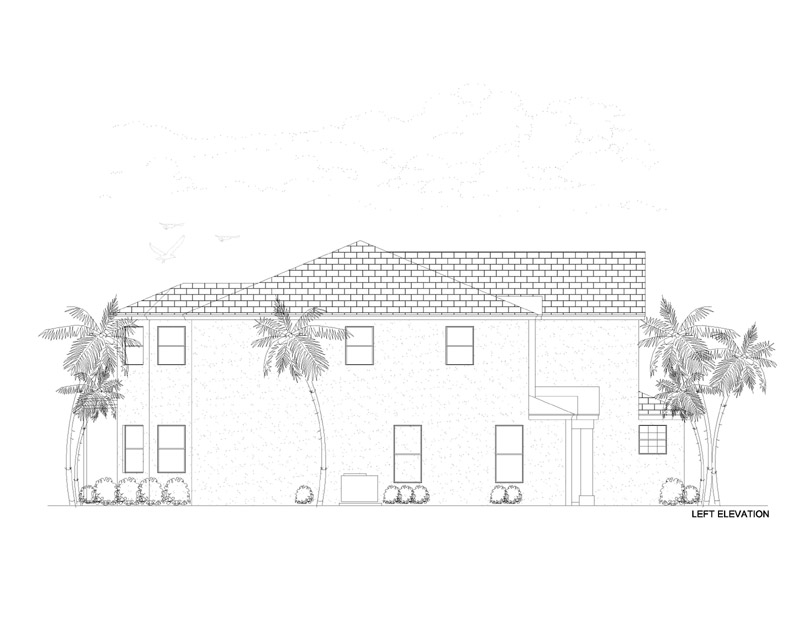

Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1700
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2600
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1200
- (Extra Sets: $50)
- More Information
3 Sets Price: $1300
- (Extra Sets: $50)
- More Information
5 Sets Price: $1400
- (Extra Sets: $50)
- More Information
8 Sets Price: $1550
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1700
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Wood truss
- Spacing 24
- Subfloor wood
- Thickness 3/4
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

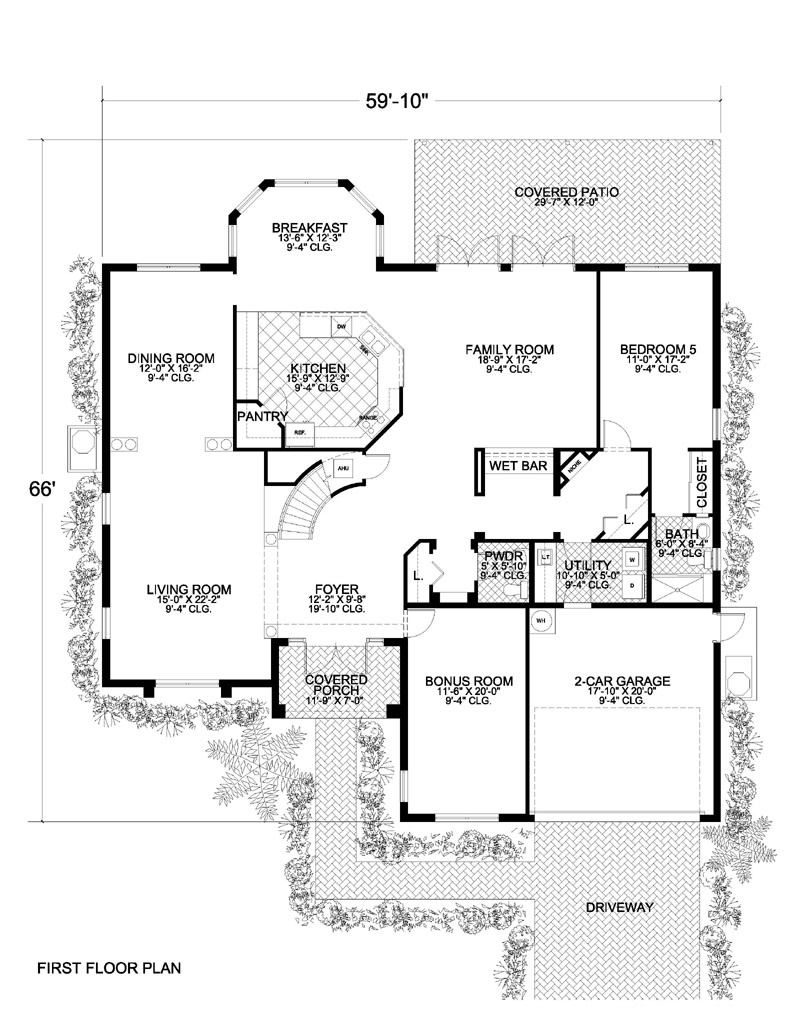

First Floor
- Primary Living 9'-0
- Secondary Living 9'-0
- Primary Bedrooms 0
- Secondary Bedrooms 9'-0
- Bathrooms 9'-0
- Common Areas 9'-0

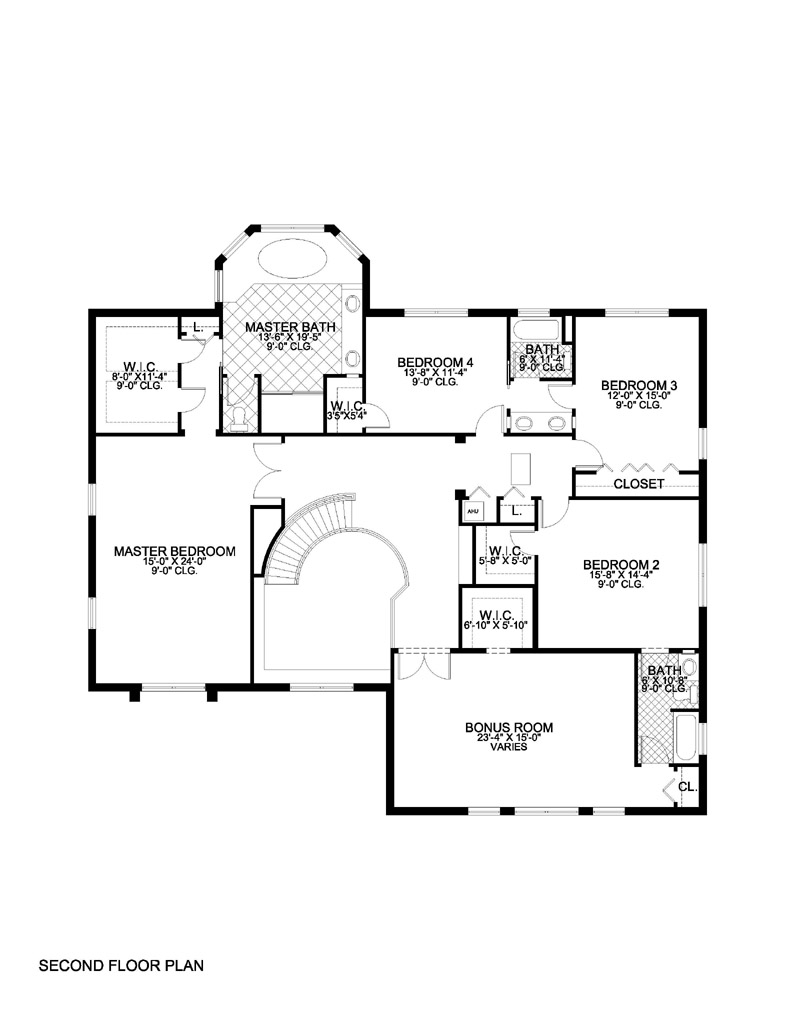

Second Floor
- Primary Bedrooms 9'-0
- Secondary Bedrooms 9'-0
- Bathrooms 9'-0
- Common Areas 0
Exterior
- Garage 9'-6
- Covered Entry 9'-6
- Covered Patio 9'-6
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 2537
- Second Floor AC 2696
- Total AC 5233
Total Under Roof Sq Ft
- Garage 640
- Covered Entry 84
- Covered Patio 354
- Covered Balconies 0
- Total Under Roof 6311
