House Plans
Plan Summary
-
Stories
2
-
Bedrooms
6
-
Bathrooms
6
-
Garage
2 car
-
Width x Length
61'8" x 75'0"
-
First Floor Sq Ft
2900
-
Second Floor Sq Ft
2545
-
Total AC Sq Ft
5445
-
Total Under Roof Sq Ft
6479
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

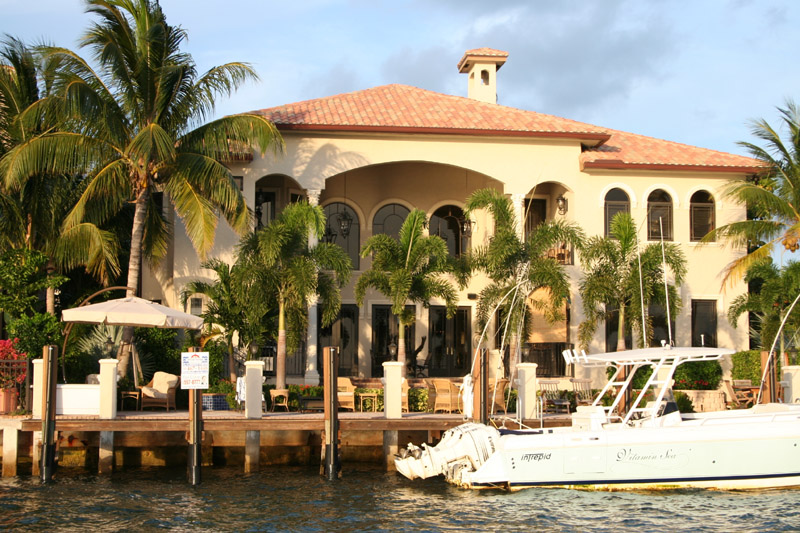

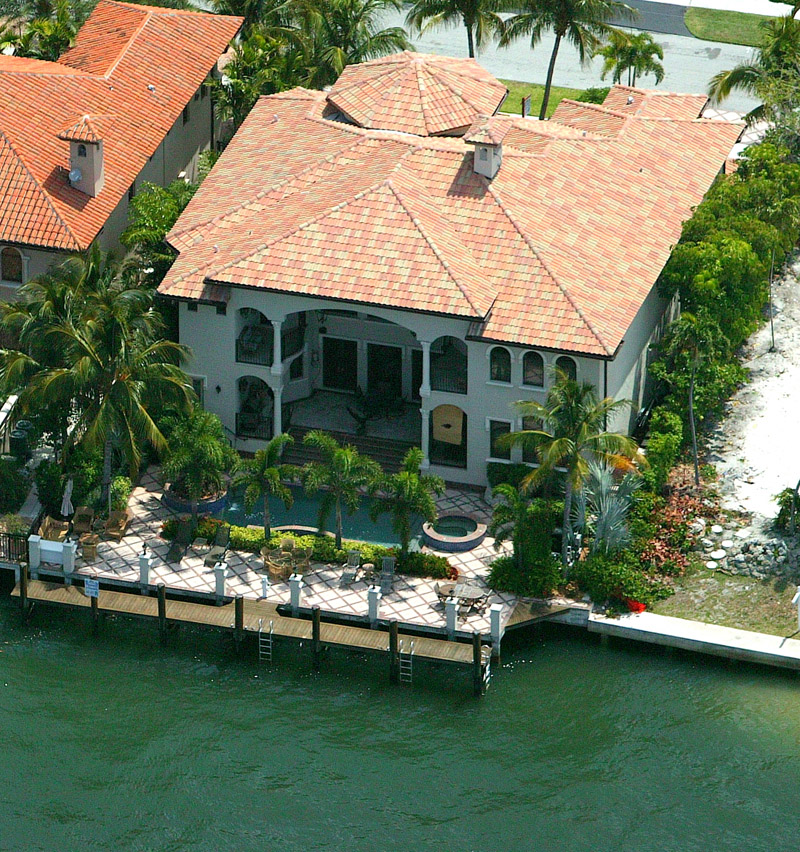

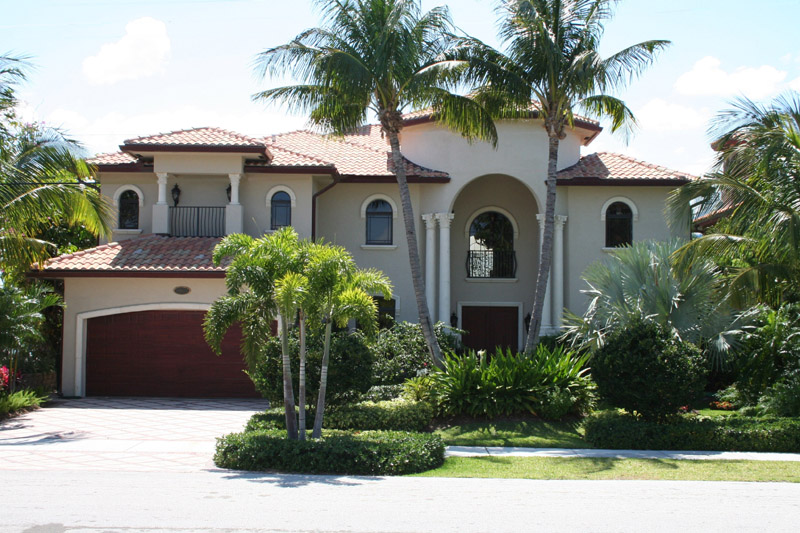

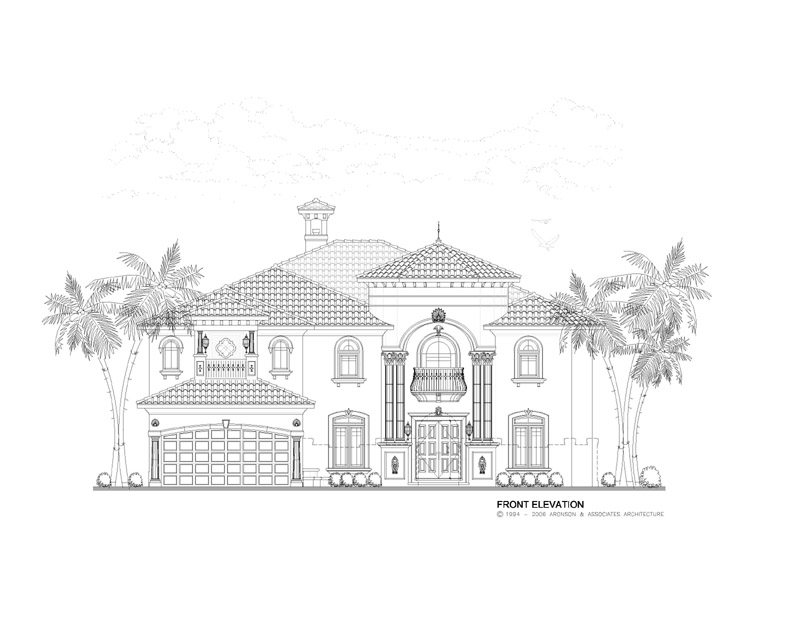

This beautiful, two-story, 5,445 sq. ft., traditional Mediterranean-style floor plan design features six bedrooms, five and one-half bathrooms, a cabana bath, two-car garage and a grand covered entrance. The columns and arches make a strong curb appeal. The first story of this majestic home features a large living room with two-story tray ceilings, a stately fireplace and wet bar, huge kitchen with an eating bar and cafe that opens to the family room, a library and a large covered patio with summer kitchen! What a place to call “home”. There is the ultimate master bedroom suite with exceptionally large “His and Hers” walk-in closets, stylish tray ceiling and luxurious master bath featuring an exercise room, steam room and sauna. Get this beautiful home floor plan today.

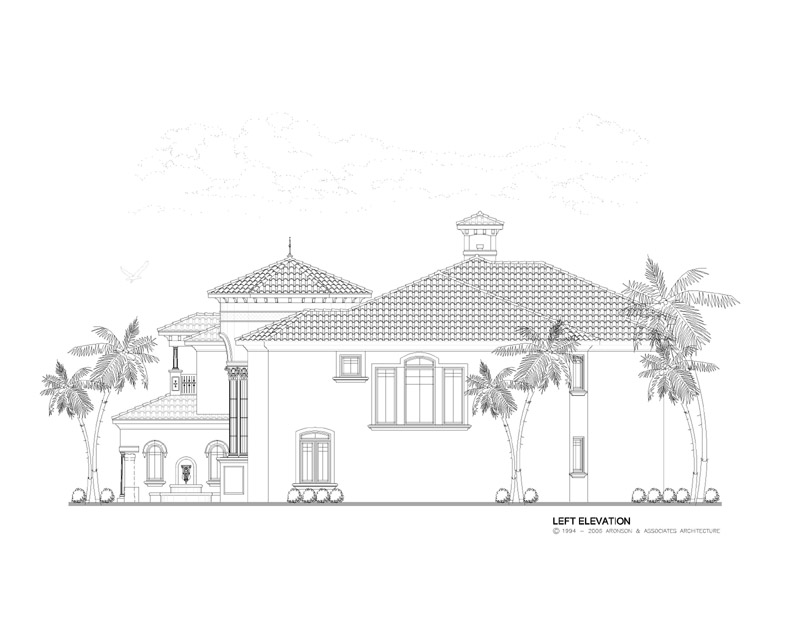

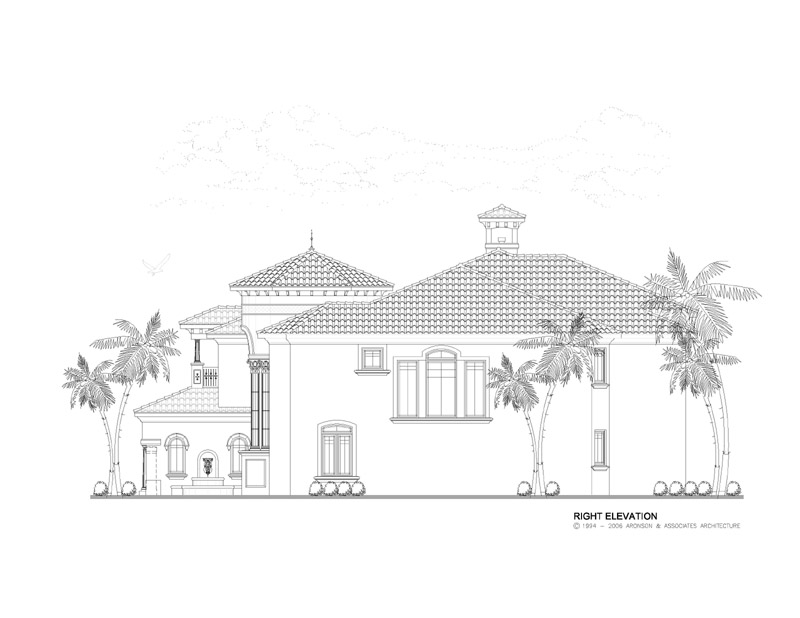

Dimensions
- Width x Length 61'8" x 75'0"
- Height 34'-0
- Stories 2/
Garage
- Number of Cars 2
- Attached Yes
- Location Left
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 6
- Possible 0
- Total 6
Bathrooms
- Full 6
- Half 1
- Total 6

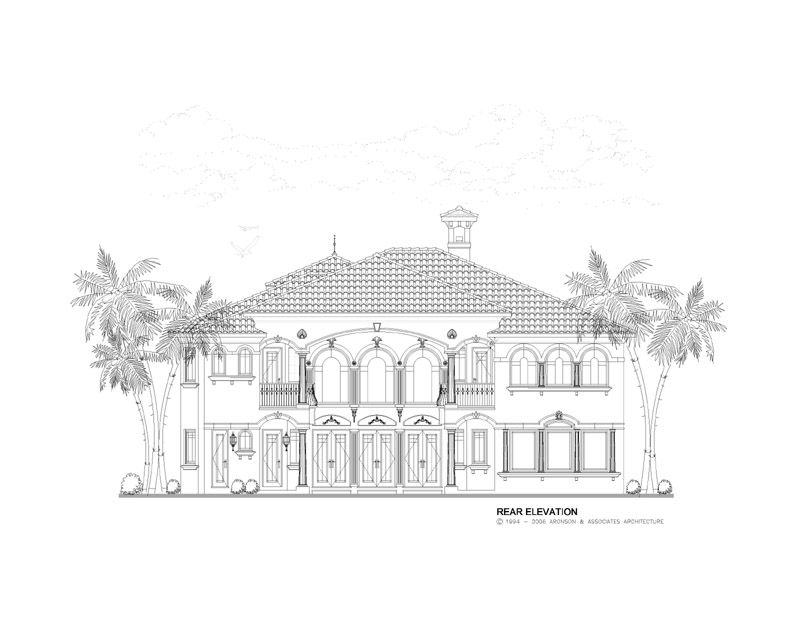

Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace Yes
- Elevator Yes
- Pool Yes
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1700
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2600
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1200
- (Extra Sets: $50)
- More Information
3 Sets Price: $1300
- (Extra Sets: $50)
- More Information
5 Sets Price: $1400
- (Extra Sets: $50)
- More Information
8 Sets Price: $1550
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1700
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Wood Truss
- Spacing 24
- Subfloor wood
- Thickness 3/4
Roof System
- Type wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140

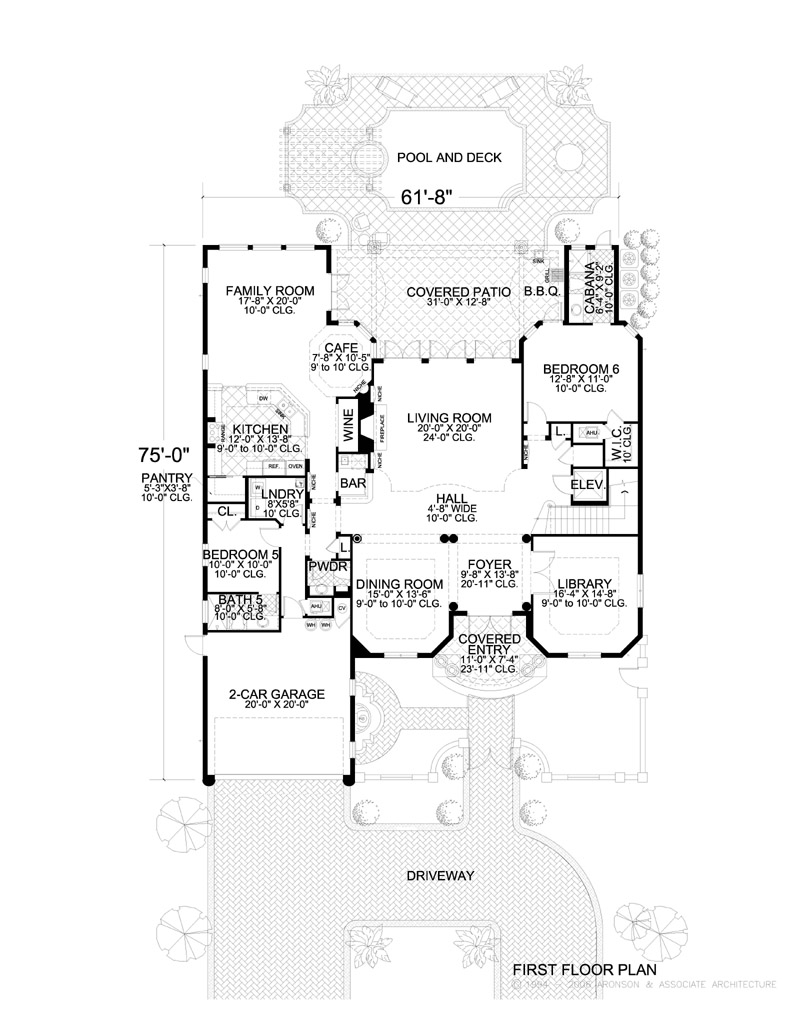

First Floor
- Primary Living 24'-0
- Secondary Living 9'-0
- Primary Bedrooms
- Secondary Bedrooms 10'-0
- Bathrooms 10'-0
- Common Areas 10'-0

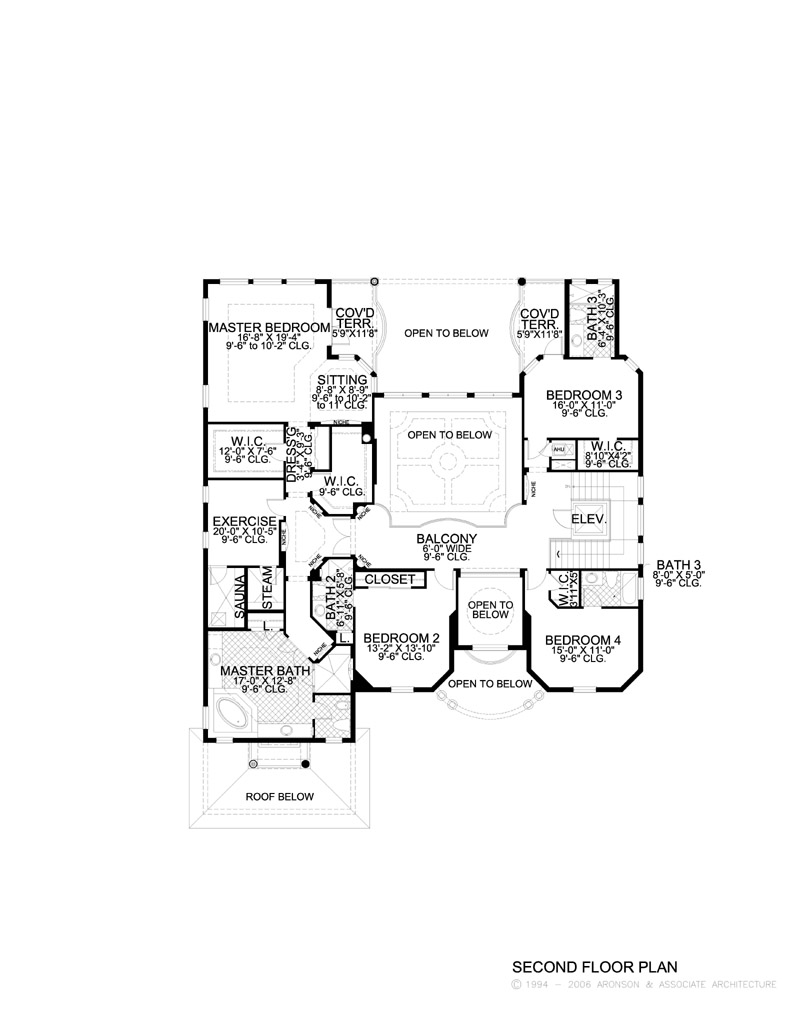

Second Floor
- Primary Bedrooms 10'-0
- Secondary Bedrooms 10'-0
- Bathrooms 9'-6
- Common Areas 0
Exterior
- Garage 10'-0
- Covered Entry 23'-11
- Covered Patio 10'-0
- Covered Balcony 12'-10
Total AC Sq Ft
- First Floor AC 2900
- Second Floor AC 2545
- Total AC 5445
Total Under Roof Sq Ft
- Garage 465
- Covered Entry 109
- Covered Patio 460
- Covered Balconies 0
- Total Under Roof 6479
