PLAN SUMMARY
-
Stories
2
-
Bedrooms
5
-
Bathrooms
7
-
Garage
3 car
-
Width x Length:
69' 8" x 106' 8"
-
First Floor Sq Ft
2,882 Sq. Ft.
-
Second Floor Sq Ft
2,760 Sq. Ft.
-
Total AC Sq Ft
5,642 Sq. Ft.
-
Total Under Roof Sq Ft
7,538 Sq. Ft.
$0.00
Plan Description

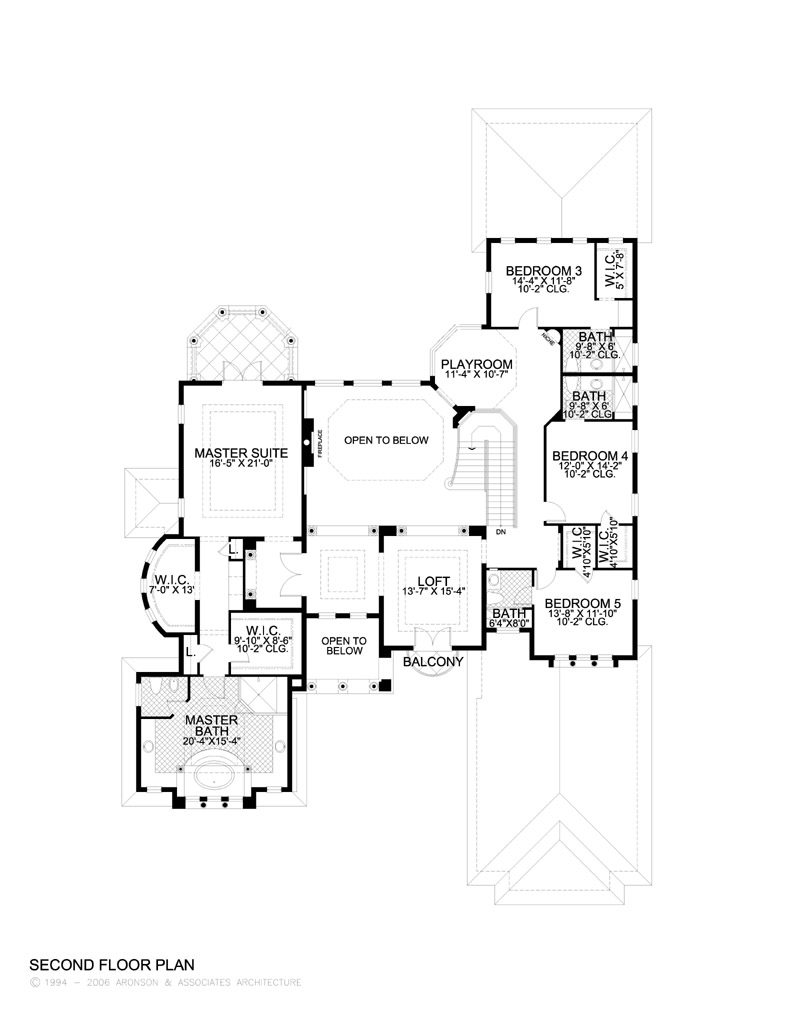

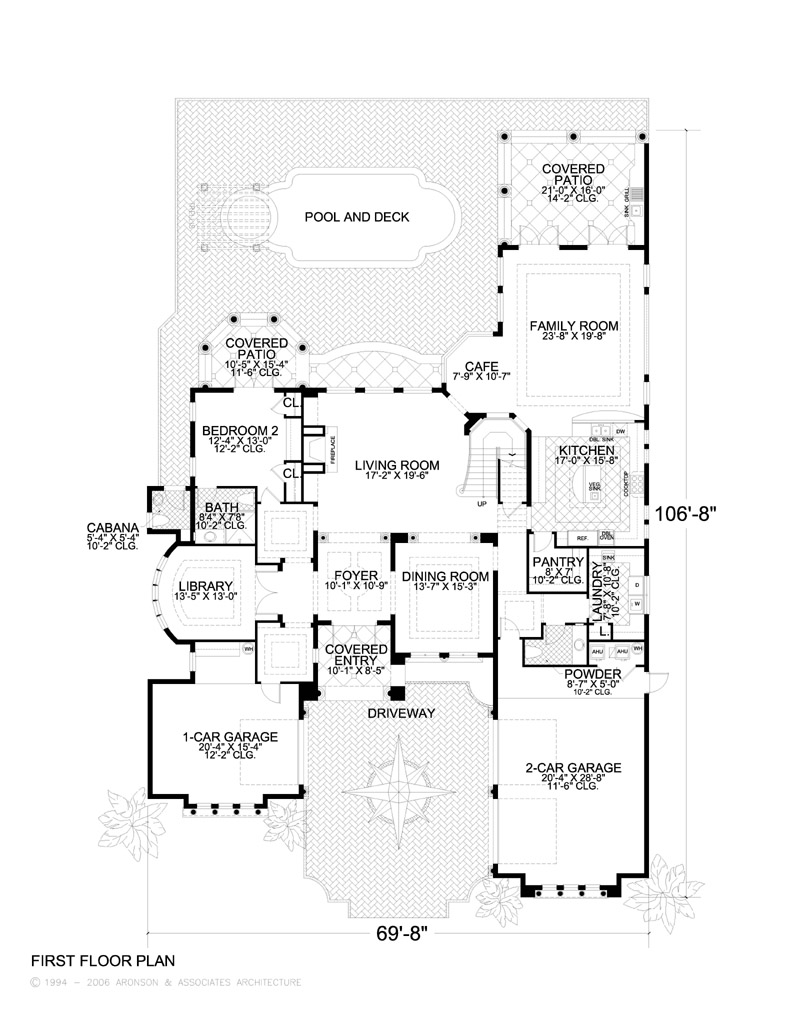

This sprawling, 5642 sq. ft., expansive, two-story, concrete block exterior, Mediterranean-style home features five bedrooms, five full bathrooms, a covered entry and balconies. This home makes entertaining many guests easy with enormous spaces. The huge great room and nearby dining room with boxed ceiling makes a fabulous impression. Relax with a good book in the library or have your morning coffee on the covered patio. The upper level invites you to relax in the master suite. A private balcony access and a walk-in closet, as well as a bathroom “fit for a king” makes this suite a pleasure to come home to. Three additional guest suites and a playroom completes the upper story of this unique design. Download this home floor plan today.
Dimensions
-
Width x Length
69' 8" x 106' 8"
-
Height
33'-2
-
Stories
2/
Garage
-
Number of Cars
3
-
Attached
No
-
Location
Right and Left
Wall Construction
-
Interior
Metal stud
-
Exterior
CMU
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
5
-
Possible
0
-
Total
5
Bathrooms
-
Full
5
-
Half
0
-
Total
7
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
2
Features
-
Fireplace
Yes
-
Elevator
No
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1800
CAD Disk Price: $2700
Reverse PDF Price: $2050
Reverse CAD Price: $2950
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $1300
3 Sets Price: $1400
5 Sets Price: $1500
8 Sets Price: $1650
Reproducible Vellum Price: $1800
Base – Not for Construction Price: $1300
3 Sets (Reverse) Price: $1650
5 Sets (Reverse) Price: $1750
8 Sets (Reverse) Price: $1900
Reproducible Vellum (Reverse) Price: $2050
Foundation Type
-
Type
Monolithic
-
Option
0
Floor System
-
Type
Wood truss
-
Spacing
24
-
Subfloor
wood
-
Thickness
3/4
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. tile
-
Wind Speed
140
First Floor
-
Primary Living
Open to above
-
Secondary Living
12'-2
-
Primary Bedrooms
-
Secondary Bedrooms
12'-2
-
Bathrooms
10'-2
-
Common Areas
10'-2
Second Floor
-
Primary Bedrooms
12'-2
-
Secondary Bedrooms
10'-2
-
Bathrooms
10'-2
-
Common Areas
10'-2
Exterior
-
Garage
11'-6
-
Covered Entry
12'-2
-
Covered Patio
12'-2
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2882
-
Second Floor AC
2760
-
Total AC
5642
Total Under Roof Sq Ft
-
Garage
1145
-
Covered Entry
123
-
Covered Patio
0
-
Covered Balconies
628
-
Total Under Roof
7538
