Plan Summary
-
Stories
2
-
Bedrooms
6
-
Bathrooms
6
-
Garage
3 car
-
Width x Length
67'6" x 85'0"
-
First Floor Sq Ft
3592
-
Second Floor Sq Ft
2098
-
Total AC Sq Ft
5690
-
Total Under Roof Sq Ft
6937
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

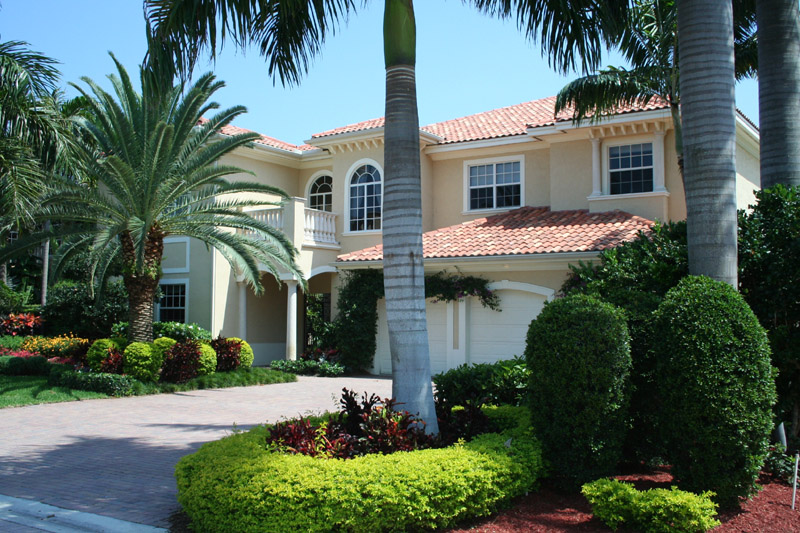

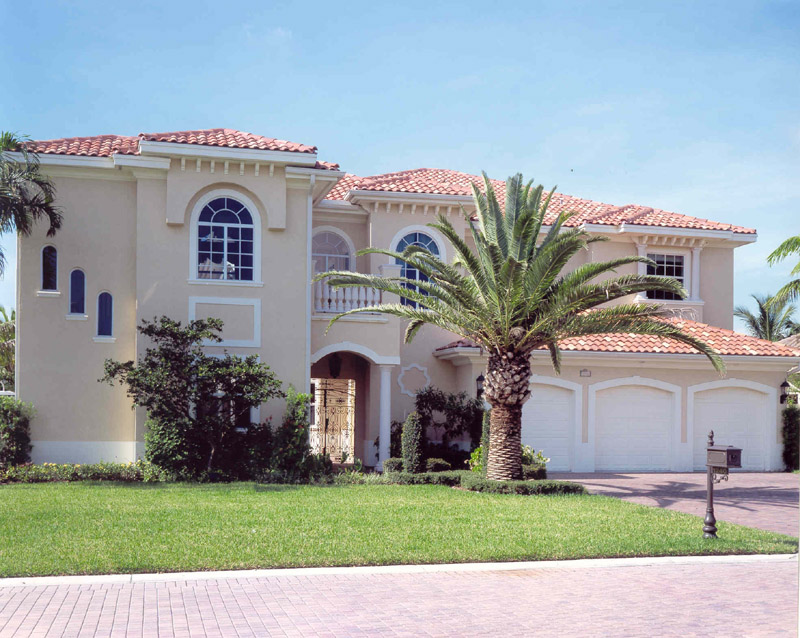

This beautiful, 5,690 sq. ft., two-story, Traditional Spanish Mediterranean-style home floor plan features six bedrooms, four and one-half bathrooms, a cabana bath, three-car garage and a covered entrance. The spacious open home design makes for wonderful and comfortable entertaining with the large island kitchen, an eating bar and cafe which opens to the family room. A billiard room and media room add to the unique design of this residence. Get this beautiful home floor plan today.
Dimensions
- Width x Length 67'6" x 85'0"
- Height 33'-4
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location Right
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 6
- Possible 0
- Total 6
Bathrooms
- Full 4
- Half 0
- Total 6
Elevation
- Finishes Stucco
- Master Bedroom Location 1
- Utility Location 2
Features
- Fireplace No
- Elevator No
- Pool No
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1800
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2700
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1300
- (Extra Sets: $50)
- More Information
3 Sets Price: $1400
- (Extra Sets: $50)
- More Information
5 Sets Price: $1500
- (Extra Sets: $50)
- More Information
8 Sets Price: $1650
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1800
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Wood truss
- Spacing 24
- Subfloor LtWt. Concrete
- Thickness 3/4
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140
First Floor
- Primary Living 13'-2
- Secondary Living 10'-6
- Primary Bedrooms 13'-2
- Secondary Bedrooms 0
- Bathrooms 10'-6
- Common Areas 10'-6
Second Floor
- Primary Bedrooms 0
- Secondary Bedrooms 9'-6
- Bathrooms 9'-6
- Common Areas 9'-6
Exterior
- Garage 9'-4
- Covered Entry 10'-8
- Covered Patio 13'-4
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 3592
- Second Floor AC 2098
- Total AC 5690
Total Under Roof Sq Ft
- Garage 629
- Covered Entry 77
- Covered Patio 541
- Covered Balconies 0
- Total Under Roof 6937
