House Plans
Plan Summary
-
Stories
2
-
Bedrooms
5
-
Bathrooms
6
-
Garage
3 car
-
Width x Length
63'10" x 59'11"
-
First Floor Sq Ft
2709
-
Second Floor Sq Ft
3034
-
Total AC Sq Ft
5743
-
Total Under Roof Sq Ft
7012
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description

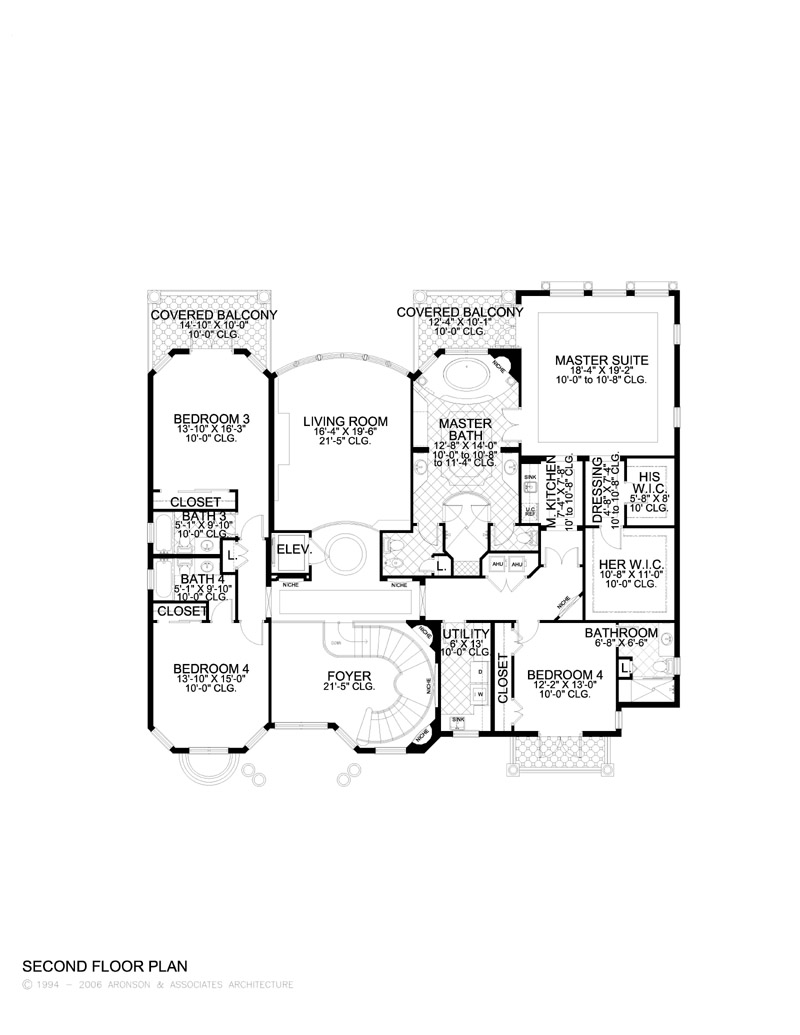

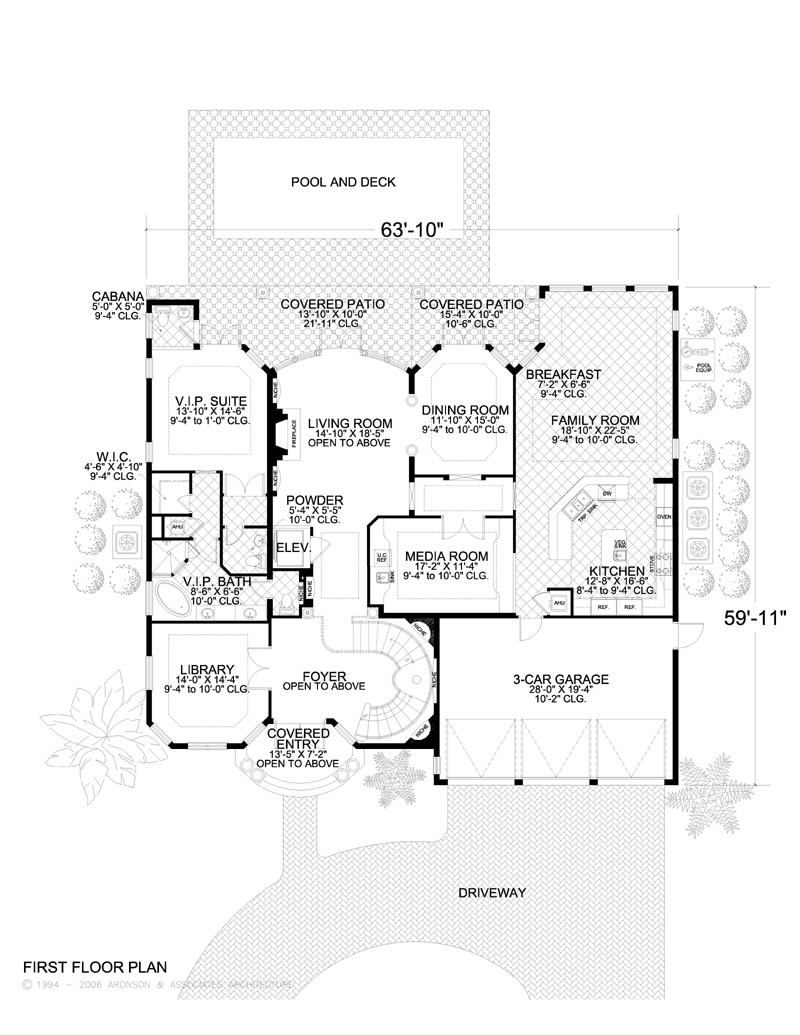

This beautiful, two-story, 5,743 sq. ft. home floor plan is a classic Mediterranean-style residence featuring five bedrooms, five and one-half bathrooms, a cabana bath, three-car garage, towering covered balconies and entrance with eight-foot high French doors and arched transom. The first story provides a suite with a private entrance. The large living room displays two-story tray ceilings. There is a huge island kitchen featuring an eating bar opens to a family room. This opulent home plan has a media room with a wet bar and a billiard room. For easy access to the second story, you have the convenience of a residential elevator bringing you to a luxurious master suite featuring large walk-in closets, a morning kitchen, tray ceilings and regal master bathroom which provides additional storage areas and opens to a private balcony. Get this beautiful house plan today.
Dimensions
- Width x Length 63'10" x 59'11"
- Height 30'-0
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location right
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 5
- Possible 0
- Total 5
Bathrooms
- Full 6
- Half 1
- Total 6
Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace Yes
- Elevator Yes
- Pool Yes
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1800
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2700
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1300
- (Extra Sets: $50)
- More Information
3 Sets Price: $1400
- (Extra Sets: $50)
- More Information
5 Sets Price: $1500
- (Extra Sets: $50)
- More Information
8 Sets Price: $1650
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1800
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Grade Beams/Piling
- Option 0
Floor System
- Type concrete
- Spacing 24
- Subfloor wood
- Thickness 3/4
Roof System
- Type wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140
First Floor
- Primary Living Open to above
- Secondary Living 9'-4
- Primary Bedrooms
- Secondary Bedrooms 9'-0
- Bathrooms 10'-0
- Common Areas 10'-0
Second Floor
- Primary Bedrooms 10'-0
- Secondary Bedrooms 10'-0
- Bathrooms 10'-0
- Common Areas 10'-0
Exterior
- Garage 9'-11
- Covered Entry Open to above
- Covered Patio 10'-6
- Covered Balcony 10'-0
Total AC Sq Ft
- First Floor AC 2709
- Second Floor AC 3034
- Total AC 5743
Total Under Roof Sq Ft
- Garage 576
- Covered Entry 90
- Covered Patio 353
- Covered Balconies 250
- Total Under Roof 7012
