House Plan Model 5754-0238

Browsing: By Two Story

Luxury Home View

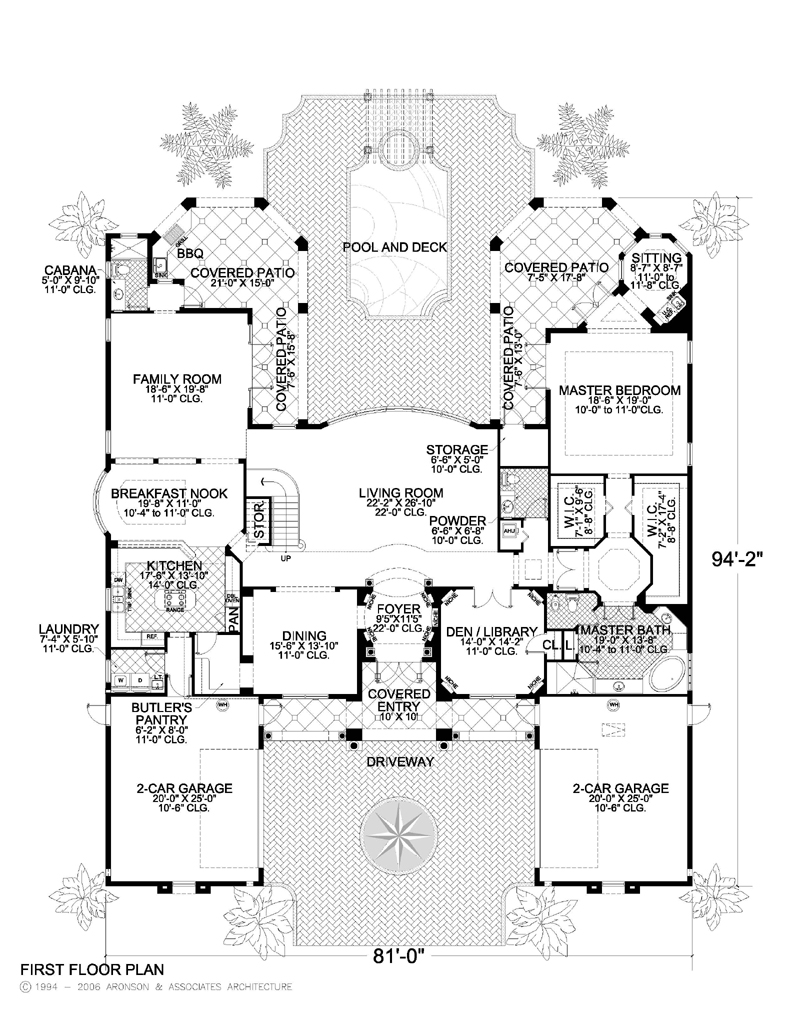

Home Floor Plan

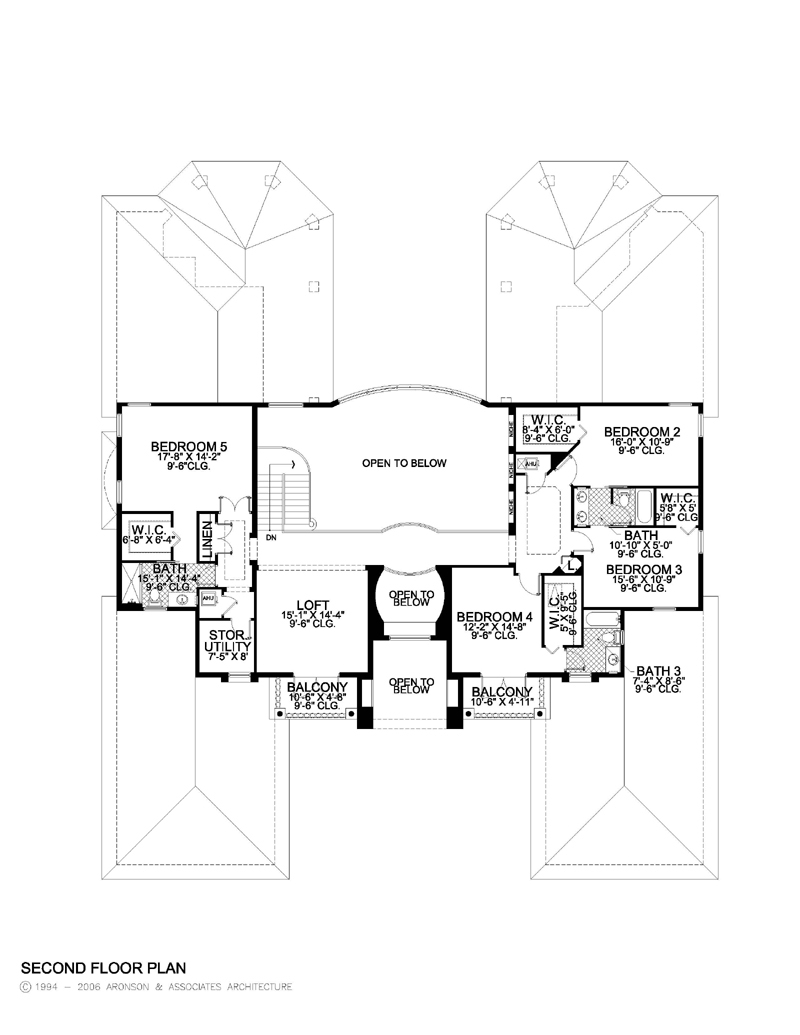

Second Floor Home Plan
Front of Luxury Home
Luxury Home Night View
Large Luxury Home Plan
Luxury Home View
Home Floor Plan
Second Floor Home Plan
Front of Luxury Home
Luxury Home Night View
Large Luxury Home Plan

Plan Summary

  • Stories

    2

  • Bedrooms

    5

  • Bathrooms

    5

  • Garage

    4 car

  • Width x Length

    81' x 94'

  • First Floor Sq Ft

    3715

  • Second Floor Sq Ft

    2039

  • Total AC Sq Ft

    5754

  • Total Under Roof Sq Ft

    8008
