House Plan Model 5810-9960

Browsing: By Two Story

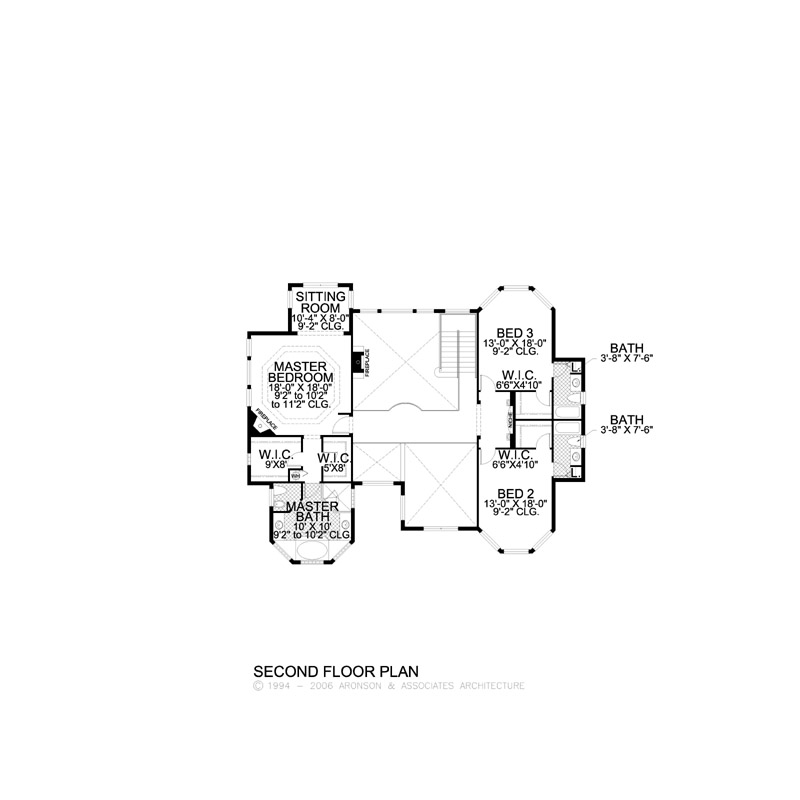

Second Floor Plan
Second Floor Plan

Plan Summary

  • Stories

    2

  • Bedrooms

    6

  • Bathrooms

    7

  • Garage

    4 car

  • Width x Length

    83'8" x 163'10"

  • First Floor Sq Ft

    4010

  • Second Floor Sq Ft

    1800

  • Total AC Sq Ft

    5810

  • Total Under Roof Sq Ft

    9005
