House Plan Model 6009-0507

Browsing: By Two Story

Custom Home Plans

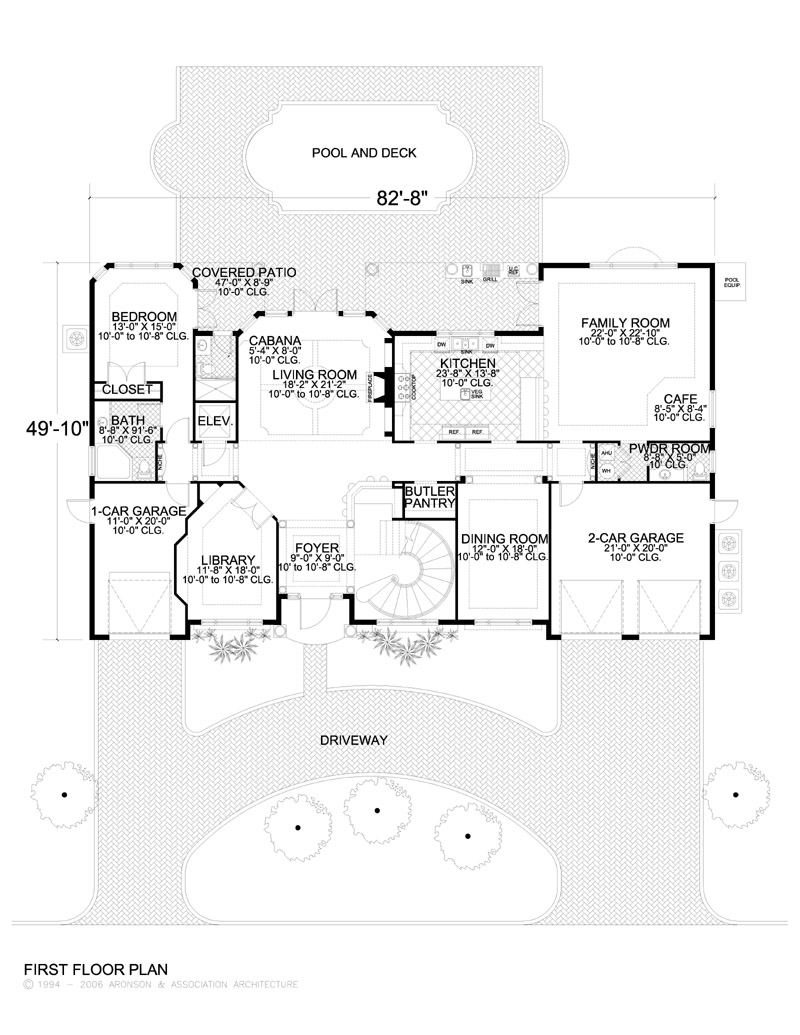

First Floor Home Plan

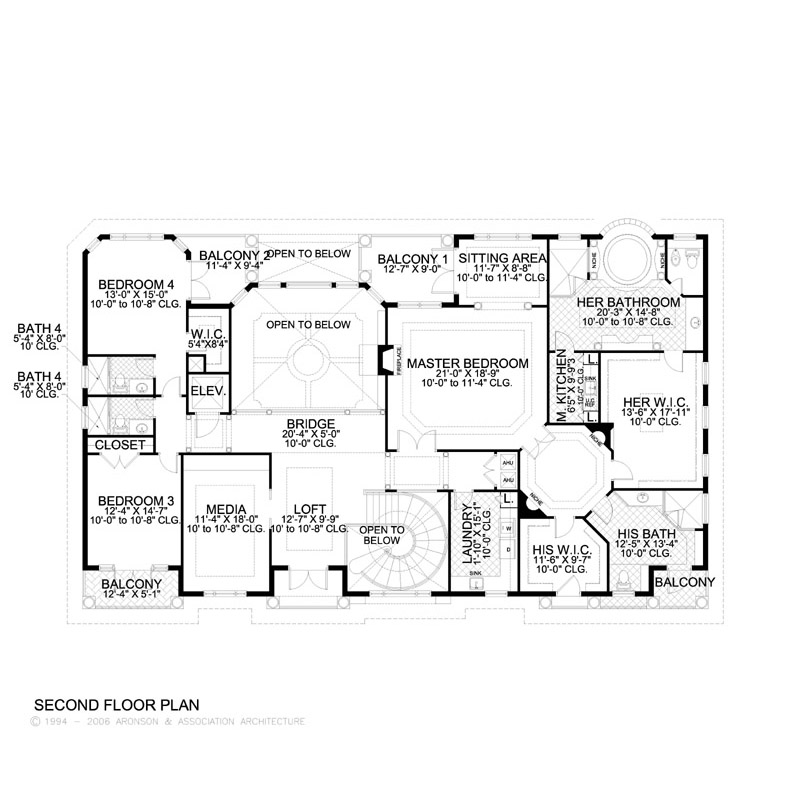

Second Floor Home Plan
Front Elevation View of Home
Rear Elevation View of Home
Left Elevation View of Home
RIght Elevation View of Home
Beautiful Home Plans
Amazing Home Plans
Large 2 Story Home Plans
Custom Home Plans
First Floor Home Plan
Second Floor Home Plan
Front Elevation View of Home
Rear Elevation View of Home
Left Elevation View of Home
RIght Elevation View of Home
Beautiful Home Plans
Amazing Home Plans
Large 2 Story Home Plans

Plan Summary

  • Stories

    2

  • Bedrooms

    4

  • Bathrooms

    6

  • Garage

    3 car

  • Width x Length

    82'2" x 49'10"

  • First Floor Sq Ft

    2926

  • Second Floor Sq Ft

    3083

  • Total AC Sq Ft

    6009

  • Total Under Roof Sq Ft

    6672

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

This beautiful, two-story, 6,009 sq. ft., classic Florida-style waterfront home features four bedrooms, five and one-half bathrooms, a cabana bath and three-car garage. The columns, arches, covered balconies and sumptuous covered entrance with eight-foot high arched wood front door provide a strong curb appeal and luxury in both the interior and exterior of this home. The first story features a large living room with two-story tray ceilings and a stately fireplace. The gourmet kitchen features an eating bar and cafe. There are separate library and media rooms adorning this beautiful abode. A residential elevator brings you to further opulence in the home – the second story! This area features a luxurious master suite with large, walk-in closets, morning kitchen, tray ceilings and a regal master bathroom with additional storage areas and opens onto a private balcony. Get this beautiful home floor plan today.

Dimensions

  • Width x Length 82'2" x 49'10"
  • Height 34'-5
  • Stories 2/

Garage

  • Number of Cars 3
  • Attached Yes
  • Location Right and Left

Wall Construction

  • Interior Metal Stud
  • Exterior CMU Block
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 4
  • Possible 0
  • Total 4

Bathrooms

  • Full 6
  • Half 1
  • Total 6

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 2

Features

  • Fireplace Yes
  • Elevator Yes
  • Pool Yes
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $1900

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $2900

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $1400

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1500

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1600

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1750

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $1900

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type Concrete
  • Spacing 0
  • Subfloor Concrete
  • Thickness 0

Roof System

  • Type Wood Trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. Tile
  • Wind Speed 140

First Floor

  • Primary Living 10'-0
  • Secondary Living 10'-0
  • Primary Bedrooms
  • Secondary Bedrooms 10'-0
  • Bathrooms 10'-0
  • Common Areas 10'-0

Second Floor

  • Primary Bedrooms 10'-0
  • Secondary Bedrooms 10'-0
  • Bathrooms 10'-0
  • Common Areas 10'-0

Exterior

  • Garage 10'-0
  • Covered Entry 23'-11
  • Covered Patio 23'-4
  • Covered Balcony 9'-0

Total AC Sq Ft

  • First Floor AC 2926
  • Second Floor AC 3083
  • Total AC 6009

Total Under Roof Sq Ft

  • Garage 255
  • Covered Entry 48
  • Covered Patio 360
  • Covered Balconies 0
  • Total Under Roof 6672
