House Plans
Plan Summary
-
Stories
2
-
Bedrooms
5
-
Bathrooms
6
-
Garage
3 car
-
Width x Length
65' x 69'
-
First Floor Sq Ft
3149
-
Second Floor Sq Ft
2926
-
Total AC Sq Ft
6075
-
Total Under Roof Sq Ft
7595
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description
This beautiful, two-story, 6,075 sq. ft., traditional Florida-style home floor plan features five bedrooms, five and one-half bathrooms, a cabana bath, three-car garage, covered balconies and a towering entrance with eight-foot high front door with arched transom. The first story provides a large living room with a wet bar and fireplace. The huge island kitchen has an eating bar. The media room features a wet bar. A library and a VIP suite have a private entrance. At the second story, the master suite features a large walk-in closet, morning kitchen, tray ceilings and a regal master bathroom, all adding to the luxury of this design. Get this beautiful home floor plan today.
Dimensions
- Width x Length 65' x 69'
- Height 35'-0
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location right
Wall Construction
- Interior Metal Stud
- Exterior CMU Block
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 5
- Possible 0
- Total 5
Bathrooms
- Full 6
- Half 1
- Total 6
Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace Yes
- Elevator Yes
- Pool Yes
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1900
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2900
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1400
- (Extra Sets: $50)
- More Information
3 Sets Price: $1500
- (Extra Sets: $50)
- More Information
5 Sets Price: $1600
- (Extra Sets: $50)
- More Information
8 Sets Price: $1750
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1900
- (Extra Sets: $150)
- More Information
Foundation Type
- Type monolithic
- Option 0
Floor System
- Type concrete
- Spacing 0
- Subfloor
- Thickness 0
Roof System
- Type wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. Tile
- Wind Speed 140

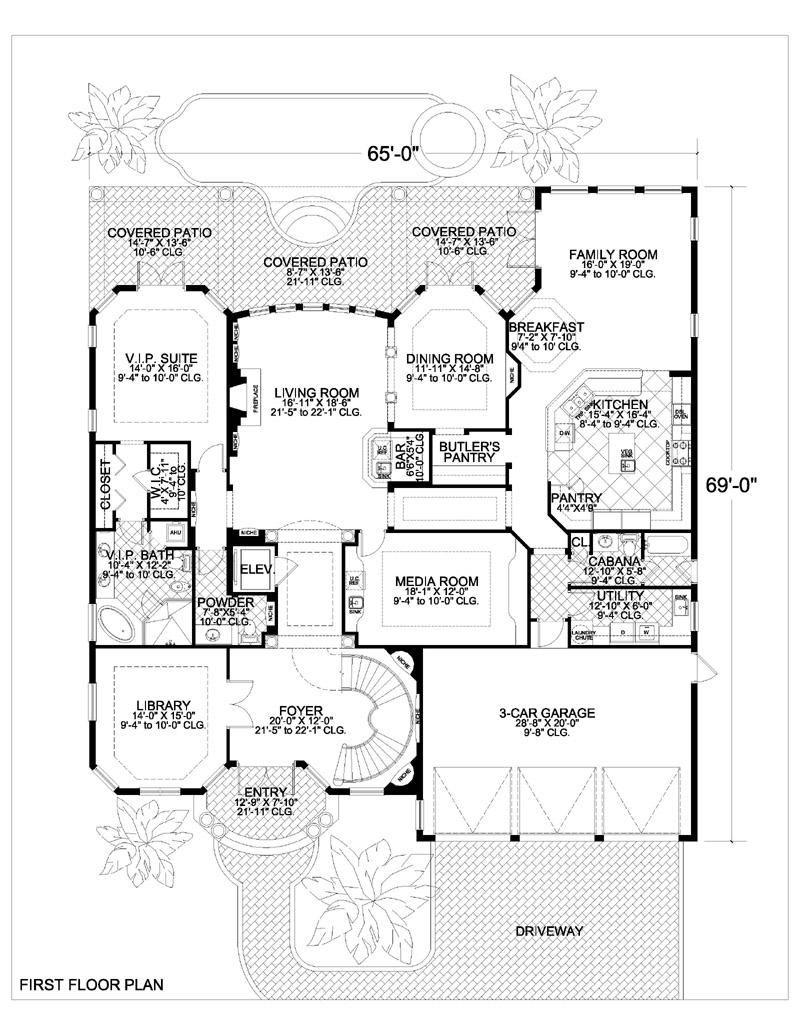

First Floor
- Primary Living 21'-5
- Secondary Living 9'-4
- Primary Bedrooms
- Secondary Bedrooms 9'-0
- Bathrooms 9'-0
- Common Areas 9'-0

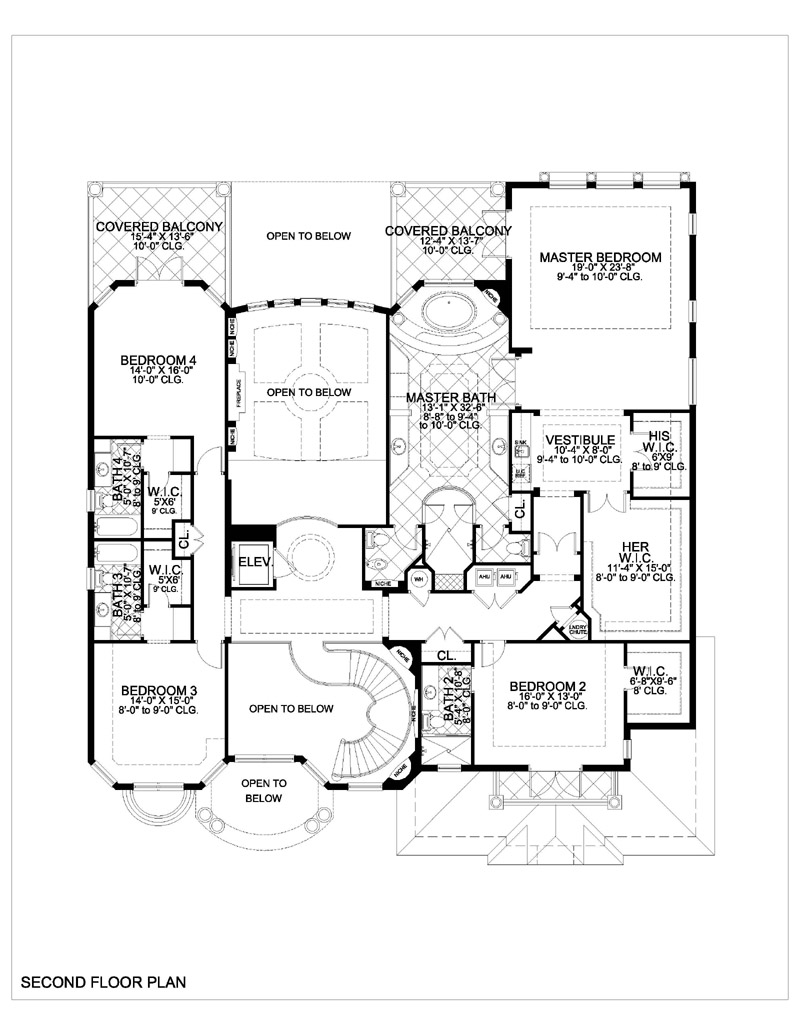

Second Floor
- Primary Bedrooms 9'-4
- Secondary Bedrooms 10'-0
- Bathrooms 8'-0
- Common Areas 10'-0
Exterior
- Garage 9'-8
- Covered Entry 21'-11
- Covered Patio 10'-6
- Covered Balcony 10'-0
Total AC Sq Ft
- First Floor AC 3149
- Second Floor AC 2926
- Total AC 6075
Total Under Roof Sq Ft
- Garage 590
- Covered Entry 89
- Covered Patio 514
- Covered Balconies 327
- Total Under Roof 7595
