House Plans
Plan Summary
-
Stories
2
-
Bedrooms
5
-
Bathrooms
6
-
Garage
3 car
-
Width x Length
87'5" x 59'10"
-
First Floor Sq Ft
3081
-
Second Floor Sq Ft
3015
-
Total AC Sq Ft
6096
-
Total Under Roof Sq Ft
7675
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description
Classic, contemporary, two-story, 6,096 sq, ft., Mediterranean-style waterfront home floor plan features five bedrooms, five an one-half bathrooms, a cabana bathroom and a three-car garage. This is a luxurious home both in the interior and exterior design and amenities. Beguiling are the covered balconies, an elevator, billiard room with a wet bar, playroom, exercise room and home office. The first story features a suite with a private entrance. Eight-foot high French doors with arched transoms accent the covered entrance. This thoughtfully laid out home plan opens the family room, billiard room and living room to the covered patio making a perfect arrangement when hosting get-togethers. Columns and arches provide a strong curb appeal. The huge island kitchen with an eating bar and cafe opens to the family room. A luxurious master suite with large walk-in closets, morning kitchen, tray ceilings and a regal master bath with additional storage areas opens onto a private balcony. Unique glass block surrounds a spa tub to brighten the interior of the master bath. The large living room has two-story tray ceilings and a stately fireplace. Get this luxurious home floor plan today.
Dimensions
- Width x Length 87'5" x 59'10"
- Height 30'-9
- Stories 2/
Garage
- Number of Cars 3
- Attached Yes
- Location Right and Left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 5
- Possible 0
- Total 5
Bathrooms
- Full 6
- Half 1
- Total 6
Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace Yes
- Elevator Yes
- Pool Yes
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $1900
- (Extra Sets: $150)
- More Information
CAD Disk Price: $2900
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1400
- (Extra Sets: $50)
- More Information
3 Sets Price: $1500
- (Extra Sets: $50)
- More Information
5 Sets Price: $1600
- (Extra Sets: $50)
- More Information
8 Sets Price: $1750
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $1900
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Monolithic
- Option 0
Floor System
- Type Concrete
- Spacing 0
- Subfloor Concrete
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 4:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

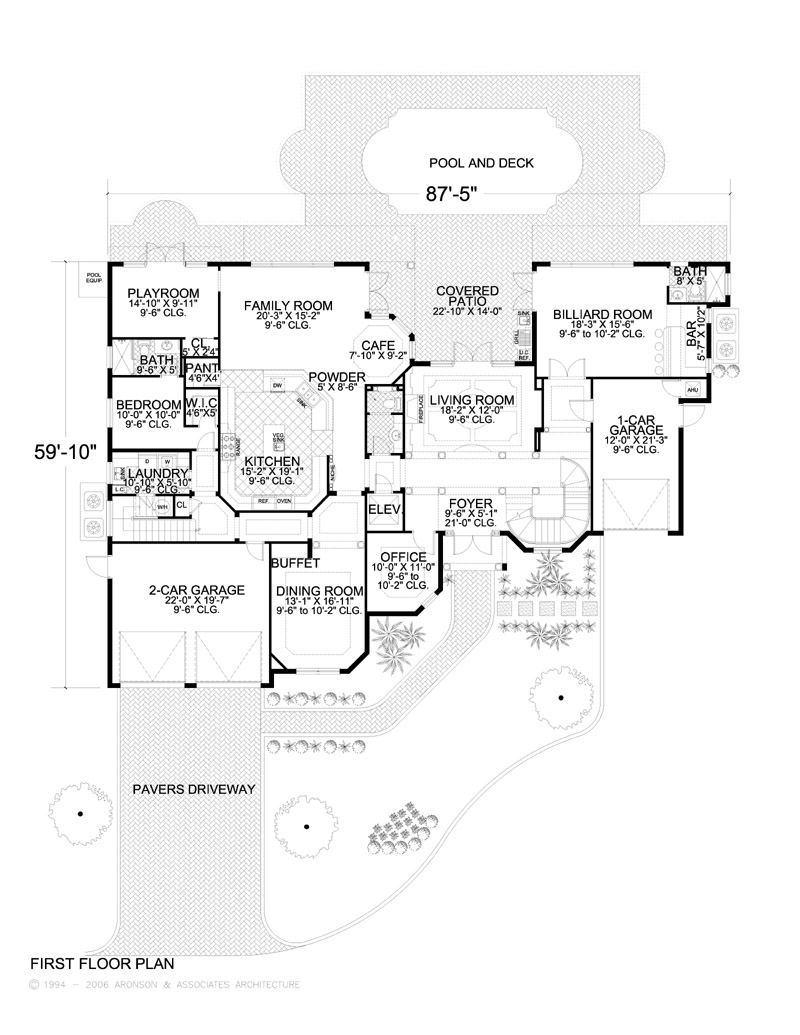

First Floor
- Primary Living 21' to 22'-4
- Secondary Living 9'-6
- Primary Bedrooms 0
- Secondary Bedrooms 9'-6
- Bathrooms 0
- Common Areas 9'-6

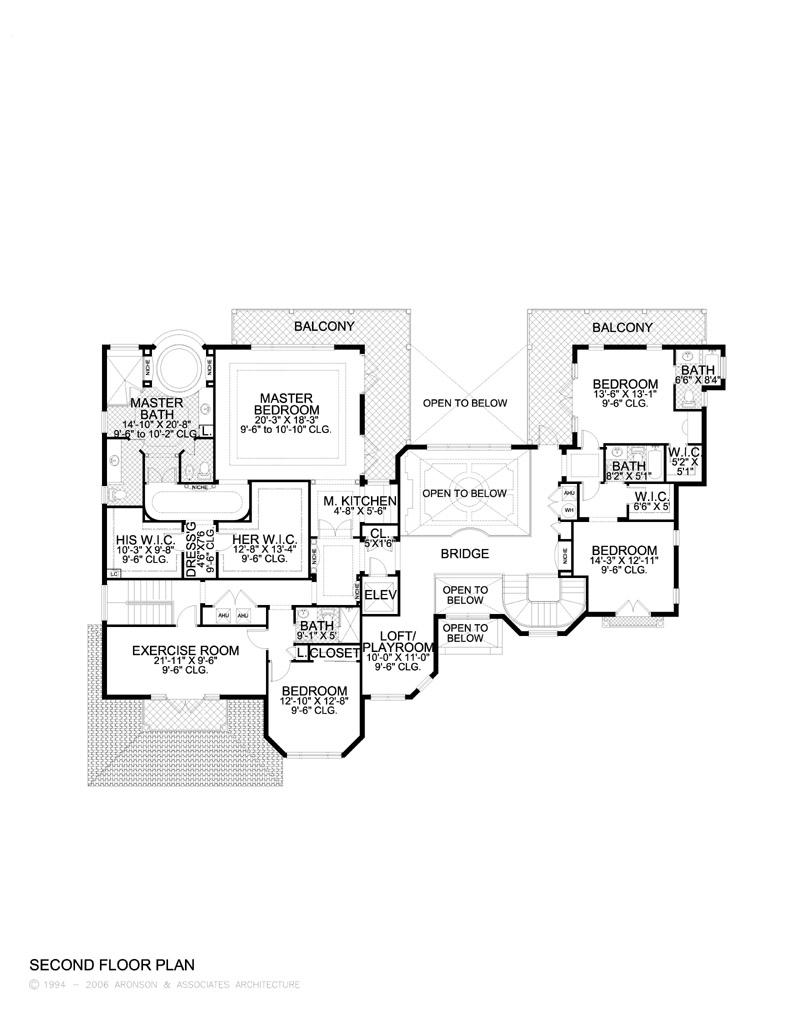

Second Floor
- Primary Bedrooms 9'-6
- Secondary Bedrooms 9'-6
- Bathrooms 9'-6
- Common Areas 0
Exterior
- Garage 8'-8
- Covered Entry 11'-0
- Covered Patio 9'-9
- Covered Balcony 11'-3
Total AC Sq Ft
- First Floor AC 3081
- Second Floor AC 3015
- Total AC 6096
Total Under Roof Sq Ft
- Garage 749
- Covered Entry 43
- Covered Patio 282
- Covered Balconies 505
- Total Under Roof 7675
