PLAN SUMMARY
-
Stories
2
-
Bedrooms
6
-
Bathrooms
6
-
Garage
3 car
-
Width x Length:
58' 8" x 121' 8"
-
First Floor Sq Ft
2,886 Sq. Ft.
-
Second Floor Sq Ft
3,331 Sq. Ft.
-
Total AC Sq Ft
6,217 Sq. Ft.
-
Total Under Roof Sq Ft
8,358 Sq. Ft.
$0.00
Plan Description
This luxurious, two-story, 6,217 sq. ft., Traditional Mediterranean-style home features seven bedrooms, five and one-half bathrooms, cabana bath and three-car garage. Towering covered entrance and large covered patios, columns and arches provide a strong curb appeal. The first story features a VIP suite with private entrance, large family room with tray ceilings and wet bar, huge kitchen with an eating bar, cafe and butler’s pantry and a cozy parlor for that perfect place for simple solitude. The luxurious master suite with large walk-in-closets and huge master bathroom makes that design extremely desirable. Pick up this home floor plan today.
Dimensions
-
Width x Length
58' 8" x 121' 8"
-
Height
32'-10
-
Stories
2/
Garage
-
Number of Cars
3
-
Attached
Yes
-
Location
Left
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
6
-
Possible
1
-
Total
6
Bathrooms
-
Full
6
-
Half
1
-
Total
6
Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
2
Features
-
Fireplace
Yes
-
Elevator
No
-
Pool
No
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $1900
CAD Disk Price: $2900
Reverse PDF Price: $2150
Reverse CAD Price: $3150
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $1400
3 Sets Price: $1500
5 Sets Price: $1600
8 Sets Price: $1750
Reproducible Vellum Price: $1900
Base – Not for Construction Price: $1400
3 Sets (Reverse) Price: $1750
5 Sets (Reverse) Price: $1850
8 Sets (Reverse) Price: $2000
Reproducible Vellum (Reverse) Price: $2150
Foundation Type
-
Type
monolithic
-
Option
0
Floor System
-
Type
Wood Trusses
-
Spacing
24
-
Subfloor
wood
-
Thickness
3/4
Roof System
-
Type
wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140

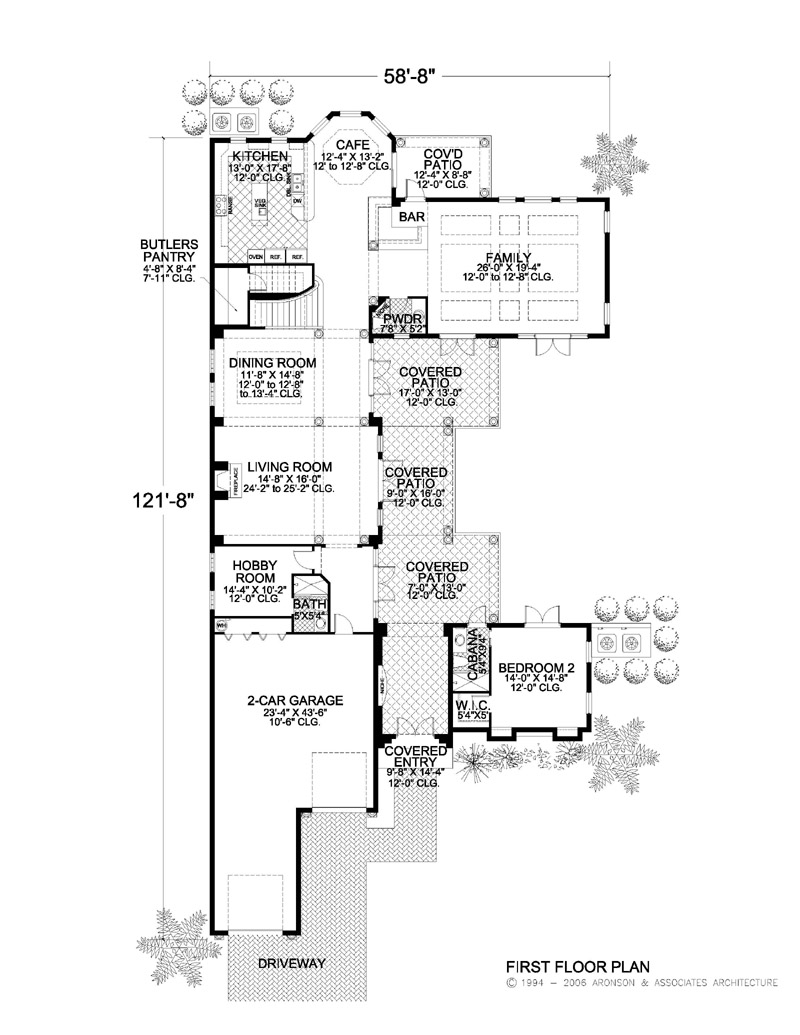

First Floor
-
Primary Living
10'-8
-
Secondary Living
10'-8
-
Primary Bedrooms
0'
-
Secondary Bedrooms
10'-0
-
Bathrooms
10'-0
-
Common Areas
10'-0

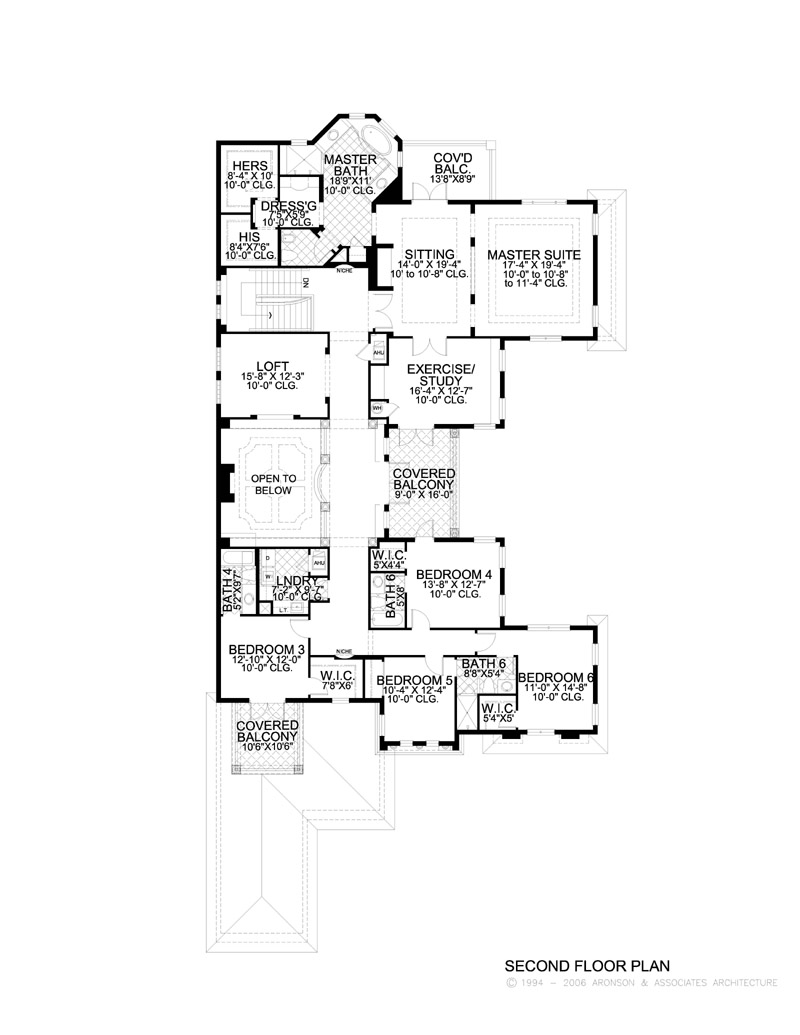

Second Floor
-
Primary Bedrooms
11'-10
-
Secondary Bedrooms
10'-6
-
Bathrooms
10'-6
-
Common Areas
10'-6
Exterior
-
Garage
10'-8
-
Covered Entry
10'-8
-
Covered Patio
10'-8
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
2886
-
Second Floor AC
3331
-
Total AC
6217
Total Under Roof Sq Ft
-
Garage
902
-
Covered Entry
191
-
Covered Patio
773
-
Covered Balconies
275
-
Total Under Roof
8358
