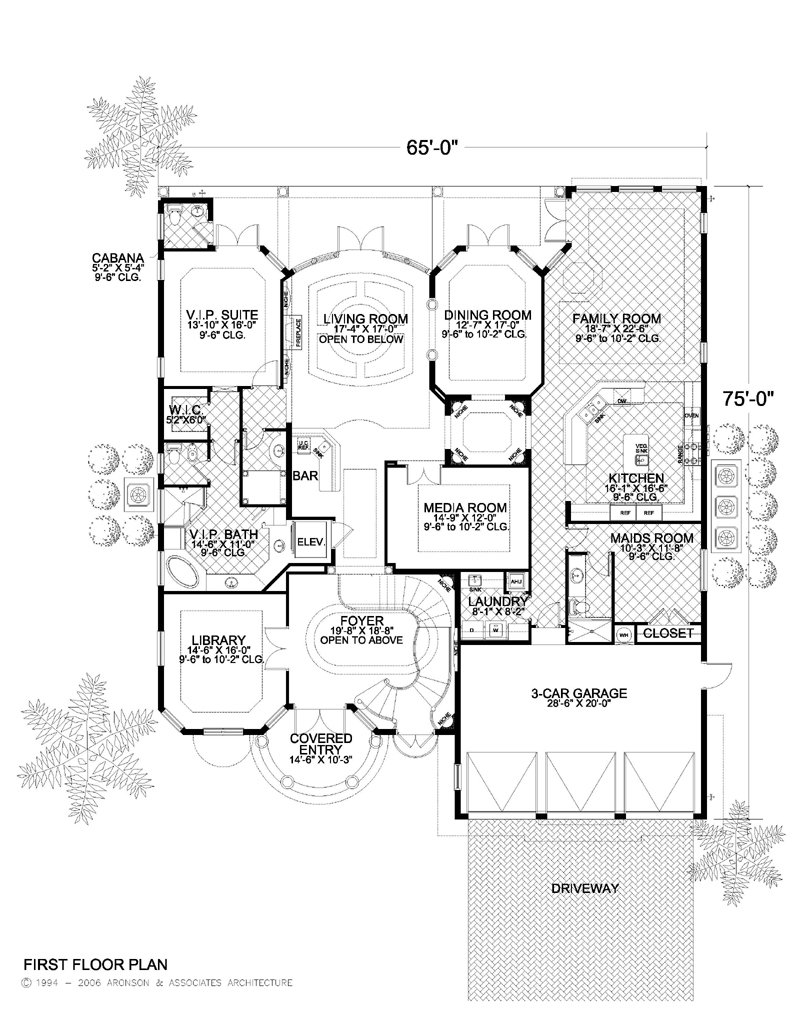

First Floor House Plan

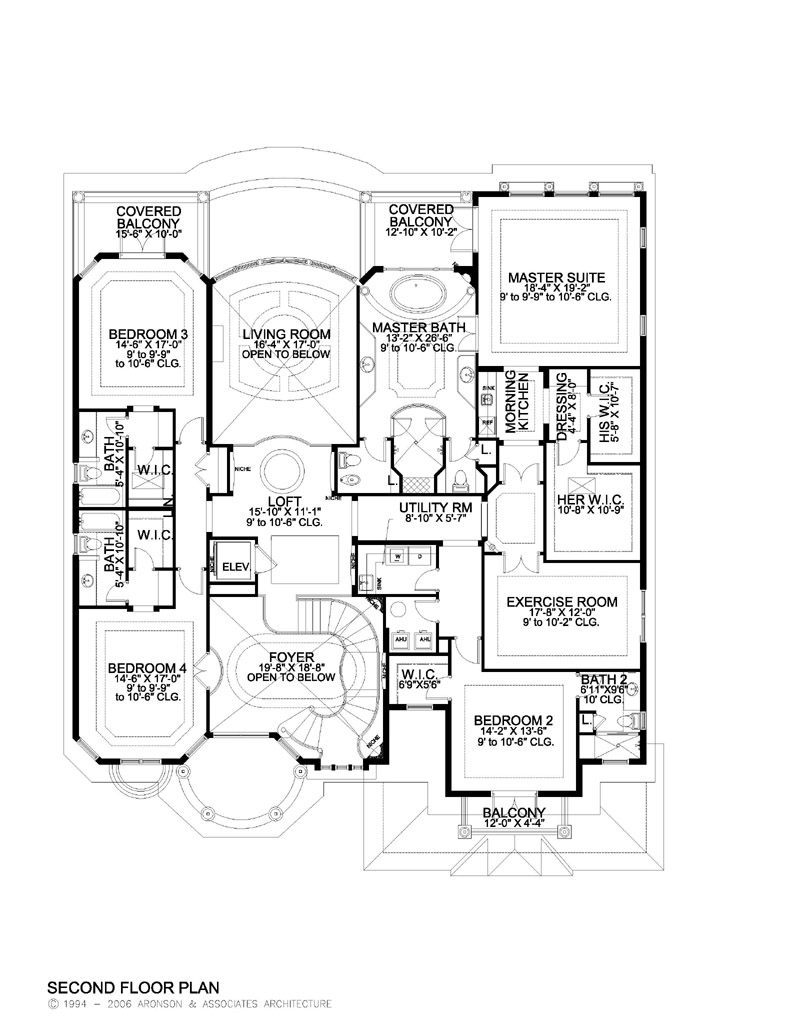

Second Floor House Plan
Front Elevation View of House
Rear Elevation View of House
Left Elevation View of House
Right Elevation View of Home
Beautiful Home Plans
Waterfront Home Plans
3 Car Garage
Luxury Homes
Luxury Homes
Luxury Homes
Waterfront Homes
Pool
Kitchen
Bathroom
Luxury Home Plans
First Floor House Plan
Second Floor House Plan
Front Elevation View of House
Rear Elevation View of House
Left Elevation View of House
Right Elevation View of Home
Beautiful Home Plans
Waterfront Home Plans
3 Car Garage
Luxury Homes
Luxury Homes
Luxury Homes
Waterfront Homes
Pool
Kitchen
Bathroom

Plan Summary

  • Stories

    2

  • Bedrooms

    6

  • Bathrooms

    7

  • Garage

    3 car

  • Width x Length

    65' x 75'

  • First Floor Sq Ft

    3515

  • Second Floor Sq Ft

    3149

  • Total AC Sq Ft

    6664

  • Total Under Roof Sq Ft

    7956

Order Plan
Compare Plan
Save Plan
Customize Plan

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

1

We are the "ONLY" house plans site that provides "Instant Downloads!" It's easy! Just three simple steps!

Let's get started!

You have found the plan you are looking for. Now all you have to do is select the "Instant Download", or the "Hard Copies" of the plans. With the instant download, there's no wait! If you want the hard copies, expect 7-10 business days unless otherwise specified within the "Shipping Method" section of the checkout area.

Instant Download

Saves time and money
Hard Copies

Additional shipping charges

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

PDF Files are a "Electronic" Set of Construction Documents in a "Digital Format", where multiple copies can be printed for (1) use. CAD Files are the actual "Computer Generated" Construction Documents (AutoCAD). The most versatile format for making modifications to your house plans, where multiple copies can also be printed for (1) use. Both, are the fastest way to receive your plans. SAVE on shipping costs and processing delays! Copyright release permits printing as many copies as needed for construction.

- More Information

- More Information

- More Information

Back Next

2

Almost there! What kind of "PACKAGE" would you like? Select one of the options below to continue.

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

  • - More Information

Back Next

3

One last thing: Would you like a "Reverse Plan" of your files? Select a "Reverse Plan"

This is it! All you have to do is select "Reverse Plan" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box. Thanks for your order!

Back Next

3

One last thing: Would you like any "Add-Ons" or "Additional Copies" of your files?

This is it! All you have to do is select any "Add-Ons" or "Additional Copies" that you may want. If you are satisfied with your order so far, and do not wish to add anything else to your order, simply click the "Next" button in the bottom right of this box.
And THANK YOU for your order!

Back Next

Billing Information

Back Next

Shipping Information

Back Next

Payment Information

Already have an account? Login now.

  • Amount displayed on Review Page.

Back Next

Plan Description

Beautiful, two story, 6,664 sq. ft., Florida Spanish Mediterranean-style home features six bedrooms, six and one-half bathrooms, a cabana bath and three-car garage. This home floor plan has a towering, covered entrance with eight-foot high French doors, arched transom, balconies, columns and arches all combine to display strong curb appeal and an opulent presence. The first story has a large living room with tray ceiling. A huge kitchen with an eating bar opens to the family room. This home offers a media room with wet bar and Billiard room for entertaining and recreation. The second story features a master bedroom suite with large walk-in closets, morning kitchen, tray ceilings and a regal master bathroom with additional storage which add to the luxury and elegance of this design. Get this home floor plan today.

Dimensions

  • Width x Length 65' x 75'
  • Height 29'-0
  • Stories 2/

Garage

  • Number of Cars 3
  • Attached Yes
  • Location right

Wall Construction

  • Interior Metal Stud
  • Exterior CMU Block
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 6
  • Possible 0
  • Total 6

Bathrooms

  • Full 7
  • Half 1
  • Total 7

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 2

Features

  • Fireplace Yes
  • Elevator Yes
  • Pool Yes
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $2000

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $3000

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $1500

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1600

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1700

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1850

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $2000

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type monolithic
  • Option 0

Floor System

  • Type concrete
  • Spacing 0
  • Subfloor Concrete
  • Thickness 0

Roof System

  • Type wood trusses
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. Tile
  • Wind Speed 140

First Floor

  • Primary Living 20'-6
  • Secondary Living 9'-6
  • Primary Bedrooms
  • Secondary Bedrooms 9'-6
  • Bathrooms 9'-6
  • Common Areas 9'-6

Second Floor

  • Primary Bedrooms 9'-0
  • Secondary Bedrooms 9'-0
  • Bathrooms 10'-0
  • Common Areas 9'-0

Exterior

  • Garage 0
  • Covered Entry 0
  • Covered Patio 0
  • Covered Balcony 0

Total AC Sq Ft

  • First Floor AC 3515
  • Second Floor AC 3149
  • Total AC 6664

Total Under Roof Sq Ft

  • Garage 617
  • Covered Entry 113
  • Covered Patio 335
  • Covered Balconies 227
  • Total Under Roof 7956
