PLAN SUMMARY
-
Stories
2
-
Bedrooms
6
-
Bathrooms
7
-
Garage
3 car
-
Width x Length:
80' " x 65' "
-
First Floor Sq Ft
3,539 Sq. Ft.
-
Second Floor Sq Ft
3,140 Sq. Ft.
-
Total AC Sq Ft
6,679 Sq. Ft.
-
Total Under Roof Sq Ft
8,327 Sq. Ft.
$0.00
Plan Description

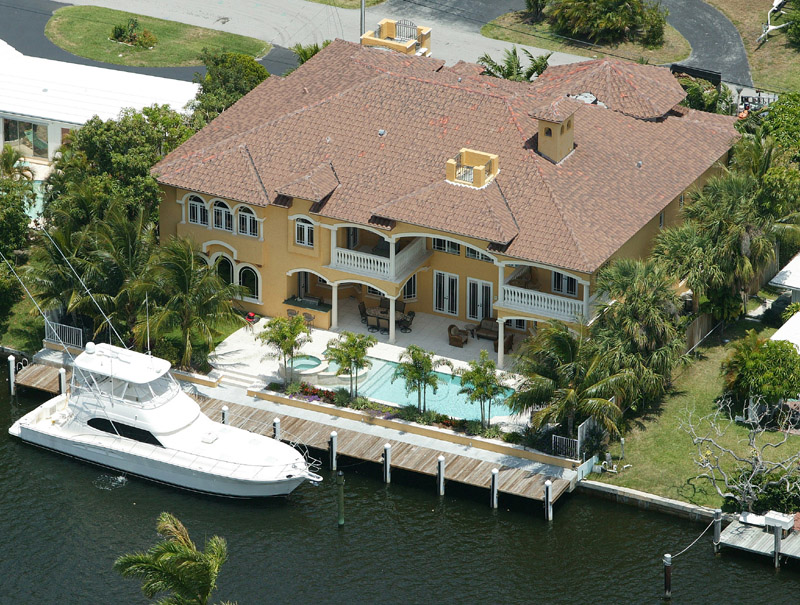

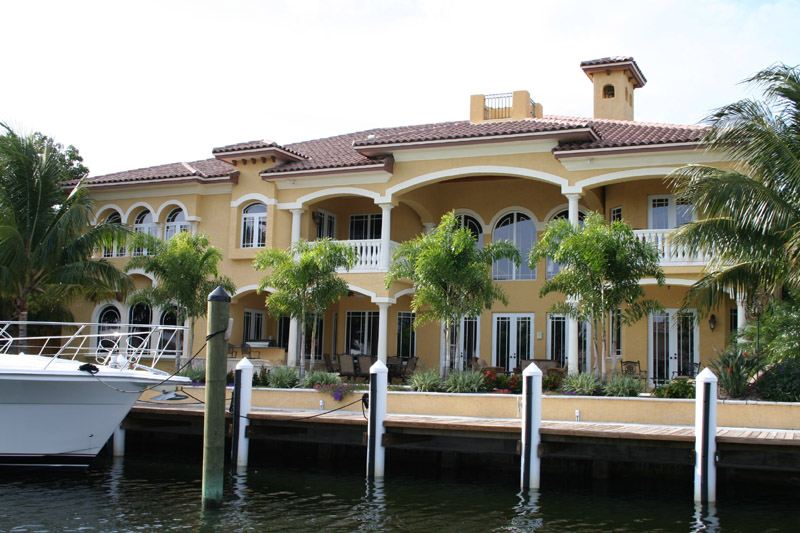

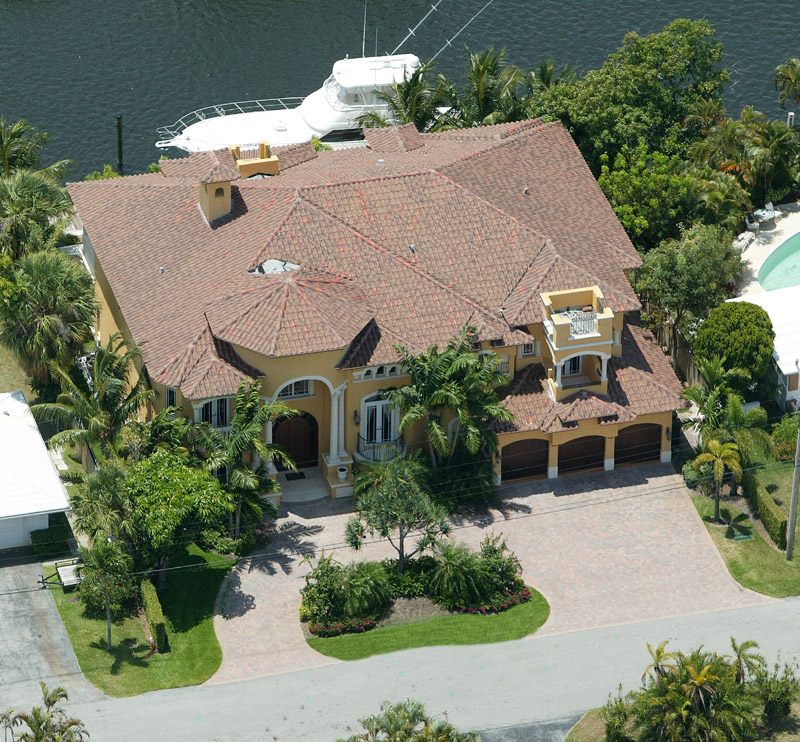

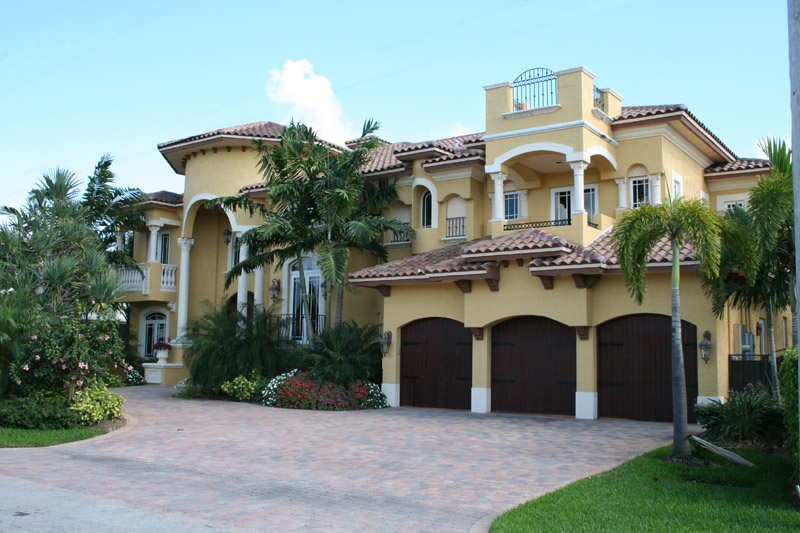

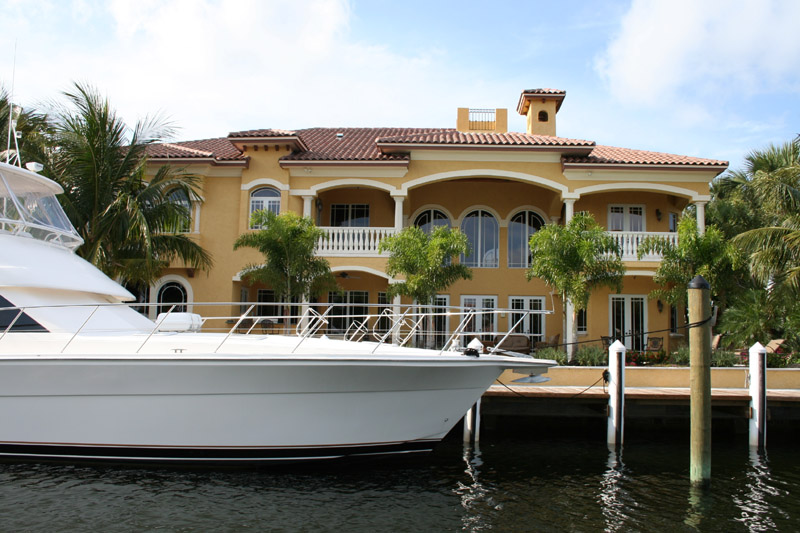

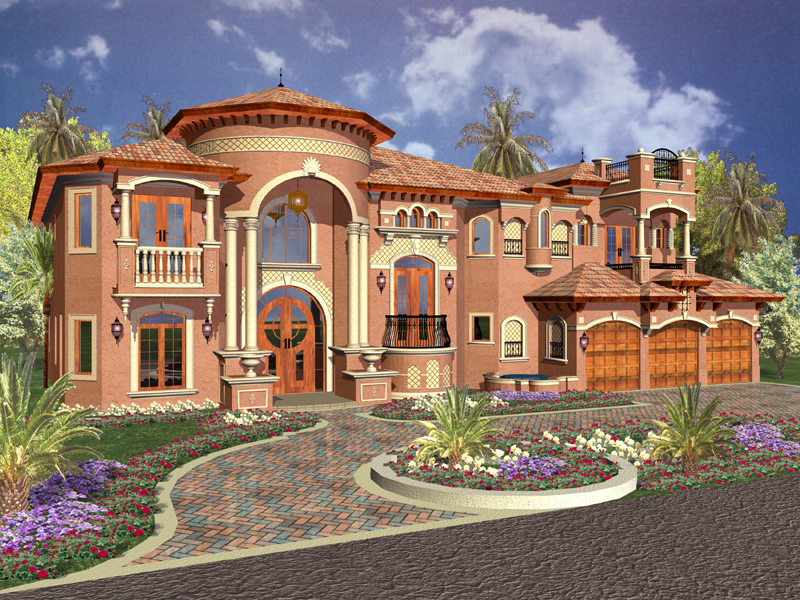

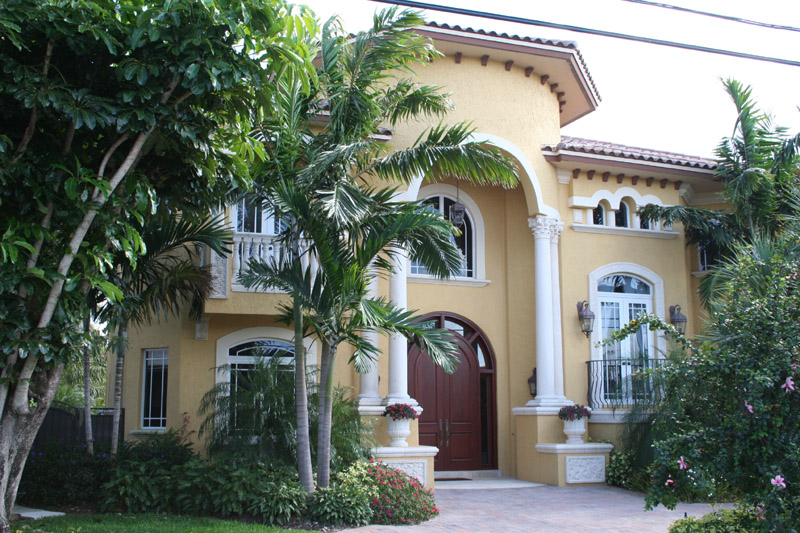

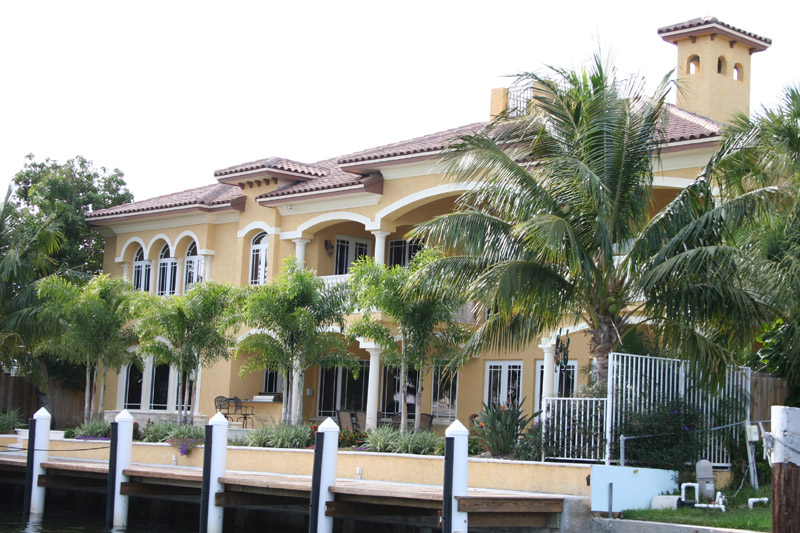

Luxurious, two-story, 6,679 sq. ft., classic Mediterranean-style home plan features six bedrooms, six and one-half bathrooms, a cabana bath, balconies, terraces, patios and a three-car garage. Columns, arches and a towering, covered entrance provide strong curb appeal. The first story features a gourmet kitchen with an eating bar, cafe and pantry, family room, a two-story living room with tray ceilings and a fireplace, a cozy library and den. The second story features an exclusive master bedroom suite with large “His and Hers” walk-in closets, stylish tray ceiling design, a sitting area, morning kitchen and a luxurious master bath with a private balcony. The additional, generous bedrooms with bathrooms in this home plan makes it a place to accommodate a large family or overnight guests. Get this home floor plan today.
Dimensions
-
Width x Length
80' " x 65' "
-
Height
27'-8
-
Stories
2/
Garage
-
Number of Cars
3
-
Attached
Yes
-
Location
Both
Wall Construction
-
Interior
Metal Stud
-
Exterior
CMU Block
-
Insulation
-
CMU Wall
R-4.1
-
Wood Wall
R-19
-
Framed Wall
R-11
Bedrooms
-
Actual
6
-
Possible
0
-
Total
6
Bathrooms
-
Full
7
-
Half
1
-
Total
7

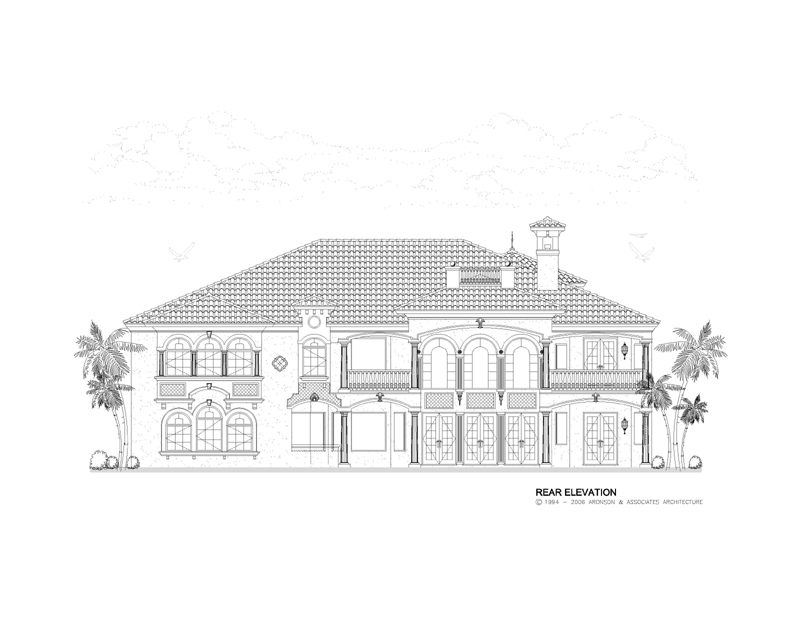

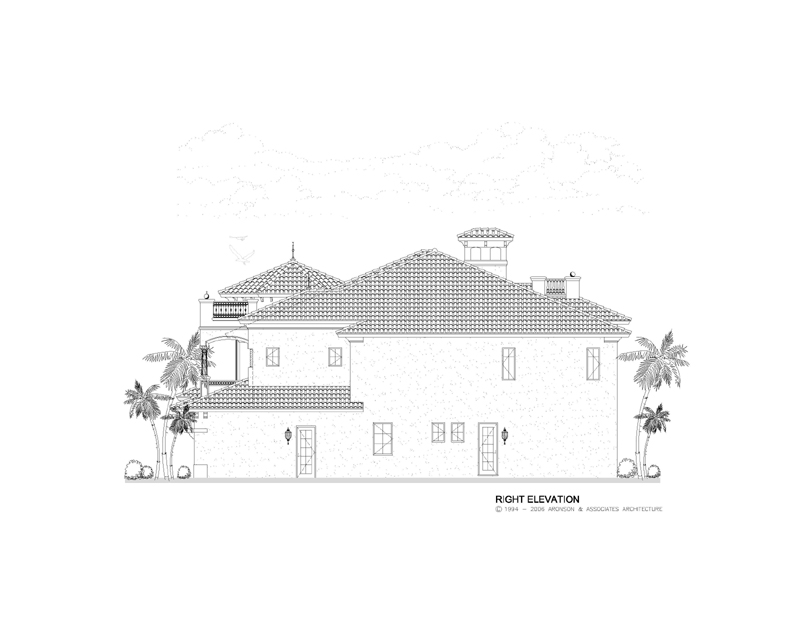

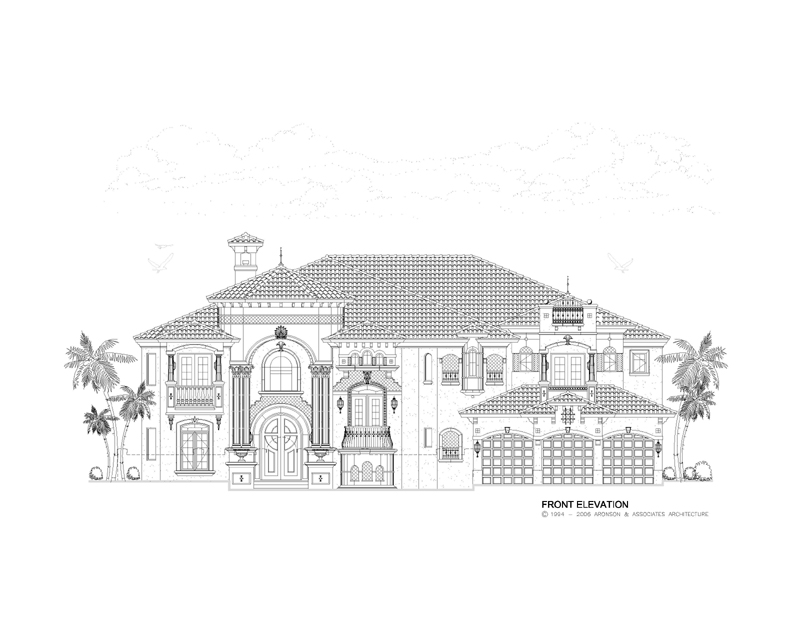

Elevation
-
Finishes
Stucco
-
Master Bedroom Location
2
-
Utility Location
1
Features
-
Fireplace
Yes
-
Elevator
Yes
-
Pool
Yes
Instant Download Only
1 Study Set Price: $150
PDF Files Price: $2000
CAD Disk Price: $3000
Reverse PDF Price: $2250
Reverse CAD Price: $3250
Study Set Reverse Price: $200
Hard Copies (Shipped)
Base Price: $1500
3 Sets Price: $1600
5 Sets Price: $1700
8 Sets Price: $1850
Reproducible Vellum Price: $2000
Base – Not for Construction Price: $1500
3 Sets (Reverse) Price: $1950
5 Sets (Reverse) Price: $1950
8 Sets (Reverse) Price: $2100
Reproducible Vellum (Reverse) Price: $2250
Foundation Type
-
Type
Grade Beams/Piling
-
Option
0
Floor System
-
Type
concrete
-
Spacing
0
-
Subfloor
Concrete
-
Thickness
0
Roof System
-
Type
Wood trusses
-
Options
0
Additional Information
-
Roof Pitch
5:12
-
Roof: Live Load
30
-
Roof: Dead Load
25
-
Floor: Live Load
40
-
Floor: Dead Load
25
-
Roof Material
C. Tile
-
Wind Speed
140

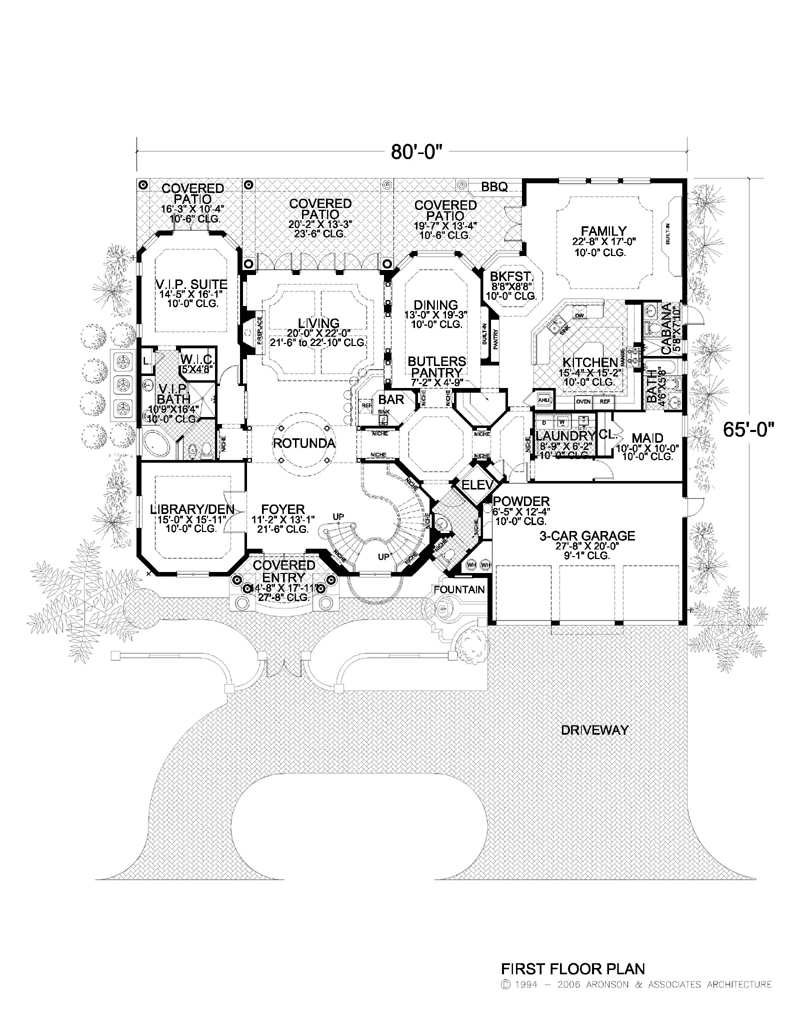

First Floor
-
Primary Living
21'-0
-
Secondary Living
10'-0
-
Primary Bedrooms
-
Secondary Bedrooms
10'-0
-
Bathrooms
9'-10
-
Common Areas
9'-6

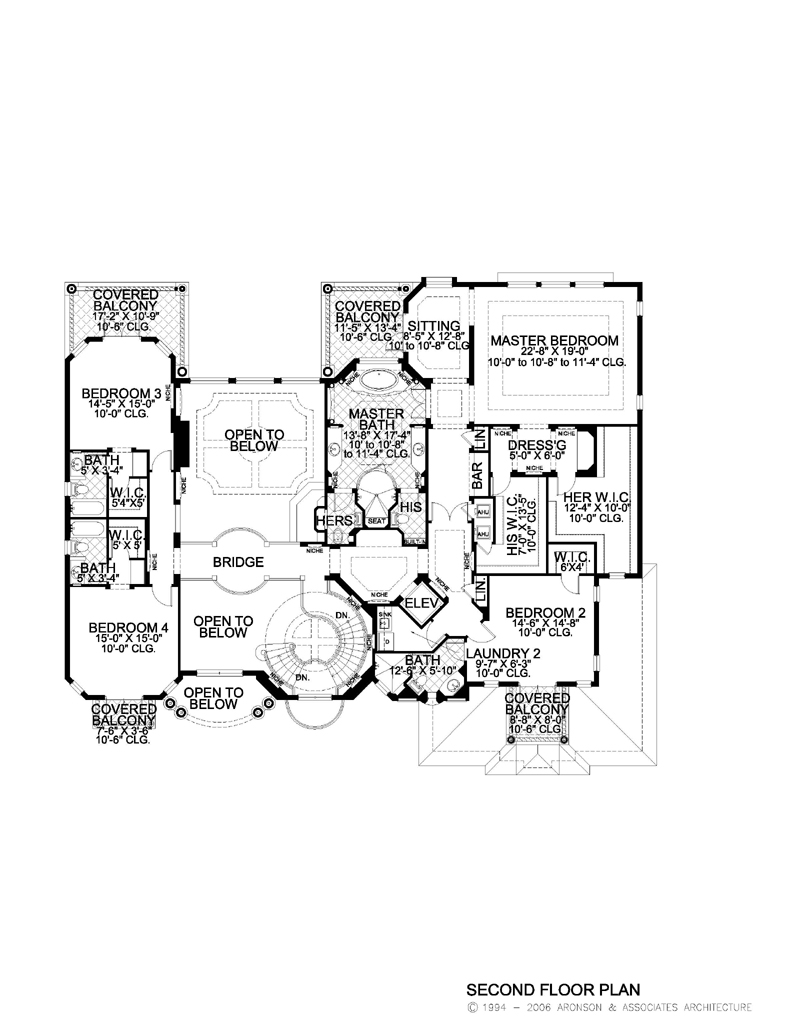

Second Floor
-
Primary Bedrooms
9'-0
-
Secondary Bedrooms
9'-0
-
Bathrooms
9'-0
-
Common Areas
0
Exterior
-
Garage
0
-
Covered Entry
0
-
Covered Patio
10'-0
-
Covered Balcony
0
Total AC Sq Ft
-
First Floor AC
3539
-
Second Floor AC
3140
-
Total AC
6679
Total Under Roof Sq Ft
-
Garage
616
-
Covered Entry
84
-
Covered Patio
626
-
Covered Balconies
322
-
Total Under Roof
8327
