House Plan Model 6741-0517

Browsing: By Two Story

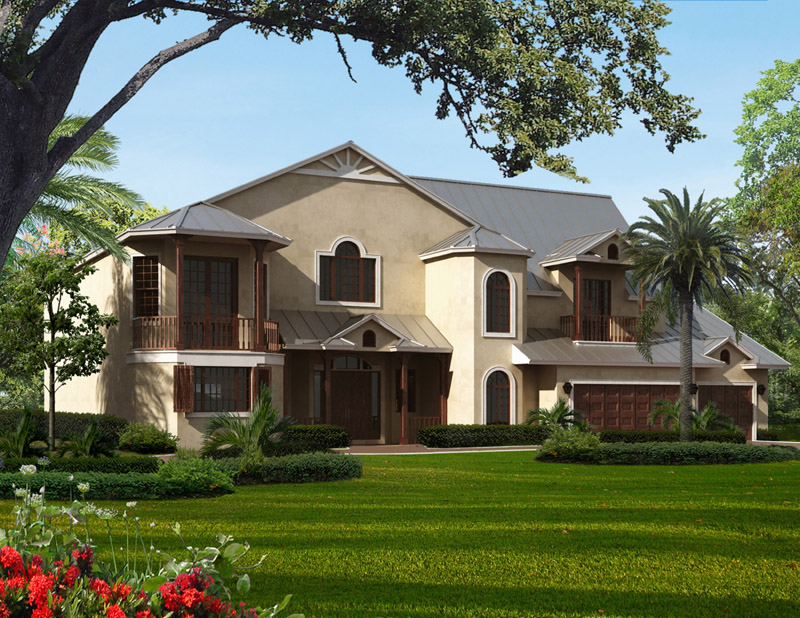

Luxury House

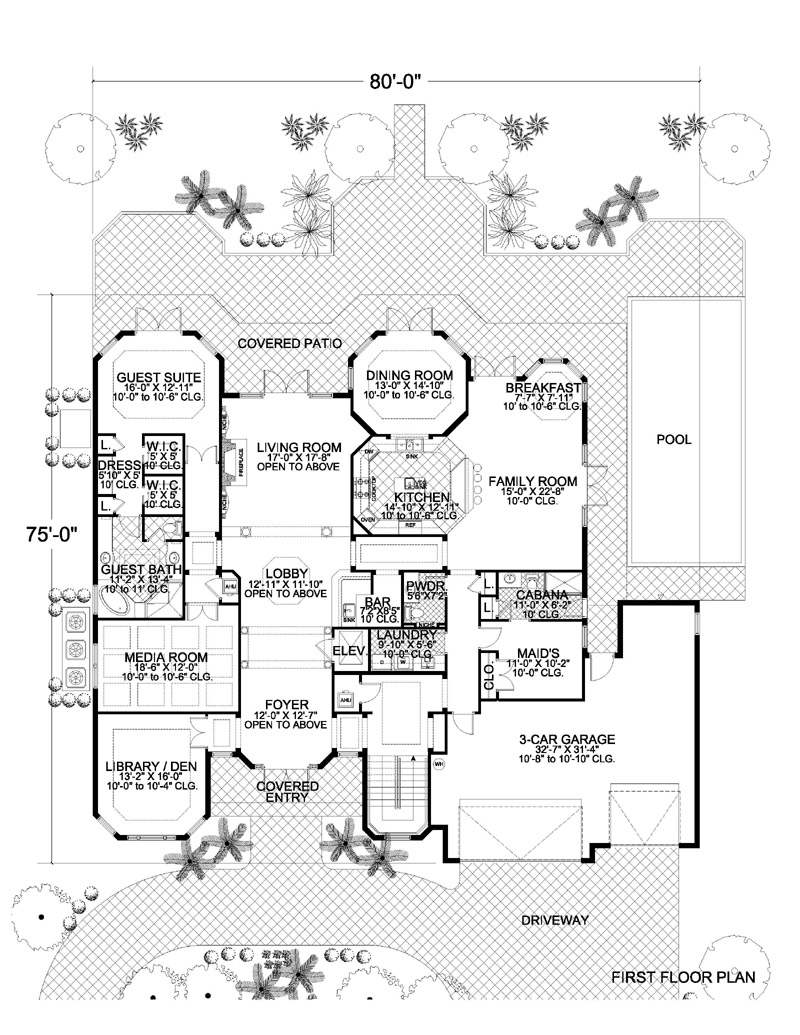

First Floor House Plan

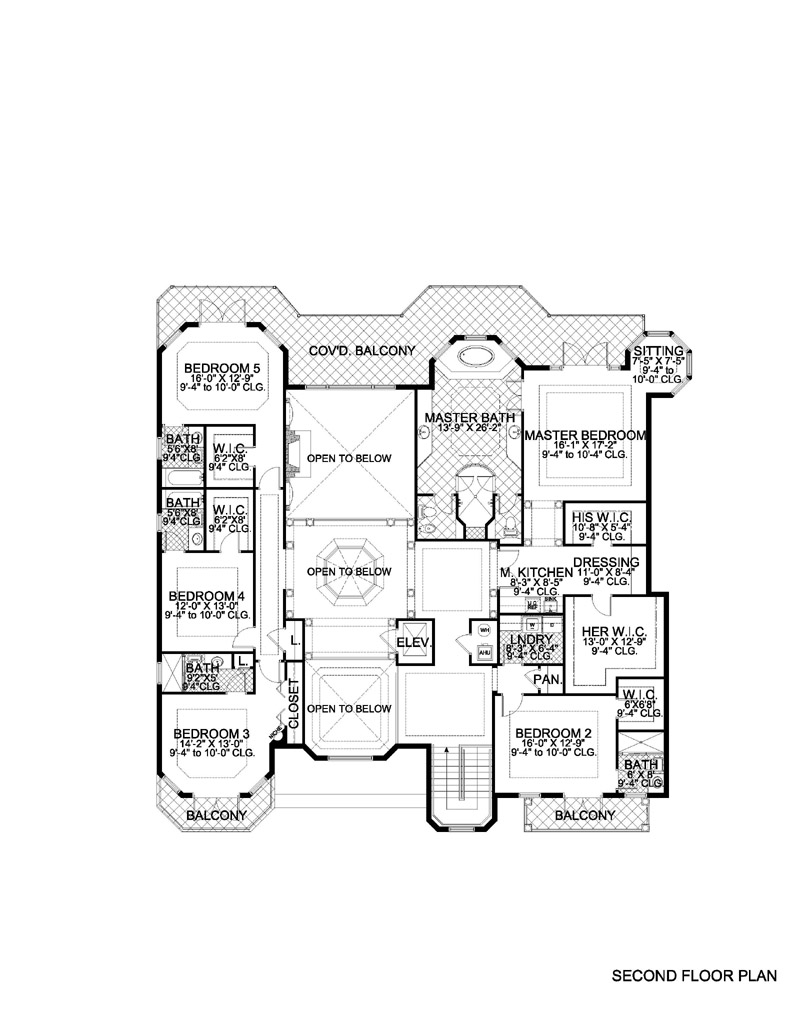

Second Floor House Plan

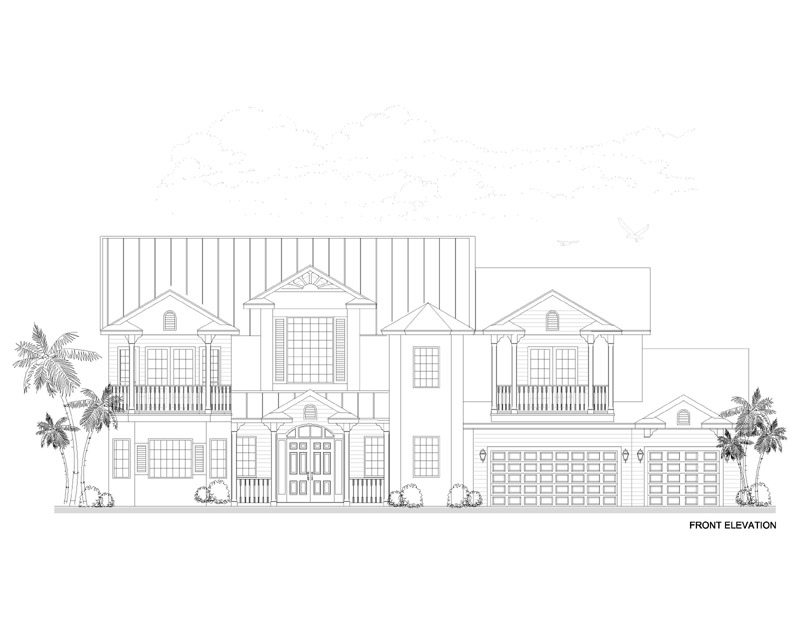

Front Elevation View of House
Luxury House
First Floor House Plan
Second Floor House Plan
Front Elevation View of House

Plan Summary

  • Stories

    2

  • Bedrooms

    6

  • Bathrooms

    5

  • Garage

    3 car

  • Width x Length

    80' x 75'

  • First Floor Sq Ft

    3569

  • Second Floor Sq Ft

    3172

  • Total AC Sq Ft

    6741

  • Total Under Roof Sq Ft

    8990

Share your dream home with your friends

"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!

This plan is restricted.

Please call 1-855-PLANS-123 (1-954-736-4696) for more information

Plan Description

This stately, elegant and spacious, 6,741 sq. ft., Colonial-inspired manor features a “wealth” of magnificent amenities including, six bedrooms, five and a half bathrooms, a large, vaulted ceiling living room with a full-size wet. The gourmet island kitchen is centrally located and of smart design with a breakfast nook, butler’s pantry and a view into the family room. This home floor plan features a luxurious master suite “fit for a King and his Queen” with exceptionally large “His and Her” walk-in closets, stylish tray ceiling design, a morning kitchen and sitting area opening onto a private balcony. To add to the attraction of this design, there is an enormous covered patio that brings outdoor activities close to home and provides ambiance of natural lighting and a spectacular view. Get this elegant and spacious home floor plan today.

Dimensions

  • Width x Length 80' x 75'
  • Height 33'-8
  • Stories 2/

Garage

  • Number of Cars 3
  • Attached No
  • Location Right

Wall Construction

  • Interior Metal Stud
  • Exterior CMU Block
  •

Insulation

  • CMU Wall R-4.1
  • Wood Wall R-19
  • Framed Wall R-11

Bedrooms

  • Actual 6
  • Possible 0
  • Total 6

Bathrooms

  • Full 5
  • Half 1
  • Total 5

Elevation

  • Finishes Stucco
  • Master Bedroom Location 2
  • Utility Location 2

Features

  • Fireplace Yes
  • Elevator Yes
  • Pool Yes
Instant Download Only

1 Study Set Price: $150

  • (Extra Sets: $50)
  • More Information

PDF Files Price: $2000

  • (Extra Sets: $150)
  • More Information

CAD Disk Price: $3000

  • (Extra Sets: $500)
  • More Information
Hard Copies (Shipped)

Base Price: $1500

  • (Extra Sets: $50)
  • More Information

3 Sets Price: $1600

  • (Extra Sets: $50)
  • More Information

5 Sets Price: $1700

  • (Extra Sets: $50)
  • More Information

8 Sets Price: $1850

  • (Extra Sets: $50)
  • More Information

Reproducible Vellum Price: $2000

  • (Extra Sets: $150)
  • More Information

Foundation Type

  • Type Monolithic
  • Option 0

Floor System

  • Type Wood Truss
  • Spacing 2'-0
  • Subfloor 0
  • Thickness 0

Roof System

  • Type 0
  • Options 0

Additional Information

  • Roof Pitch 5:12
  • Roof: Live Load 30
  • Roof: Dead Load 25
  • Floor: Live Load 40
  • Floor: Dead Load 25
  • Roof Material C. Tile
  • Wind Speed 140

First Floor

  • Primary Living Open to above
  • Secondary Living 9'-6
  • Primary Bedrooms 0
  • Secondary Bedrooms 9'-6
  • Bathrooms 9'-6
  • Common Areas 0

Second Floor

  • Primary Bedrooms 10'-0
  • Secondary Bedrooms 10'-0
  • Bathrooms 10'-0
  • Common Areas 10'-0

Exterior

  • Garage 9'-9
  • Covered Entry 10'-0
  • Covered Patio 10'-0
  • Covered Balcony 10'-6

Total AC Sq Ft

  • First Floor AC 3569
  • Second Floor AC 3172
  • Total AC 6741

Total Under Roof Sq Ft

  • Garage 873
  • Covered Entry 139
  • Covered Patio 621
  • Covered Balconies 476
  • Total Under Roof 8990
