House Plans
Plan Summary
-
Stories
2
-
Bedrooms
7
-
Bathrooms
7
-
Garage
2 car
-
Width x Length
86'1" x 109'8"
-
First Floor Sq Ft
4211
-
Second Floor Sq Ft
3291
-
Total AC Sq Ft
7502
-
Total Under Roof Sq Ft
9489
"ORDERING " ANY OF OUR ARCHITECT HOUSE PLANS IS AS "SIMPLE" AS "1-2-3" - JUST FOLLOW THE "THREE" EASY STEPS BELOW!!!
Plan Description
Few homes compare to this grand 7502 sq. ft., Mediterranean-style, two-story design featuring stately columns and arched windows. Dramatic arches, columns and a clean stucco exterior give this sprawling, seven bedroom, seven and one-half bathroom-home a unique appeal. The centerpiece of this design is a magnificent parlor with twin-curved staircases that are sure to impress as invitees move from the foyer into the vaulted-ceiling living room where a fireplace adds to the ambiance. A large island kitchen complete with butler’s pantry and eating bar opens to the family room, menu desk and breakfast nook make this the ultimate center of activity. It is surrounded by an array of covered patios. This is a home floor plan perfect for entertaining both for its interior and exterior. A secluded master suite complete with an exercise room, large walk-in closets and a morning kitchen will make this a pleasurable home for the entire family. If you seek the ultimate in luxurious living, consider this design with it many features including, bedrooms with balconies, large billiard room, spacious, raised ceilings, additional storage areas and a guest suite with a private entrance. Get this home floor plan today.
Dimensions
- Width x Length 86'1" x 109'8"
- Height 29'
- Stories 2/
Garage
- Number of Cars 2
- Attached No
- Location Left
Wall Construction
- Interior Metal stud
- Exterior CMU
Insulation
- CMU Wall R-4.1
- Wood Wall R-19
- Framed Wall R-11
Bedrooms
- Actual 7
- Possible 0
- Total 7
Bathrooms
- Full 7
- Half 1
- Total 7
Elevation
- Finishes Stucco
- Master Bedroom Location 2
- Utility Location 2
Features
- Fireplace Yes
- Elevator No
- Pool Yes
Instant Download Only
1 Study Set Price: $150
- (Extra Sets: $50)
- More Information
PDF Files Price: $2200
- (Extra Sets: $150)
- More Information
CAD Disk Price: $3300
- (Extra Sets: $500)
- More Information
Hard Copies (Shipped)
Base Price: $1700
- (Extra Sets: $50)
- More Information
3 Sets Price: $1800
- (Extra Sets: $50)
- More Information
5 Sets Price: $1900
- (Extra Sets: $50)
- More Information
8 Sets Price: $2050
- (Extra Sets: $50)
- More Information
Reproducible Vellum Price: $2200
- (Extra Sets: $150)
- More Information
Foundation Type
- Type Gr. bms/piling
- Option 0
Floor System
- Type Concrete
- Spacing 0
- Subfloor
- Thickness 0
Roof System
- Type Wood trusses
- Options 0
Additional Information
- Roof Pitch 5:12
- Roof: Live Load 30
- Roof: Dead Load 25
- Floor: Live Load 40
- Floor: Dead Load 25
- Roof Material C. tile
- Wind Speed 140

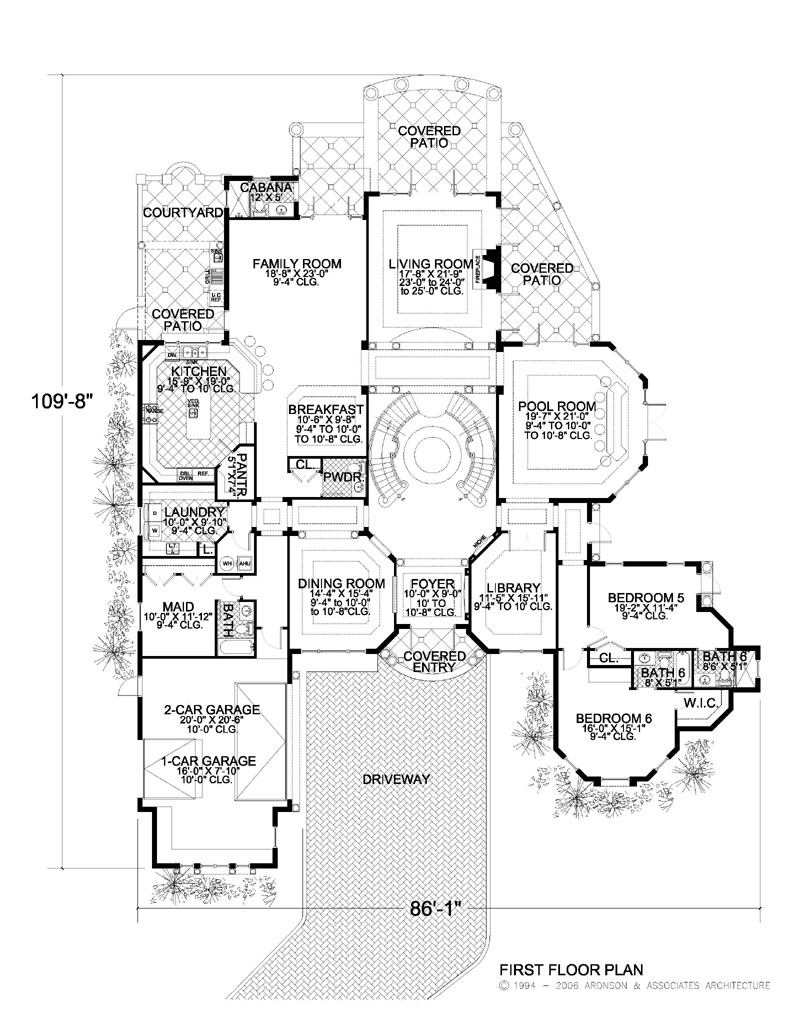

First Floor
- Primary Living 23' to 25'
- Secondary Living 9'-4
- Primary Bedrooms
- Secondary Bedrooms 9'-4
- Bathrooms 0
- Common Areas 9'-4

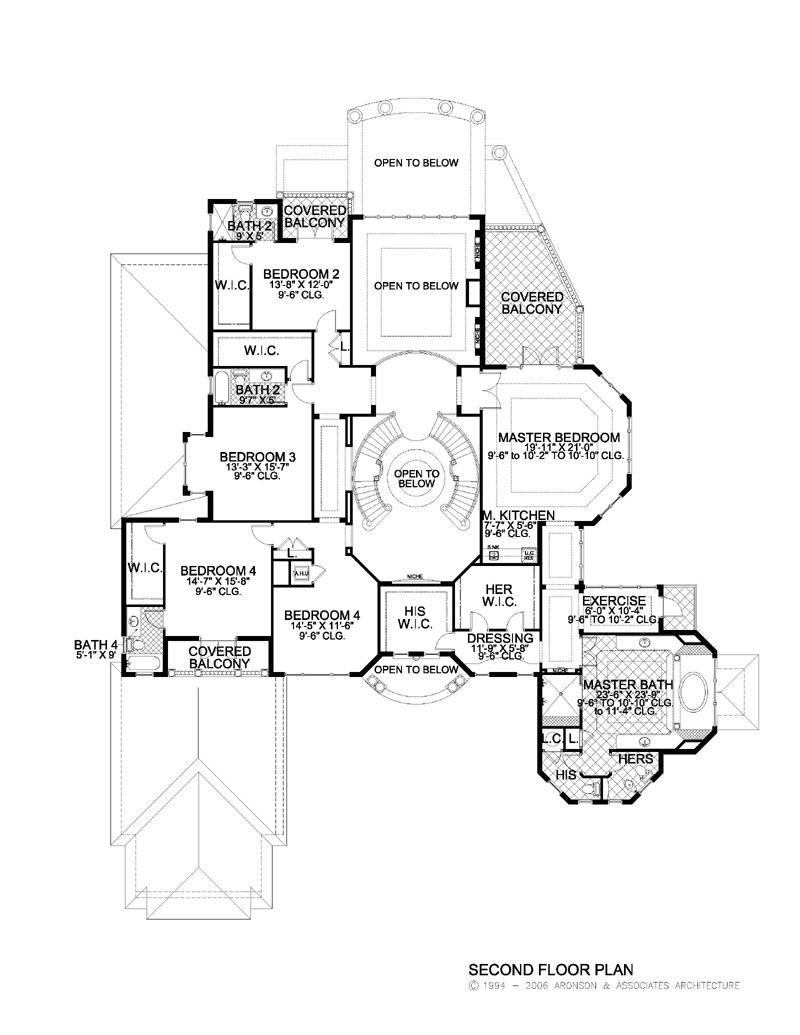

Second Floor
- Primary Bedrooms 9'-6
- Secondary Bedrooms 9'-6
- Bathrooms 9'-6
- Common Areas 11'-6
Exterior
- Garage 10'
- Covered Entry 23'-0
- Covered Patio 23'-0
- Covered Balcony 0
Total AC Sq Ft
- First Floor AC 4211
- Second Floor AC 3291
- Total AC 7502
Total Under Roof Sq Ft
- Garage 671
- Covered Entry 80
- Covered Patio 871
- Covered Balconies 365
- Total Under Roof 9489
